Water used membrane filter press for mining slurry processing equipment

Zhengzhou Toper is the leading filter press supplier in China, and also the professional exporter and service provider of filter and separation equipment, we forcus on full service for filtering project from decign to after sales service and fast supply of spare parts.

From 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more countries and areas excluding China mainland. like, Southeast Aisa, West Asia, Northeast Asia, Middle East, Europe, NorthAmerica,South America, Africa.



We manufacture membrane filter press matching international standards and quality. With acid and alkali corrosion resistance, non-toxicness and high temperature resistance, good sealing performance and long service life. It has a novel construction, nice appearance, flexible movement, convenient operation and wear well.



Our membrane filter press technology is gaining increased acceptance because it reduces subsequent processing or disposal costs for filter cake. In many applications the membrane filter press significantly reduces residual moisture content, making this technology attractive for new plants and for upgrading existing facilities. In both cases the careful selection of plate and membrane materials is essential to the successful performance of the process.



Two effective characteristics of this membrane filter press,

Improved Cake Washing: Our membrane chamber filter presses improve cake washing by initiating a low-pressure pre-squeeze before the wash cycle is begun. This pre-squeeze eliminates channeling (cracks and less well-formed areas of the cake) and produces a uniform, homogeneous filter cake and optimum wash efficiency.



Highest Cake Solids: By applying a high pressure squeeze to the filter cake you can produce the final cake with solids content from 50 to 100% greater than can be achieved with conventional filter presses. This is important for both maximum yield, where a high value liquid is your product, or high solids-content, where reduced moisture in the final cake is critical.



Application of this membrane filter press,

1) Chemical:Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

2)Foods:Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

3)Sewage:Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4) Pharmacy:Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood

5) Pottery clay:Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Metallurgy, coal, gold, silver, copper, zinc ore mineral powder, etc

7) Petroleum:Diesel oil, sesame oil, shortening dewaxing etc



Parameters of our all membrane filter press.

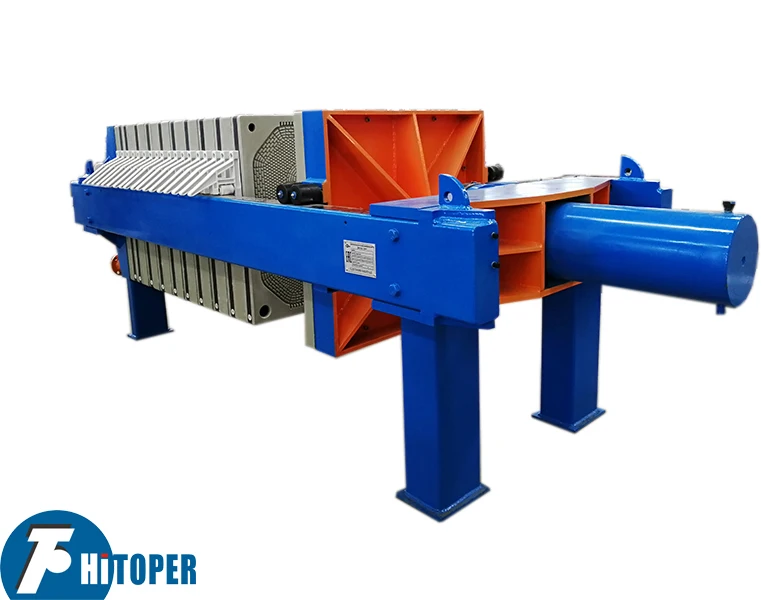

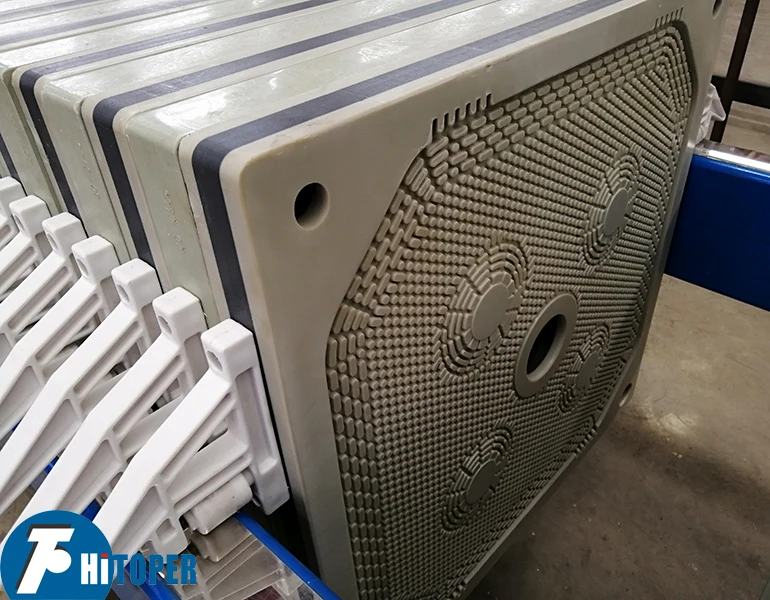

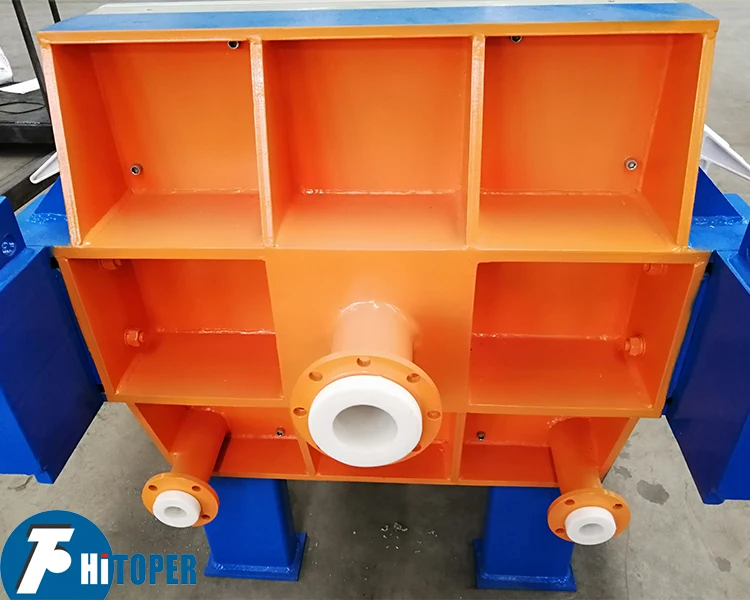

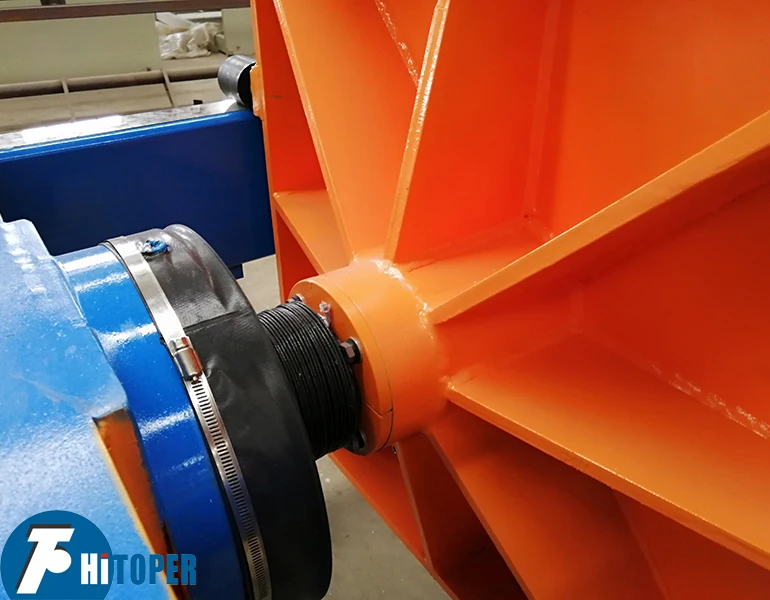

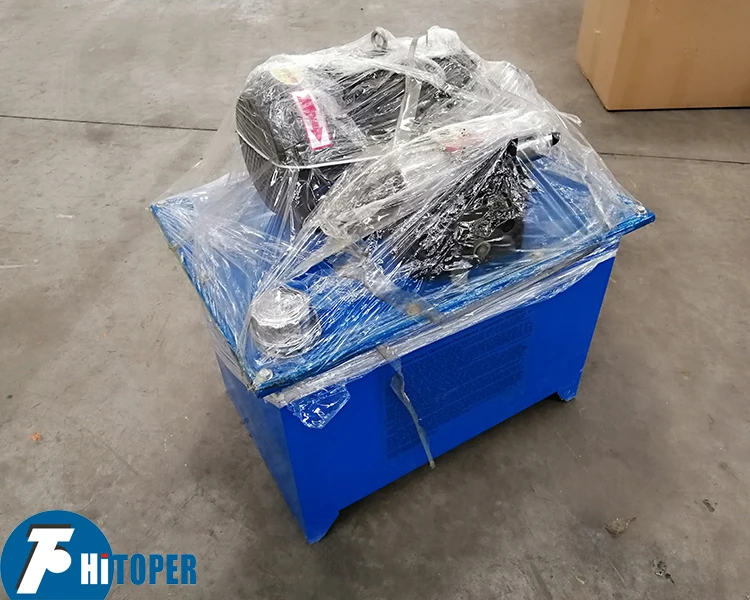

Detail pictures of this membrane filter press XGY20/870-30U:
