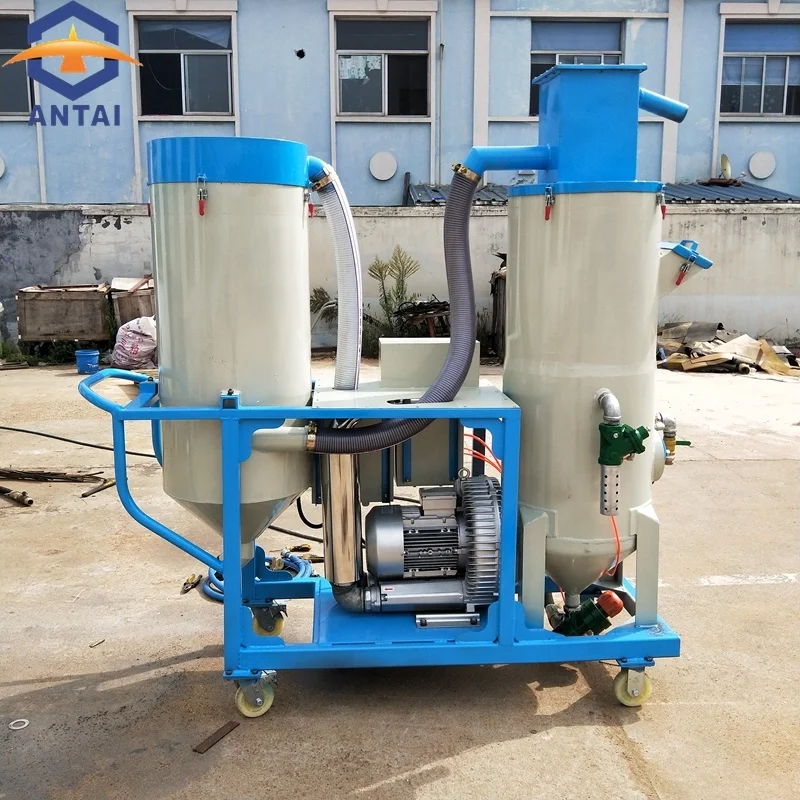

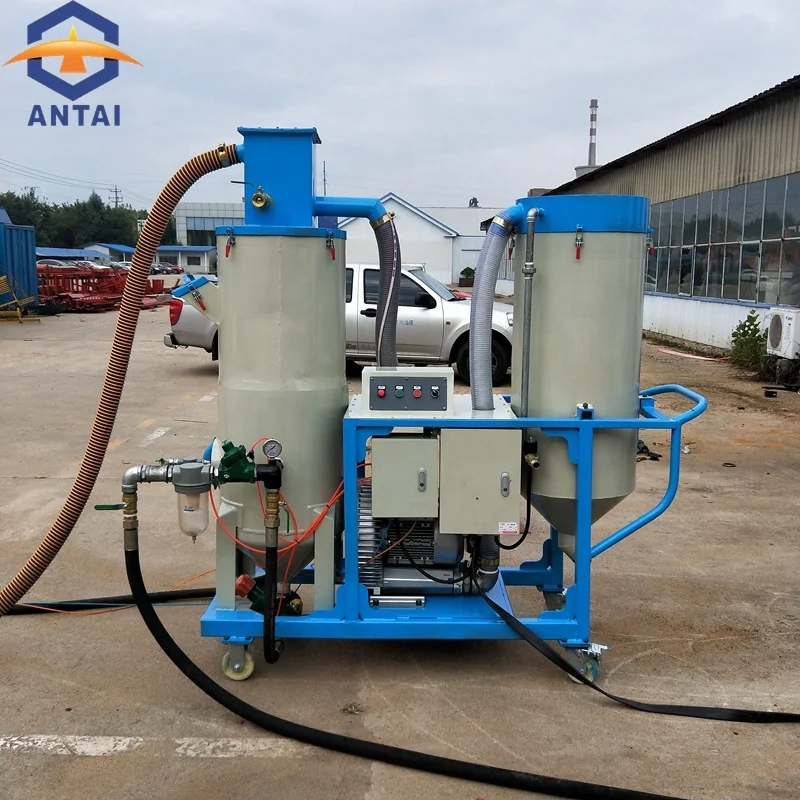

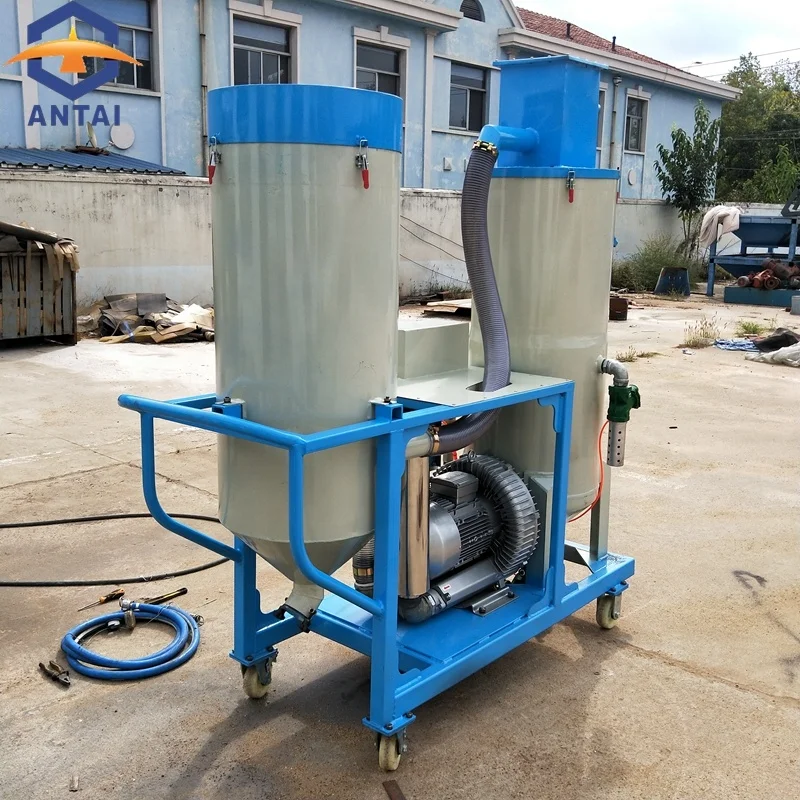

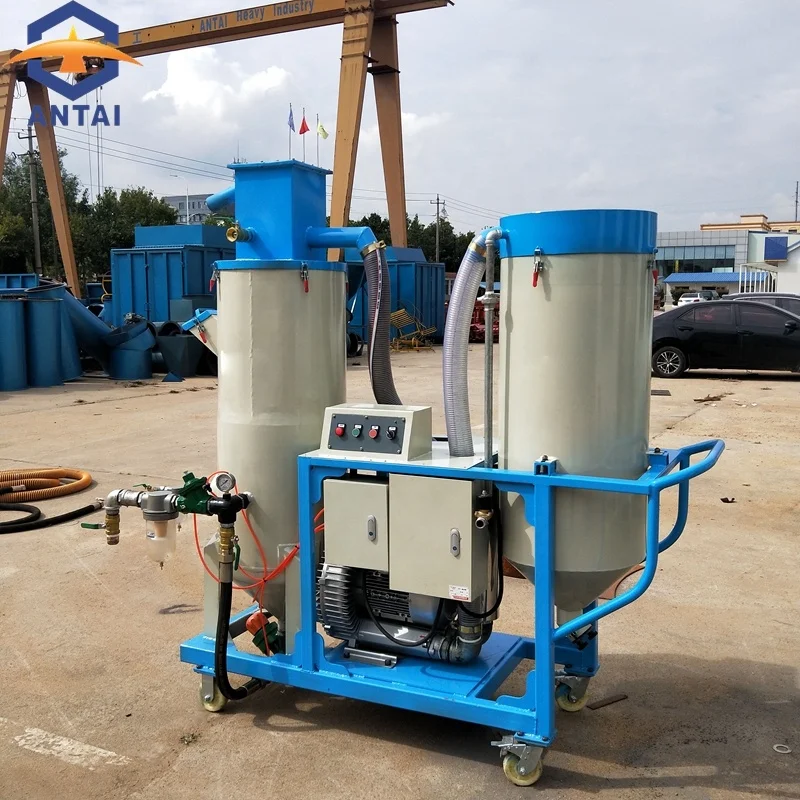

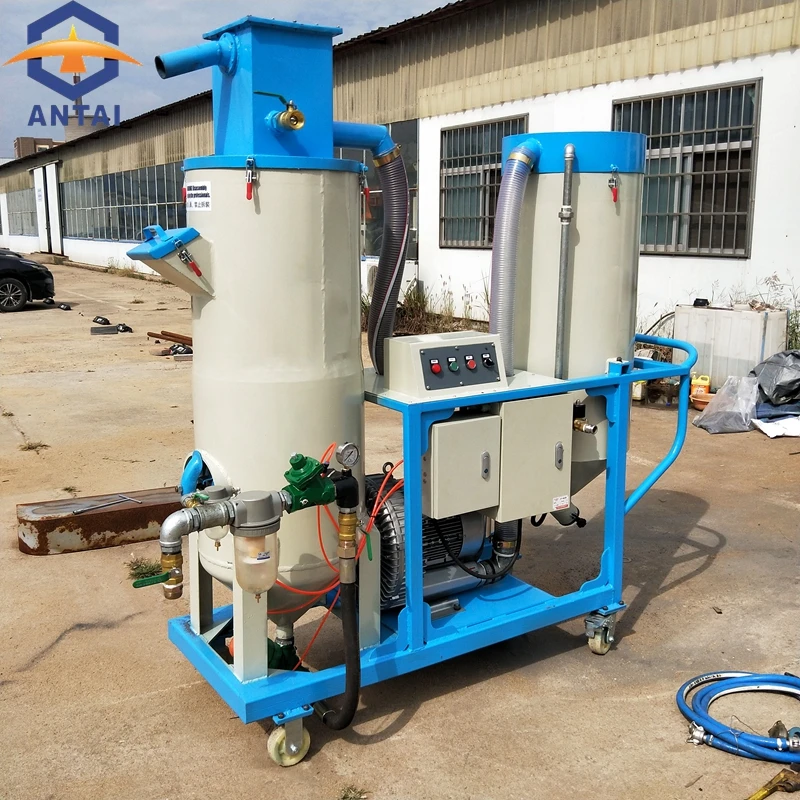

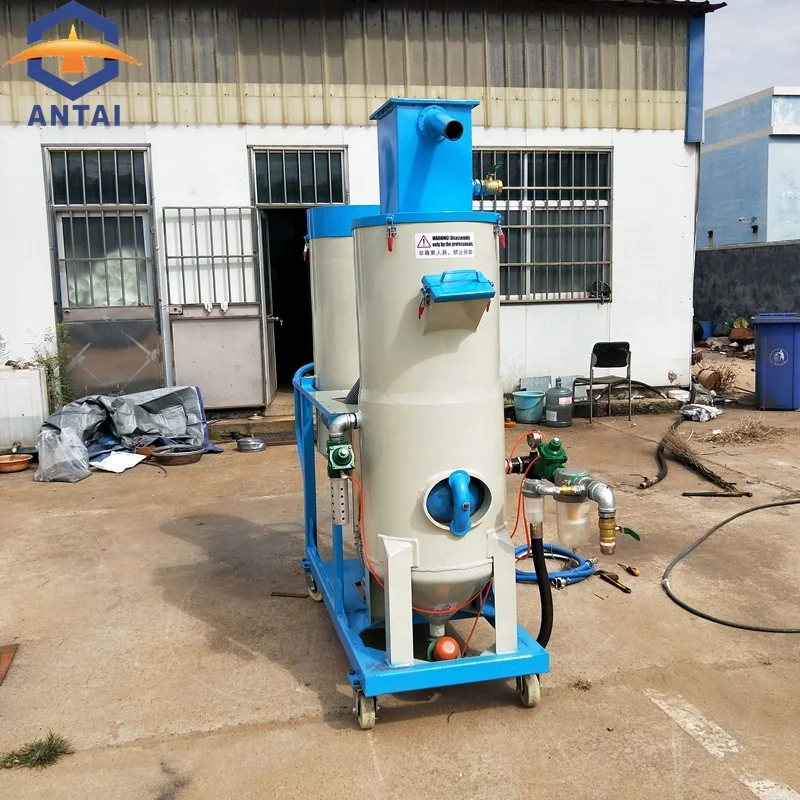

Mobile abrasive blasting and recovery system

Mobile abrasive blasting and recovery systemfeatures an integrated blast pot, media vacuum recovery system, and dust collection all in a single compact unit(consists of suction blast machine with remote control, blast hose, blast head assembly, reclaimer & separator and pneumaticlly generated abrasive recovery system, dust collector and cart). it is widely used for descaling, surface texturing, and paint preparation, mainly used to clean rust removing at oil field, container renew, etc, and pneumaticlly generated abrasive recovery system makes it to be used without dust and disposal problem.

Blast and recovery systems can be used to simultaneously blast and recover (closed circuit blasting) or can be used for open air blast and then subsequent abrasive clean-up.

Simultaneous blast and recovery eliminates dust clouds, poor visibility and costly clean-up. The capability of independent blast and recovery makes the BRS a productive and versatile tool suitable to many different applications.

Vacuum Blasting is ideal for big objects such as ship hulls, large tanks and concrete bridge surfaces.

Features :

1. Portable system used for lead and asbestos abatement, indoor blasting, bridge and road maintenance, building restoration and other steel and concrete cleaning applications

2. Flexible system can blast and recover simultaneously or independently

3. Available in 2.0, 3.5 and 6.5 cu. ft. systems with pneumatic or electric remote controls

4. Cyclone has large, quick-opening access door and two-part screen with removable center for easy access

5. Optional, adjustable, air wash cyclone improves abrasive cleaning

6. Automatic pulse jet prevents clogging of dust filters

7. Quick opening hatches make cartridges and filters easy to remove and replace

8. Urethane eductor pump is available with 225, 350, 440, or 550 cfm nozzle

9. Moisture separator and media vibrator ensure even flow of abrasive

Technical specifications	AT250-LXI	AT250-LXII
Operating pressure	0.3 ~ 0.7 MPa	0.3 ~ 0.7 MPa
Air consumption	2 - 3 m3/min	3 - 4 m3/min
Power consumption	Compressed air and electricity	Compressed air only
Vacuum	16.7KPa	---
Vacuum pump	160m3/h, 2.2kw	---
Abrasive storage hopper	80 liters Approx	60 liters Approx
Operting hose length	5 meter max	5 meter max
Blast cleaning	Sa2.5-Sa3.0	Sa2.5-Sa3.0
Process capacity	2-3m2/h	2-3m2/h
Blast cycle	Continuous	Continuous
Recommend media	steel shot, sand



 If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
