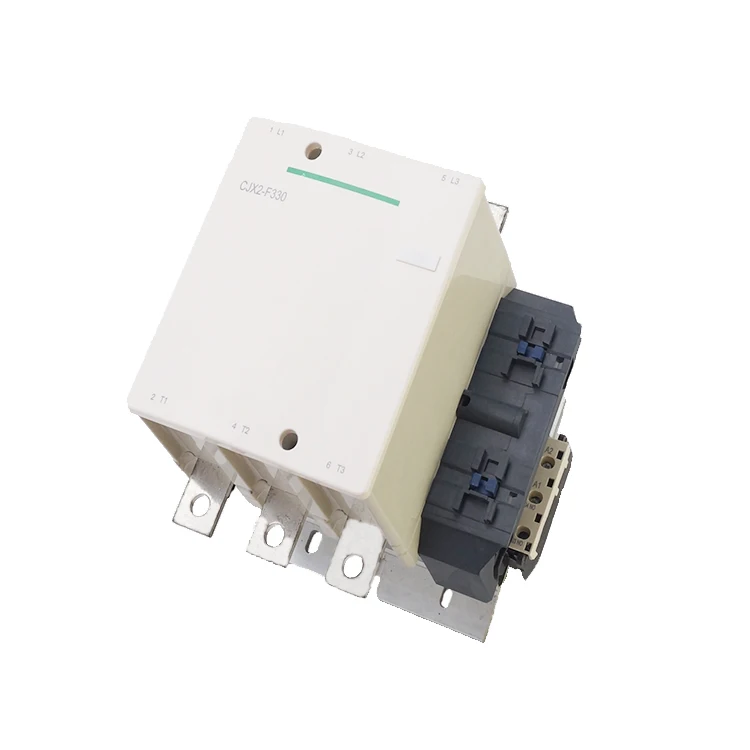

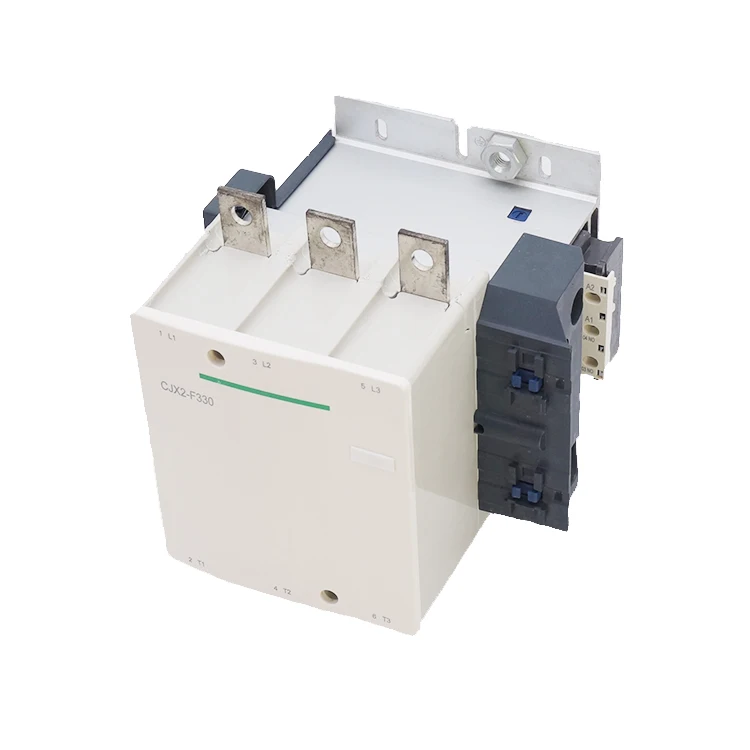

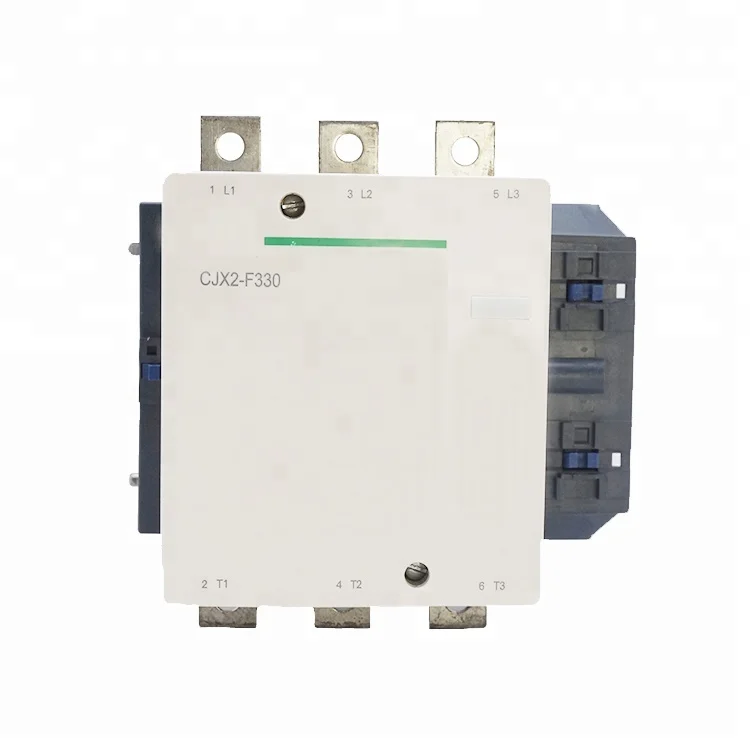

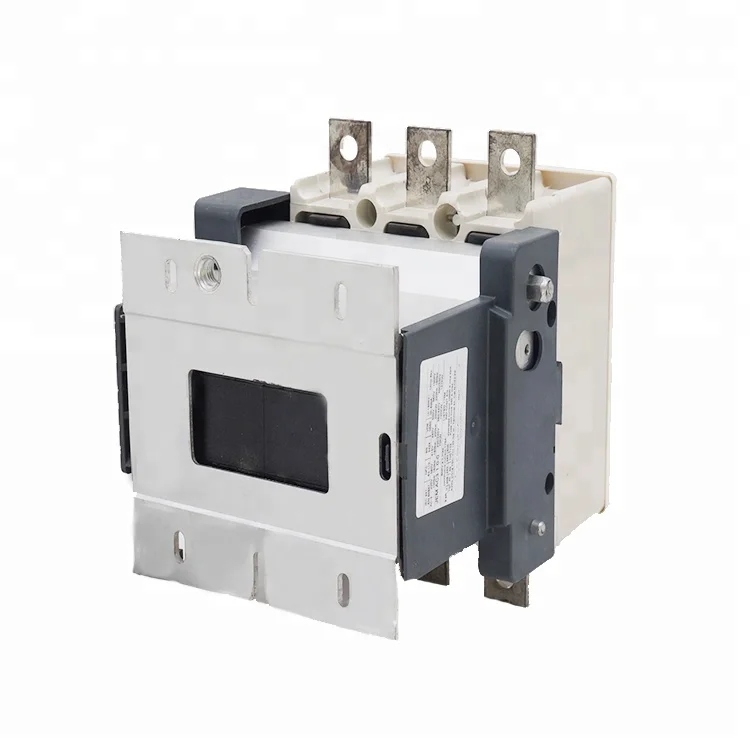

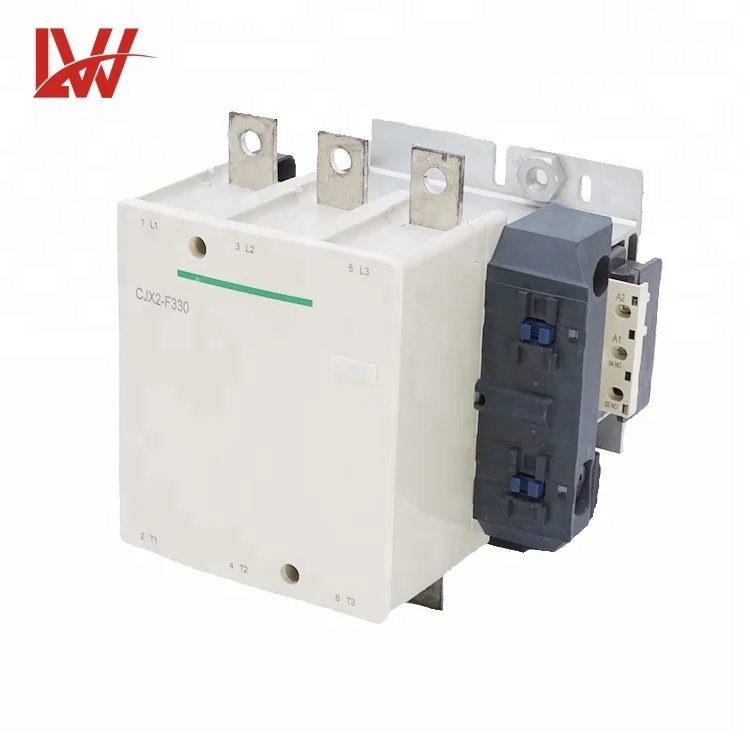

CJX2-F330 AC Контактор LC1-F типы LW бренд ac
- Категория: Контакторы >>>
- Поставщик: Wenzhou,Lierwei,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 105.13 $* | 107.38 $* |
| Jul-15-2025 | 85.17 $* | 87.22 $* |
| Jun-15-2025 | 104.10 $* | 106.91 $* |
| May-15-2025 | 103.32 $* | 105.64 $* |
| Apr-15-2025 | 82.42 $* | 84.14 $* |
| Mar-15-2025 | 101.37 $* | 103.96 $* |
| Feb-15-2025 | 100.70 $* | 102.26 $* |
| Jan-15-2025 | 100.95 $* | 102.6 $* |
Характеристики
Product Description
CJX2-F series AC contator is suitable for using in the circuits to the rated voltage 380V,AC 50/60Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distribution circuits of rated current from 115A to 800A. It confroms to IEC60947-4-1
Technical parameters | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | LC1-F330 | LC1-F400 | LC1-F500 | LC1-F630 | |||||
rated working current Ie(A) | AC~3 | 380V | 115 | 150 | 185 | 225 | 265 | 330 | 400 | 500 | 630 | |||
660V | 86 | 107 | 118 | 135 | 170 | 235 | 305 | 355 | 460 | |||||
AC~4 | 380V | 52 | 60 | 79 | 85 | 105 | 117 | 138 | 147 | 188 | ||||
660V | 49 | 57 | 69 | 82 | 98 | 107 | 135 | 145 | 170 | |||||
control rated power of 3phase squirrel-cage motor Pe(KW) | AC~3 | 380V | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 335 | |||
660V | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 335 | 450 | |||||
AC~4 | 380V | 25 | 30 | 40 | 45 | 55 | 63 | 75 | 80 | 100 | ||||
660V | 45 | 51 | 63 | 75 | 90 | 100 | 129 | 140 | 160 | |||||
conventional thermal current Ith(A) | 200 | 250 | 275 | 315 | 350 | 400 | 500 | 700 | 800 | |||||
rated working voltage Ue(A) | 380,660 | |||||||||||||
rated insulation voltage Ui(A) | 1000 | |||||||||||||
standard | IEC60947-4-1 , GB14048.4 | |||||||||||||
AC~3 | electrical life span 104 times | 60×104 | 50×104 | 30×104 | 20×104 | |||||||||
operation frequency (Hz) | 600 | 300 | ||||||||||||
AC~4 | electrical life span 104 times | 15×104 | 8×104 | 5×104 | ||||||||||
operation frequency (Hz) | 150 | |||||||||||||
machinery life span 10 | 3×106 | 1×106 | ||||||||||||
