Медицинский автофургон на солнечной батарее 162L 12 В 24 компрессор холодильник морозильная камера для
- Категория: >>>
- Поставщик: Cixi,Solart,Electrical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 233.18 $* | 245.90 $* |
| Aug-19-2025 | 231.45 $* | 243.76 $* |
| Jul-19-2025 | 194.30 $* | 204.69 $* |
| Jun-19-2025 | 227.54 $* | 238.50 $* |
| May-19-2025 | 198.72 $* | 208.84 $* |
| Apr-19-2025 | 223.96 $* | 234.77 $* |
| Mar-19-2025 | 221.83 $* | 232.41 $* |
| Feb-19-2025 | 220.60 $* | 231.71 $* |
| Jan-19-2025 | 218.79 $* | 229.6 $* |
Характеристики
Our advantage
Product Description
12V 24V 168L dc Freezer Description | ||
Structure: | Step | |
Item. No: | BD/BC-168 | |
Net Capacity: | 168L (can be used freezer or fridge) | |
Temperature: | 0-10℃ fridge; -25℃ freezer | |
Compressor: | dc exterior rotor structure | |
Refrigerant: | R134a | |
Input voltage: | DC 12V/24V | |
Max current: | 5.6/2.8A | |
Input power: | 60W | |
Energy consumption: | 0.62kw.h/24h | |
Start-up current: | 2.3A(12voltage) | |
Foaming material: | Cyclopentane | |
Condenser: | Inside/outside(optional) | |
Temperature controller: | Mechanical | |
Body Color optional: | White, Silver, Red etc. Acceptable customized. | |
Product size : | LxWxH:815×525×833mm | |
Accessories: | With lock&key,inner glass door,metal basket ,Battery connecting cable | |

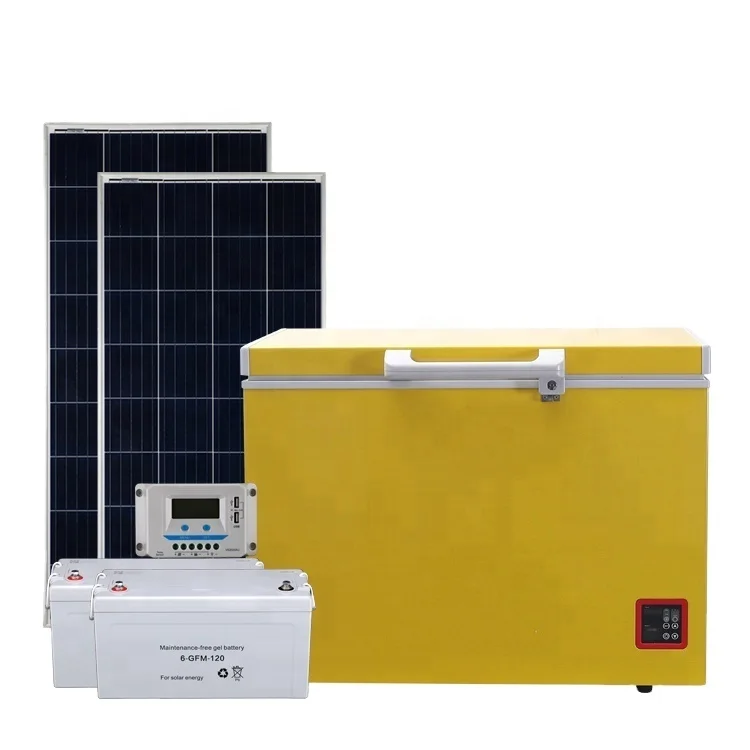

Solar Power system for freezer recommend configuration (Optional) | ||
Solar panel: | 240W/18V poly-crystalline with cables. | |
Battery: | 160Ah/12V lead-acid/GEL maintenance free. | |
Controller: | 12V/24V 20A controller with function of over charge,over discharge etc. | |
Charging time: | 12-13 hours approx for effective sunlight. | |
Detailed Images
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1, Will the packaging include: Solar panel, freezer and battery (3 in 1) ?
It depends on you.You could just buy the DC freezer only, also you could buy them all together.
2, What is your warranty period?
For fridge freezer body: one year, dc compressor: three years,solar panel: ten years, battery:one year, controller:one year.
3, What spare parts are covered under the warranty?
For bulk quantity order, 1% spare parts are covered for replacement.
4, Can i get the fridge or freezer for testing? How can i get it?
Yes,sure.
A, please tell us how many quantity do you need.
B, Please tell us the nearest sea port from you. We will check the freight cost.
C, Generally, we ship the product by sea.Because it's too expensive to ship by plane.
5, Please how many liters is the freezer and fridge?
The fridges capcity have 50L,70L,105L,118L,128L,180L,215L,270L.
The freezers capacity have 60L,108L,128L,158L,208L,258L,308L,358L.
6, Can it be plugged to normal electricity ?
Yes, it can be plugged to normal electricity by AC/DC adaptor(Optional,additional cost.)
7, How can i pay the freezer or fridge order ?
We could accept payment by T/T, Paypal, West union,Alibaba TradeAssurance order etc.
\t\t\t\t\t\t\t\t\tHow to use \t\t\t\t\t\t\t
You could select the solar panel, battery, and controller according to your actually inquiry
Solar panel
Maintenance-free gel battery
12V 24V 20A controller
Freezer Accessories optional:
Solar freezer configuration suggestion
Model | Solar panel | Battery-12V | Solar controller |
BCBD-60L | 200W | 120Ah | 12V/24V 20A |
BCBD-108L | 230W | 150Ah | 12V/24V 20A |
BCBD-128L | 240W | 150Ah | 12V/24V 20A |
BCBD-158L | 240W | 150Ah | 12V/24V 20A |
BCBD-208L | 280W | 200Ah | 12V/24V 20A |
BCBD-258L | 400W | 300Ah | 12V/24V 20A |
BCBD-308L | 460W | 300Ah | 12V/24V 20A |
BCBD-358L | 500W | 360Ah | 12V/24V 20A |
There have two methods to connect the dc freezer:
ONE:
Installation method:
Remove the clamps and screw the cable at 12V output charge controller. The "red line " to connect the load indetifier positive, and the "black line" to connect the load indetifier negative.
As shown in the figure below:
TWO:
The cable supplied with lamps connect the battery directly, The " red line " to connect the battery positeive, and teh "black line" to connect the battery negative.
As shown in the figure below:
