Настенная распределительная коробка Wanbao с 8 портами гелевая герметичная Водонепроницаемая
- Категория: Коммуникационные кабели >>>
- Поставщик: Shanghai,Wanbao,Optical,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.15 $* | 0.19 $* |
| Aug-18-2025 | 0.86 $* | 0.45 $* |
| Jul-18-2025 | 0.95 $* | 0.9 $* |
| Jun-18-2025 | 0.84 $* | 0.56 $* |
| May-18-2025 | 0.18 $* | 0.2 $* |
| Apr-18-2025 | 0.43 $* | 0.99 $* |
| Mar-18-2025 | 0.77 $* | 0.5 $* |
| Feb-18-2025 | 0.89 $* | 0.95 $* |
| Jan-18-2025 | 0.54 $* | 0.60 $* |
Характеристики
Product Description
Description

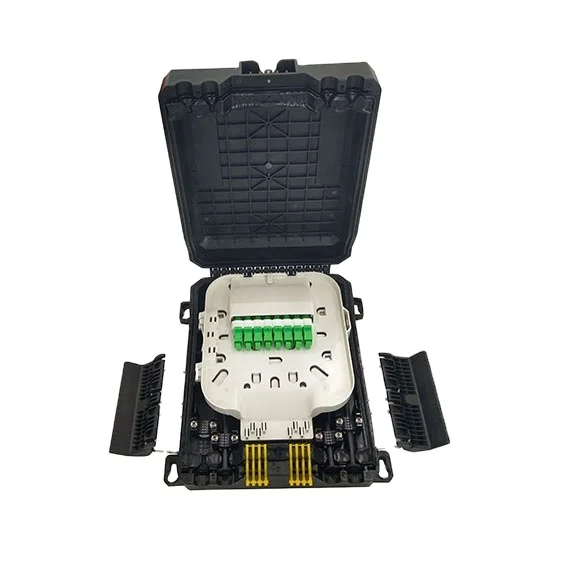

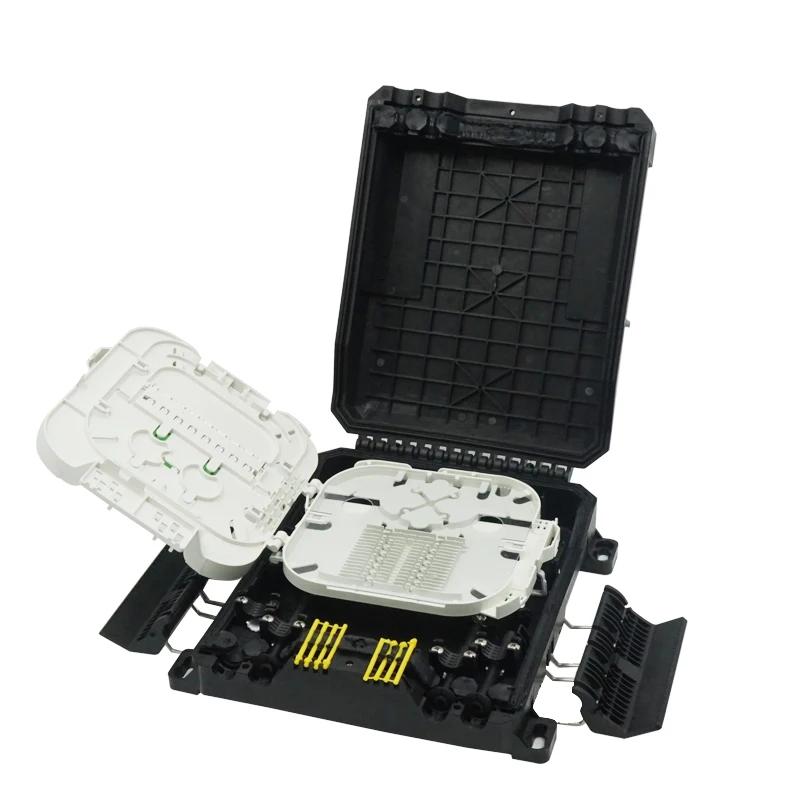

FTTH-W8 is a butt type gel sealed fiber optic splicing and patching closure designed for the Fiber Access Point in the FTTx network.
The closure can be deployed on walls, poles and in hand holes. FTTH-W8 has 4 main cable ports and 8 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The closure accommodates up to 24 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters.
Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.
Application
1. Gel-sealing, easy to open and reenter, no tool or re-entry kit required
2. Options for both mechanical splices and heat shrinkable splices
3. Loop storage capacity: 6m of 2mm OD loose tube
4. Suitable for Field Installable Connectors
Specification
Product No. | FTTH-W8 |
Dimension(LxWxH) | 266x237x76.5mm |
Cable entries | 4 main cable ports inlet port φ6-14mm |
8 drop cable ports (3mm or 2x3mm fig. 8) | |
Splicing Tray | 2 trays, 12 fiber per tray |
Max. capacity | 24 cores |
Material | PP+gel |
PLC splitter | 2pcs PLC splitters:1x4, 2x4 or 1pc PLC splitter: 1x8, 2x8 |
No. of Adapter | Max. 8pcs SC SX adapter |
IP rating | IP68 |
IK | IK 08 |
UV resistant | YES |

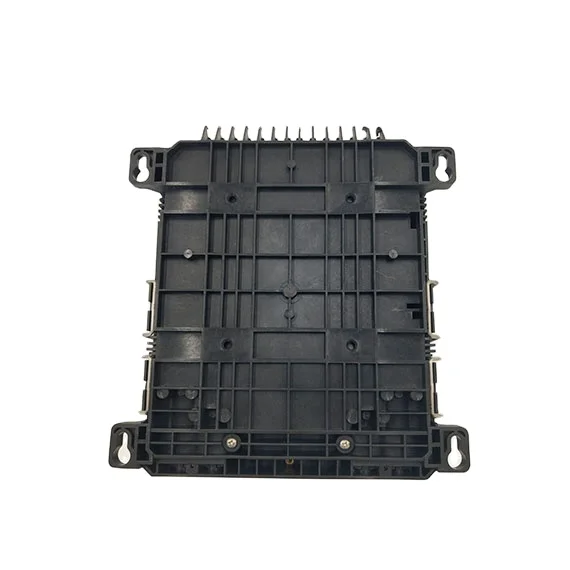

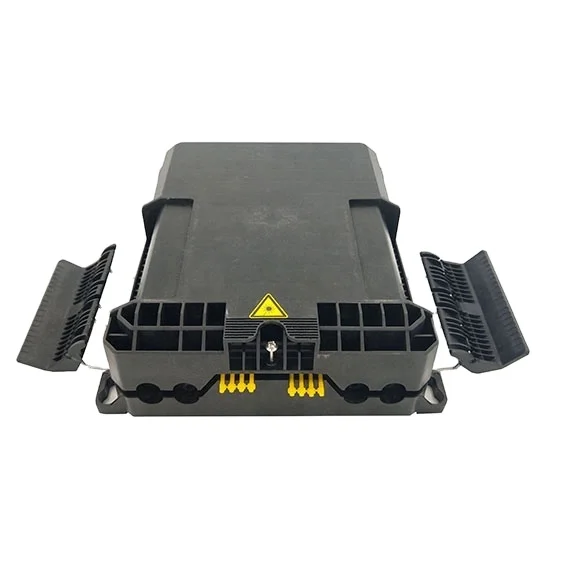

Detailed Images

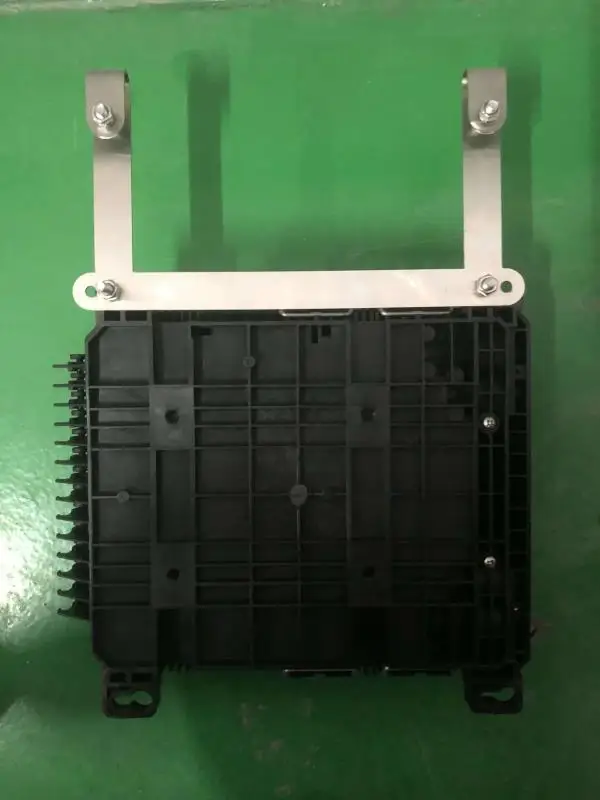

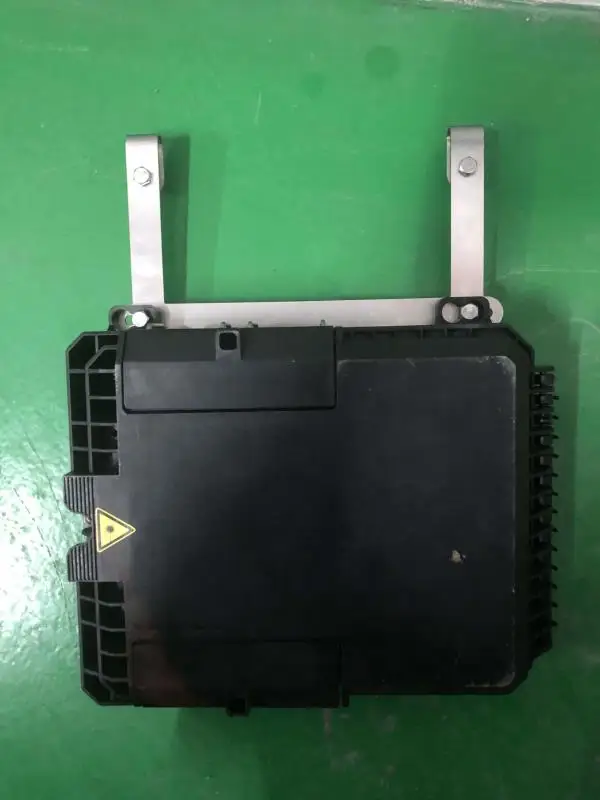

INSTALLATION
Related products
Packing & Delivery
PACKING DETAIL
1 pc/inner carton
8 pcs/ outer carton
