Катушка стержня чертежная

Категория: Wire Drawing Machines >>>
Поставщик: Shijiazhuang,Aisen,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.63 $*	0.35 $*
Aug-16-2025	0.18 $*	0.46 $*
Jul-16-2025	0.43 $*	0.4 $*
Jun-16-2025	0.52 $*	0.17 $*
May-16-2025	0.76 $*	0.89 $*
Apr-16-2025	0.19 $*	0.39 $*
Mar-16-2025	0.73 $*	0.11 $*
Feb-16-2025	0.61 $*	0.4 $*
Jan-16-2025	0.42 $*	0.85 $*

Характеристики

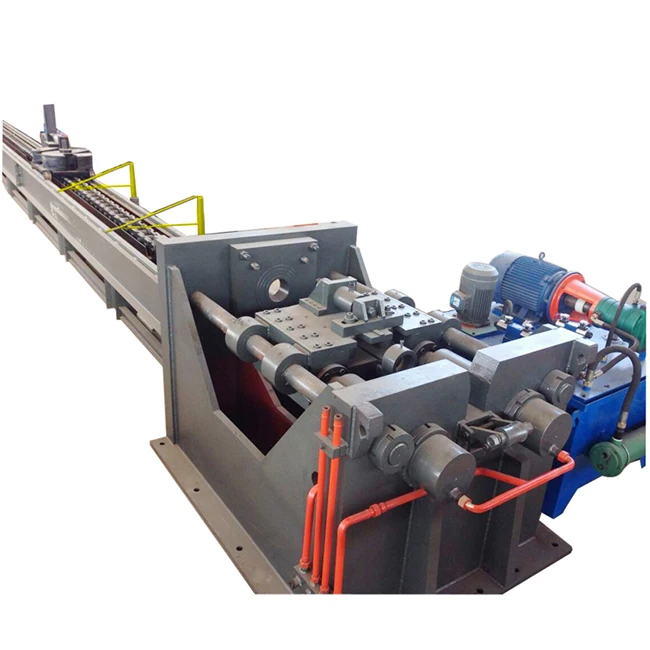

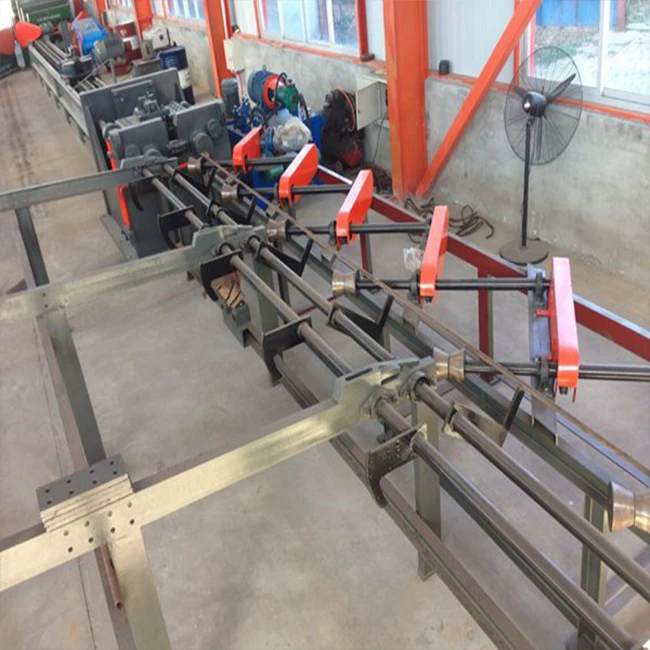

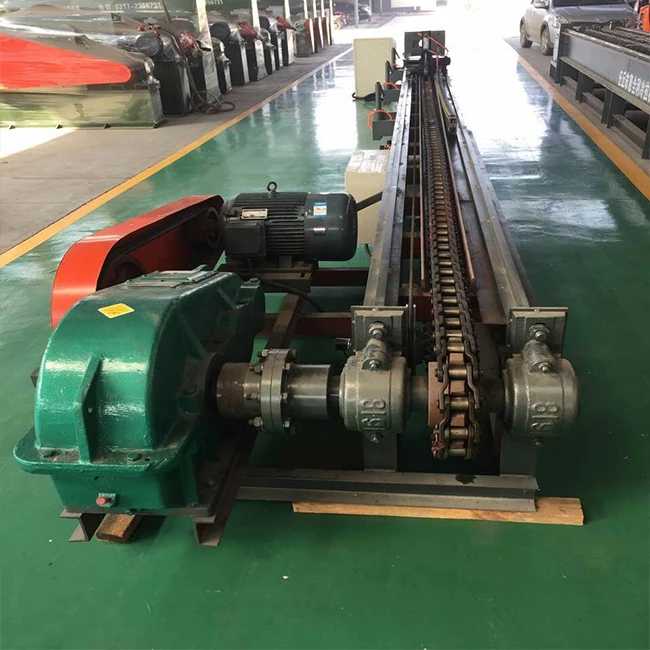

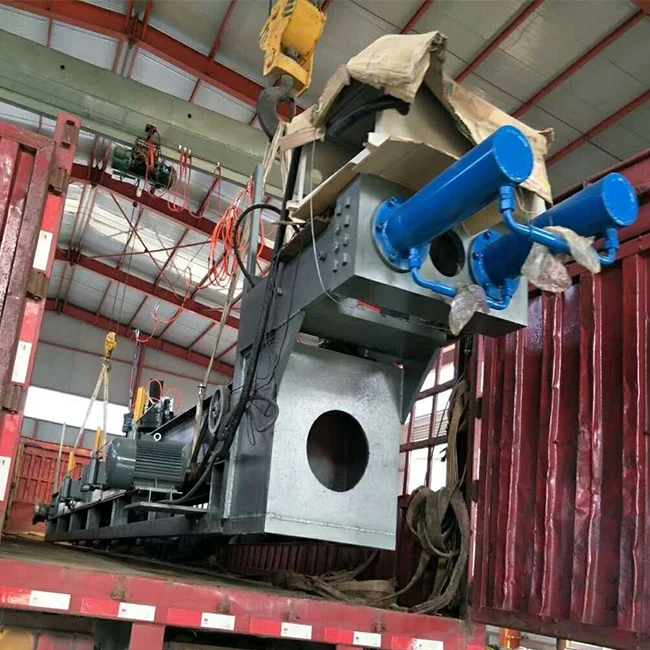

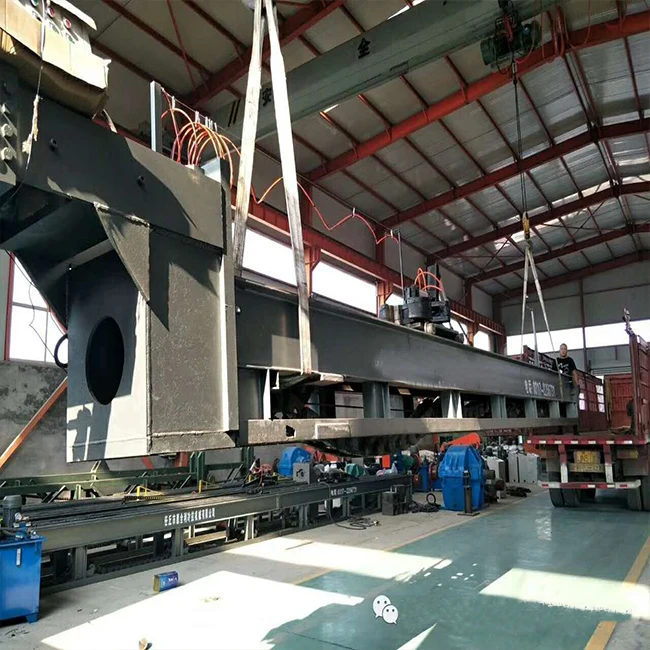

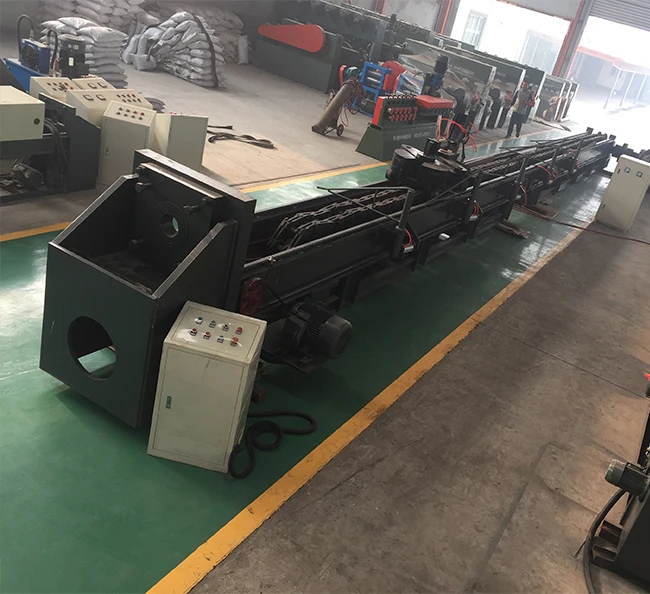

Pictures of product

The cold drawing machine refers to a mechanical device that strongly stretches ferrous materials and non-ferrous materials under normal temperature conditions, and can also pull out various shaped materials such as square steel and hexagonal steel.

Product Description

MODEL	5T	10T	25T	30T	50T	100T	120T
Rated pull	5T	10T	25T	30T	50T	100T	120T
Maximum cold drawn bar diameter	20mm	25mm	40mm	50mm	60mm	100mm	120mm
Maximum reduction	2mm	2-3mm	2-3mm	2-5mm	2-5mm	2-5mm	2-5mm
Main chain	78.18	100 straight	150	203	216	220 straight	240 straight
Cold drawn length	Custom	Custom	Custom	Custom	Custom	Custom	Custom
main motor power	18.5kw	18.5kw	45kw	55kw	75kw	55kw*2	75kw*2
Return speed	Frequency control	Frequency control	Frequency control	Frequency control	Frequency control	Frequency control	Frequency control
Reducer	ZQ500	ZQ650	Heavy850	Heavy950	Heavy1000	Heavy 950*2	Heavy 1000p2
