Телескопическая крышка с сильфоном из углеродистой

Описание и отзывы

Трекер стоимости

Характеристики









Special Attractions:

·         Raw materials & components used in manufacturing of these covers are procured from trusted vendors of the industry

·         Our adroit professionals manufacture these covers using latest tools & machines

·         Offered covers are acknowledged for their user-friendly design and are easy to install

·         These covers are dimensionally accurate and are known for high tensile strength

·         We dispatch these covers in quality approved materials to ensure hassle free transportation

·         These covers are checked by our quality inspectors of varied parameters of quality to ensure flawless finish

·         Customers can get these covers customized, as per their requirements

·         Our covers can be obtained at pocket friendly prices





Design data for Telescopic Bellows Cover



Code	Description	Date	Remarks	Code	Description	Date mm	Remarks
Le	Length after drawing			Bs	Contact supporting width
Lz	Length after compression			Bm	Slider supporting width
Lt	Travel range			α°β°	Bow-shaped dip
B	Width of guide			n	Estimated number of folds
Bc	Shield width			δ	Thickness of steel plate		Pre-selected by users
H	Toltal height of the shield				Assembing hole		By user
H1	Side height og guide			Steel plate mat’l	1Gr13	2Cr13	By user
H2	Upper part height of shield			Supporting manner	Pulley	Slidingpiece	By user
H3	Iustallation position width			Compount malline’s type
H4	Height of assembing plate			Entrusting party
H5	Height of contact rollar			Contact person		Tel
Note:1.The endusers select data and materials mentioned above and our company will talle care of the fabrication and dsign work. 2.If endusers have special requirements for shield type,please cet as know and we can achive for them. 3.One form for type of shield.

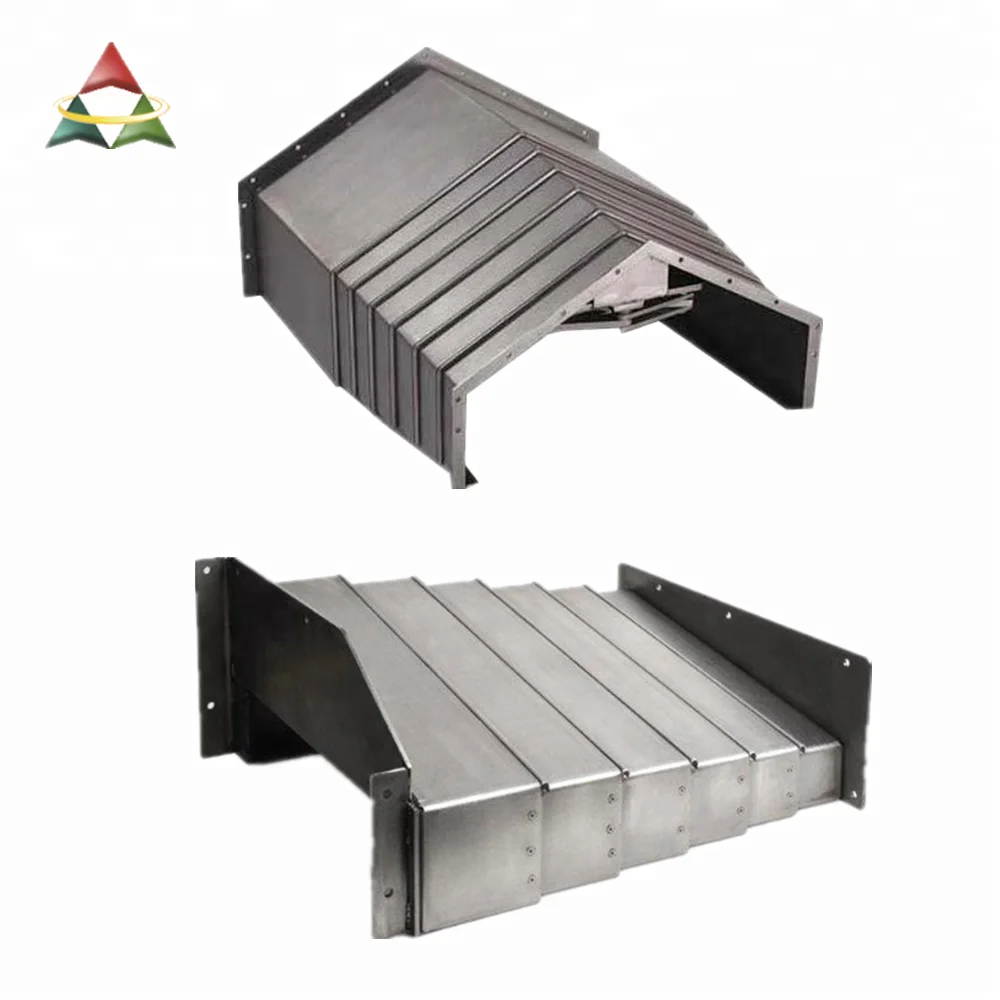

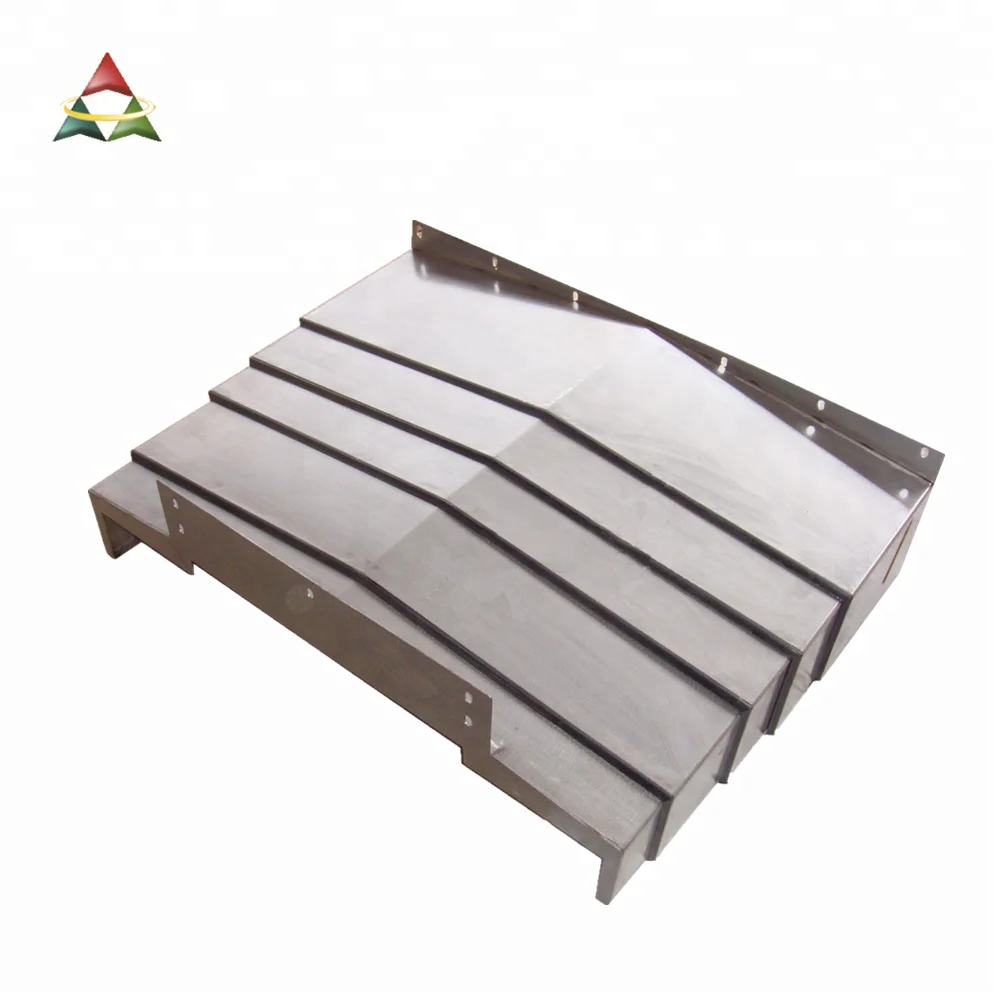

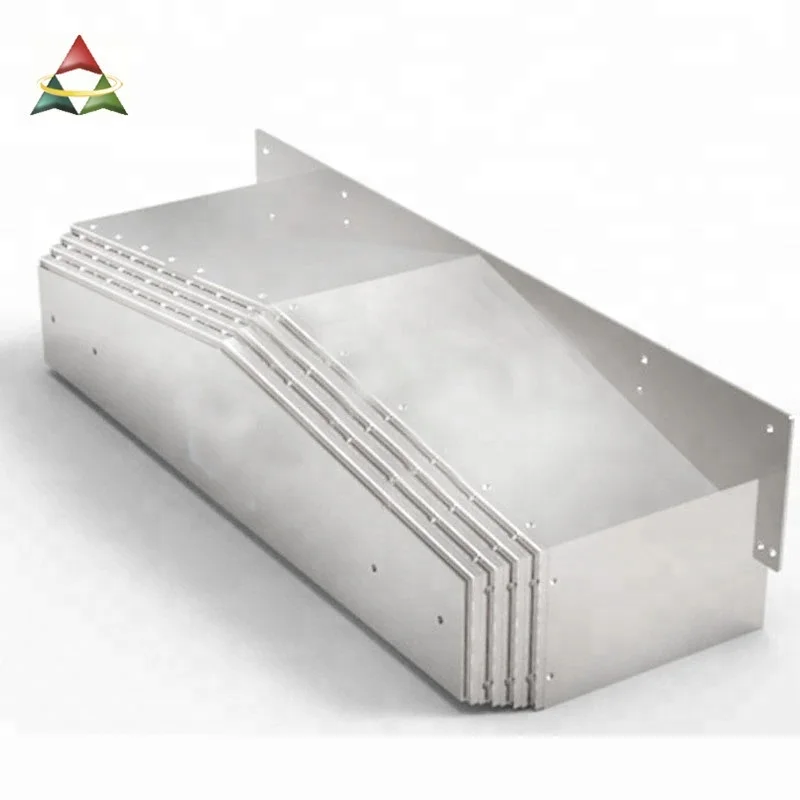

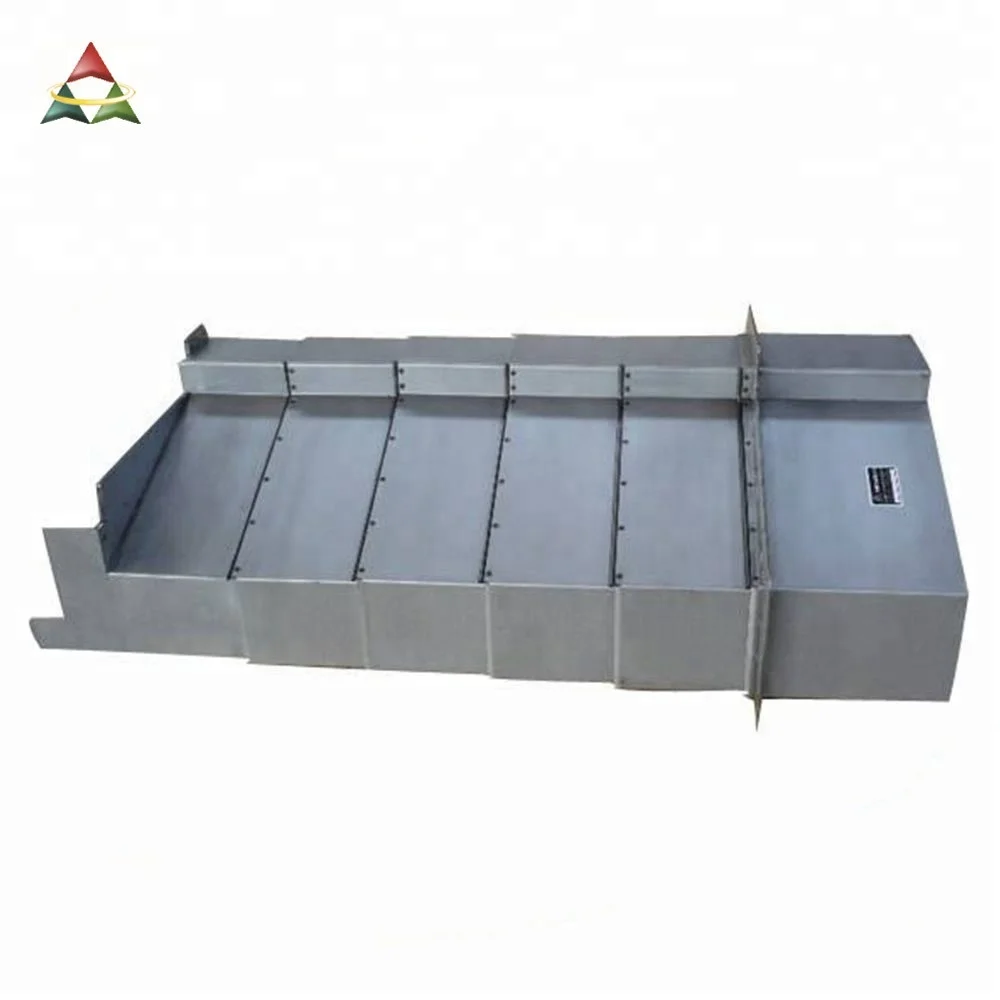

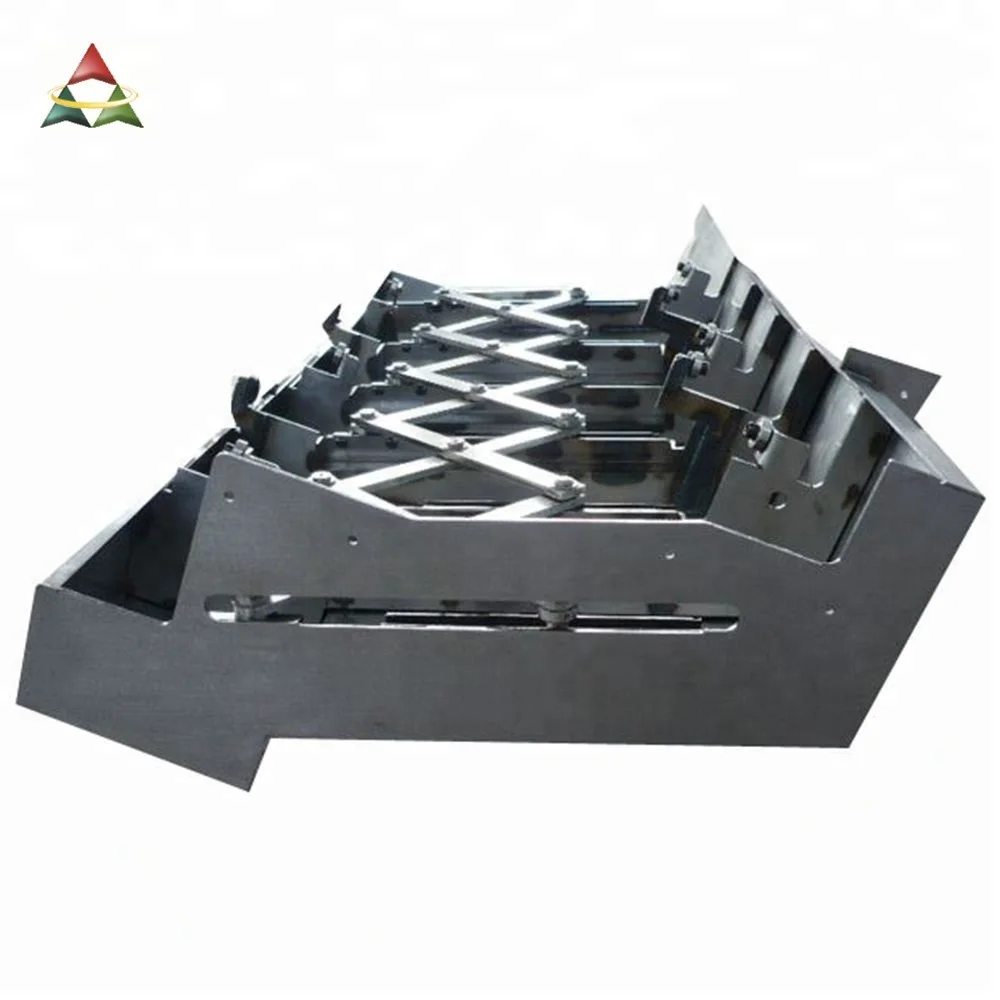

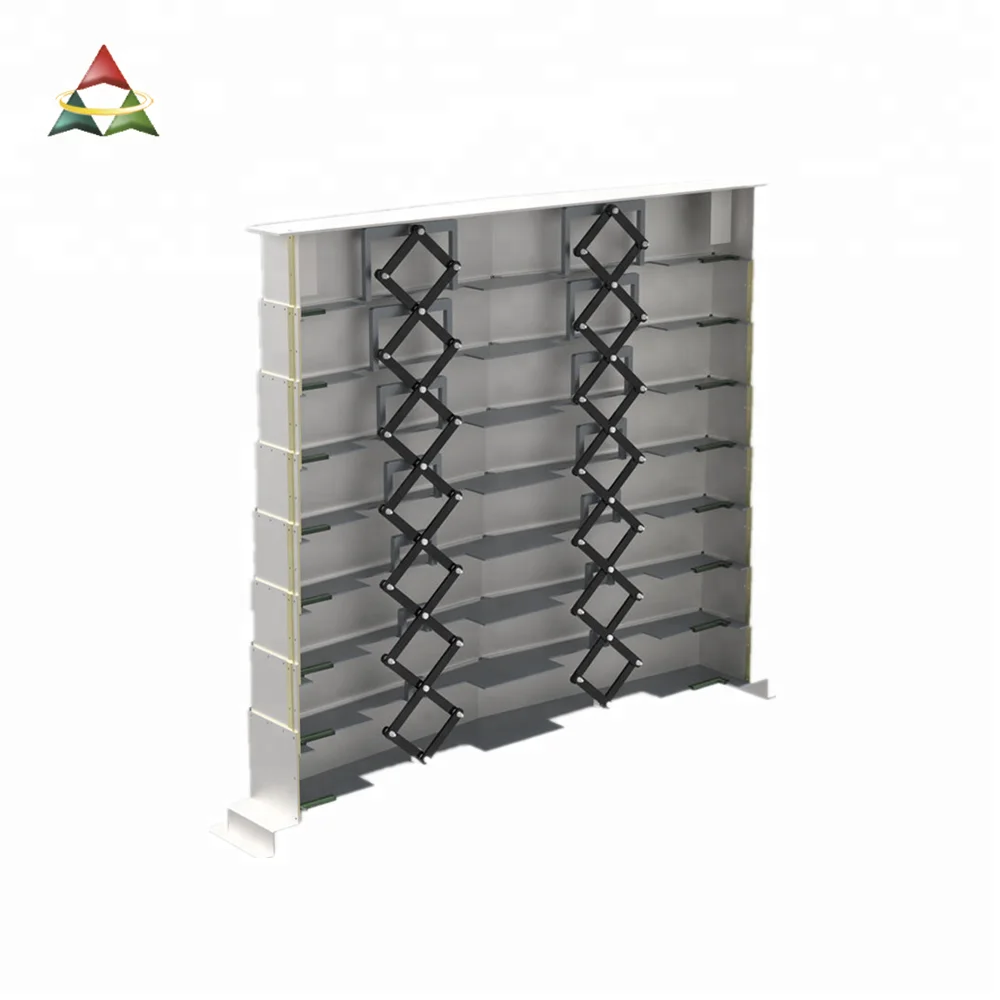

Telescopic Bellows Cover

Widely Used In CNC Machines Tools , Electronic Equipment , Stone Machinery , Glass Machinery , Injection Molding Machine , Manipulartor , Lifting And Transportation Equipment , Automated Warehouse And So On.
