3d-контроллер для клавиатуры системы видеонаблюдения PTZ джойстик RS485 скоростная купольная камера кронштейн поддержка протокола Pelco-D/P 3

Описание и отзывы

Трекер стоимости

Характеристики

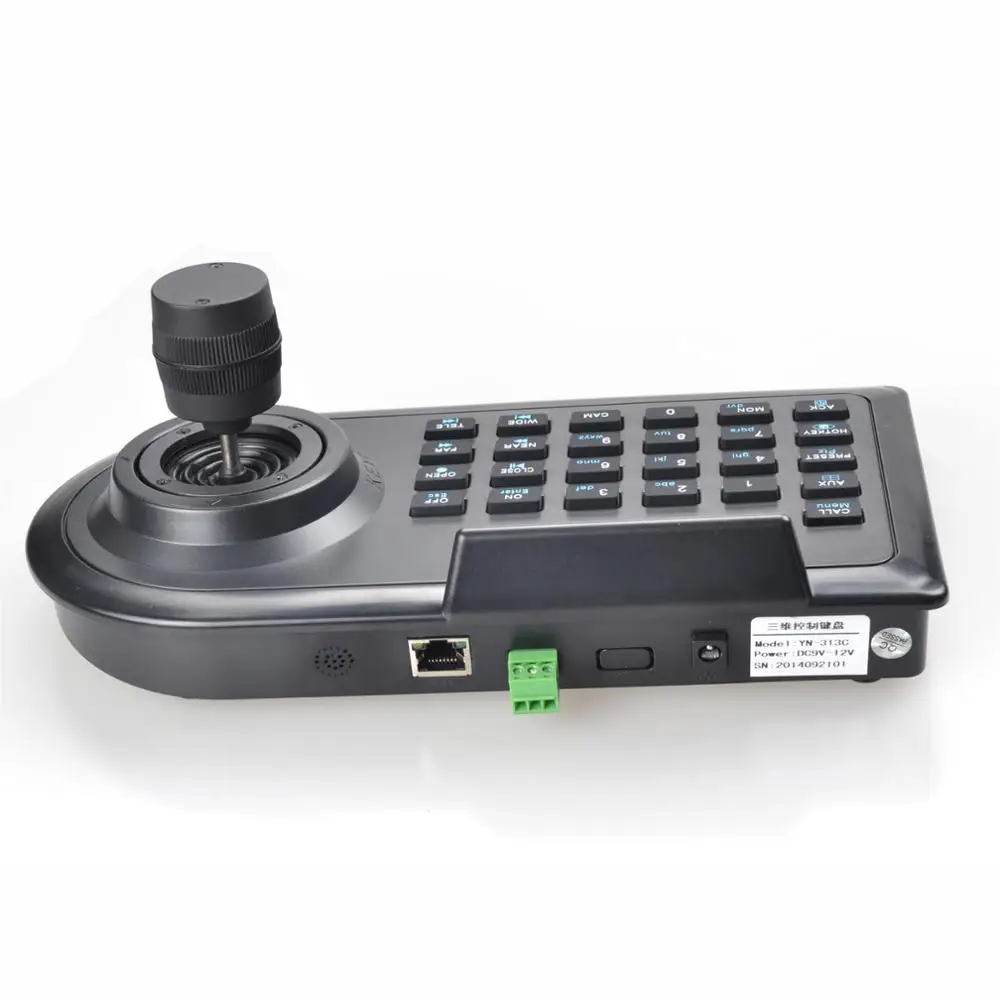

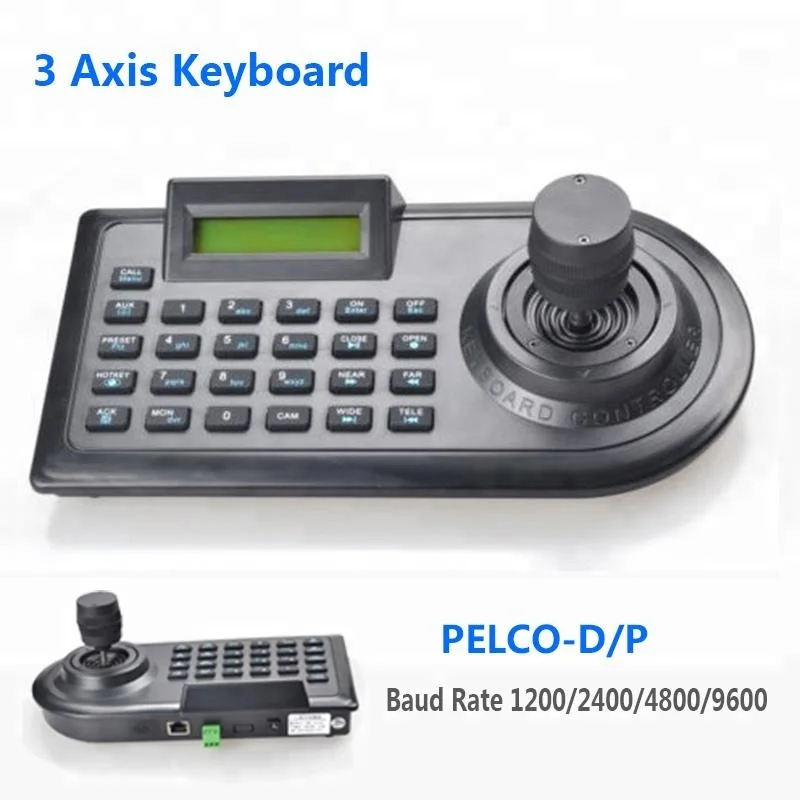

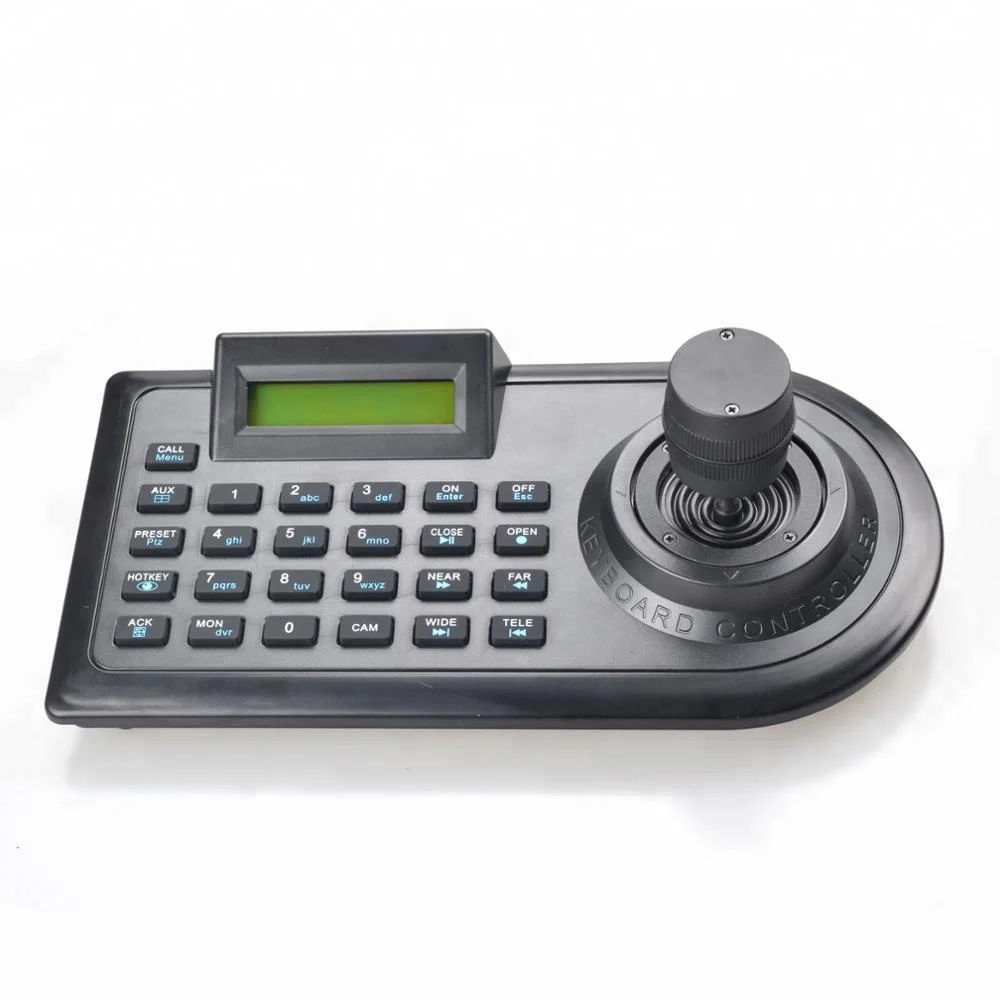

Surveillance 3D PTZ Joystick Controller

•     Photoelectric in RS485 controlling mode, strong anti-jamming and long-distance transmission (1200 meters max ).


•     Control up to 128 units, each unit can be set 1-255 addresses.


•     Variable speed operation can be applied to the built-in Pan/tilt of camera.


•     Can control the lens zooming,focus and iris.


•     Easy to set and run the preset positions and tour group.


•     Easy to set the left and right limiting positions and run the scan between them.


•     Home(default) position can be set up,activated and closed by the controller.


•     Built-in HIKVISION, DAHUA, HANBANG DVR control protocols.


•     Built-in Pelco-D, Pelco-P, Samsung, PANASONIC PTZ camera communication protocols.



Technical Data of controller
Power supply	DC12V 1A	Relative Humidity	<=90%RH
Power adapter provided	AC110V or 220V(±10%) switch to DC12V 1A	Temperature Operation	-10 to 60°C
Baud rate of communication	2400/4800/9600 BIT/S	range for camera address	1-255
Communication connection mode	RS-485 bus mode for controlling units	Dimension	235(L) × 125(W) × 90(H)mm
Max controllable Cameras	128 units PTZ cameras or Decoders etc terminal devices	Built-in multi- protocol	Pelco-D, Pelco-P, Samsung, PANASONIC

Package Inlcude:

• 1 x 3D keyboard controller


• 1 x power supply


• 1 x user manual
