3 Meters Long Range Active Card RFID Card Reader for Hands-free People Entrance Access Control System
Product Description
Welcome to Send Enquiry to us NOW to know more NEW PRODUCTS
125Khz wake up 2.4Ghz reader HANDS-FREE ACCESS CONTROL

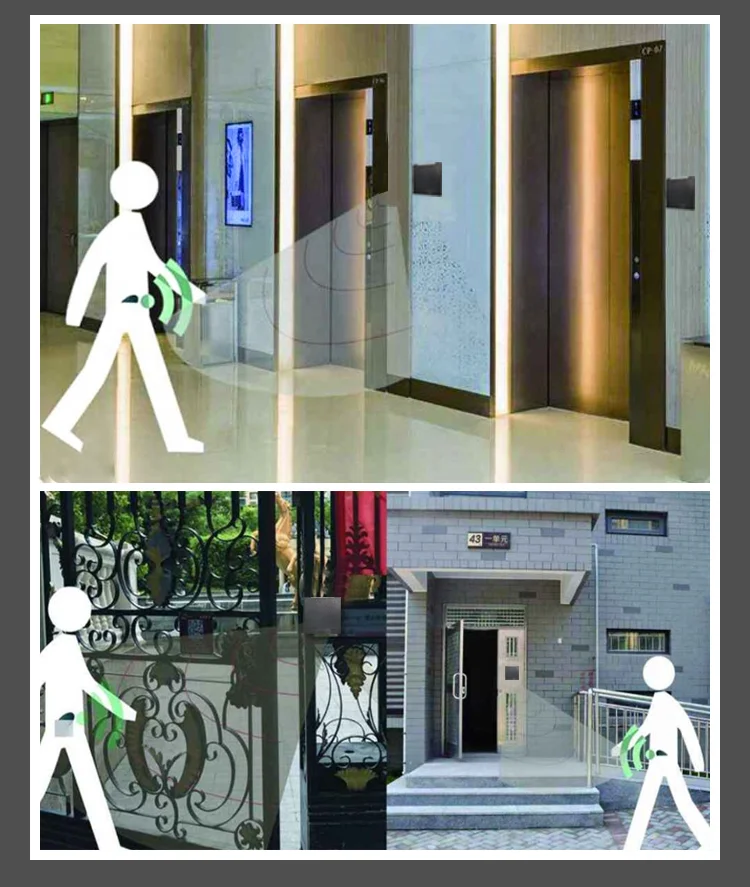

Electronic access control systems are increasingly being used to enhance safety and security in hospitals and residential care homes. Access control systems are needed to restrict access through certain doors (to areas containing dangerous equipment or chemicals for instance) to only to those people with the necessary authority. However, in many cases there is also a need to obtain access through these doors while escorting patients in wheelchairs or beds or when carrying sterile equipment, etc. Here, hands-free access is the ideal solution.

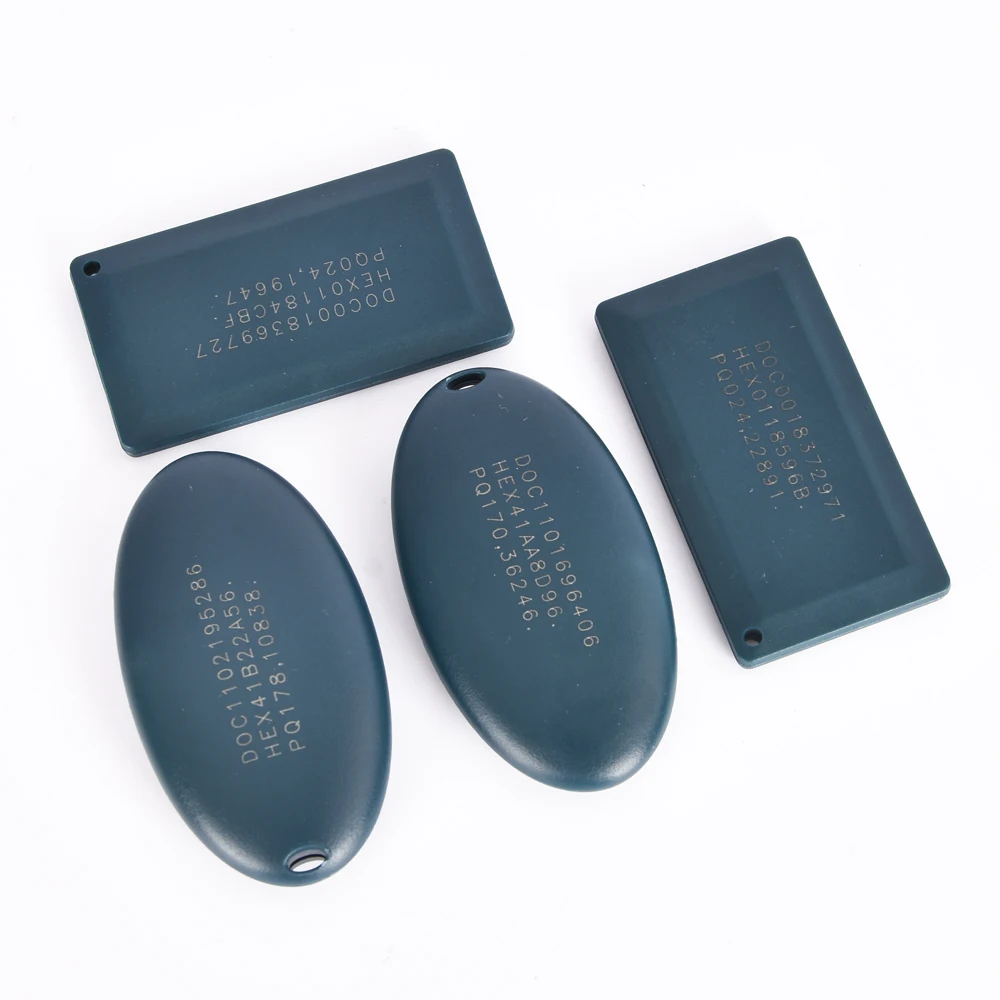

Each authorised member of staff is issued with a ICRT-24 active cards that they carry on a lanyard, Keychain or put into pocket. This will allow them access to secured areas within the premises without the need to use their hands to present the card to a reader, allowing them to push trolleys or wheelchairs, to realize no stop and no touch access.
This is made possible by using a ICR-2401 reader at each secured door together with an appropriate electronic locking device or door opener depending upon the type of door and the specific requirement. Each authorised member of staff can be issued with an electronic ID badge that can be detected at distances of 1~3 meters.
APPLICATIONS Safety and security access control in the Post-Coronavirus World Access to restricted areas for staff in hospitals and care homes Door access control for disabled people Warehouse forklift access Tracking of staff and vulnerable patients
BENEFITS
Reduce the chance of virus infection Can be easily installed as a replacement to previous readers Avoids delay and difficulty when pushing trolleys, wheelchairs, forklift etc.
The location of members of staff can be tracked Helps to maintain the security of property and medicines without the inconvenience of contact cards, keypads, fingerprint etc.

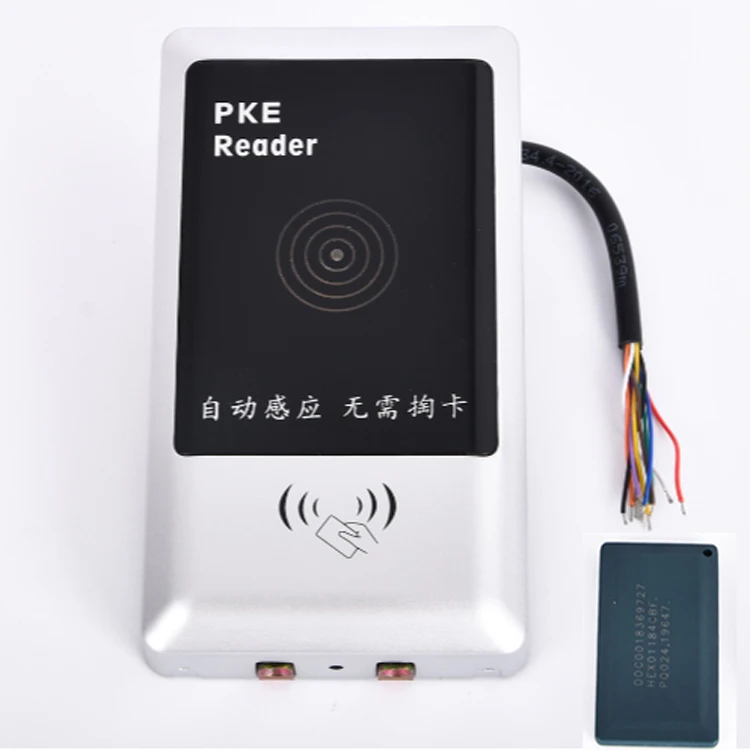

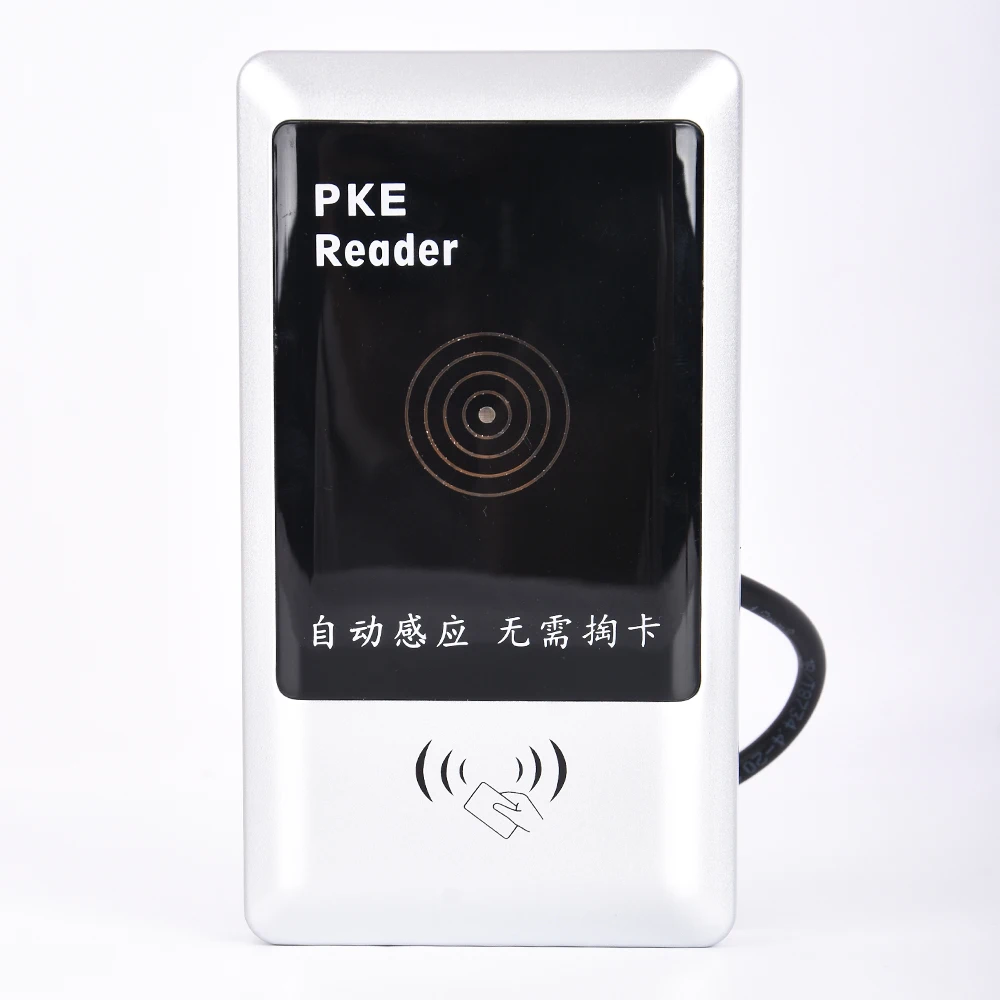

ICR-2401 RFID Card ReaderSelling Points:
Low-frequency low-power wake-up technology
Support RS485 communication
Support the parameter setting of counting machine software, convenient and quick.
Works with Sound and light instruction
Support the automatic induction of low-frequency cards wake up (a total of four gear can be adjusted up to 3 meters) to open the door
ICR-2401 RFID Card Reader Functions:
Set one in long range reader and controller
Identification& verification function: verify the data after reading the card
Relay output function: after the card verification, the reader outputs the signal for the
relay to open the gate.
ICR-2401 Applications:
Logistic RFID System
Personal Identification
Meeting Attendance System
Access Control System
Anti-counterfeiting System
Production Process Control
Login in or login out checker
Technical Parameter:
working voltage
DC 12V
working current
< 100mA
Woking temperature
-30~80℃
sensing Distance
1 meter, 1.5 meters, 2 meters, and 3 meters
communication mode
RS485
Data upload Interval
1 to 255 seconds
address code
1 to 15
Data output mode
RS485/Wiegand 26, 34
Data upload time
1 to 99 seconds, default 4 seconds
Relay load parameters
max 24V/2A
The shell size
84*84*21mm
rough weight
155.5g
Company Information
About US: Integer (CHINA) TECH CO., LTD. is a leading hi-tech company, We have over 12+ years experience in the installation and or sales of the top selling gate operators and access controls in the industry. The company's main products:barrier gate, vehicle loop detector , Parking Guidance System , Automatic card dispenser&collector , Long Range Reader , Turnstile Gate , RFID cards , Parking Lock and Portable bluetooth printer .With years of development, we have established long-term partnerships with many global buyers from over 50 countries around the world. When you order a single product or a full project from integer you are not just getting the complete package for a good price, you are getting the knowledge and support of industry professionals.
Epidemic Changed Access Control and Entrance Security System
The Future of Access Control is Touchless Hands-Free
Hands-free operation: the future of access control is contactless As this new type of virus continues to develop and spread in our world, prevention and control become especially important. We have a responsibility to better prepare for the next outbreak. Our INTEGER Turnstiles access control experts have received a lot of inquiries from potential customers who are looking for hands-free access control non-contact revolving doors and gates. These potential customers are planning for their future.
Due to the inherent high traffic and high exposure of virus and other pathogens, they pose a unique threat to access control. Therefore, many organizations are now preparing for future access control systems by implementing access control systems that allow contactless entry. Although there is no substitute for proper cleaning and active prevention of transmission, non-contact hands-free access control is the first step in prevention.
Access control not only controlling the traffic of visitors into and out of your facilities, but also controlling the transmission of disease into and out of your facilities.
Though nothing can replace proper cleaning and active transmission prevention, touchless hands free access control is a step ahead in the prevention.
