Goodisplay гибкий экран 2 9 inch 3 дюймовый дисплей e-бумага для
- Категория: Дисплеи, вывески и Оптоэлектроника >>>
- Поставщик: Dalian,Good,Display,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 9.32 $* | 9.70 $* |
| Jul-20-2025 | 7.97 $* | 7.43 $* |
| Jun-20-2025 | 9.31 $* | 9.51 $* |
| May-20-2025 | 9.84 $* | 9.77 $* |
| Apr-20-2025 | 7.81 $* | 7.1 $* |
| Mar-20-2025 | 9.83 $* | 9.56 $* |
| Feb-20-2025 | 8.37 $* | 8.68 $* |
| Jan-20-2025 | 8.48 $* | 8.97 $* |
Характеристики
goodisplay flexible screen 2.9 inch 3 inch display e-paper for price tag
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t

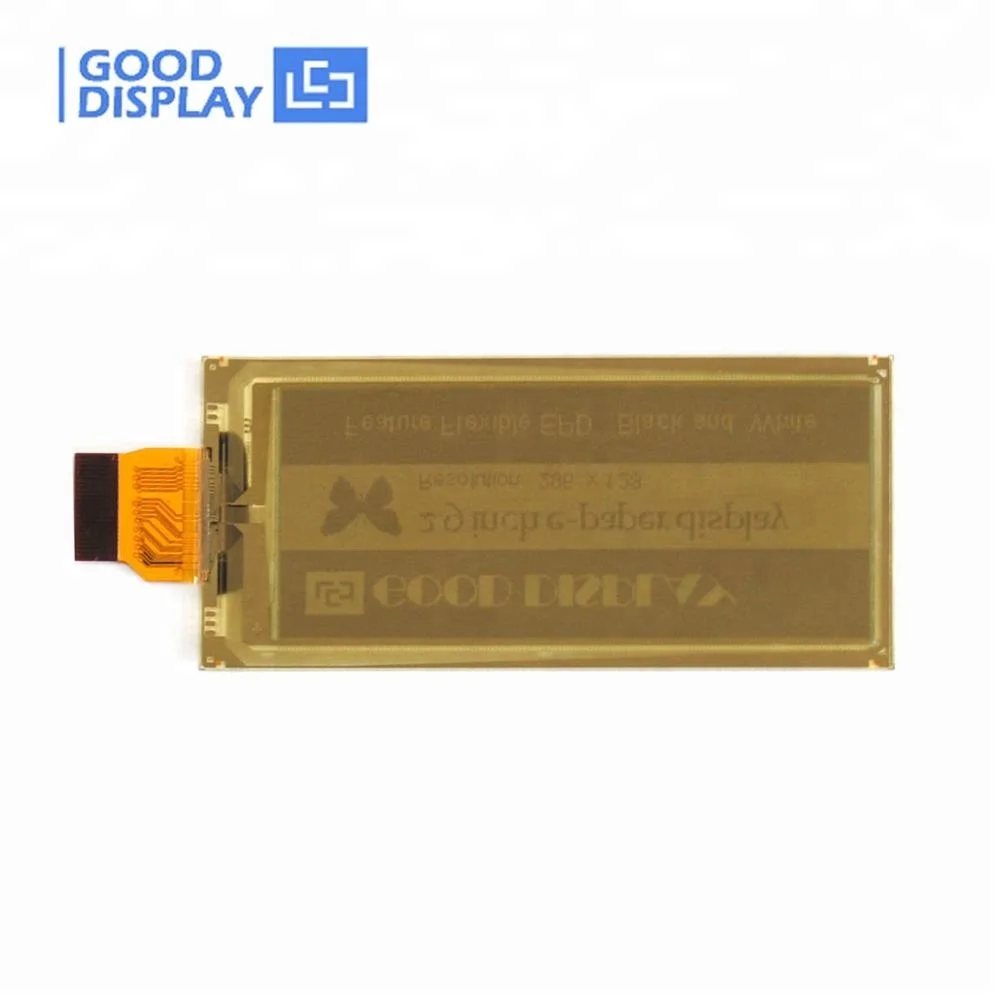

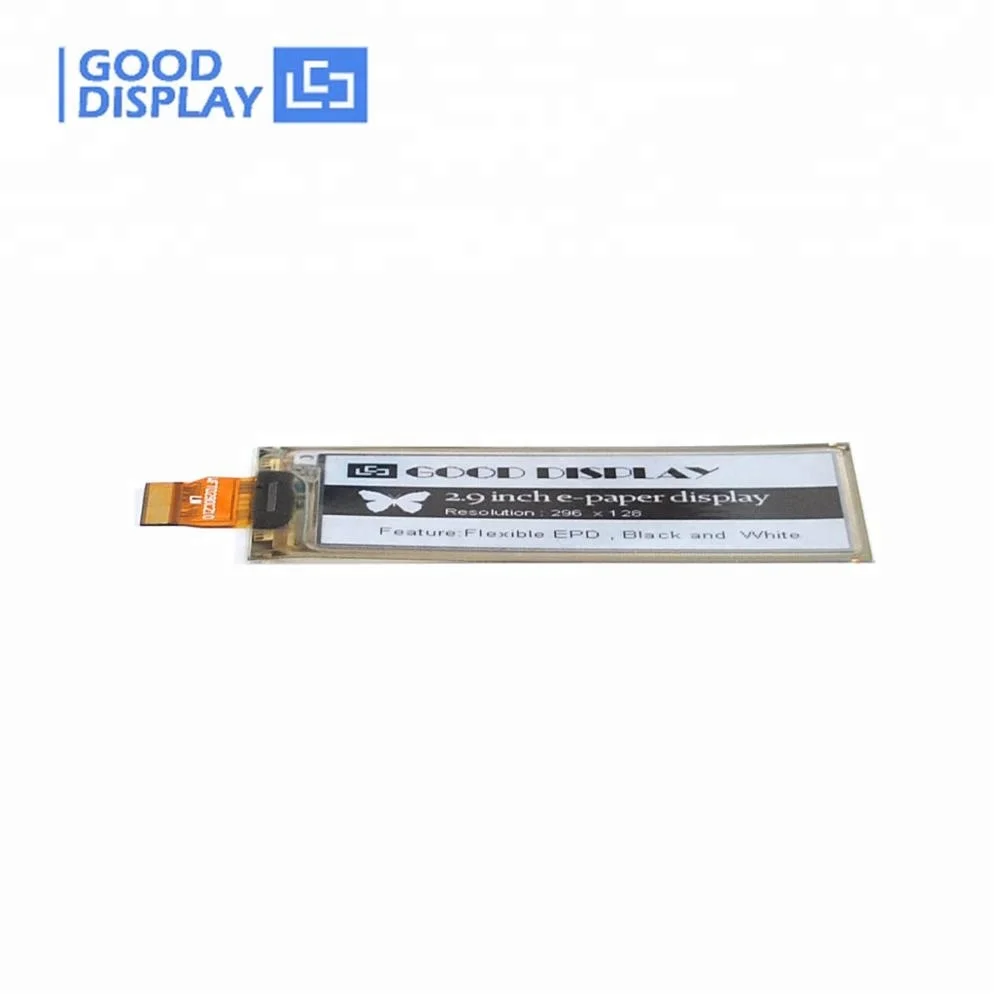

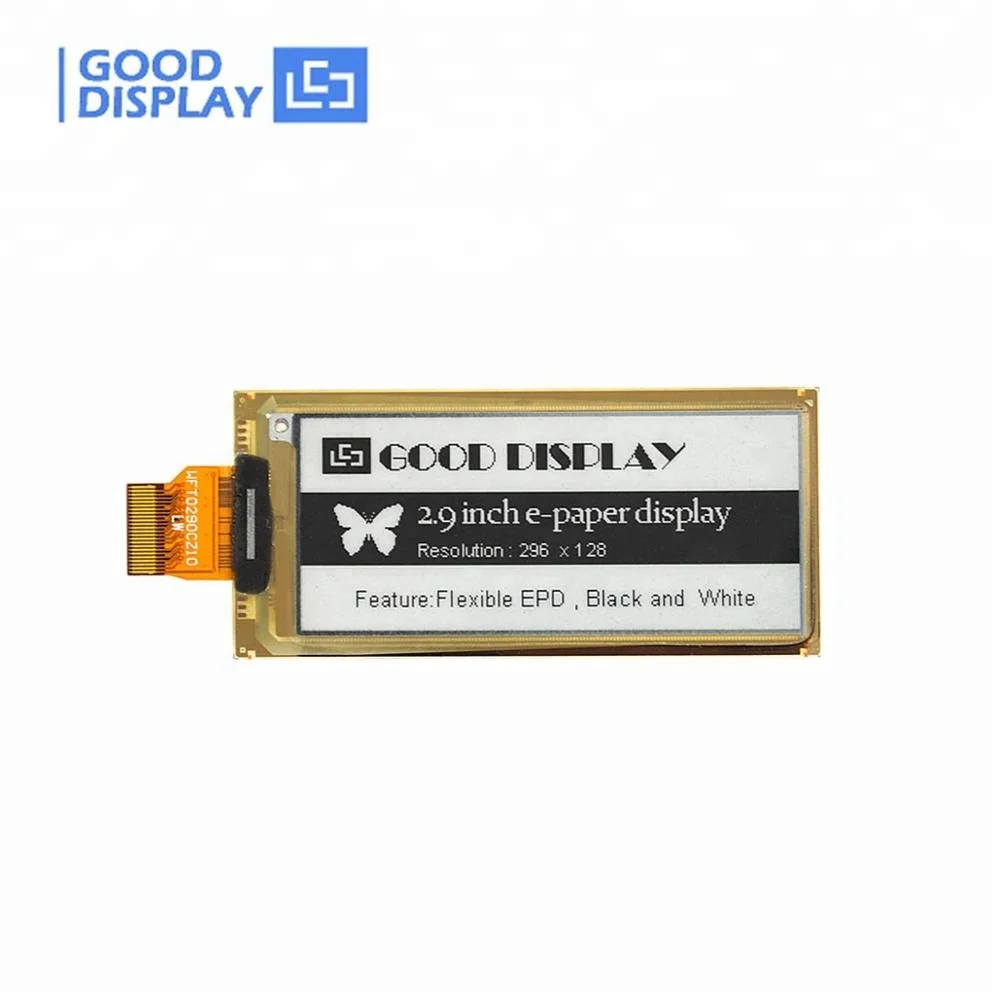

This is a 2.9 inch flexible e ink display use the flexible substrate as base plate, with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW029I6FD is perfect for low power devices powered by solar or batteries.
We could provide Front light, Touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
Use our free e-paper software to prepare your bitmap image for this display.
Main Parameters
goodisplay flexible screen 2.9 inch 3 inch display e-paper for price tag
Part Number | GDEW029I6FD |
Size | 2.9'' |
IC | UC8151D |
Type | Dot Matrix |
Resolution | 296x128 |

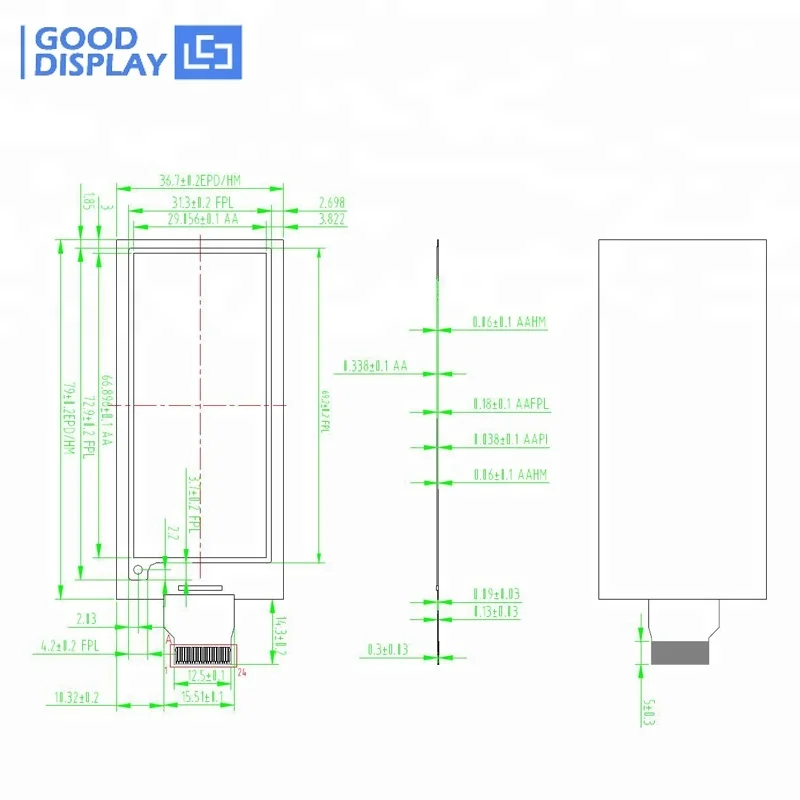

Outline Size(mm) | 79x36.7x0.34 |
Active Size(mm) | 66.9x29.06 |
Pixel Pitch(mm) | 0.227x0.226 |
Operating Temp. | 0℃~50℃ |
Storage Temp. | -25℃~70℃ |
Connector | 24 Pin |
Max Grayscale | 4 |
Color | Black and White\t |
Power consumption of the refresh(mW) | 26.4 |
Standby power consumption Pc(mW) | 0.0165 |
Time of refresh(s) | 3 |
Time of partial refresh(s) | 0.3 |
Interface | SPI |
Particulars
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
Same Size Product List
Part Number | Resolution | Refresh Time(s) | Color |
296x128 | 3 | BW | |
296x128 | 3 | BW | |
296x128 | 3 | BW | |
296x128 | 3 | BW | |
296x128 | 3 | BW | |
296x128 | 15 | BWR | |
296x128 | 30 | BWY |
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
