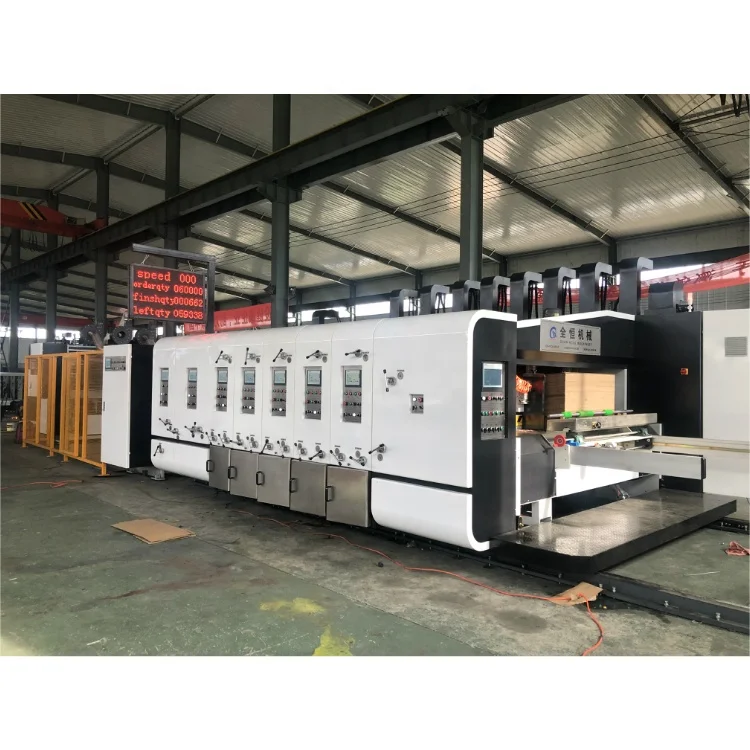

Флексографский принтер для гофрированных картонных коробок роторный штамповочный

Ø The wallboard is made of solid casting with thickness of 60mm, which is processed by quenching and tempering, making the machine run smoothly and the wallboard does not deform.

Ø The connecting bar is welded by 160mm I-beam to make the machine run steadily and without trembling.

Ø Cast iron track is selected for walking track, and the walking is stable.

Ø All the double box clearance adjustment of warrant adjustment.

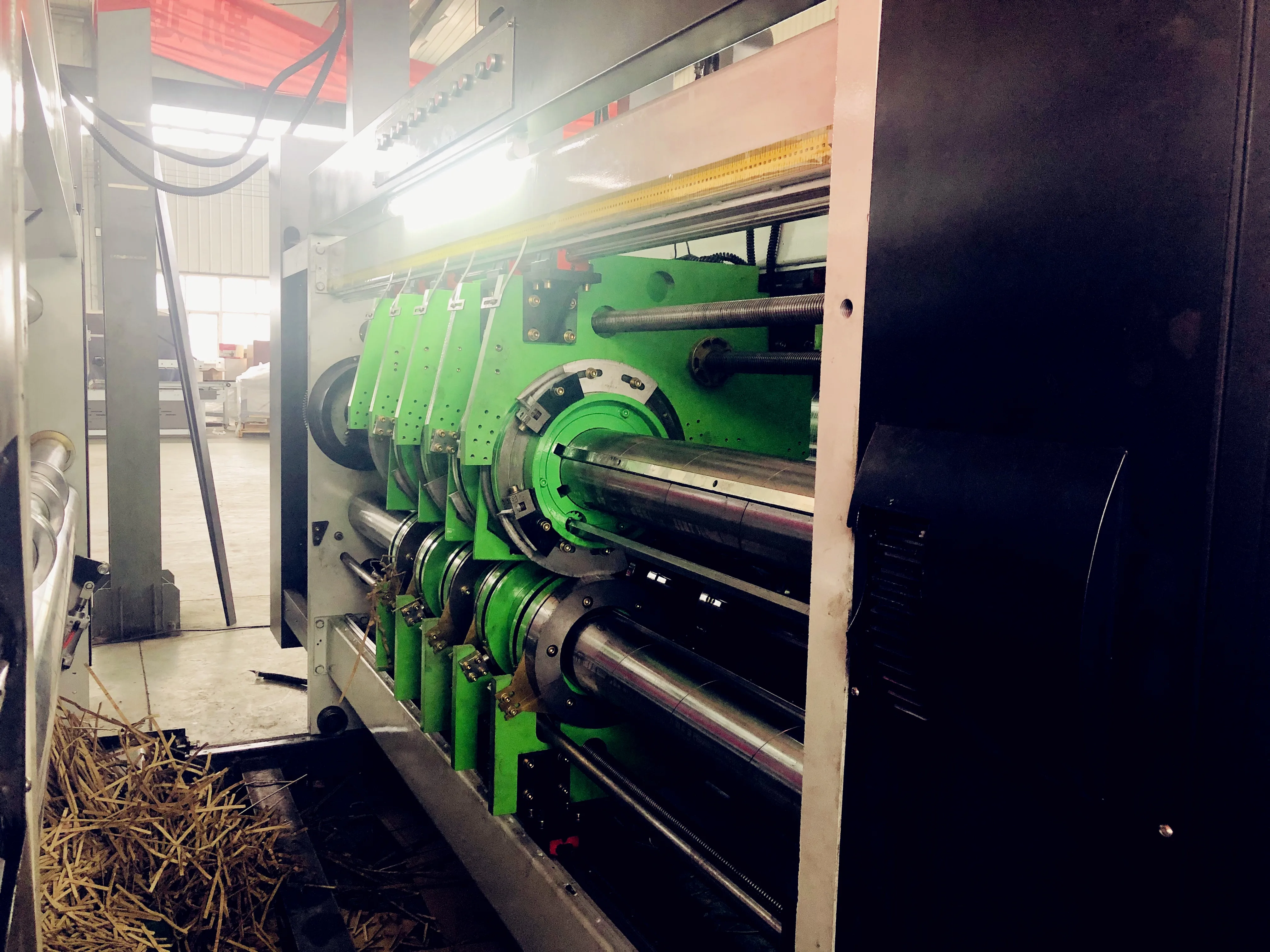

Ø The transmission part adopts cross slide and no gap transmission. The thickness of the gear is 60mm thick, which is made by quenching and tempering and high-precision grinding. The material is 40Cr material.

Ø The sprocket and gear are made of 45# and 40Cr alloy steel, which is processed by high-frequency quenching and tempering and grinding.

Ø Smooth operation, low noise, hardness HRC55-65, long life, small wear and tear, can guarantee the accuracy for a long time.

Ø The cardboard drive adopts the suction belt transmission mode.

Ø The belt drive shaft is made of 45# steel after quenching and tempering, fine turning, fine grinding and electroplating.

Ø The main wall panel is made of steel plate with a thickness of 30mm, which is processed by quenching and tempering to make the machine run smoothly and the wall panel is not deformed.

Ø The connecting bar is welded with 220mm GB channel steel to make the machine run stably and not vibrate.

Ø The left and right walking track is made of 30MM thick steel plate track, which is processed by quenching and tempering, and the walking is stable without deformation

Ø The cantilevered beam is made of 35mm thick steel plate, which is processed by quenching and tempering.

Ø The lower cantilever beam of the origami is made of 35mm thick steel plate, which is processed by quenching and tempering.

Ø The cardboard conveyance is transmitted by the upper suction belt, and the lower roller is passively conveyed. The design structure adopts Japanese Mitsubishi technology.

Ø Left and right origami beam travel axis, use 168mm diameter guide shaft to slide, the support force is large, the machine runs stably and does not deform.

Ø The rack of the counting unit is welded by 280mm GB channel steel.

Ø Cardboard conveying is a belt conveying method.

  Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,
so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in
China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our
factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
