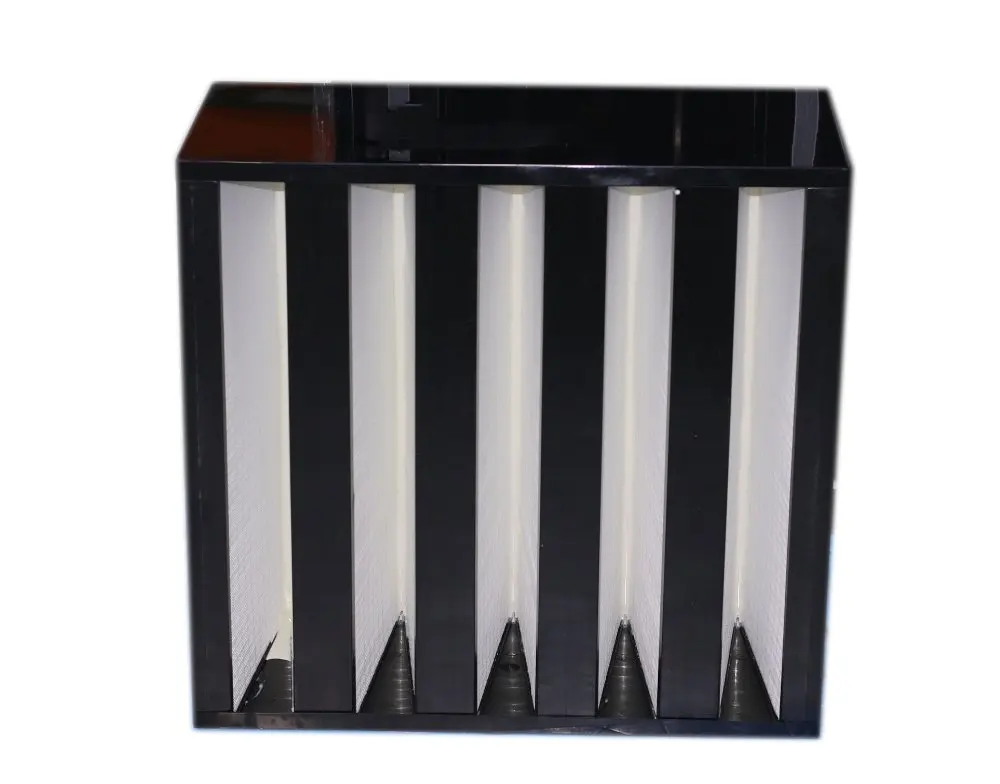

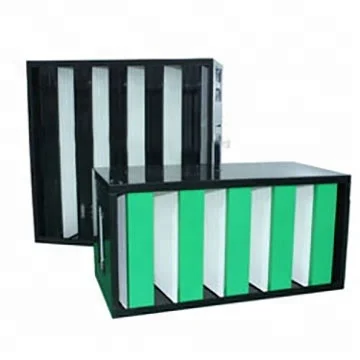

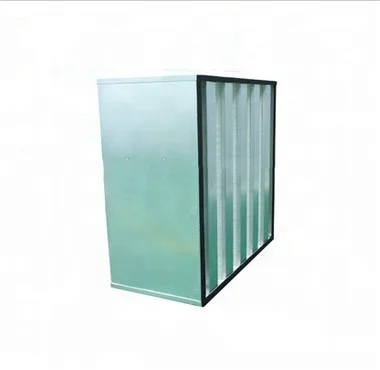

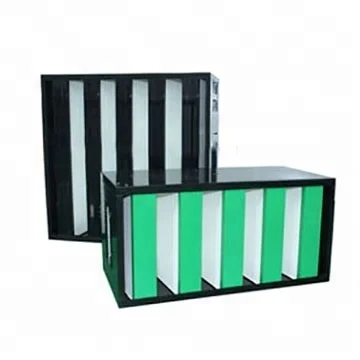

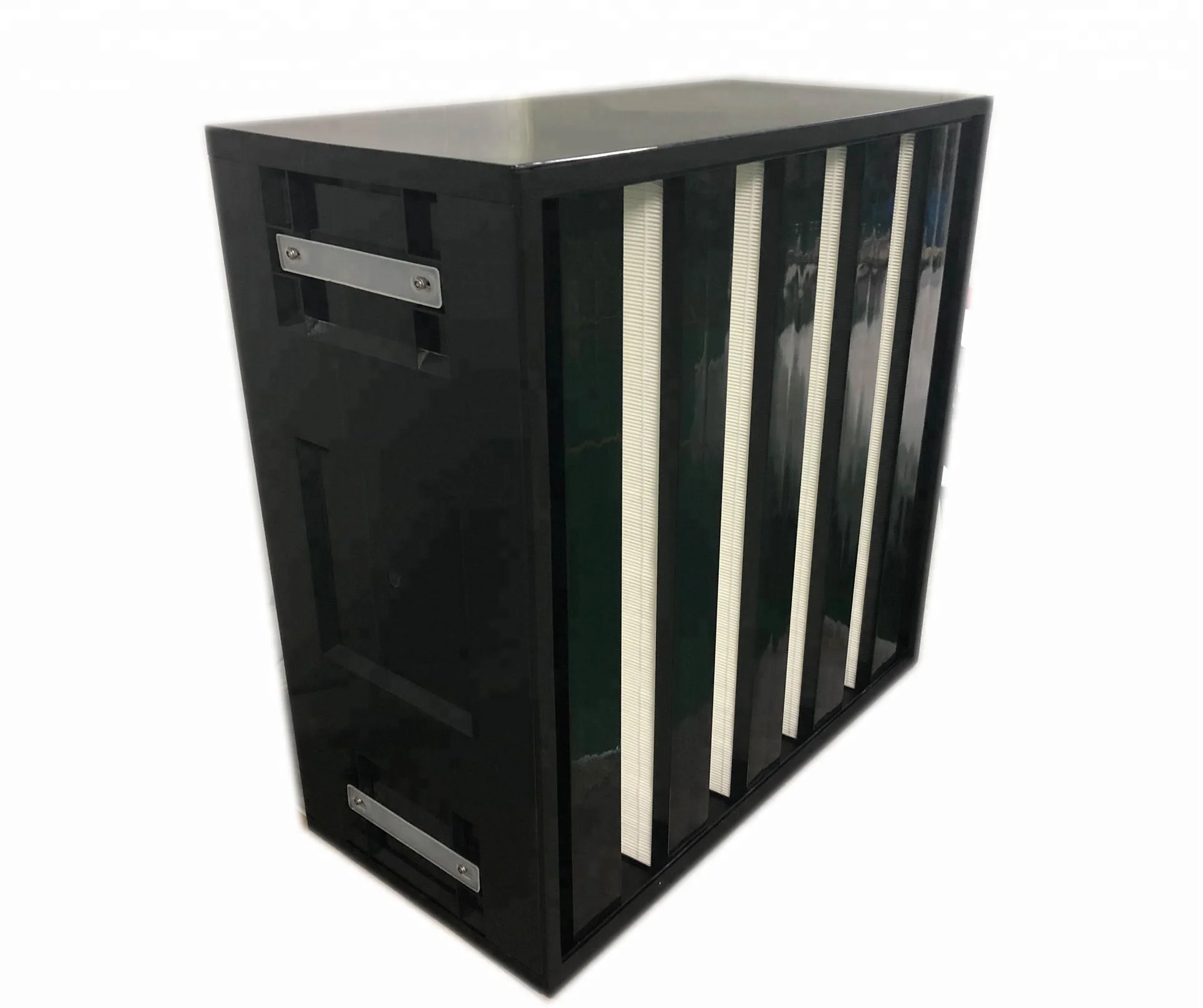

High Efficiency Pleated Filters
—— Five V-Cells Filter 292D
Features:
- Designed with V-cell which makes it low resistant
- Mini pleated designed to make it light weight
- High air flow rates, low cost
- High dust holding capacity, easy installation, long life
- Strong structured to make it runs stable under turbulence condition Efficiencies:
- HV=95% @0.3μm
Standard:
- EN 1822
Operating temperature:
- Max 60℃ (140℉)
Operating humidity:
- 100%
- Final filtration of air condition systems and high air flow rates air purifying equipments
HV is a kind of deep loading HEPA filter which suitable for both permanent air flow and impermanent air flow systems. It’s constructed of mini pleated V cell and made of galvanizing frame. Its media area is largely extended compared with ordinary filter. In the current installation system, the comparatively large media surface ensures low media damage possibility, thus energy consumption and operating
Product Model | External Dimension mm | Efficiency | Liao Area | The Rated Air Flow | Initial | Final Pressure Drop | |||
@0.3μm | Pressure Drop | Weight | |||||||
@0.45m/s | |||||||||
W | H | D | EN1822 | m2 | m3/h | Pa | Pa | kg | |
BX5E11-C2Z2-A1 | 592 | 287 | 292 | E11 | 9.3 | 1700 | 300 | 600 | 3 |
BX5E11-C2Z2-A1 | 592 | 592 | 292 | E11 | 23 | 3400 | 300 | 600 | 6 |
BX5E11-C1/D1/E1/ F1Z2-A1 | 610 | 610 | 292 | E11 | 28 | 4000 | 300 | 600 | 10 |
*Any size can be customized |
