Product Description

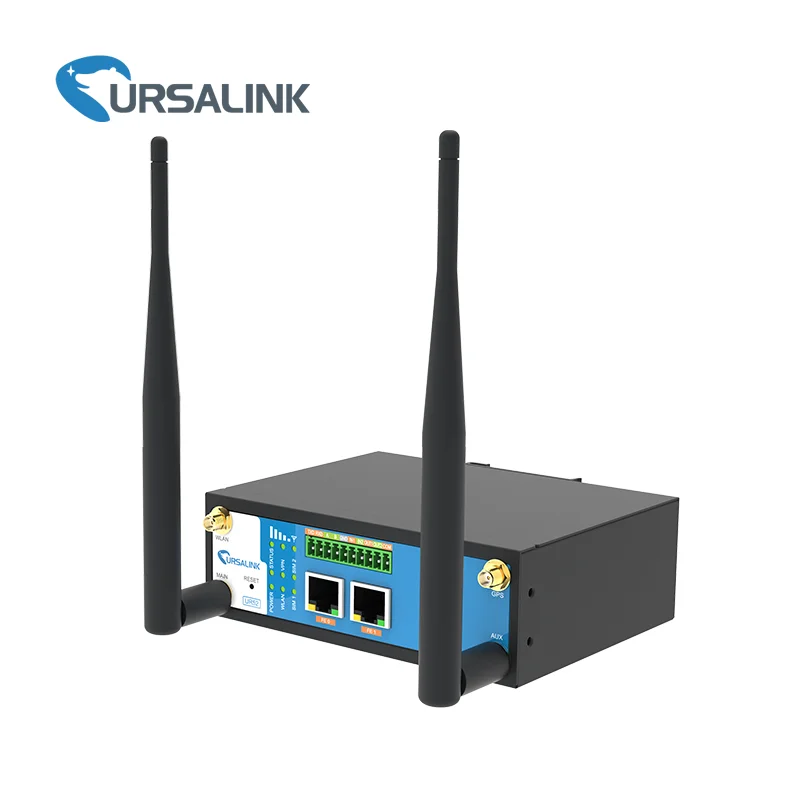

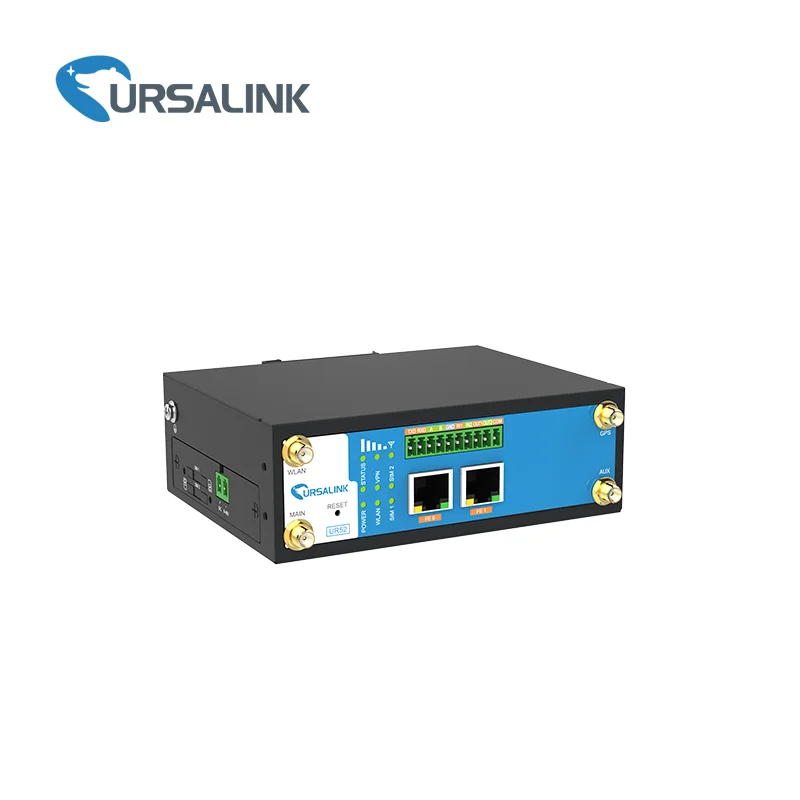

UR52 Industrial Cellular Router
UR52 industrial cellular router is a fully-pledged networking platform offering versatile wireless connectivity over 3G, 4G, Wi-Fi and Fast Ethernet. The strong points of UR52 lie in the multiple encryption tunnels, redundant connection between cellular and Wi-Fi, rich industrial networking protocols, and powerful software inside. The seamless and reliable connectivity contribute to its unmatched excellence and drives continuous growth for your businesses.
Flexible Modular Design
The UR52 supplies a broad selection of modules that helps to meet the demanding requirement of network connections. Further to this, it features GPS, Wi-Fi, RS232/RS485, Quectel and Telit modules/interfaces for users to build an optimal networking platform for their businesses.
Device Management Platform
Ursalink Device Management Platform is engineered to extend your network reach of remote equipment and allows you to perform further analysis, spot outages and ensure the highly possible uptime. As an intelligent IoT-based strategy, the Platform comes with exciting promises that release operational efficiency and drive commercial success.
Highlights:
High Processing Speed: embeds 32-bit ARM Cortex-A7 processor, 128 MB DDR3 RAM
Flexible Modular Design: Serial port, GPS, Wi-Fi, etc
IoT Platform Readiness: connects to AWS, Azure, ThingWorx in minutes
Remote Management: features Ursalink Device Management Platform
Custom-Tailored Service: experienced OEM/ODM solution
Multiple Encryption Tunnels: complies with a wide range of VPN protocols
High-Speed Data Transmission: features fast Ethernet port
Specifications
UR51 | UR52 | UR55 | ||||
Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | ||||
Flash | 128 MB | |||||
Memory | 128 MB DDR3 | |||||
Built-in | Watchdog, RTC | |||||
GPS | GPS + GLONASS | |||||
Micro SD | Supports micro SD card up to 128 GB | |||||
Interfaces | SIM Slots | 2 | ||||
Ethernet Ports (Mbps) | 1 x 10/100 (Optional: PoE Output) | 2 x 10/100 | 5 x 10/100 | |||
Serial Ports | 1 x RS232 or 1 x RS485 | 1 x RS232 + 1 x RS485 or 2 x RS232 or 2 x RS485 | ||||
Digital (I/O) | N/A | 2 x DI + 2 x DO | ||||
Antenna Connectors | 2 x Cellular Connectors (Center Pin: SMA Female) | 2 x Cellular Connectors 2 x Wi-Fi Connectors, 1 x GPS Connector (Center Pin: SMA Female) | ||||
Network | Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH | ||||
AAA | Radius, TACACS+, LDAP, Local Authentication | |||||
Firewall | ACL/DMZ/Port Mapping/MAC Binding | |||||
Wi-Fi | IEEE 802.11b/g/n/ac | |||||
Serial Port | Transparent ( TCP Client/Server, UDP), Modbus Master Modbus Gateway (Modbus RTU to Modbus TCP) | |||||
VPN | DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE | |||||
Reliability | VRRP, WAN Failover, Dual SIM Backup | |||||
Maintenance | Management | Web, CLI, SMS, Watchdog, On-Demand Dial up | ||||
Multilevel Authority | Multiple Levels of User Authority | |||||
Hardware | Power Input | 9-48 VDC (48V power input is needed for 802.3af PoE output) | 9-48 VDC | |||
Power Consumption | Typical 1.8 W (Max 2.7 W) in non-PoE mode | Typical 2.5 W (Max 4.1 W) | Typical 2.8 W (Max 5.0 W) | |||
Ingress Protection | IP30 | |||||
Housing & Weight (Metal) | 365 g (0.80lb) | 460 g (1.01lb) | 481 g (1.06lb) | |||
Dimensions | 100 x 96.1 x 30 mm (3.94 x 3.78 x 1.18 in) | 132 x 103.8 x 45 mm (5.20 x 4.09 x 1.77 in) | ||||

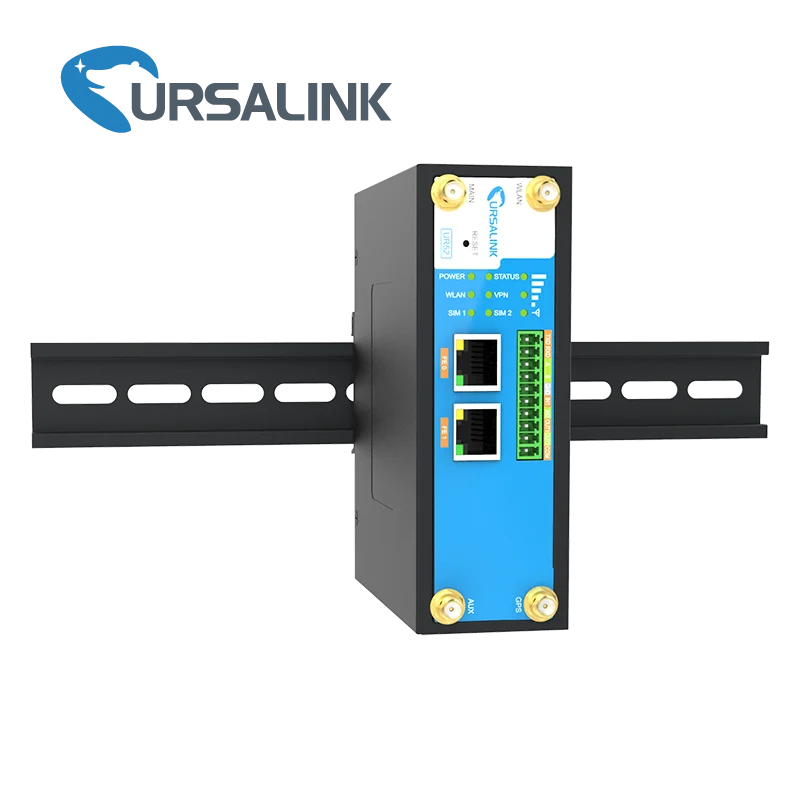

Mounting | Desktop, Wall or DIN Rail Mounting | |||||
Others | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance above 60°C | ||||
Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |||||
Relative Humidity | 0% to 95% (Non-Condensing) at 25°C/77℉ | |||||
Certifications | RoHS, CE, FCC | |||||
EMC | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 4 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 4 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 | |||||
Detailed Images

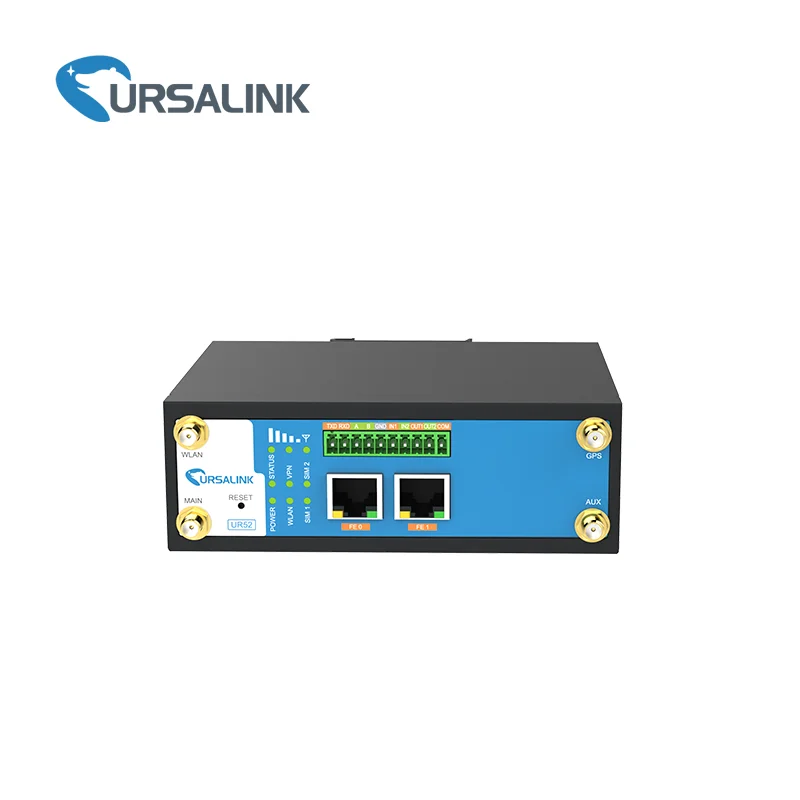

Comprehensive Industrial Interface - Front
Fast Ethernet Port: 2 x 10/100 Mbps
Main Cellular Antenna & AUX Cellular Antenna
GPS: with high accuracy positioning
Dual-band Wi-Fi: complies with 802.11/b/g/n/ac standard
Serial Port & I/O: 1 x RS232 + 1 x RS485 or 2 x RS232 or 2 x RS485

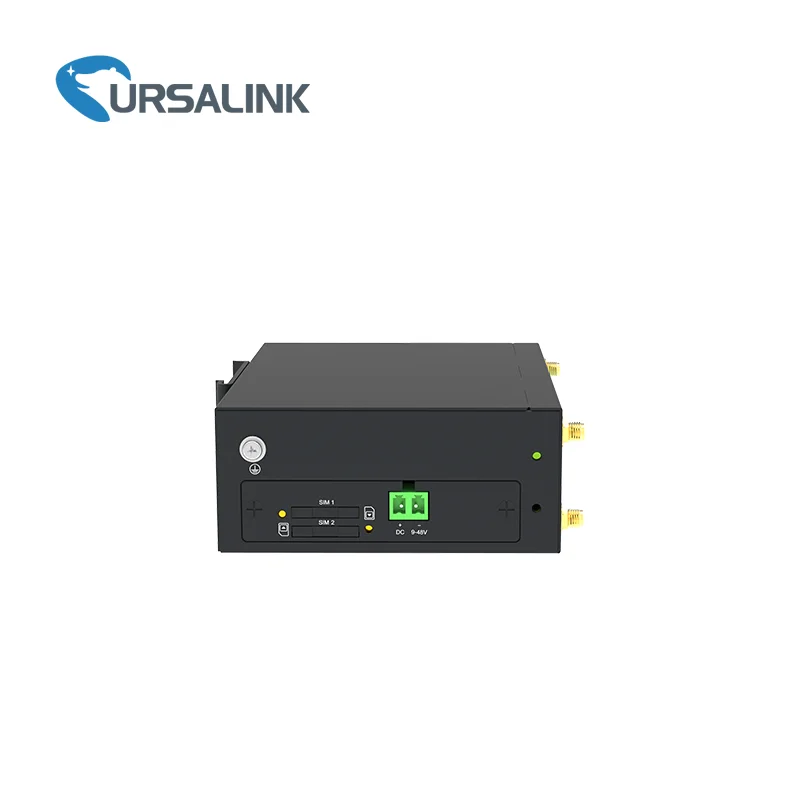

Comprehensive Industrial Interface - Back
Grounding Stud
Power Connector
SIM Card Slot
Package Contents
2 x Magnetic Mount Cellular Antennas
2 x Stubby Cellular Antennas (Optional)
2 x SIM Card Slots
1 x Power Adapter
and more....
