Характеристики

Product Description

Specifications
Adopting pressure-flow sensor, sensitive, precise, easy to clean and durable
Dimension:
284mmX210mmX72mmWeight: 1.7kg(net)

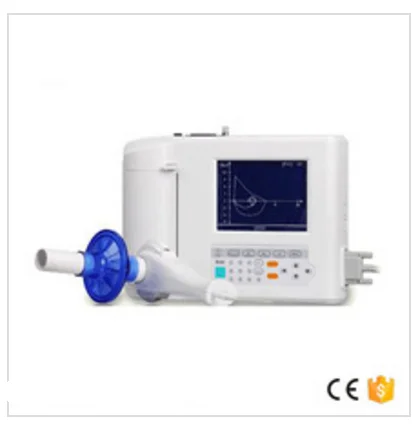

The portable pulmonary function measurement instrument can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilatory Volume (MVV). Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS)
Adopting pressure-flow sensor, sensitive, precise, easy to launder, clean and durable
All parameters can be displayed on the oversized screen(320x240), built-in memory can store maximum 300 cases of patient measurement results
The instrument can calibrate automatically, all English operation, more convenient to operate
110mm thermal printer built-in,can print out a clear clinical report, predicted value, measured value
Measurement of breathing time: VC time 50 seconds, FVC measuring time
25 seconds, MVV time 12 seconds, in favor of the coordination between patients and the device
Compact and flexible

Specification

Items	Technique specification
Display Screen	Diagonal line 5.7inches
	Monochrome LCD
	Resolution 320*240
Control	Standard:UTILITY KEY,SVC KEY,FVC KEY,MVV KEY,PRINT KEY,10WORDS KEY,[ ]KEY, KEY,START KEY,STOP KEY, KEY KEY KEY KEY
Control	Light alarm
Measurement means	Flow velocity detection: pressure gradient pneumatic flow sensor
Measurement means	Capacity detection: flow velocity integral
measuring range	Capacity range:0L~9L
measuring range	Flow velocity range: 0 ~14L/ s
measurement accuracy	Capacity:
	0L~1.6L(± 50ml)
	6L~9L(± 3%)
	Flow rate: 5% or0.2L/ s
	Respiratory rate:
	4 / 20 ~ / min (± 1 / min)
	20 / 60 / min (error: ± 5%)
measuring time limit and degree	Vital capacity: every 50s, measuring 3
	FVC: per second, 25s, measuring 3
	The maximum ventilation volumn: every 12 seconds, measuring 3
Paper Recorder	Method: dot matrix
	Level Resolution Ration: 8 d/mmspeed25mm/s
	Uprightness Resolution Ration: 8 d/mm
	Wave Channels: 1
	Paper Width:110mm1.97inches
	Paper Length:15m100inches
	Formfeed Speed: 12.5,25 and50mm/s±2
Power supply	AC: 100V~240V
Power supply	DC: rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour
Fuse	100V~240V ACF2A250V,5×20mm
Safety classification	IEC60601-1 class I, type CF
