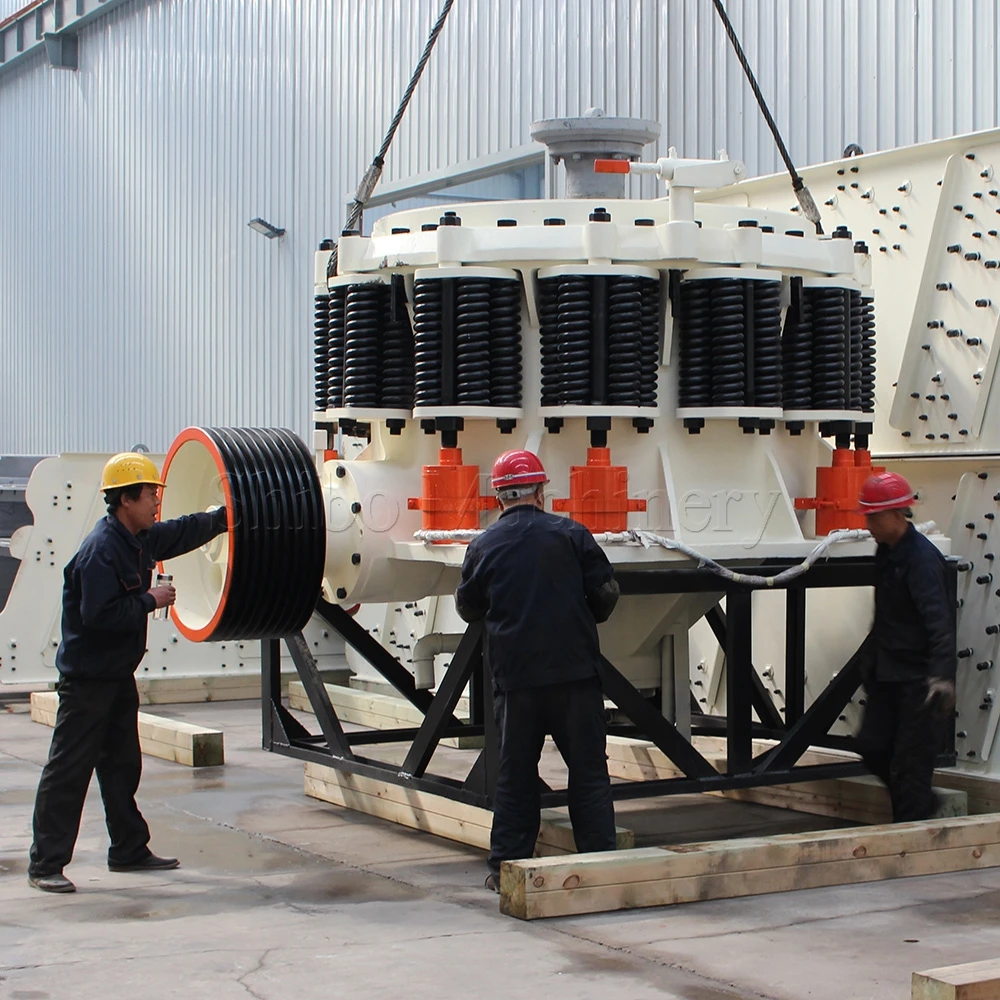

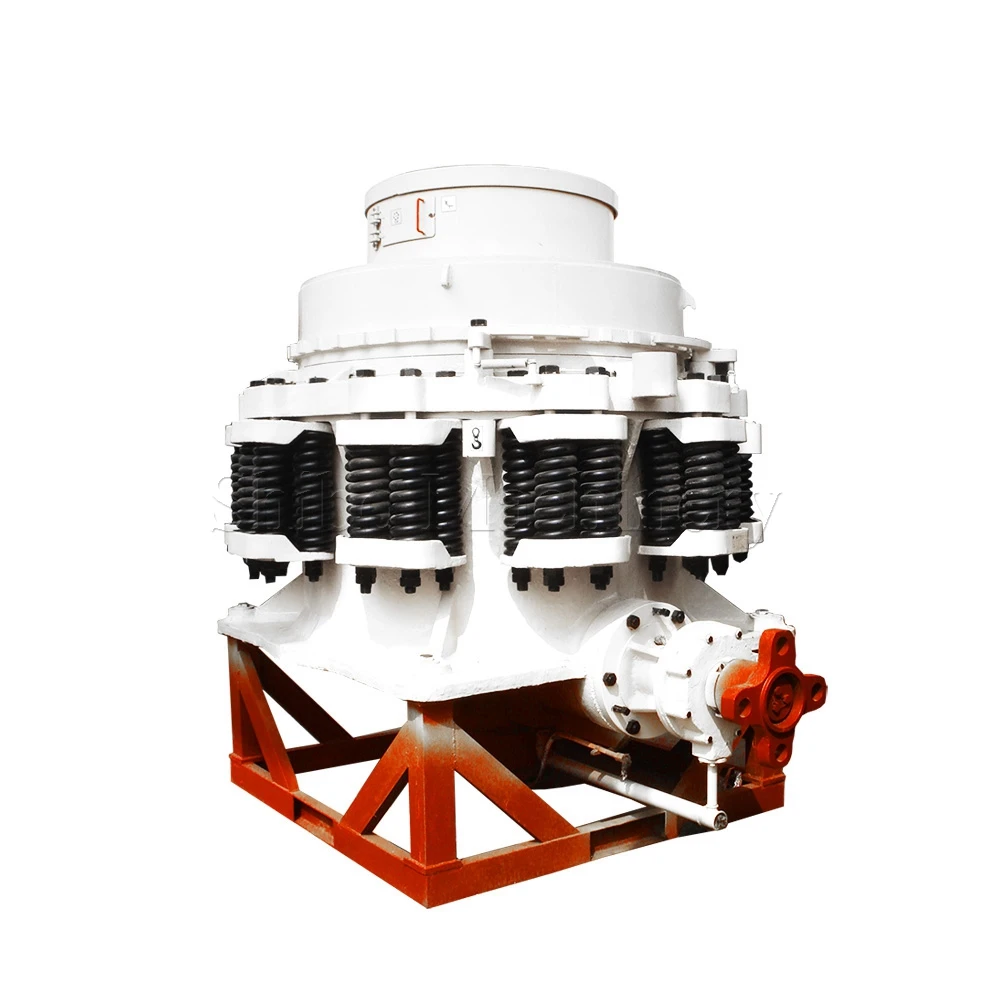

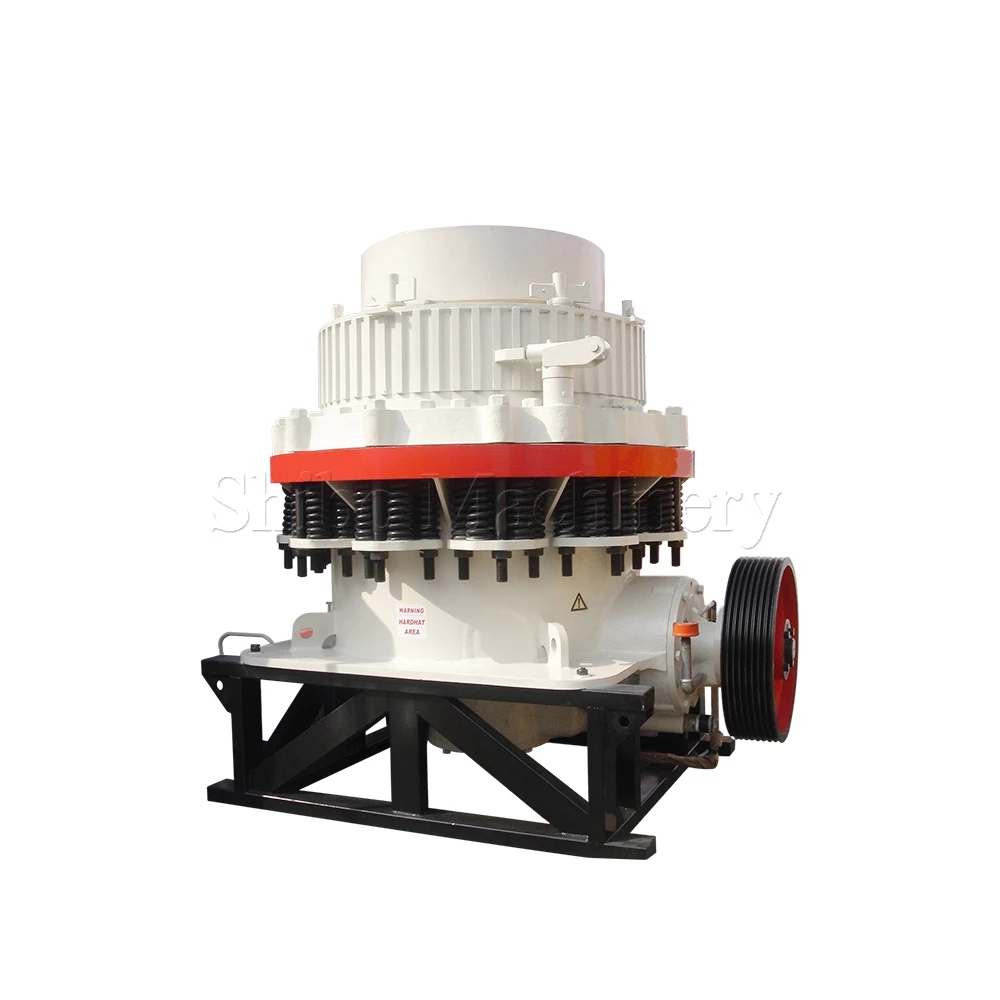

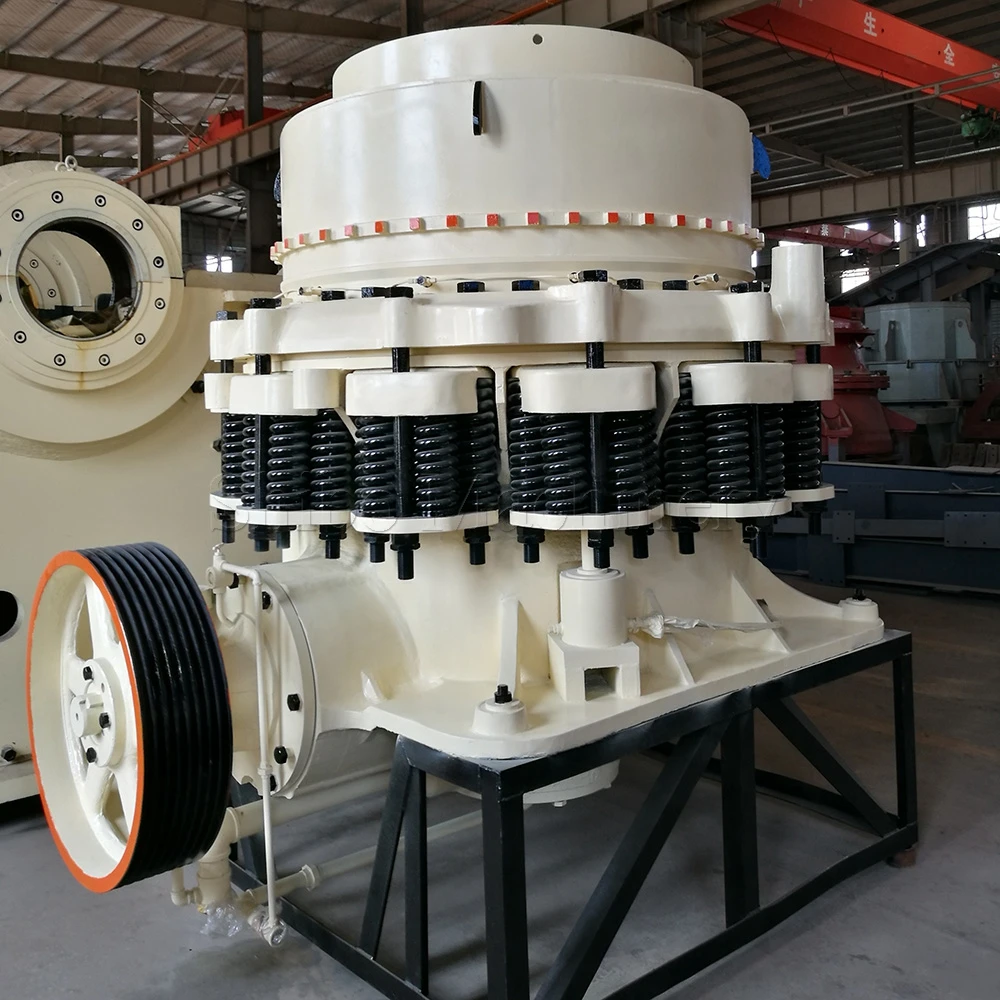

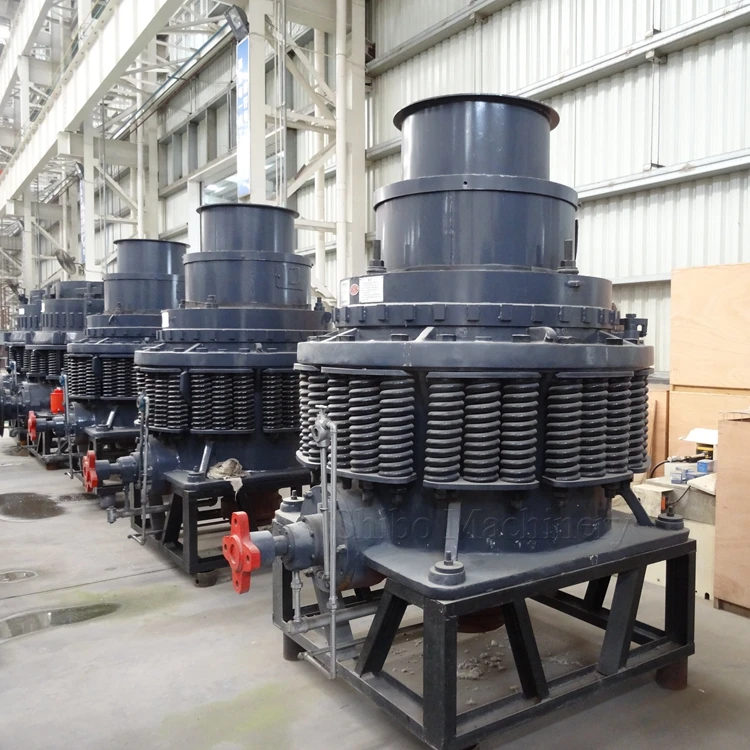

Secondary Crushing PY Series Spring Aggregate Cone Crusher Machine



Spring cone crusher is the earliest and one of the most widely-used crushers in the world. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.



Besides spring cone crusher, we also have symons cone crusher, single cylinder hydraulic cone crusher and multi-cylinder cone crusher for sale, full models for choice, meeting your different needs. The max. feeding size of cs160 symons cone crusher is 241 mm, output size is 13-51 mm adjustable, capacity is 109-349 t/h.





Cone crushers are main equipment for medium/fine crushing of ores and rocks with different hardness in mining, forging, construction, chemical industry and power stations. They have features of advanced structure, high output rate, easy adjustment and their products have uniform grain distribution.



Typical materials:

river gravel, granite, basalt, iron ore, limestone, quartz, diabase, gold ore, copper ore, etc.



When a spring cone crusher works, its motor drives the eccentric bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which drives the mantle periodically moving close and far to the bowl liner. During the moving process, the raw materials are pressed, impacted and finally crushed in the crushing chamber.







1. Good performance & high efficiency / productivity.
2. Convenient operation and maintenance.
3. Stable and reliable structure & less cost in operation.
4. High-quality & easy adjustment.
5. The adoption of dry oil and water prevents the dust from entering the machine body.













• Pre-sales

• Help customers to choose product.


• Freely send engineers to the working field to plan the installation site and design the best technical production process.


• Design the special product according to the contract.

• On-sales

• Inspect every part of machines before production.


• Deliver goods on schedule according to the contract.

• After-sales

• Send the engineers to guide the installation.


• Install and adjust the equipment for customers.


• Train the operator for customers.


• We also provide the technical service for our customers after the installation.


• If there is any problem during the application, our after-sale engineer shall ensure to offer clear solutions within 24 hours or arrive at the working site within 48 hours ASAP.





Henan Shibo Machinery Co.,Ltd. is committed to designing, producing grinding mills, crushers,conveyors, feeding machines, drying and calcinating as well as beneficiation equipments and etc, which are widely applied in electricity, metallurgy, mine and quarry, wharf, granary, chemical industry. Our products have been spreaded all over China, and also exported to European,American, Asian, African countries and enjoyed great popularity among our customers.



Our Clients
