Характеристики
Product Description
Using pipe fixed, welding carriage walking to reach all position automatic pipe welding,welding process with high efficiency and low cost of CO2 gas shielded welding. Summary of structure and instructions.

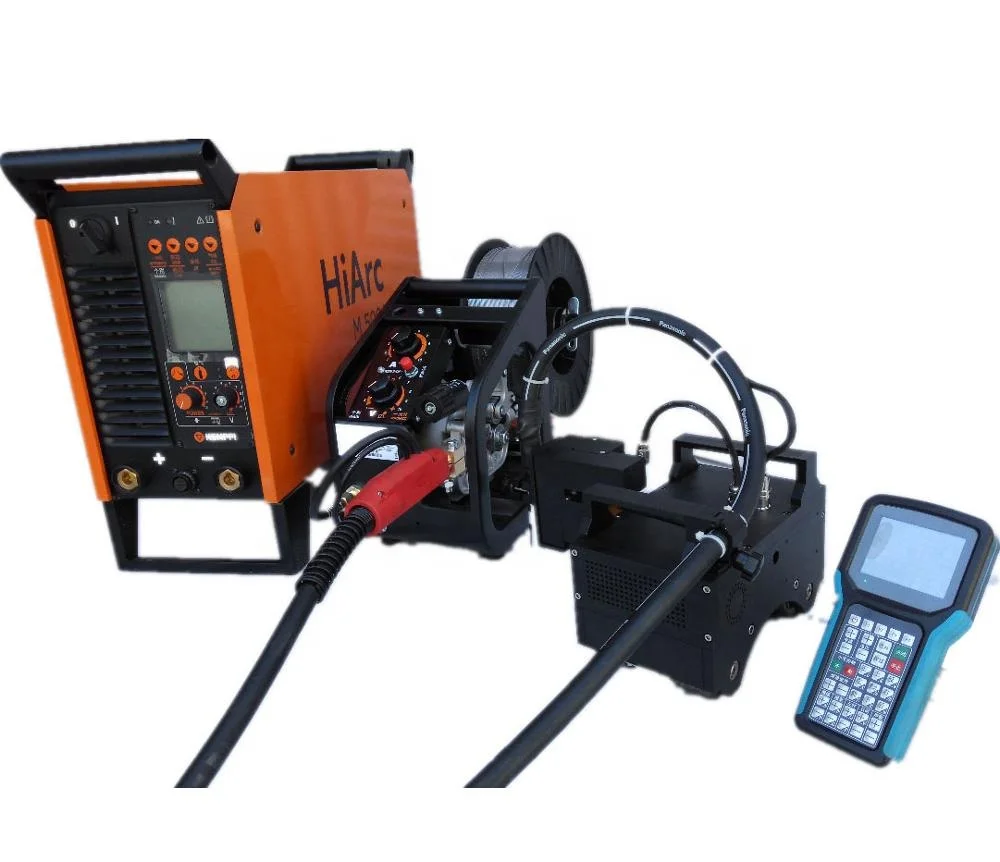

Pipeline all position automatic welding machine is consisted of welding control system , welding carriage with torch, welding power source, wire feeding device and accessories.
Pipeline all position automatic welding machine is consisted of welding control system , welding carriage with torch, welding power source, wire feeding device and accessories.
Suitable pipe | more than 130mm |
Pipe wall thickness | 4-50mm |
Suitable for | C.S,S.S,A.S, Low temperature steel(S.S is with special rail) |
Suitable seam welding | pipe to pipe,pipe to elbow, pipe to flange Ø Drive system; stepping motor wheels and Gear/worm transferring |
Control mode | Button to add and subtract speed |
Adjustment manner | electrical circuitry control |
Oscillating system | the company's proprietary technology products, / swing stepper motor |
Control system | the company's proprietary technology products, the digital control |
Size Information
Size Chart of Machine
Item | Data | Data | |
Power Source | |||
Brand | Kimppe Hiarc M500A | ||
Power source Voltage | 3,50/60hz | 380V(-10% to +15%) | |
Rated power | 60% ED | 24.5KVA | |
100% ED | 17KVA | ||
Current Supply | Maximum | 37A | |
Valid value | 29A | ||
Outlet,at 40degree | 500A/39.0V | ||
390A/33.5V | |||
Fuse | 35A | ||
open-circuit voltage | 60-70V | ||
Power factor 60% | 0.92 | ||
Power 100% | 87% | ||
Welding range | 13-50V | ||
Size | 716*385*485mm | ||
electromagnetic compatibility | A | ||
Weight | 41kg | ||
Protection grade | ip23s | ||
Gas heating connection | 36v/150W | ||
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
Company Introduction
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer
man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project
schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project
schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
