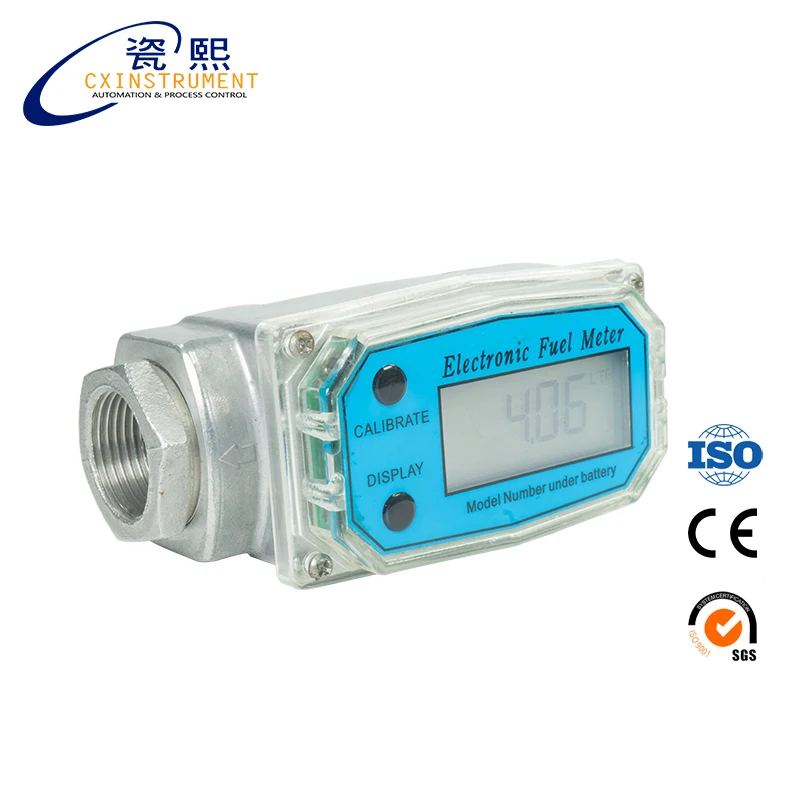

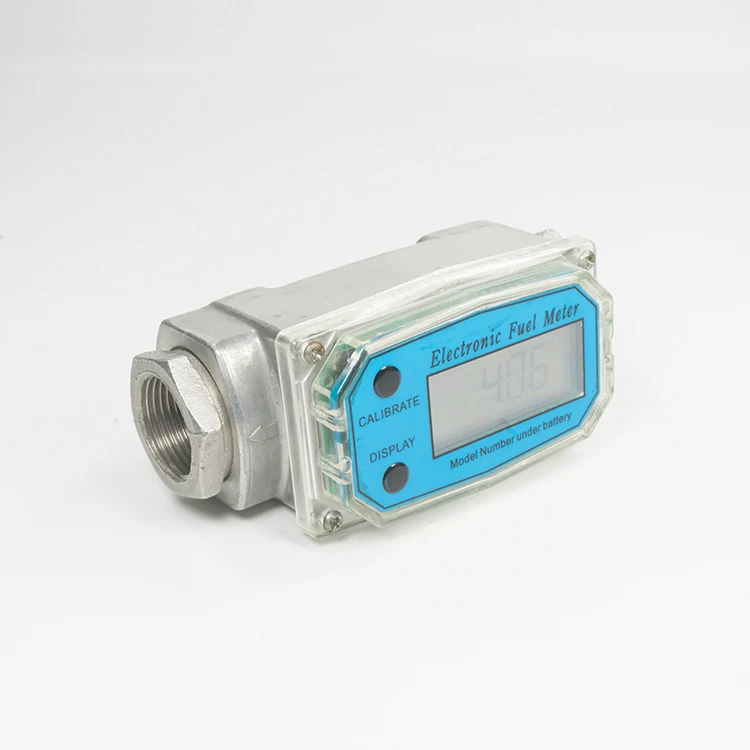

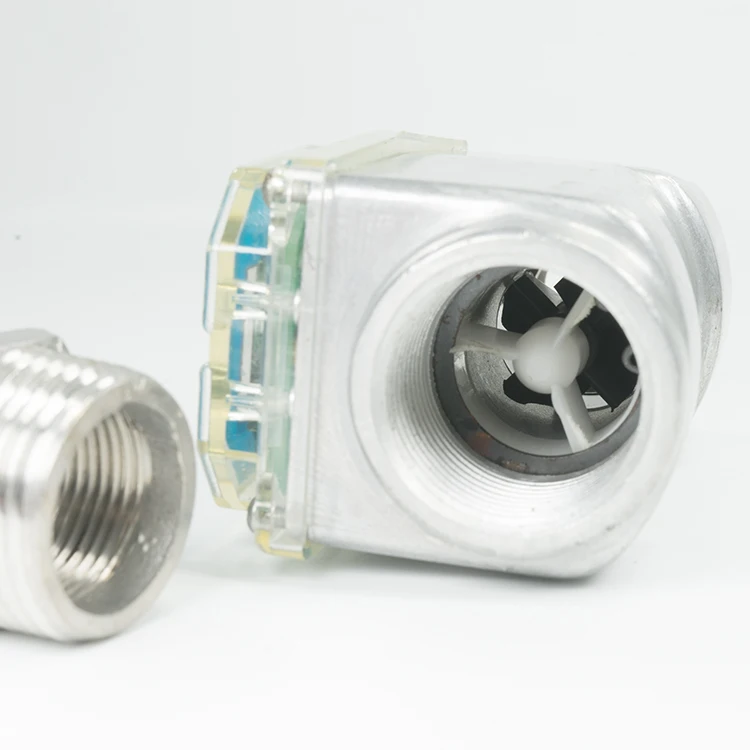

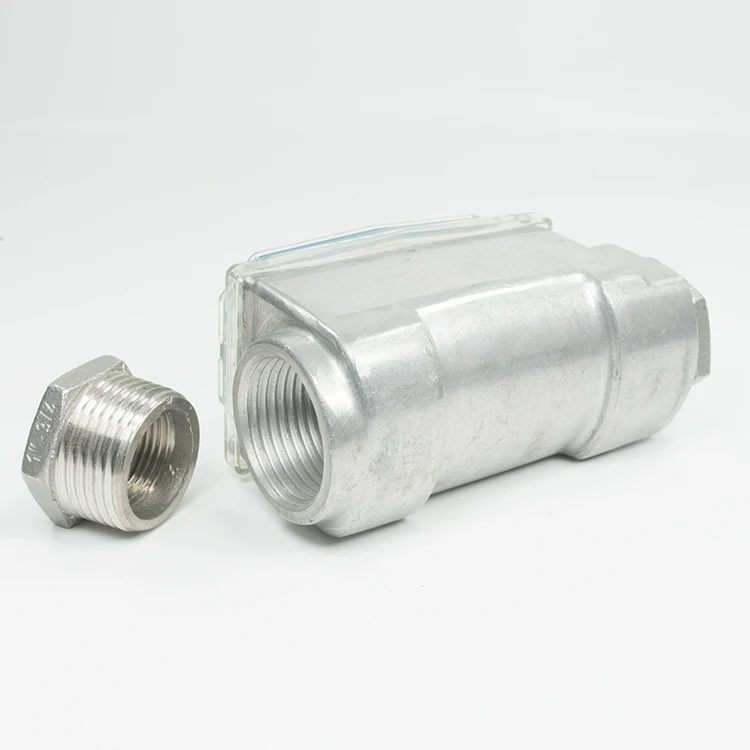

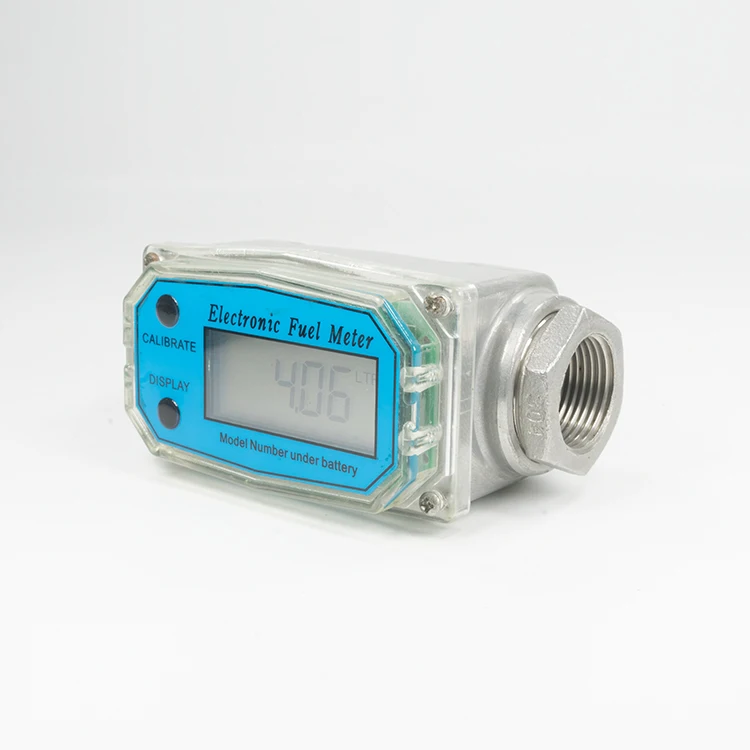

Electronic Diesel Fuel Oil Flow Meter Battery supply Wl Turbine Flow Meter



A.[Features]

• Two button on panel(DISPLAY for resetting, CALIBRATE for accumulating);
• Customized for Unit:Liter;gallon;PT, and QT;
• High accuracy,1.0% and 0.5% optional;
• 3/4''(2-20GPM);1''(5-50GPM);1.5''(10-100GPM) Diameter optional;
• Standard type battery supply and with 2 year working life;
• 5 LCD Digital Display,Display range is 0.01-9999;

  The Wl turbine flow meter used for diesel,fuel oil,gasoline and etc...It's also could used for water,but the working life is reduced.And main used for Gas station and used with oil gun to measure the gasoline flow range.





B.[Parameters]

Technical Parameters-WL Turbine Flow Meter
Diameter	3/4'' ; 1'' ;1.5''
Flow Range	3/4'' : 2-20GPM
	1'' : 5-50GPM
	1.5'' : 10-100GPM
Repetiton	+/-0.1%
Accuracy	+/-1.0% or 0.5%
Material	Aluminium alloy
Display	5 digital Lcd Display and range is 0.00-9999
Connection	Thread connection
Pressure	Standard type is 0.3Mpa,The max pressure is 1.0Mpa
Temperature	-10~60℃ and the max temperature is 120℃
Power	Battery Power supply
