Труба и трубка из хромомолибденового
- Категория: Молибден >>>
- Поставщик: Baoji,Kedipu,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.54 $* | 0.89 $* |
| Aug-16-2025 | 0.24 $* | 0.83 $* |
| Jul-16-2025 | 0.53 $* | 0.58 $* |
| Jun-16-2025 | 0.58 $* | 0.89 $* |
| May-16-2025 | 0.25 $* | 0.29 $* |
| Apr-16-2025 | 0.38 $* | 0.12 $* |
| Mar-16-2025 | 0.84 $* | 0.2 $* |
| Feb-16-2025 | 0.88 $* | 0.70 $* |
| Jan-16-2025 | 0.75 $* | 0.44 $* |
Характеристики
chrome molybdenum alloy pipe and tube
Product Description

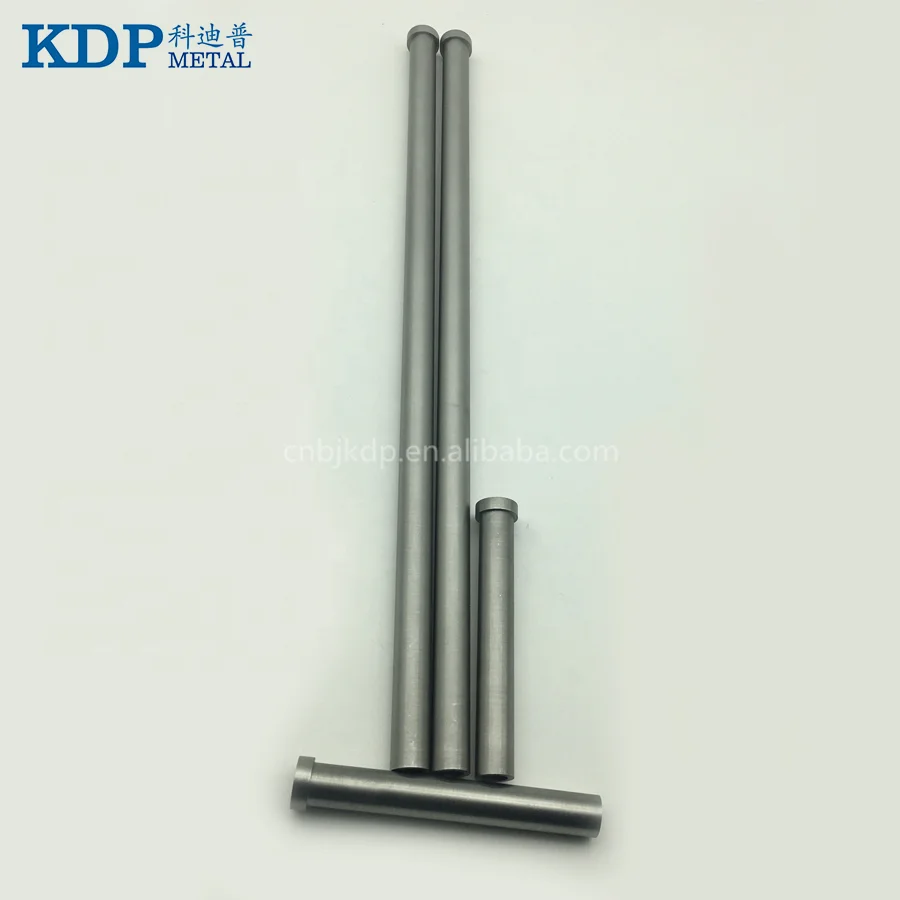

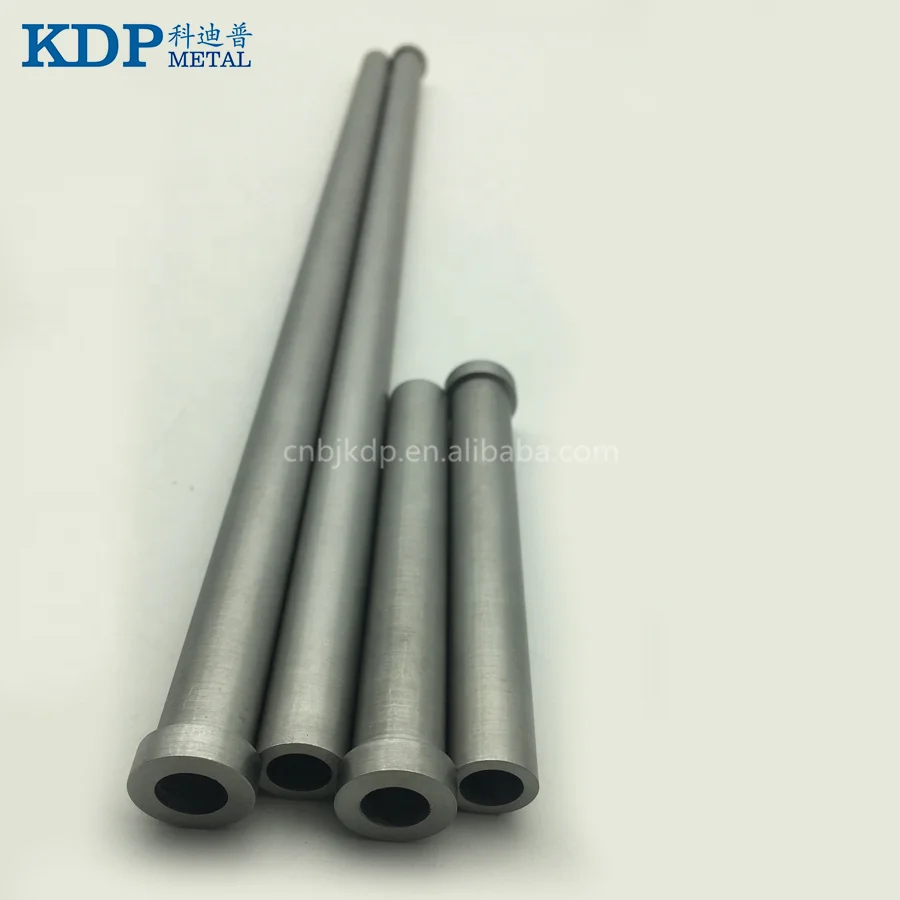

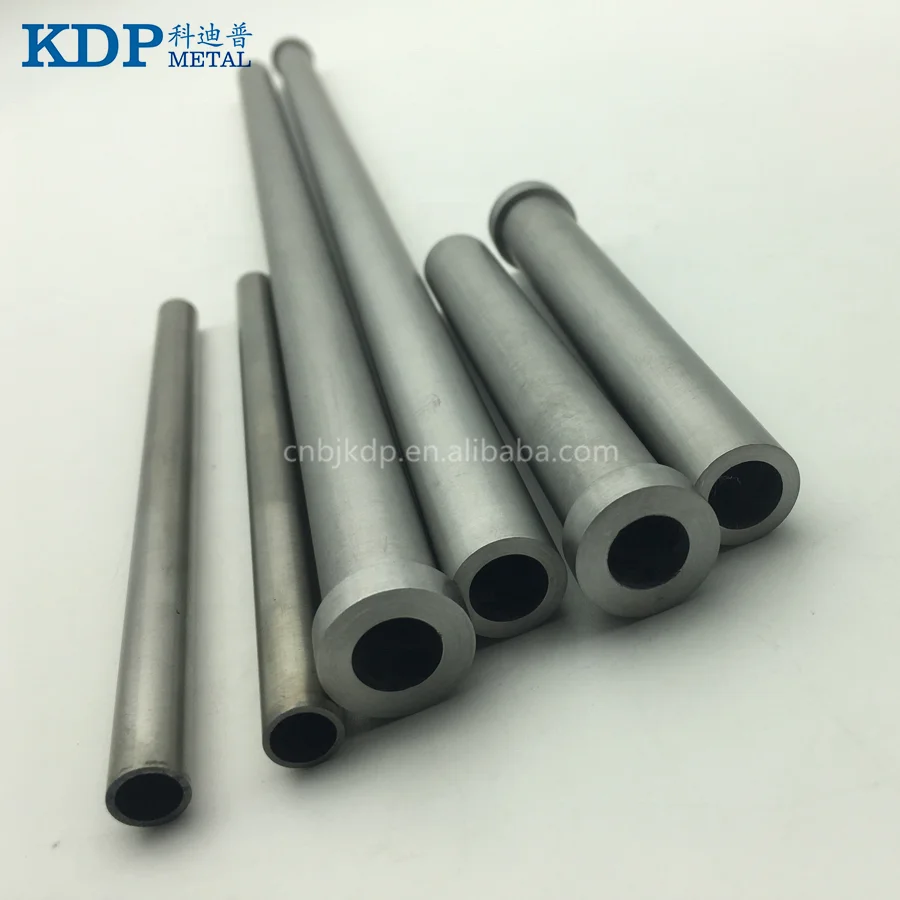

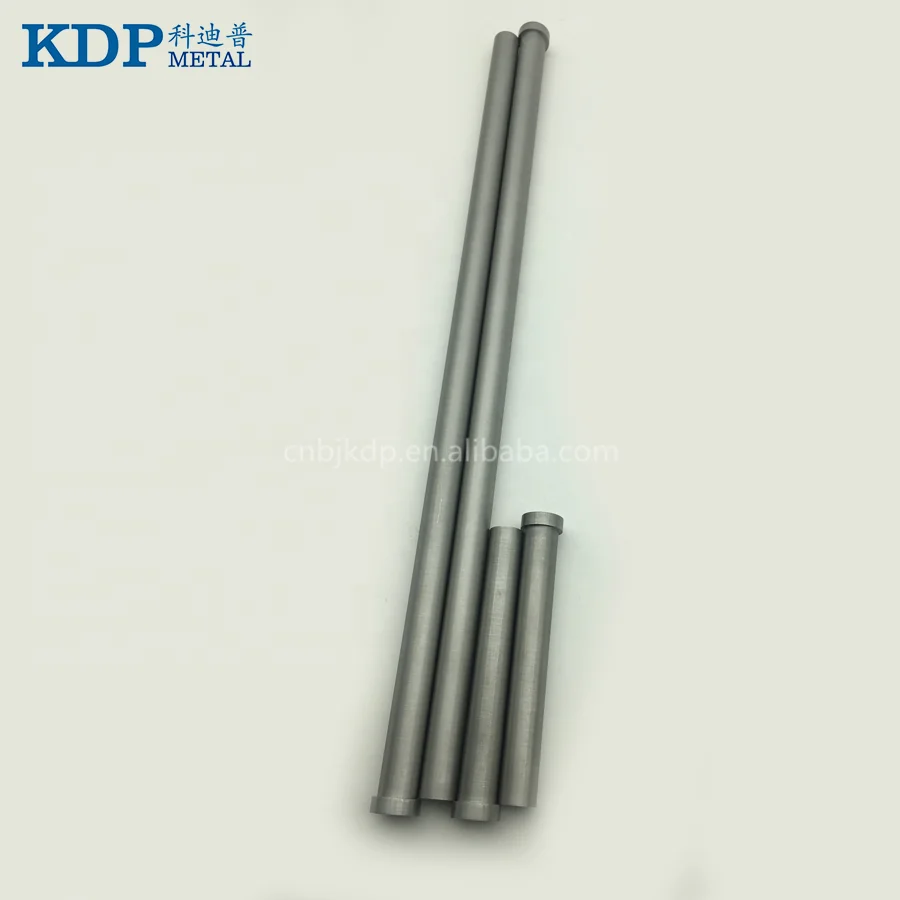

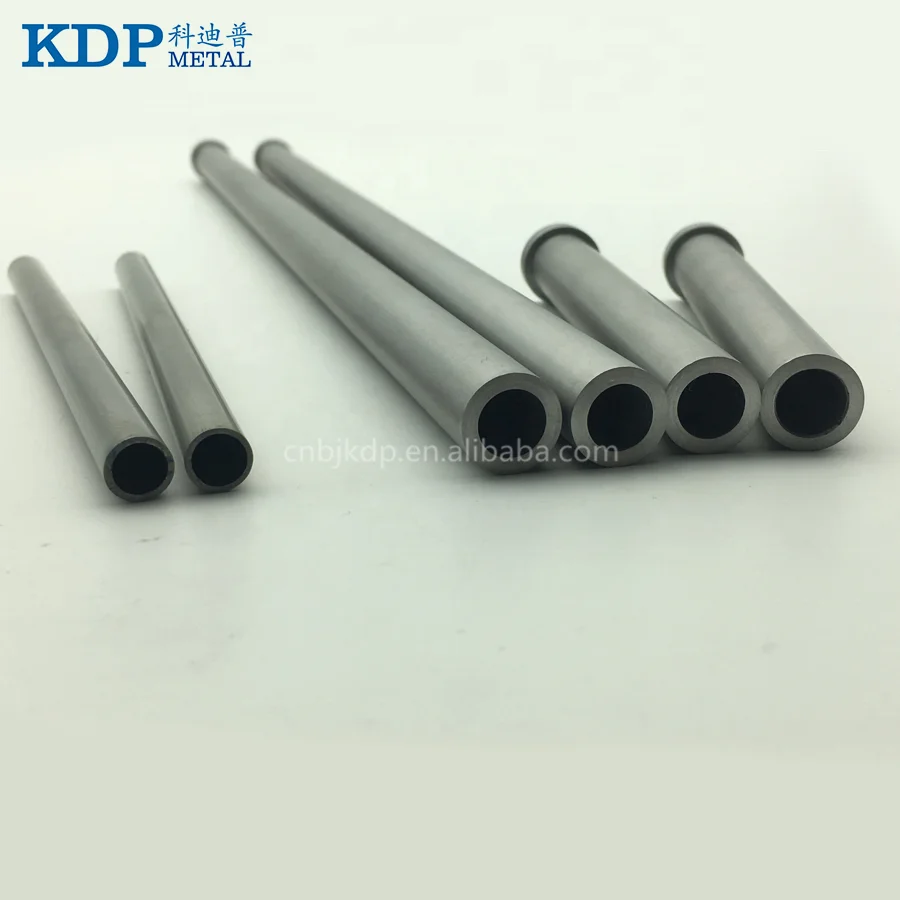

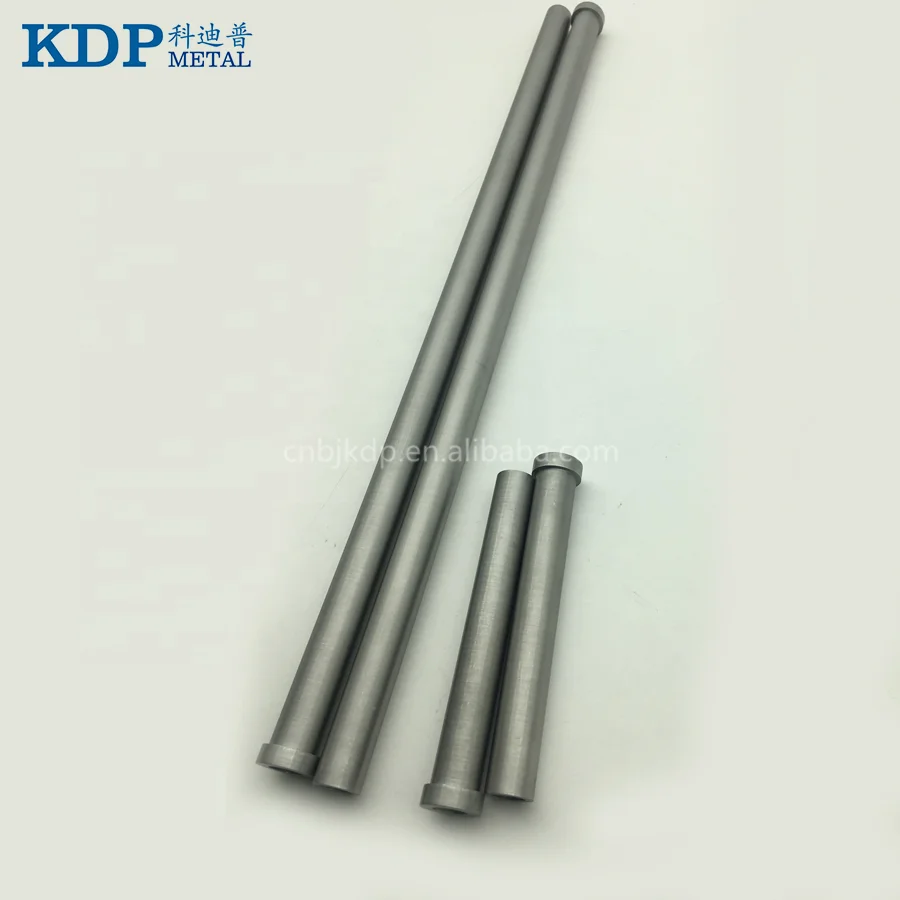

Molybdenum tube
Molybdenum tube is often used as a tungsten rhenium thermocouple protection tube, the protector of the high-power tube plate and the cathode support tube, sputtering targets, etc.
| Item name | Molybdenum tube, Molybdenum pipe, cylinderical Molybdenum target, rotary Molybdenum target |
| Material | Mo1 (Type 361), MoLa (Lanthanum doped), TZM (Type 364), MoW alloy, MoCu etc. |
| Dimension | 6mm≤Dia.≤550mm |
| Processing | sintered, forged |
| MOQ | Variable |
| Lead time | 15~25 days |
Available dimension
Specification:
1. Physical and chemical properties
1) Purity: Mo≥99.95%;
2) Density: ≥10.2g/cm3;
3) Model Number: Mo1
4) Surface: grinded, caustic washed, hot rolled, cold rolled
5) Chemical composition (%):
Mo | Al | Ca | Fe | Mg | Ni | Si | N | C | O | Bi | Cu |
99.95 | 0.002 | 0.001 | 0.003 | 0.002 | 0.003 | 0.002 | 0.002 | 0.003 | 0.003 | 0.0001 | 0.001 |
2. Allowable tolerance
Thickness (mm) | Allowable Tolerance (mm) | Width with allowable tolerance (mm) | Length with allowable tolerance (mm) |
0.10~0.15 | ±0.01 | 50~200±2.0 | 100~2000±5.0 |
>0.15~0.30 | ±0.02 | 50~750±2.0 | 100~2000±5.0 |
>0.30~0.50 | ±0.03 | 50~750±2.0 | 100~2000±5.0 |
>0.50~0.70 | ±0.04 | 50~750±3.0 | 100~2000±5.0 |
>0.70~1.0 | ±0.05 | 50~750±3.0 | 100~2000±5.0 |
>1.0~2.0 | ±0.06 | 50~400±5.0 | 100~1200±5.0 |
>2.0~3.0 | ±0.08 | 50~400±5.0 | 100~1200±5.0 |
>3.0~4.0 | ±0.10 | 50~400±5.0 | 100~1200±5.0 |
>4.0~5.0 | ±0.12 | 50~400±5.0 | 100~1200±5.0 |
>5.0~30.0 | ±0.20 | 50~400±5.0 | 100~1200±5.0 |
Application
1. For producing electric light source parts and electric vacuum components. 2. For producing heating elements and refractory parts in high temperature furnaces. 3. For producing medical laboratory equipment. 4. Used as electrodes in the field of rare earth industry. 5. Used in the manufacture of weapons. 6. Used to make decorations and etc. |
Equipment
| We are equipped with advanced machines: 5 sets of intermediate frequency sintering furnace, 1 set of cold iso-static pressing machine (1000*3000mm), 6 sets of hot & cold rolling machines (450-1000mm), 1 set of large-scale rolling machine (1300mm), 1 set of large-scale grinding machine (600*3000mm), 1 set of large-scale water cutting machine (3000*6000mm), 1 set of large-scale laser cutting machine (2000*4000mm), 18 sets of wire cutting machine (1200*1600mm) and another tens of drilling, turning, milling, cutting and grinding machines. |
Processing
6 workshops: powder molding workshop, forging workshop, rolling workshop, vacuum furnace manufacturing workshop, machining workshop and cutting workshop, and 1 inspection center. |
Packing & delivery
| TNT, EMS, UPS, FedEx, DHL, air transport, sea transport and railway transport are all available. We will try our best to choose the most proper method to satisfy our customers' demands. Every order will be tracked until our products are well received. |
Certification
1. We are an ISO9001 certified company. 2. We've been granted the patent in making Molybdenum&Niobium alloy. 3. We've been awarded as a High-Tech Enterprise. 4. We've been invested by the National Fund for High-end Equipment. |
Payment terms
1. <USD5,000, 100% by T/T. 2. USD5,000-USD20,000, 30% advance payment, balance payment is negotiable. 3. L/C, Western union, Moneygram and Paypal are also available. |
Factory & team
| 1. 2001, we've been providing high-quality products & service for over 19 consecutive years. 2. The factory covers an area of 25,000 square meter. 3. We have over 80 employees, including a group of experts in non-ferrous industry. 4. We have a professional team foreign trade. |
