Взрывозащищенный магнитострокционный датчик уровня смазочного масла на дизельном топливе
- Категория: Инструменты для измерения уровня >>>
- Поставщик: Shandong,Dongrun,Instrument,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 226.99 $* | 237.78 $* |
| Aug-20-2025 | 224.95 $* | 235.47 $* |
| Jul-20-2025 | 188.59 $* | 197.28 $* |
| Jun-20-2025 | 220.27 $* | 231.63 $* |
| May-20-2025 | 192.80 $* | 202.80 $* |
| Apr-20-2025 | 217.10 $* | 228.71 $* |
| Mar-20-2025 | 215.12 $* | 226.4 $* |
| Feb-20-2025 | 213.9 $* | 224.28 $* |
| Jan-20-2025 | 211.9 $* | 222.97 $* |
Характеристики
Explosion-proof Magnetostrictive 4-20ma diesel fuel oil lubricating oil level sensor
SUPER SEPTEMBER DISCOUNTING!!!
we will refund payment to you in case of bad quality.
Please Attention
We never said we are the best quality or the cheapest price, but we always sure we are the right supplier, because we can offer:
Product Description
Series DRCM-99 Magnetostrictive Level Sensor adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications. It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.

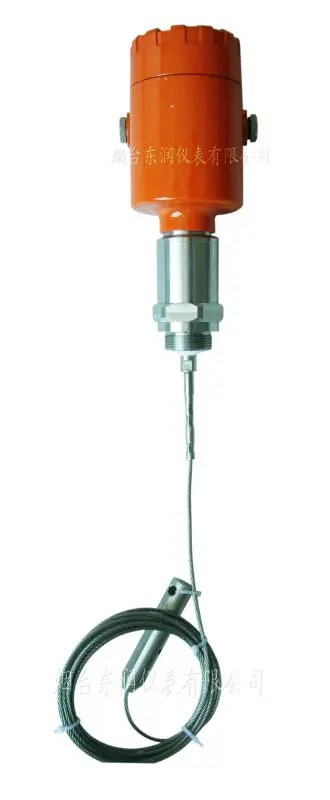

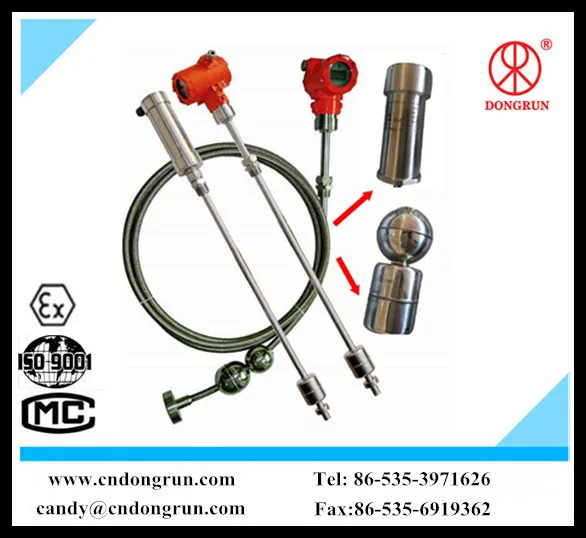

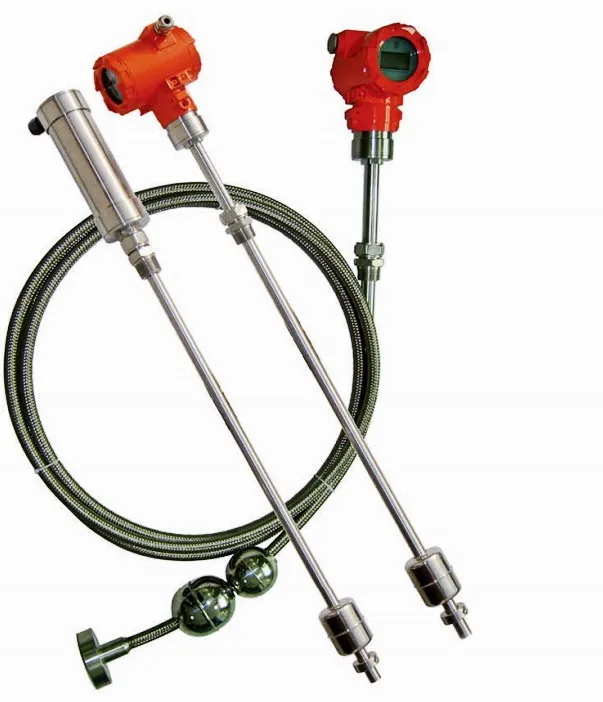

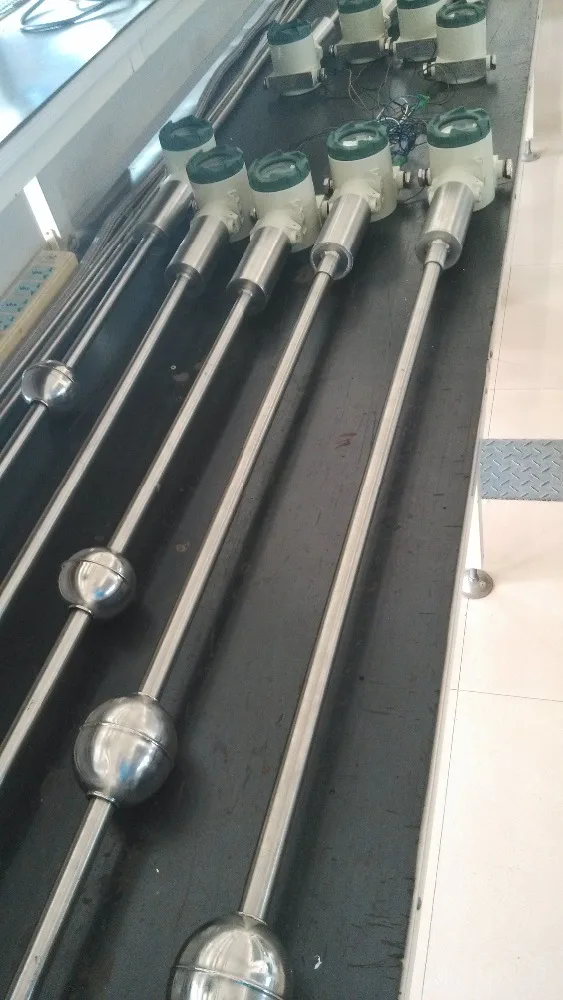

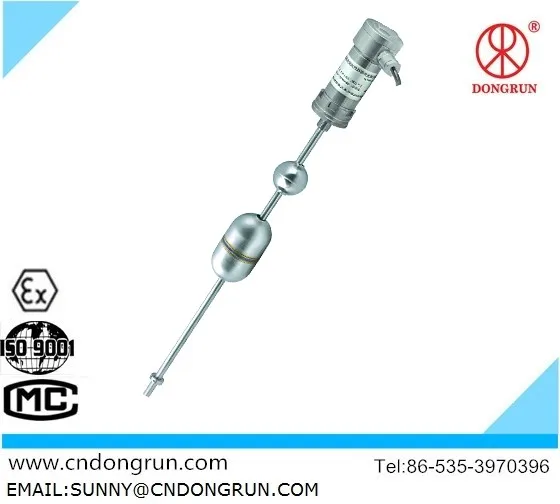

Product Display
Features
Features of Magnetostrictive Level Sensor
1. Simple structure, easy for installation .
2. No signal drift
3. No need for periodic calibration or maintenance.
4. High accuracy, no wearing parts and reliable and durable.
5. Multiple choices of signal output mode
6. Flexible cable types apply for the large range
Specifications
Magnetostrictive Level Sensor performance
Measurement output | Standard type:2-wire4-20mA(HART protocol can be selected.) Digital type:ModBus, Profibus, multi-parameter( level, interface, temperature ( up to 5 points) |
| Liquid level measurement | Liquid level, interface, liquid level+ interface |
| Measurement range | 0. 50m to22m |
| Accuracy | The maximum between 0. 01 %F. S. and +0. 5mm |
| Temperature output | Up to 5 single points temperature |
| Temperature range | -50 ~ +20 |
| Temperature accuracy | ± 0. 25 |
| Power Supply | 18-36VDC |
| Output signal | 4-20mA ,ModBus, Profibus |
| Explosion-proof | ExiaIICT6 |
| Ambient humidity | 0-100% R.H.(not frost) |
| Working temperature | Electronic unit:-4 0 ~ +80 ;waveguide:-40 ~ +125 |
| Operating pressure | Rely on the pressure the float can withstand |
| Electronic Cabin | Cast aluminum/304 stainless steel |
| Probe materia | 304/316L /304+PTFE or FEP |
| Process connection | Thread or flange connection |
Electrical interface | 1/2” NPT thread |
Product Installation
Packaging & Shipping
Magnetostrictive level sensor
Packing Details : one unit in single carton.
Delivery Details : 7 working days after receiving the 100% payment.
All kinds of transportation are accepted.
No any bad records, check China blacklist
ACTION NOW ! Contact me
