Характеристики


Introduction

    New Environmental-Friendly Pine Wood Shavings Coconut Waste Woods Briquette Piston Machines





Our biomass briquette machine uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various model of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.



 80020180120_141238 - .jpg



Raw Material

1) Any type of Agro Forestry waste can be used. But the Moisture Content Should be Less than 12%, grain size is

 below 5×5mm.

2) For example: Sawdust ,Coffee Husk ,Paddy Straw ,Sunflower Stalk, Cotton Stalks ,Tobacco waste ,Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,Palm husk ,Soybeans husk ,Rice Husks Forestry wastes ,Wood Chips and many other Agro wastes.

Moisture: 8-12%,

Size: 3mm ~ 5mm

Raw Materials.jpg



Working Principle

Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind the biomass into briquettes that are of uniform composition.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content

that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding,compressing the biomss to form into high density briquettes. During this process, no binder need to be used. So the ouput briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 1300kg/CBM.





Features

1.No binder or noxious chemical need to use.
2.The humidity of the raw materials is controlled in 8-12%.
3.Using the advanced Hot air drying system with the perfect performance.

4.After the processing of High temperature, purification, smoke removing, the carbonizing equipment

 transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.



Technical Parameters

Model

ZBJ-I

ZBJ-II

ZBJ-III

Output( kg/h)

180-210kg

300-350kg

300-350kg

Motor Power (kw)

15+6kw

22+6kw

30HP

Net/Gross Weight(kg)

500/585kg

1080/1180kg

1280/1380kg

Overall dimension(m)

1.8X0.76X1.29

2.02X0.87X1.5

2.02X0.87X1.5

Diameter of finished products (mm)

40, 50mm

50,60,70,80,90mm

60,70,80,90mm

PS:Diesel Engine Biomass Briquette Machine can be Supply

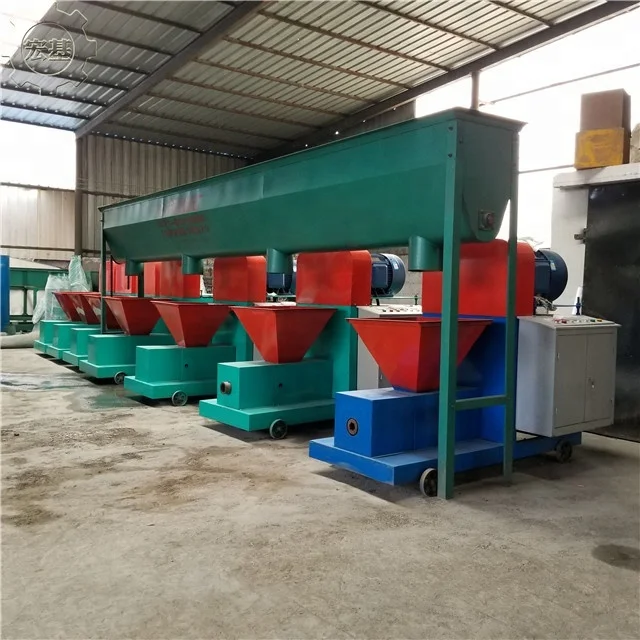

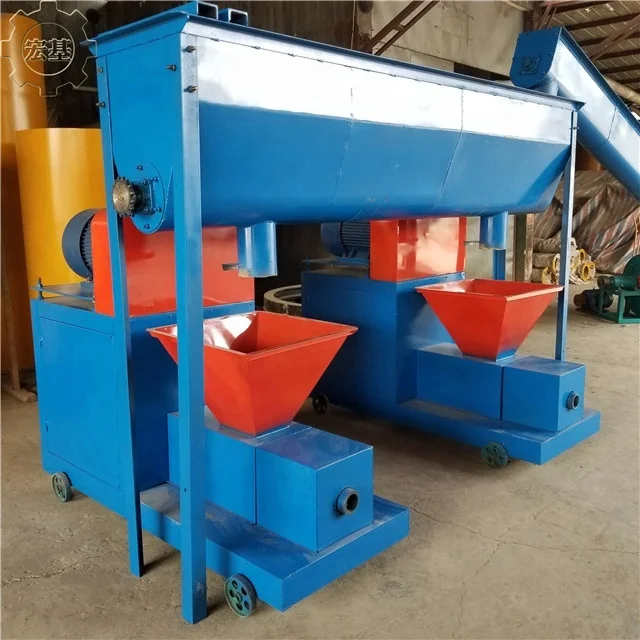

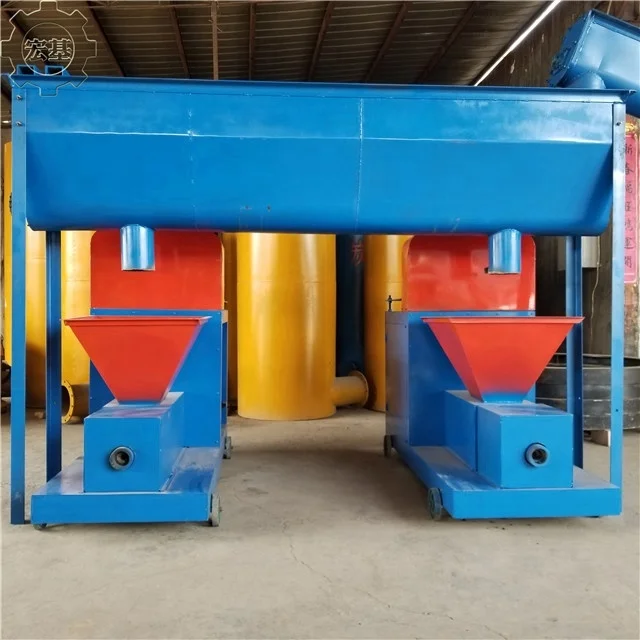

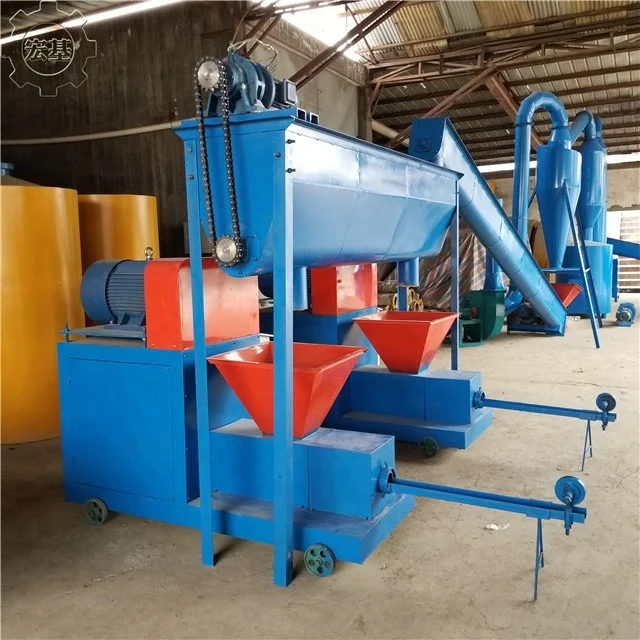

                                                                                      ZBJ-I II Briquette Machine




                                                                                    ZBJ-III Briquette Machine1.jpg



                                                                        Diesel Engine Briquette Machine




Spare Parts

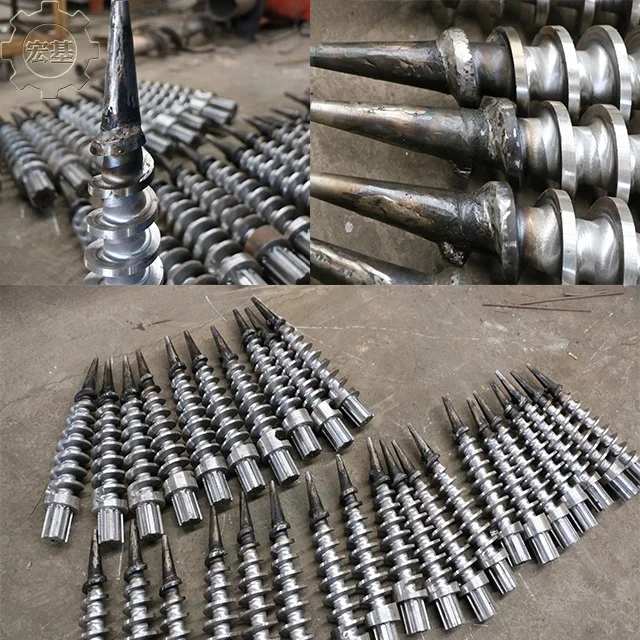

1.Propeller

The screw shaft is manufactured with a milling machine which guarantees that the distance between every screw

is the same, and the angle of every screw is the same.






2.Wear sleeve

The wear sleeve can be used for 1-2 years.The former is made from a whole steel bar through a water jet cutting

system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy.This is why the finished produces such as sawdust briquettes are smooth


3.Heating coil

we adopted two heat collars which are made from thick copper wires and are ceramic inside.

Heating Rings 2.jpg





4.Forming die

It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it

 is jammed.

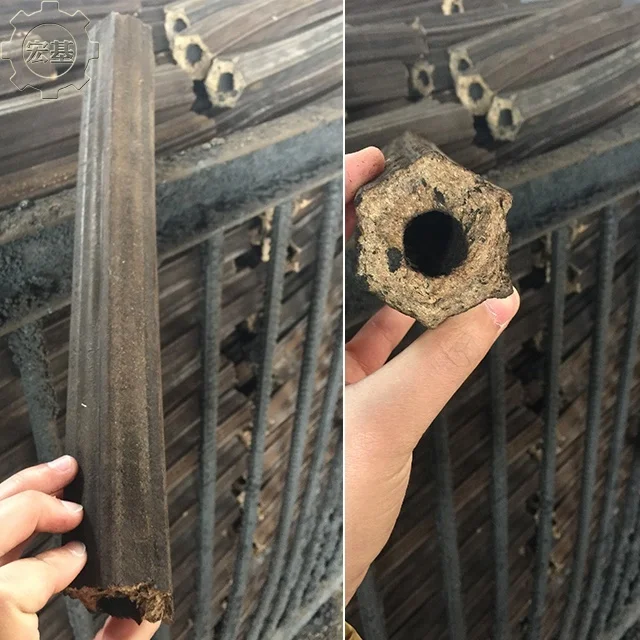

Finished Product

After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

This bio-fuel briquette is 50-70mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.

sawdust briquette 3.jpgsawdust briquette 5.jpg





Packing and Shipping

Packing:Plywood Case

Shipping Port:Qingdao,Tianjin,Lianyungang




Company Profile

Gongyi xiaoyi Hongji Machinery Factory established in 1997,located in Gongyi City of Henan Province,China.With 18 years of manufacturing machines product,Hongji formed rich experience in machinery industrial and after-sale services.

Hongji Machine mainly produce biomass pellet production line and biomass charcoal  briquette production line.Single machine such as wood crusher, hammer mill , hot air dryer ,rotary dryer,biomass briquette machine,punching press briquette machine,smokeless energy saving carbonization furnace,continuous rotary carbonization furnace,Shisha charcoal briquette machine, coal briquette machine ,hydraulic press briquette machine etc.

It is our purpose to sell the machine all over the world .And make friends with all countries and regions.We are in accordance with customers first ,quality first ,service first ,to provice the best products and services to all of our customers. And won the highly repution in our friends.







After Sale Service



1.Engineer Available to dispatch to oversea to Install and adjust Equipment

2.Technial Guidance

3.Spare Parts Maintaince and Supply

4.OEM,OEM Available

5.Packing and Shipment Available



FAQ:



Q:Which kind of material suitable for making biomass briquette ?

A: Any kind of Agro-Forestry waste and Bio Waste can be making biomass briquette.



Q:Does the big type materials need to crush ?

A:Yes, the material size 3-5mm can be used for making biomass briquette ,but the big type materials

need to crush first.We have hammer mill and wood crusher to crush the materials.The hammer mill used to crush the small size ,soft biomass materials .The Wood crusher used to crush the big size,hard biomass materials



Q:Does the materials need to drying ?

A:Yes, the moisture content more than 10% ,it need to drying. There are two type dryer to drying the materials. Air flow dryer and Rotary dryer.The air flow dryer drying capacity is <1000kg per hour ,The rotary dryer used to drying capcaity is >1000kg per hour.



Q:Whats the lifetime of your briquette machine ? Do you supply the spare parts.

A:The life time of the briquette machine is 5years or more.We can supply all the wear parts in a factory price.



Q:Could you supply the whole production line ?

A:Yes.We can supply the whole procuction line ,

crushing-----Sieving----Drying---Briqutting---Carboinizing---Packing.

  We can design and produce the production line for all of our customers.



Welcome to inquiry our biomass briquette machine and related equipments. We can provide the full set equipment,solution and after-sale services.

                                    Welcome to select the Hongji Machinery.
