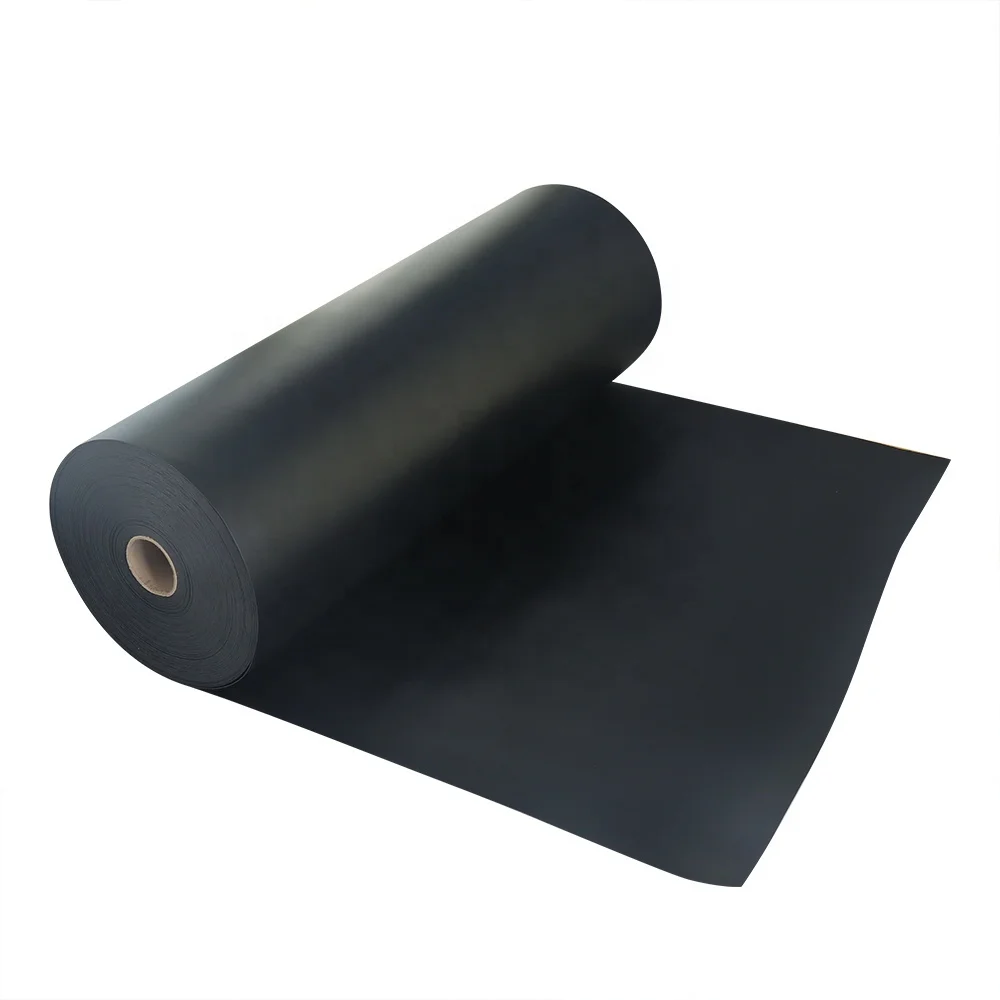

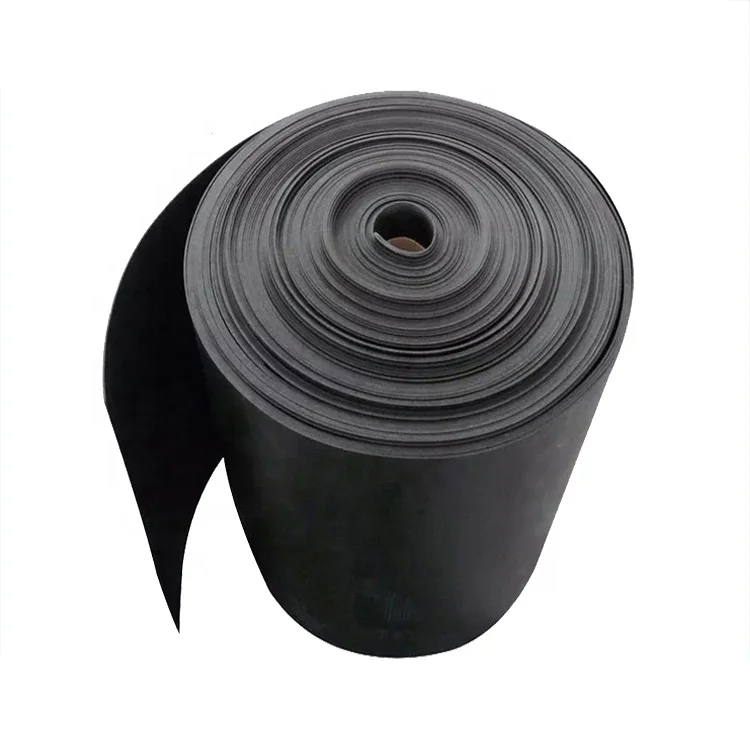

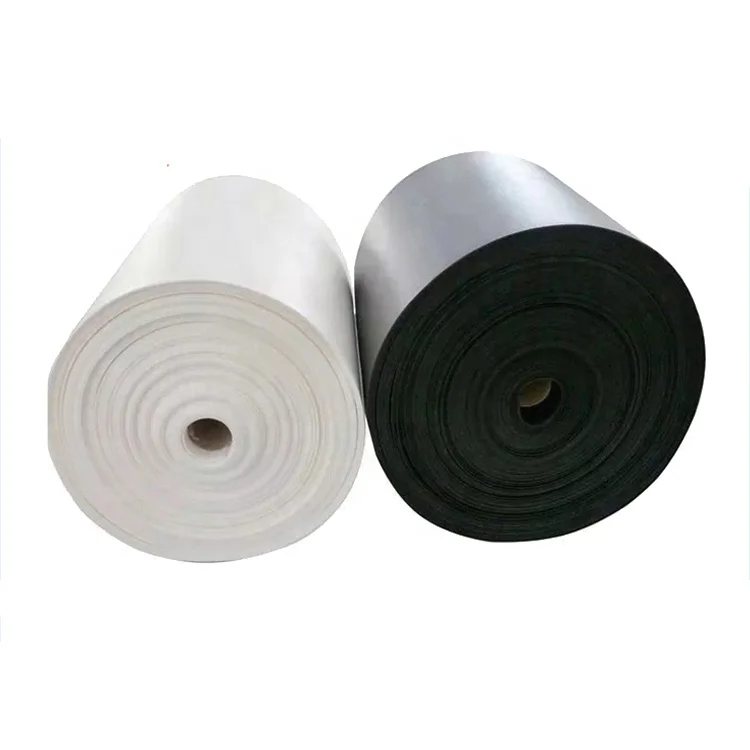

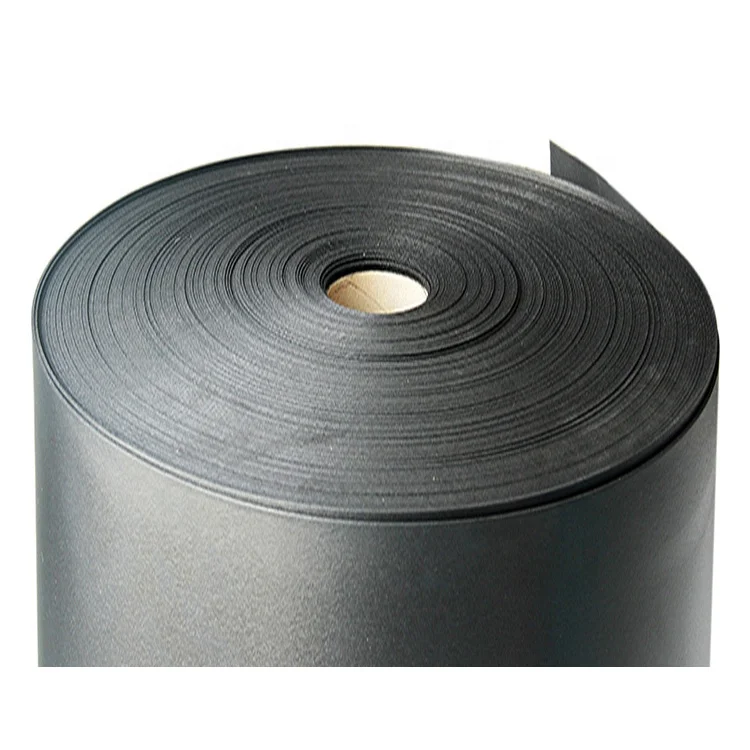

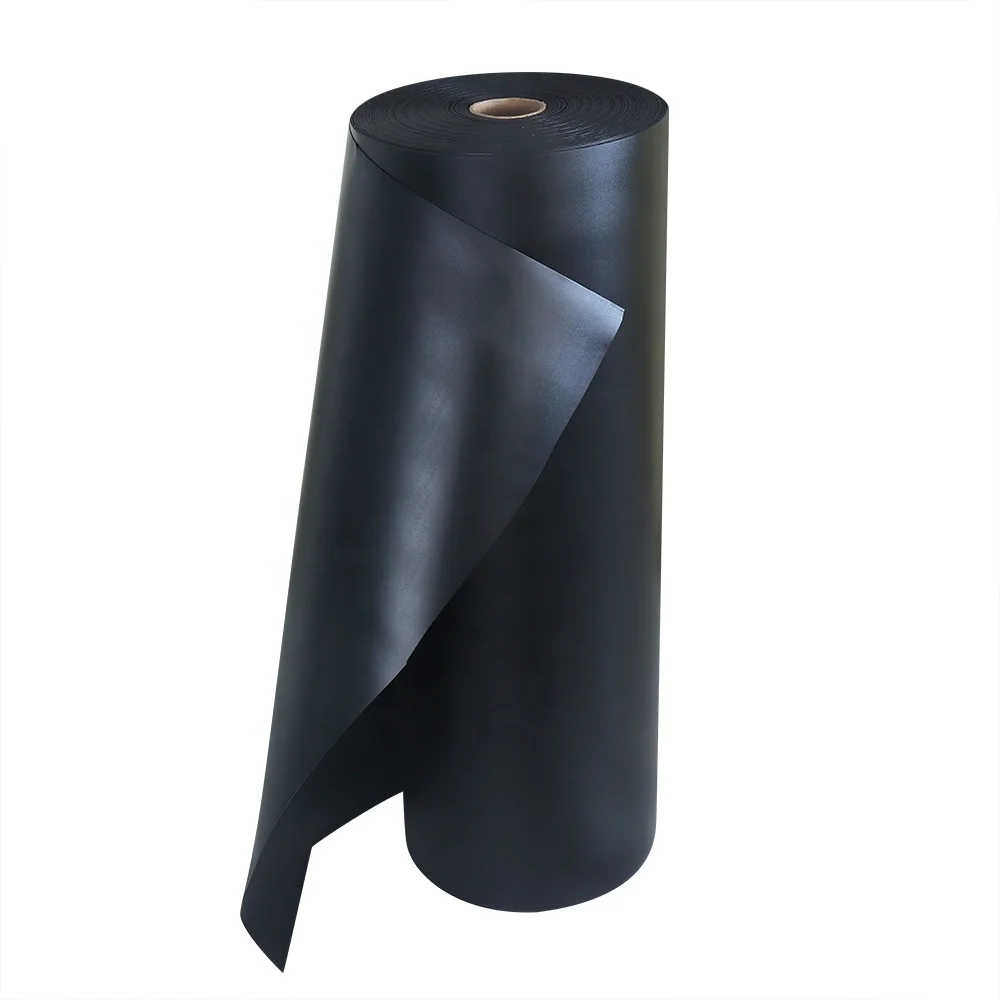

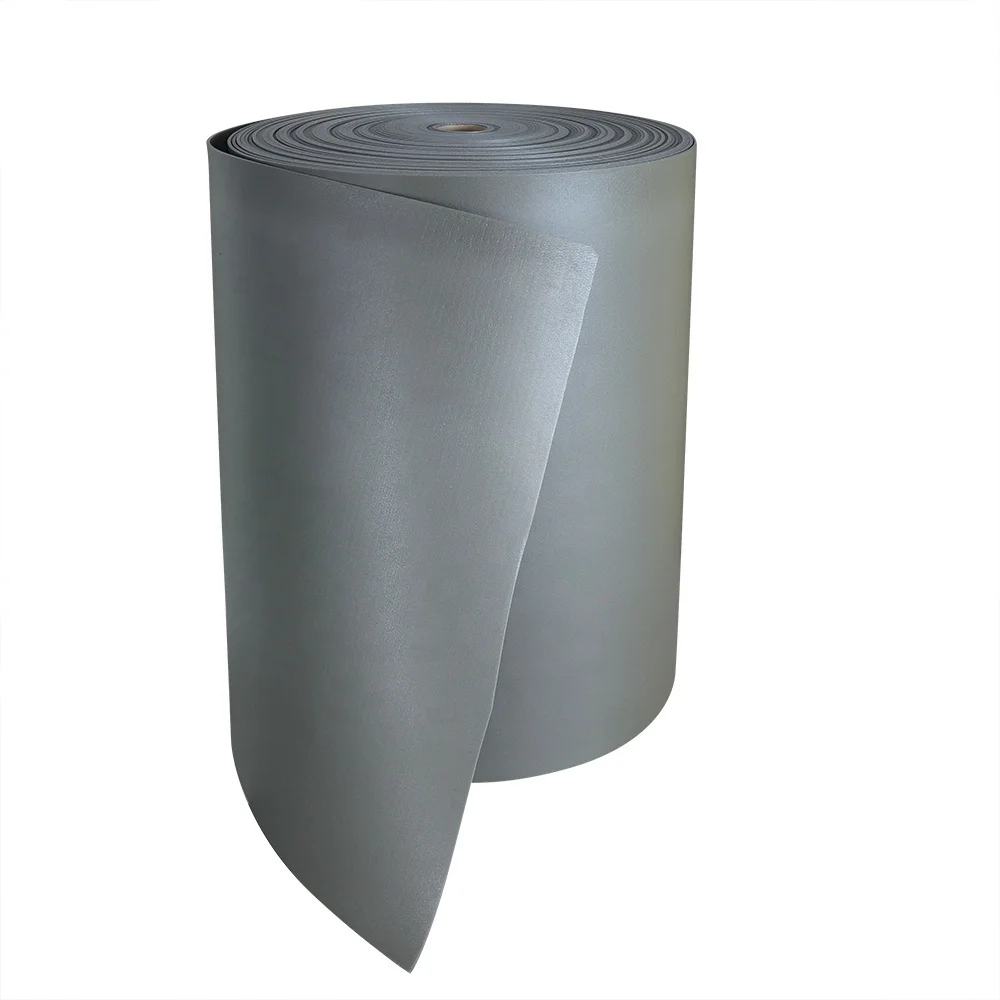

Сшитая Закрытая Пена 5 мм толщина Ixpe акустическая подложка полиэтилен Полиолефиновая
- Категория: Flooring Accessories >>>
- Поставщик: Cyg,Tefa,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.26 $* | 0.11 $* |
| Aug-16-2025 | 0.84 $* | 0.75 $* |
| Jul-16-2025 | 0.25 $* | 0.51 $* |
| Jun-16-2025 | 0.4 $* | 0.96 $* |
| May-16-2025 | 0.71 $* | 0.3 $* |
| Apr-16-2025 | 0.93 $* | 0.86 $* |
| Mar-16-2025 | 0.88 $* | 0.27 $* |
| Feb-16-2025 | 0.33 $* | 0.14 $* |
| Jan-16-2025 | 0.53 $* | 0.7 $* |
Характеристики
Foam Type: IXPE FOAM / IXLPE FOAM | ||||||||
Property | Standard | Unit | Value | |||||
Density | - | Kg/m³ | 66.70 | |||||
Tensile Strength | Transverse | ISO-1798 | MPa | 0.54~0.55 | ||||
Longitudinal | 0.64~0.65 | |||||||
Elongation | Transverse | ISO-1798 | % | 203.70~232.70 | ||||
Longitudinal | 253.90~283.40 | |||||||
Tearing Strength | Transverse | ISO-8067 | Kn/m | 3.47~3.68 | ||||
Longitudinal | 4.28~4.34 | |||||||
Operating Temperature Range | Internal | °C | (-40，+80) | |||||
Water Absorption % Volume (Maximum) | Internal | % | 0.30 | |||||
Thermal Conductivity | JIS A1412-2 | W/mK | 0.065 | |||||
Shore - C | ASTM D2240 | °C | 40 | |||||
Flammability | FMVSS302 | mm/min | - | |||||
Products Description
Performance
Heat Insulation
Single foaming structure can reduce the loss of heat between air convection, suitable for making heat preservation pipes and boards.
Waterproof
Closed-cell foam, non-water-absorbing, moisture-proof.
Shock absorption
Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.Semi-hard quality foams have good rebound capabilities after strong impact.
Sound absorption
Good sound and noise absorption capability.
Fire retardancy
This product has fire-blocking and smoke-reducing property, when burned, its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.
Low conductivity factor
Conductivity of this material is 0.032 w / mk at an average° C. As this product has high heat-releasing ratio, it can get the same
heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cost.
heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cost.
Product Processing
Application
Company Profile
CYG TEFA CO.,LTD
CYG TEFA CO.,LTD was established in December 2002.CYG TEFA is a national high-tech enterprise.And it's an affiliate of the listed company WOER (Stock code 002130). CYG is an enterprise integrating R&D, production and sales.The main products are cross-linked PE and PP foam materials.There are three bases in Shenzhen ,Huzhou, and Jintan with more than ten various production lines with an annual production capacity of more than 6,000 tons; The main products are: XPE, IXPE, IXPP and various composite materials based on XPE, IXPE, IXPP ; ESD solutions.The PE foam material is widely used in construction,HVAC system,automotive,air
conditioning,refrigeration, sports protective gear, medical supplies,electronic communications, and other industries.There products were sold to overseas with good feedback since 2002.
Factory Tour
Granulation workshop
Extrution line
Foaming workshop
Foaming workshop
Cutting machine
Warehouse
Laboratory
Certificate
ISO140001 TS1694 ISO9001 IATF16949
