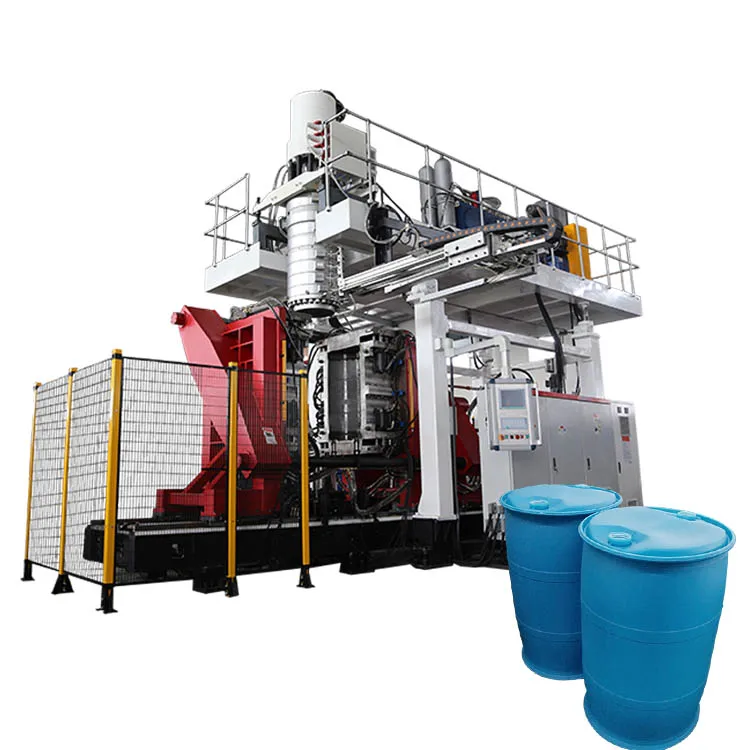

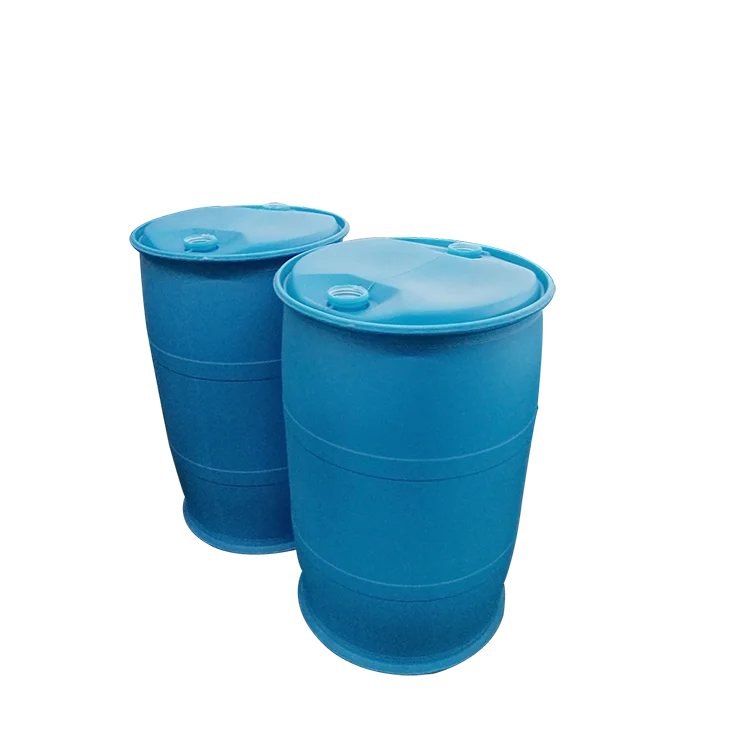

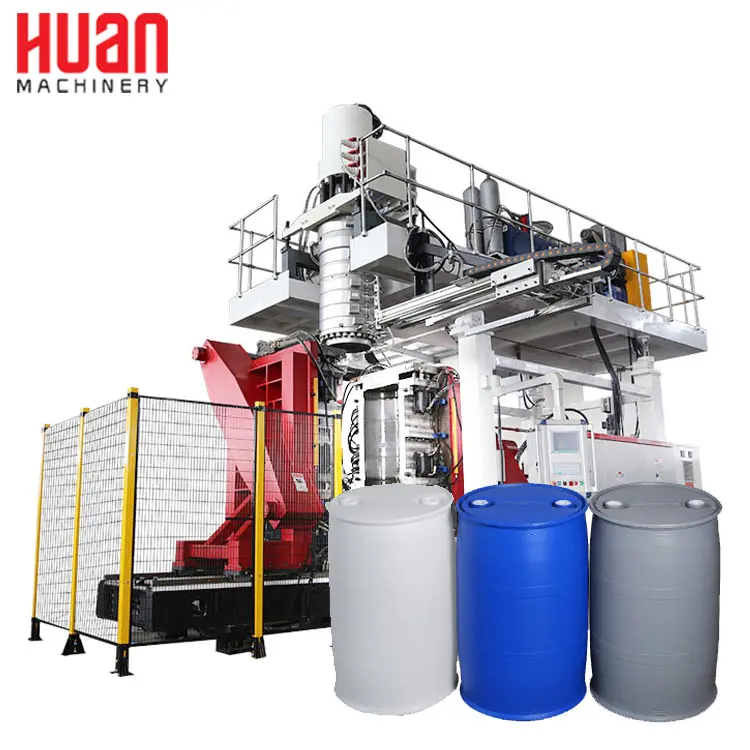

It is max. 220L accumulating machine for producing HDPE, PP, PVC max. 220L plastic products, like 180L,200L210L,220LL jerrycan, plastic container, oil drum, barrel... Besides, it also could produce some different shapes plastic products like double-ring drum,chemical drum, road barrier, human body model or others...
Model
BSM-220L
Fininshed Product
Plastic water tank,jerry cans, bottles, pots, toys and kettles etc.
Max. product volume
220L
Plastic material
HDPE/LDPE
Head No.
Single
Multi-extrusion layer possible
1-3 layer
Auxiliary equipments
blow mould, mixer, vacuum auto-loader, dryer, crusher, water & fans chiller, air compressor, conveyor system for deflashing parts, conveyor system for finished product delivery, leakage tester…

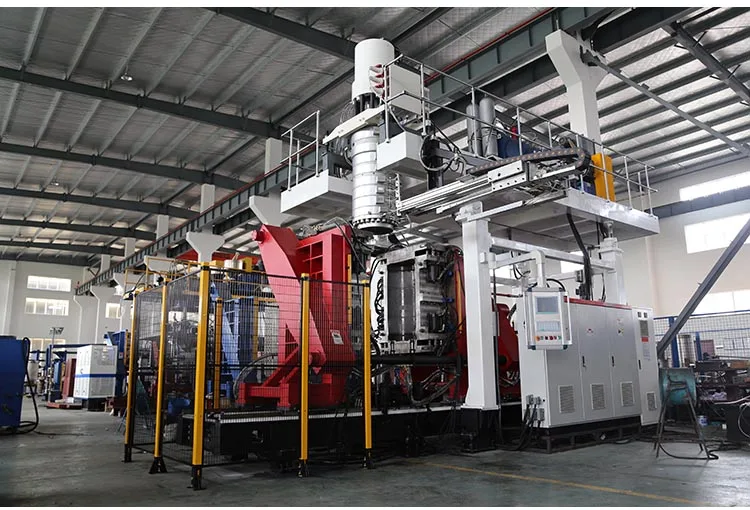

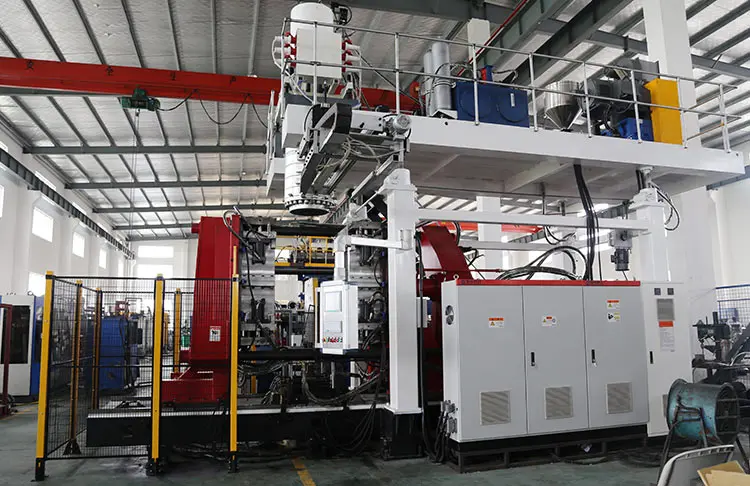

Detailed Images
Extrusion system
Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!

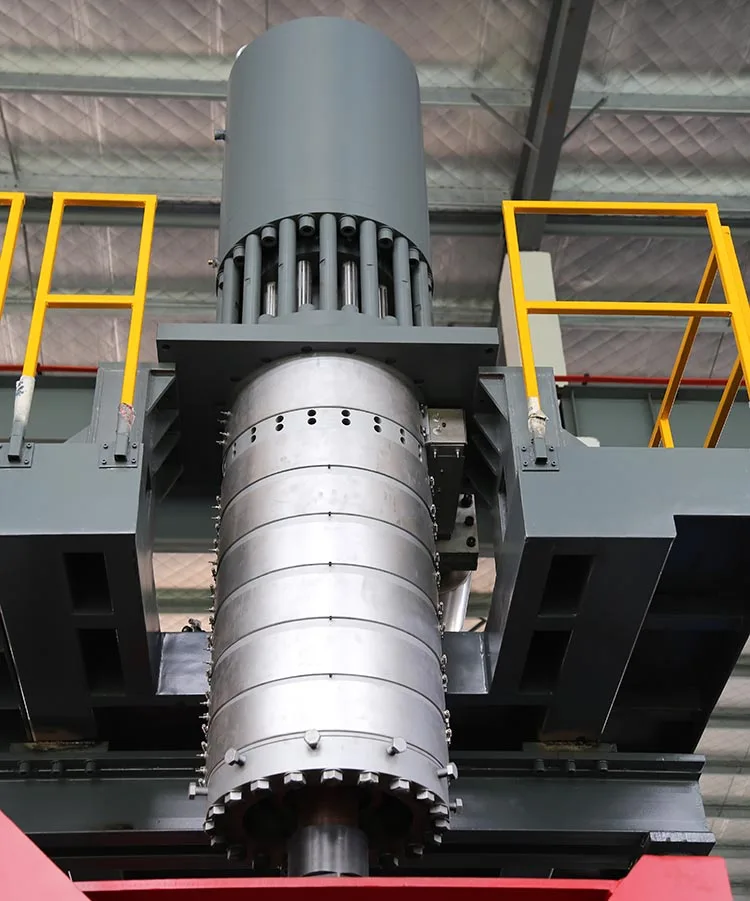

Head system
Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version!
More detail information ,please contact us by mail huanmachinery @vip.163.com
Product Paramenters
Specification
BSM120Z-220L
Max product volume (L)
220L HMWHDPE
Machine weight (T)
38
Machine size(m)
9.5X4.1X6.5
Extrusion unit
Screw diameter (mm)
120
Length/Diameter ratio
30/1
Heating zone No. (pcs)
6
Heating power (kw)
47.4
Cooling fan No. (pcs)
5
Fan power (kw)
0.65
Extrusion motor power (kw)
132
Plasticizing capacity (kg/h)
320
Die head
Head type
accumulating
Accumulating volume (L)
20
Max ejection weight (kg)
15
Heating Zone No. (pcs)
6
Heating power (kw)
38
Max die diameter (mm)
400
Clamping unit
Clamping force (KN)
1500
Platen size (mm)
1200*1300
Platen opening stroke (mm)
800-1700
Max mould size (mm)
950*1600
Mould thickness (mm)
810-950
Total power (kw)
308
Average energy consumption (kw)
92
Related Products
Packing&Shipping
1.The plastic extrusion blow molding machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires. 2.The electric controlling parts and spare parts are loaded separately in wooden box. 3.The auxiliary equipments are packaged in wooden box as well. 4.All wooden material is fumigation certificated and safe for exporting to all over the world.
After Sales Service
Our service
1.One year warrenty
2. Provide full video before shipment
3.Life Time Service
Company Introduction
Our company is a professional manufacturer for various extrusion blow moulding machine for producing hollow plastic bottles from 5ml to 2000L. We have CE certificate and we can export our machines to all over the world. We have more than 15 years of exporting experience and we know each country well including voltage condition etc... Pls trust us and we make sure to show you a satisfied machine to match your production. We hope to cooperate with those clients who are looking for good quality equipments.
FAQ
1. Q: -Can the machine customized only for my products? A: - Yes, our machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. Q: -How about the machine mould? A: - Customized machine mould can be supplied for you.Our Machine and mould can be tested for samples and smooth matching before shipping. Mould raw material is various for optional.
3. Q: -What is the business item for this project ? A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed . . Port of Loading: SHANGHAI, CHINA. . Payment: T/T/LC,alibaba trade assurance
4. Q: -What is the warranty period? A: - Our machine main parts is one year warranty with a lifelong maintenance.
