Пневматический воздушный фильтр JXPC масляный 0 01 мкм снятие коаллизного
- Категория: Pneumatic & Hydraulic >>>
- Поставщик: Ningbo,New,Jiaxing,Automatic,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 14.94 $* | 15.93 $* |
| Aug-17-2025 | 14.63 $* | 15.70 $* |
| Jul-17-2025 | 12.13 $* | 13.61 $* |
| Jun-17-2025 | 14.39 $* | 15.57 $* |
| May-17-2025 | 12.38 $* | 13.64 $* |
| Apr-17-2025 | 14.69 $* | 15.80 $* |
| Mar-17-2025 | 14.4 $* | 15.2 $* |
| Feb-17-2025 | 13.27 $* | 14.2 $* |
| Jan-17-2025 | 13.38 $* | 14.99 $* |
Характеристики
Product Description

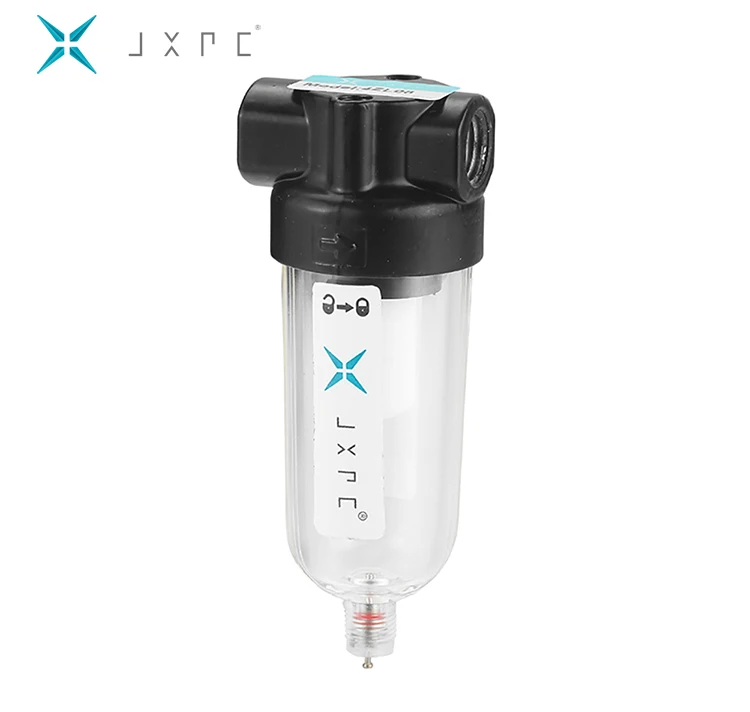

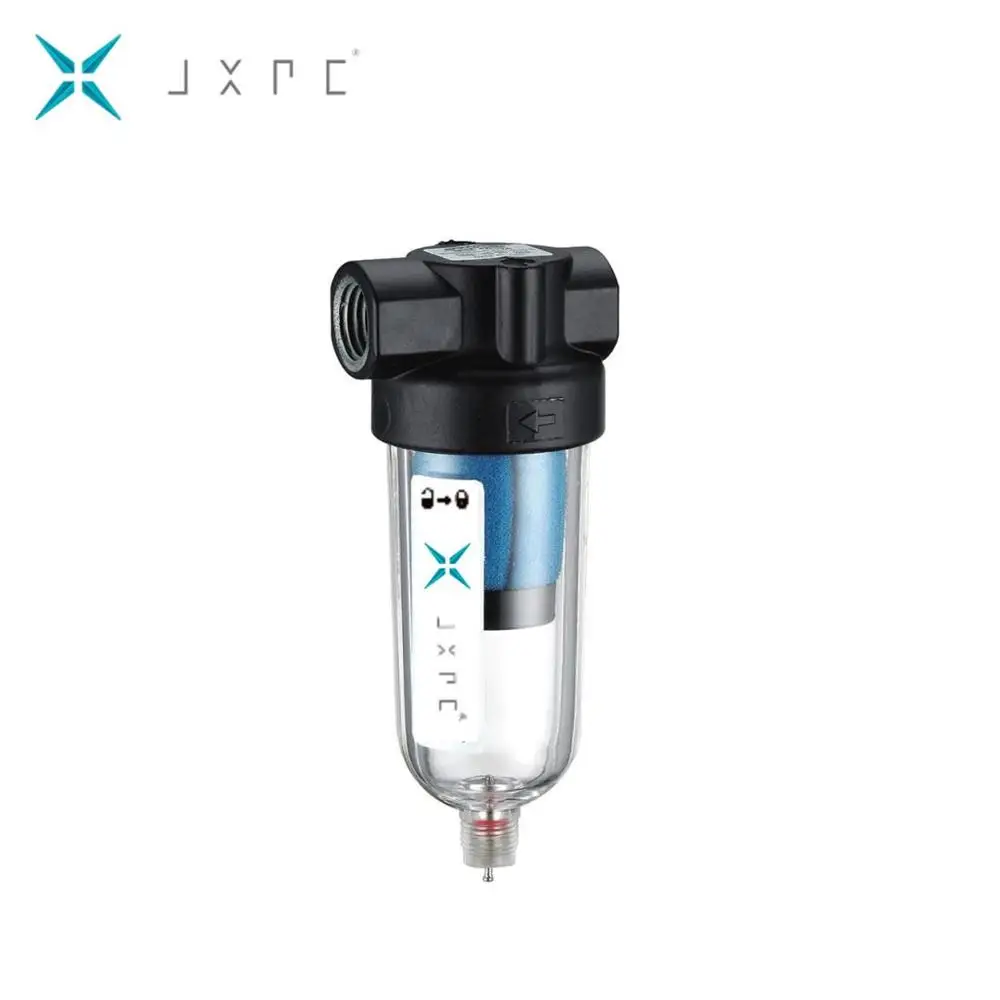

- Product: Minature Air Filter 0.01um Oil Filter Removing Coalescing Filter
- Guaranteed.Pressure Reistance:1.5MPa
- Max.Working Pressure:1.0MPa
- Prepares Air Properly For Air Types Of Compressed Air Tools And Equipment
- The Filter Removes Solid Particles And Condensates With Compressed Air
- Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
- Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
- Protect Your Air Tools With Much Longer Life
| Model Type | Miniature | |
| 4ZL16 | 4ZL17 | |
| Medium | Compressed Air | |
| FIlter Precision | 40µm(5µm) 40µm(5µm is optional) | |
| Pressure Adjusting Range | 0.05~0.85MPa(5psi~125psi) | |
| Working Pressure | 0.85MPa(125psi) | |
| Max. Working Resistance | 1MPa(150psi) | |
| Guaranteed Pressure Resistance | 1.5MPa(220psi) | |
| Working Temperature | -5~50℃(No Freeze) | |
| Filter Bowl Capacity | 40cc | |
| Container Cup Material | Water Cup: Polycarbonate | |
| Protective Cover | Without | |
| Nominal Flow Rate | 6 Cfm | 6.5 Cfm |
| Pressure Guage Port Size | NPT1/8 | |
| Weight | 0.15kg | |
| Port Size | NPT1/8 | NPT1/4 |
*In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision. * When the red annunciator shows up, under the circumstance of inlet and * G, NPT, PT port size is optional. | ||
| Model | A | B | C | D | P |
| 4ZK16 | 41.5 | 37 | 106 | 9.5 | NPT1/8 |
| 4ZK17 | 41.5 | 37 | 106 | 9.5 | NPT1/4 |
