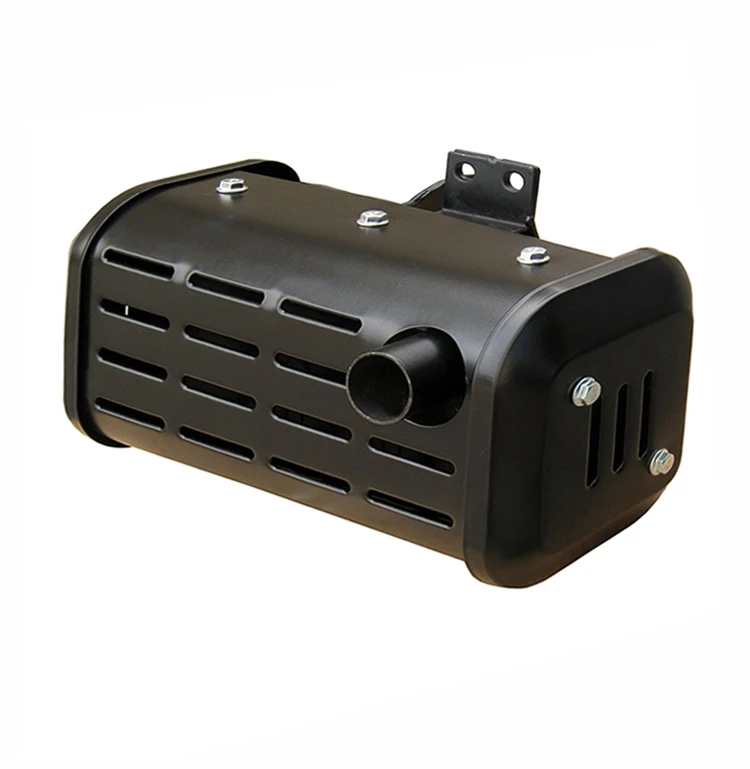

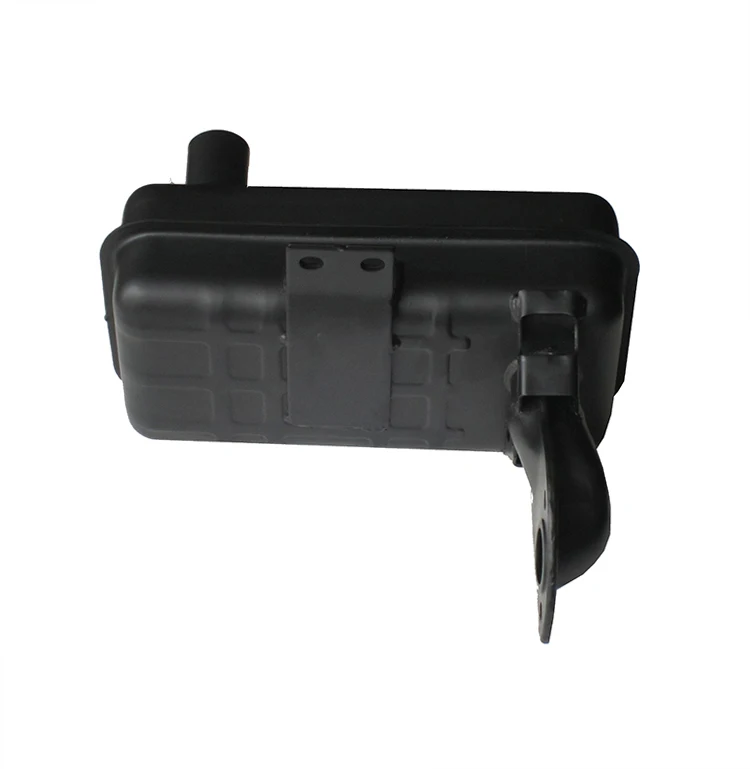

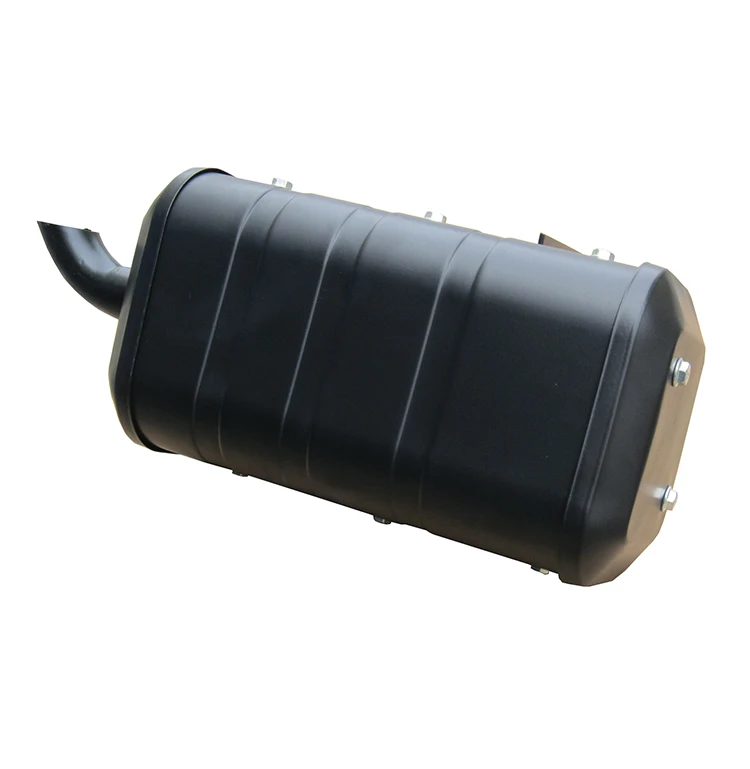

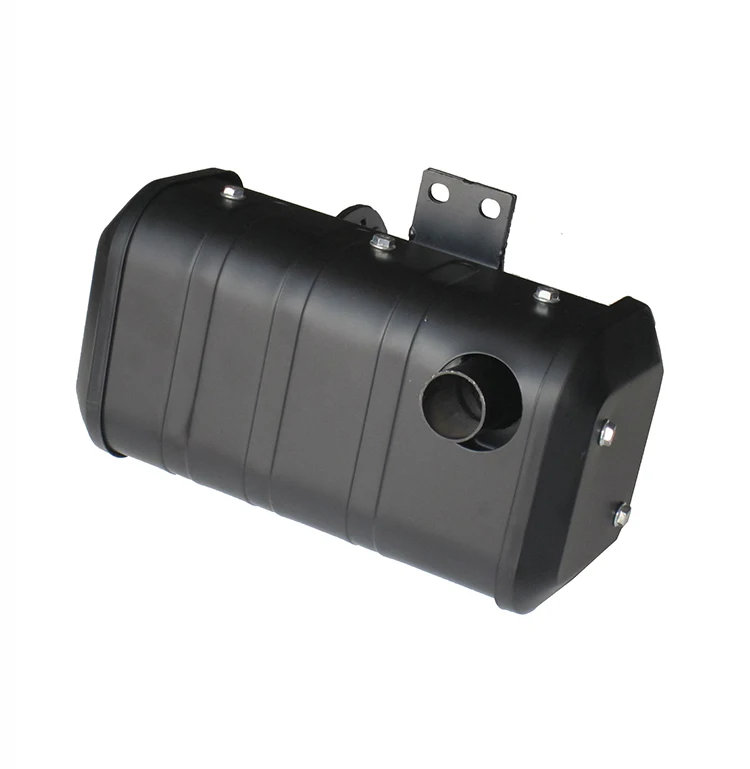

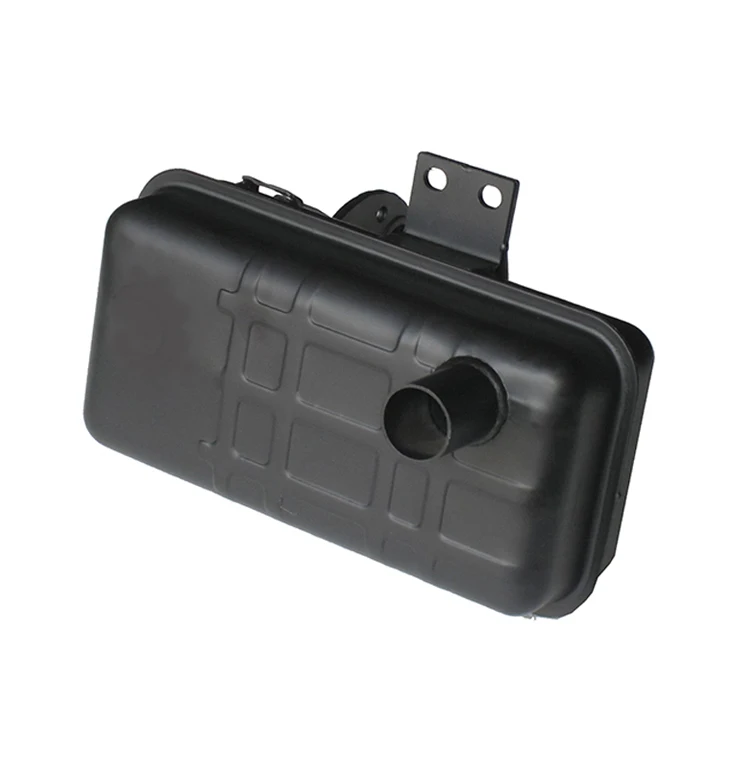

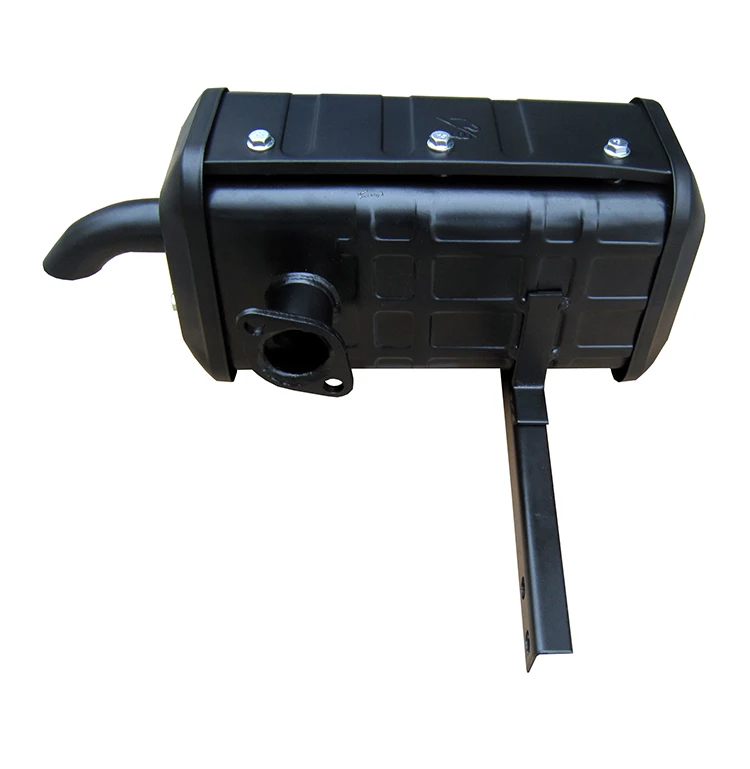

Small diesel engine exhaust muffler



* This model for 186FA air-cooled diesel engine;

* Can used on engine,water pump,generator,construction machine and agriculture machine;

* Also can arrange production with OEM as you need;

Model	HR170F		HR178F		HR186FA		HR188FA		HR192F
Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion System	Direct Injection
HP	4		6		10		12		13
Bore×Stroke(mm)	70×55		78×62		86×72		88×75		92×75
Displacement capacity(cc)	211		296		418		456		498
Speed(rpm)	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
Max.output(kw)	2.8	3	4.1	4.4	6.5	7.1	7.5	8	8.5	9
Rated output(kw)	2.5	2.8	3.7	4	5.9	6.5	7	7.5	8	8.5
Fuel	o# or-10# light diesel oil
Fuel oil tank volume(l)	2.5		3.5		5.5		5.5		5.5
Lubricatiom oil volume(l)	0.75		1.1		1.65		1.65		1.65
Fuel oil consumption rate(g/kw.h)	295		295		280		280		280
Starting system	Recoil or Electric
PTO rotation direction	It is clockwise as viewing from the flywheel end
Dimension(mm)	420×390×470		490×490×520		520x490x570
Net weight(kg)	26		33		44		45		58
20FT	300		176
40HQ	725		480		384
