Электрическая самоклеящаяся умная пленка PDLC для окон и зданий

Описание и отзывы

Трекер стоимости

Характеристики

Electric PDLC privacy film self adhesive smart glass film for car window and building

FEATURE:

  ·  Environment Friendly and Energy saving;

  ·  Superior Light Transmittanc;

  ·  Blocks 99% of UVB Rays to preserve home furnishings;

  ·  Block unwanted views and viewers;

  ·  Easy to install, operate and maintain;

  ·  Customized size available.

  · Thickness: 0.54mm

  · Sound proof. With excellent damping action, the smart glass is easy to block the noise.
  · Projection. Smart glass is a good projection screen. When it is under suit light, the perfect           projection appears.



    · Can be installed in car window(smart car window film)





Specification Parameters:





Item	Properties	State	Parameters
Optical	Parallel Light Transmission	ON	>80%(+/-1%)
		OFF	<10%
	Visible Light Transmission	ON	>80%
		OFF	< 5%
	Visual Angle	ON	150 degree
	UV Blocking	ON/OFF	>97%
Electrical	Operating Voltage	ON	60 volts A.C.
	Frequency	ON	50~60HZ
	Current	ON	0.08 mA/sqm
	Power Consumption	ON	4.76 W/sqm
	Switching Time	ON==>OFF	Tr.2ms
		OFF==>ON	Td.10ms
Specification	Thickness	0.54mm
	Max Width	Customized
	Color	milky white and black
Other index	Working Temperature	–15~55 °C
	Life time	> 50000 hr







Photos:

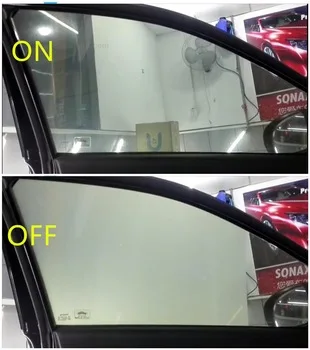

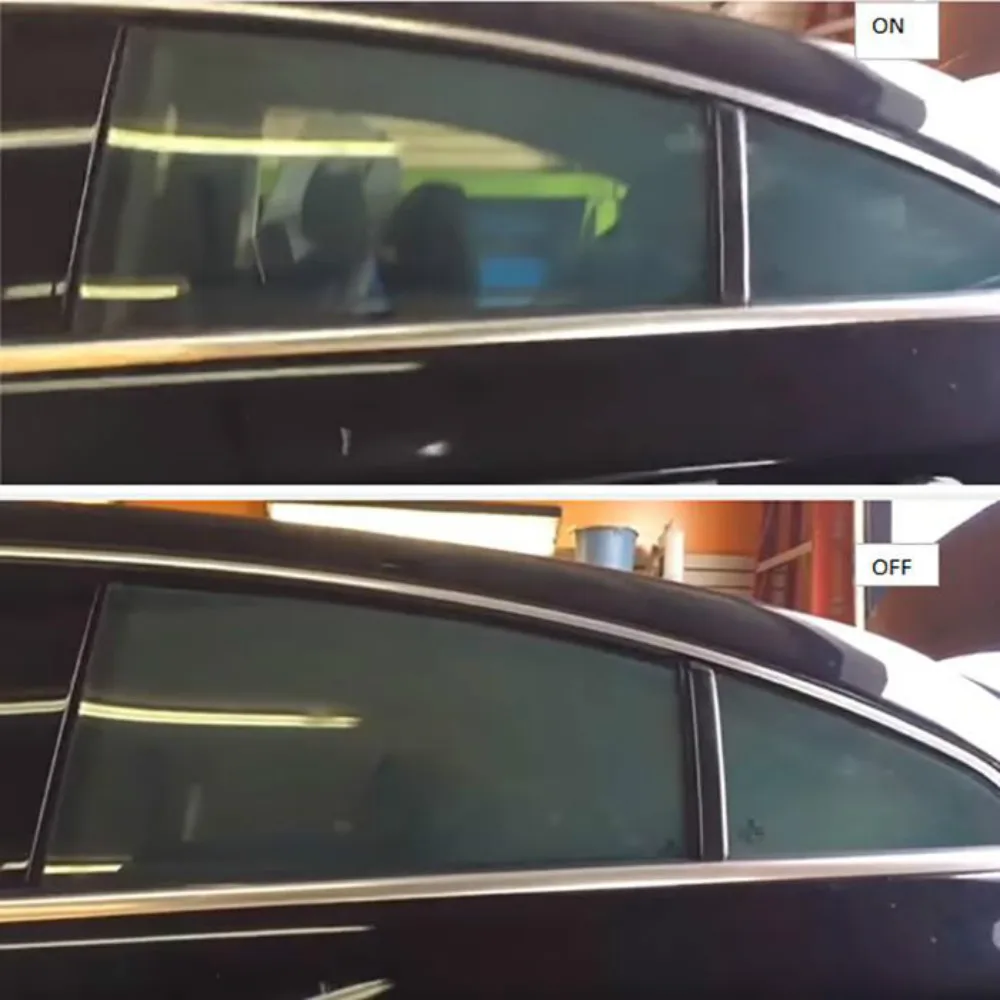

For car window:





Cautions for installing smart film on car window:

1. Since the smart film is a power-on product, please pay attention to waterproof after filming     to avoid short circuit.



2. Try not to shake the window within 3 to 5 weeks after filming to avoid curling.





3.You can use a lint-free cloth or soft cloth to clean after 2 - 3 weeks. Be careful not to pinch    the gravel or sharp particles to avoid scratching the surface of the film.



4.Please not to wash with amino liquid, you can wash with alcohol or water.





5.Please don’t  hang sucker dolls hanging on the window glass within a moth after filming.



6.Please don’t  use the nails or sharp objects to pick up the edges of the film to avoid soiling and bubbles.

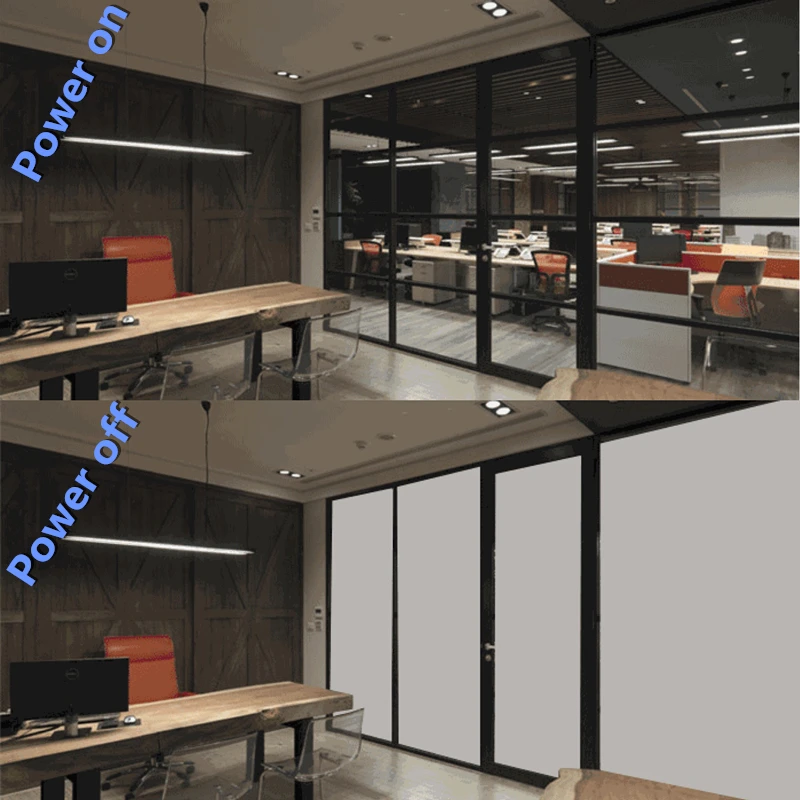

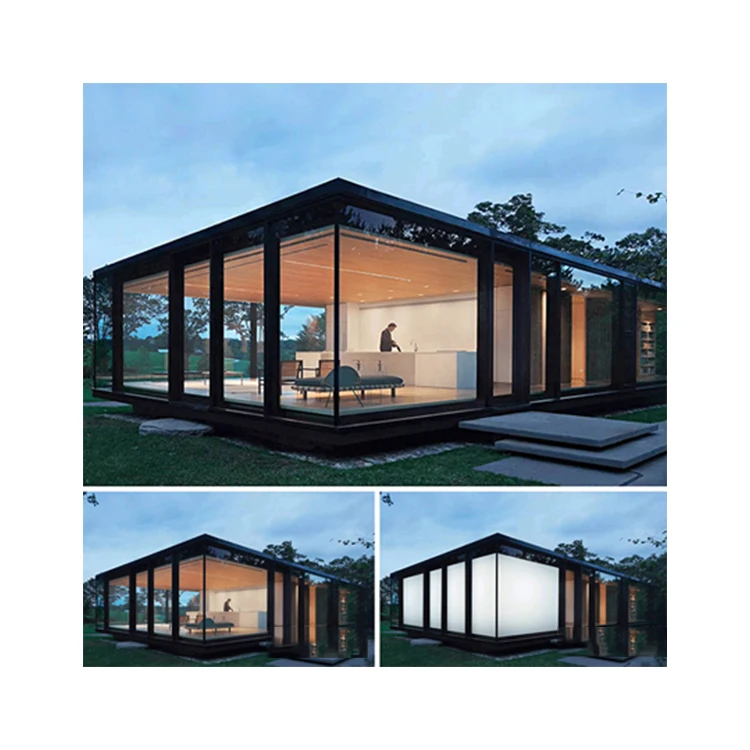

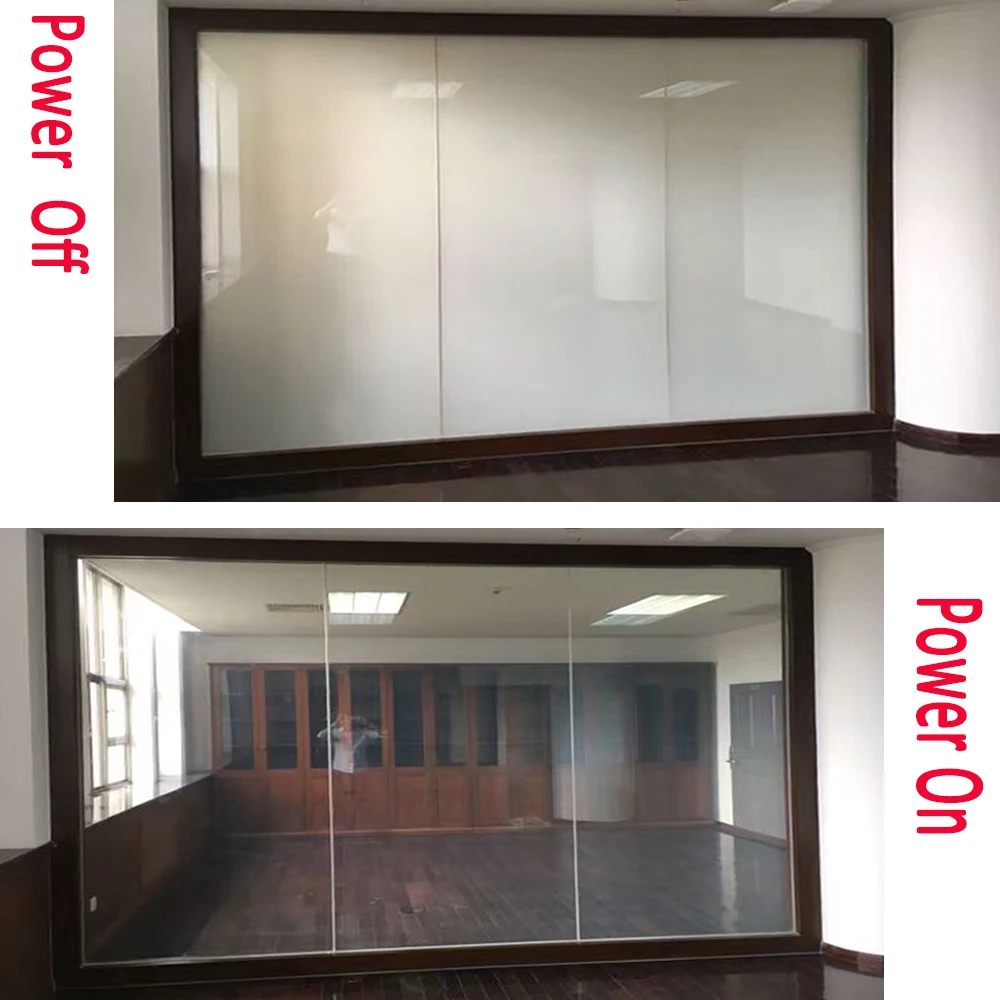

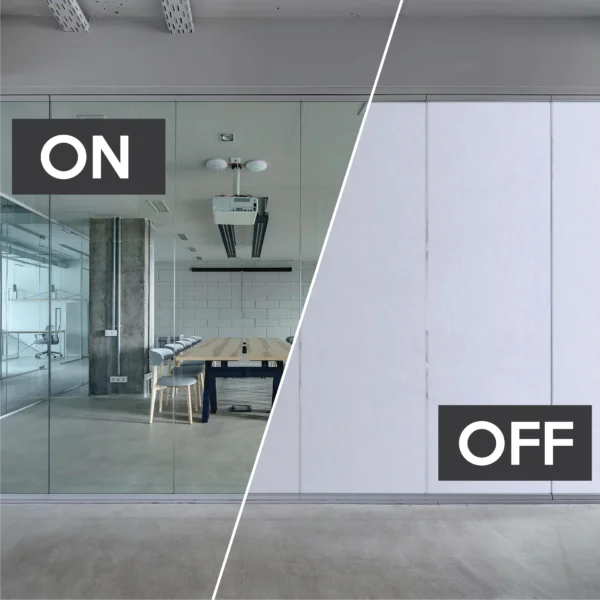

For building:























Installation steps:

F&Q:

 1)Does this need to be installed by an electrician?

           NO, We can provide you a complete closed system that is ready to install with a plug, it can be DIY by yourself. If you would like to hire an electrician to achieve your goal that is your own decision.

2).Can  you cut the film on site,or do you need an absolute measurement from me before  the panels are custom made?
  The material is custom manufactured with special laser equipment to ensure straight cuts however you can cut the material if needed to add a logo, trim etc.

3).Can we install this film on the top half of the glass only? We were thinking we wanted to keep the existing decals in place and install film from the decal up to the top of the panel.


YES - You can install on top half or bottom half only, just be careful for the wiring.


4)Can we install this product ourselves?

Answer:YES, we offer complete do it your self kits with practice pieces.

5)How long will it take for production and delivery?

This depends on Material size, total qty order and geographic delivery place.For expedited sample orders, we can ship as fast as 3-7 working days from payment confirmation. If for mass production, it will only last for 7-10 working days approximately.





Smart window tint film package:

The smart films are packed in small rolls into the carton,stick on the carton cylinder and surrounded by the polyfoam.







Applications:











Welcome to concat for more details if you are intersted in our smart window film products,please send me inquiry in the below square frame.
