14 МП HDMI-совместимый 1080P HD USB цифровой промышленный контрольный микроскоп камера в комплекте видеорегистратор для ремонта печатных плат

Описание и отзывы

Трекер стоимости

Характеристики



Note: For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI-Compatible ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.


Features:

Model: Camera with HDMI-Compatible USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

It builds in digital crosshairs and color control, add line in the pictures, freeze

Supply USB2.0,HDMI-Compatible HD video,Two output ports

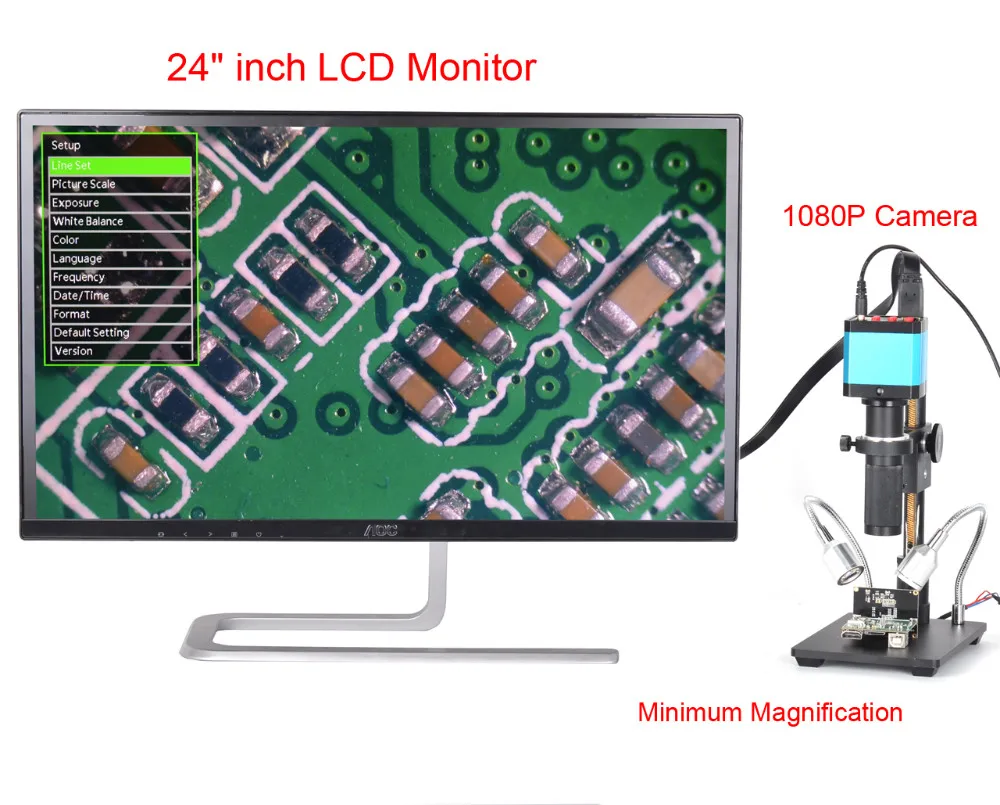

We sell much to the industry factory, they can see the problems directly in the Monitor via the camera.

NOTED!!!
TF card storage is only for HDMI-Compatible output. USB output will be storaged in PC.

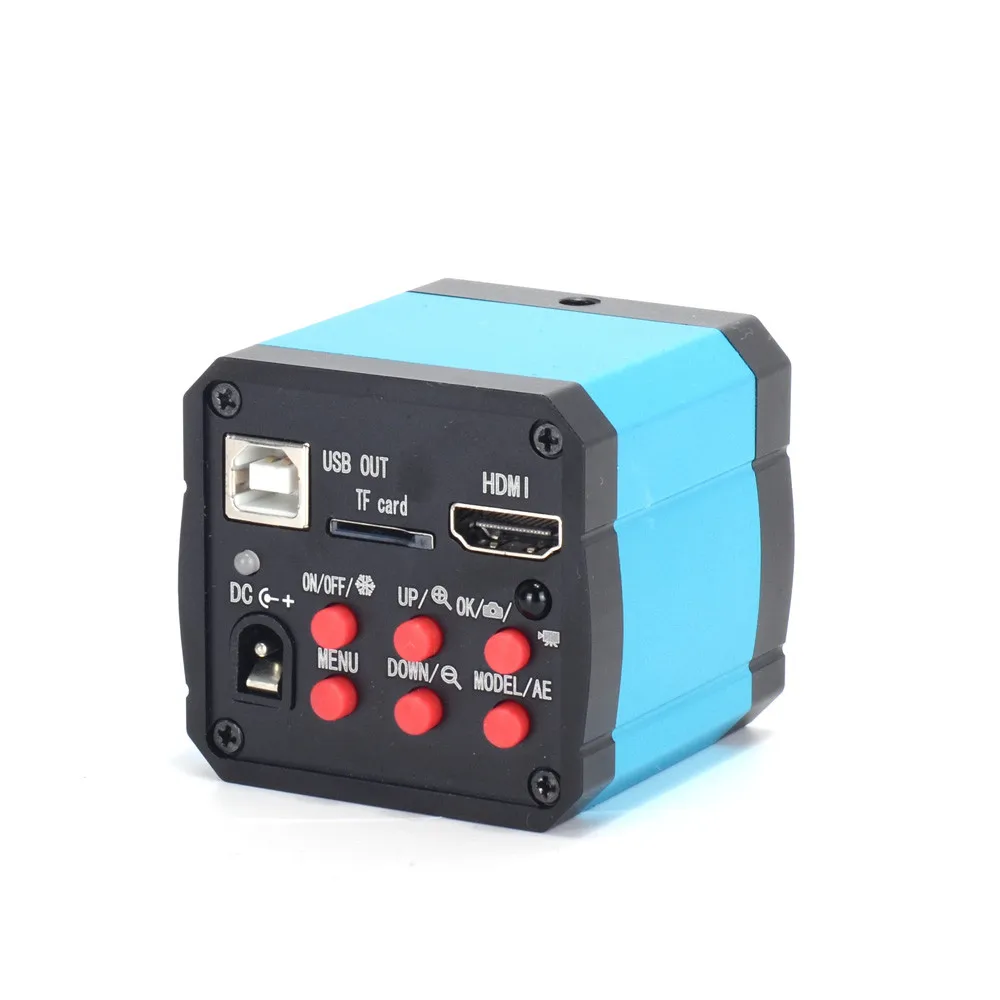

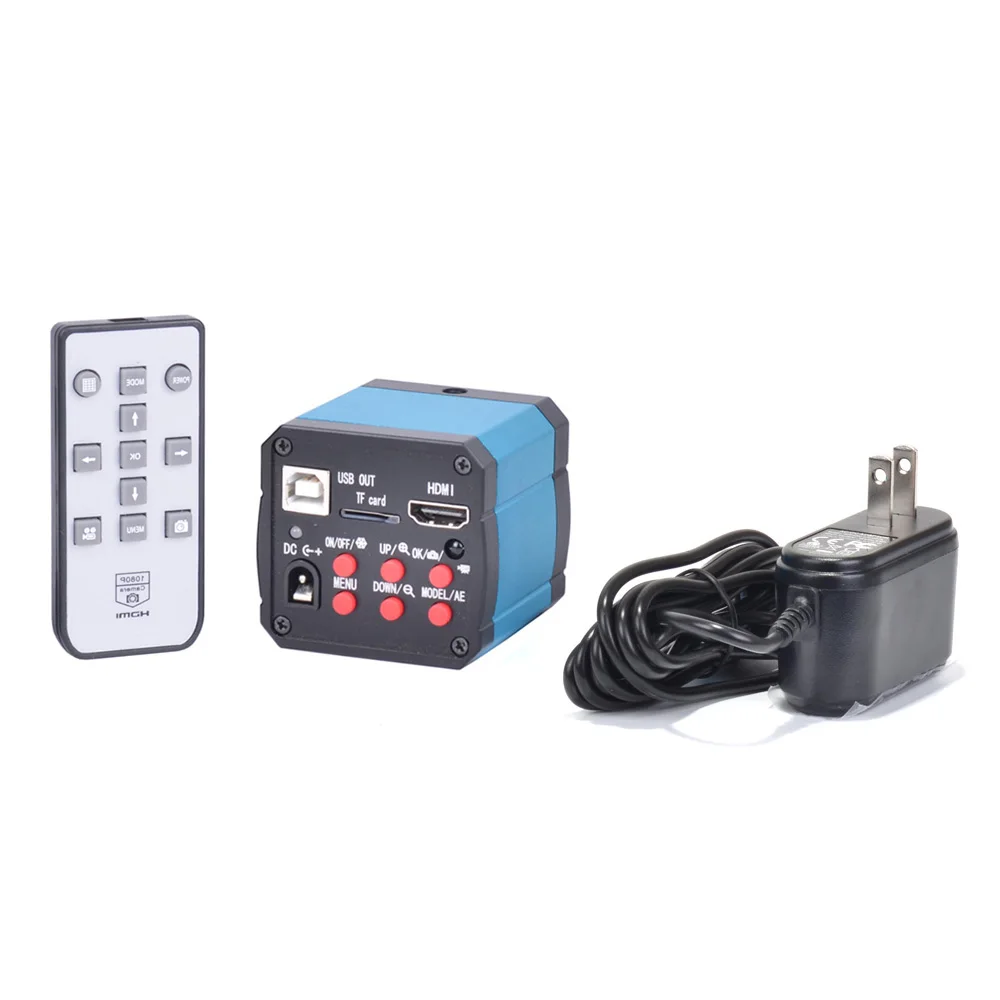

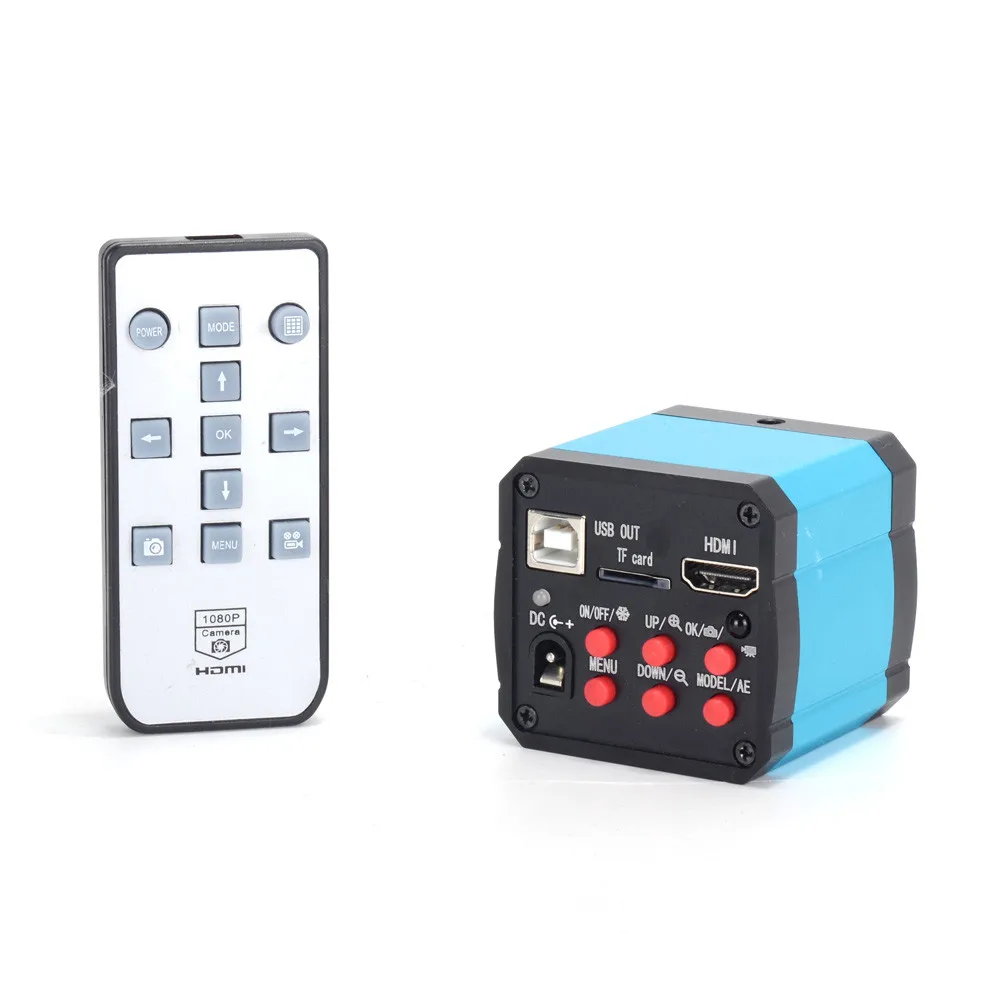

Detail Images:
