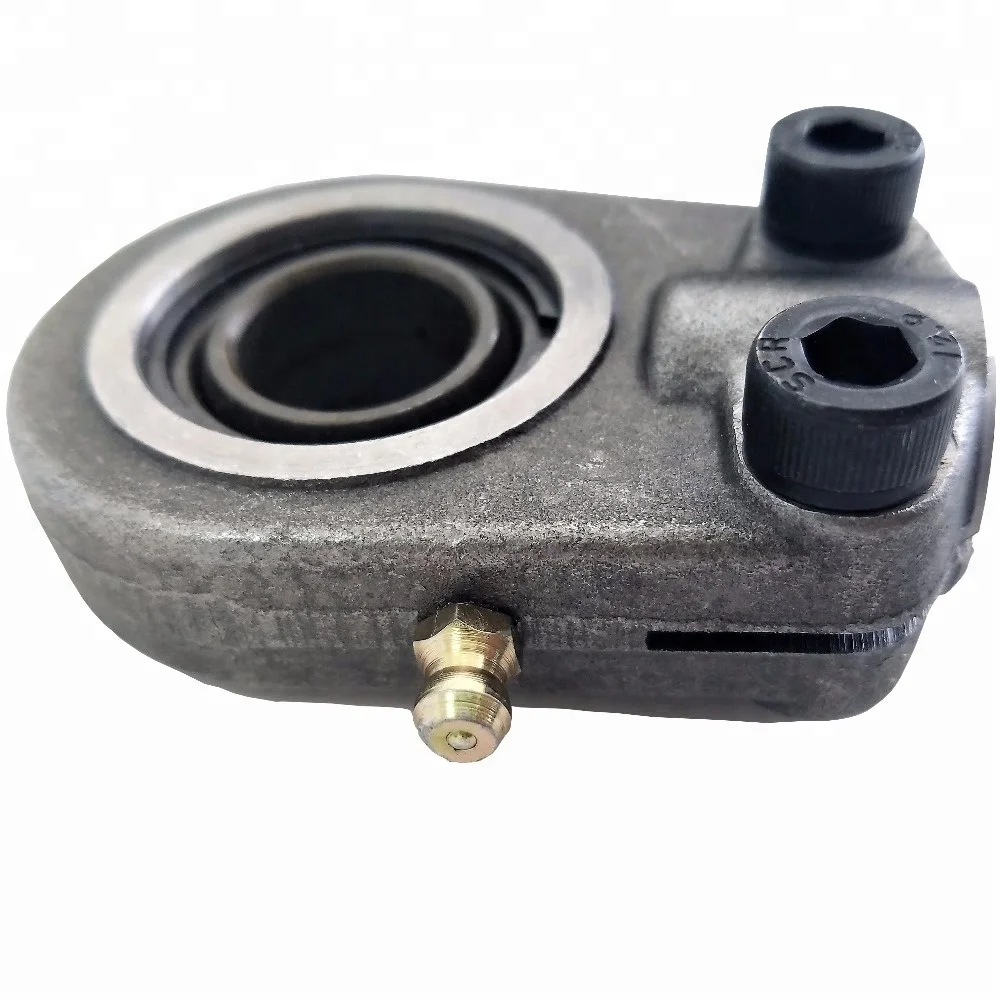

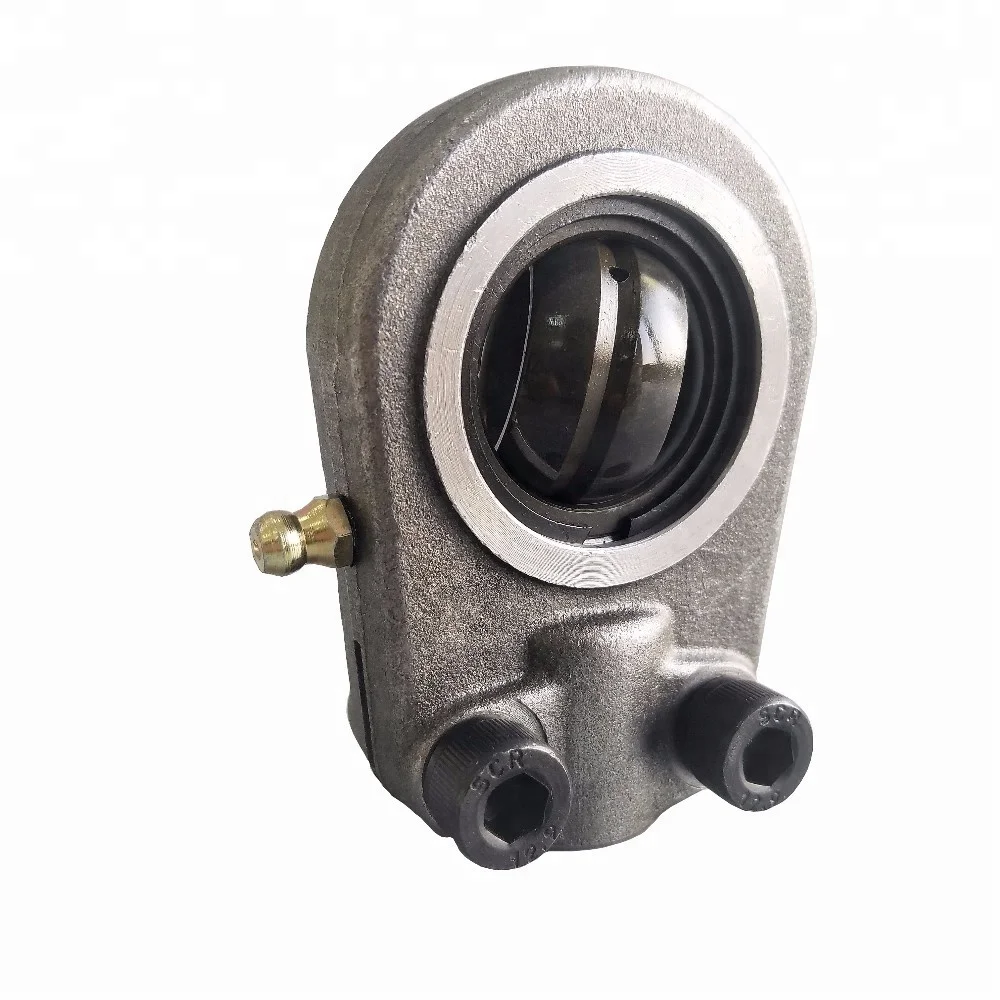

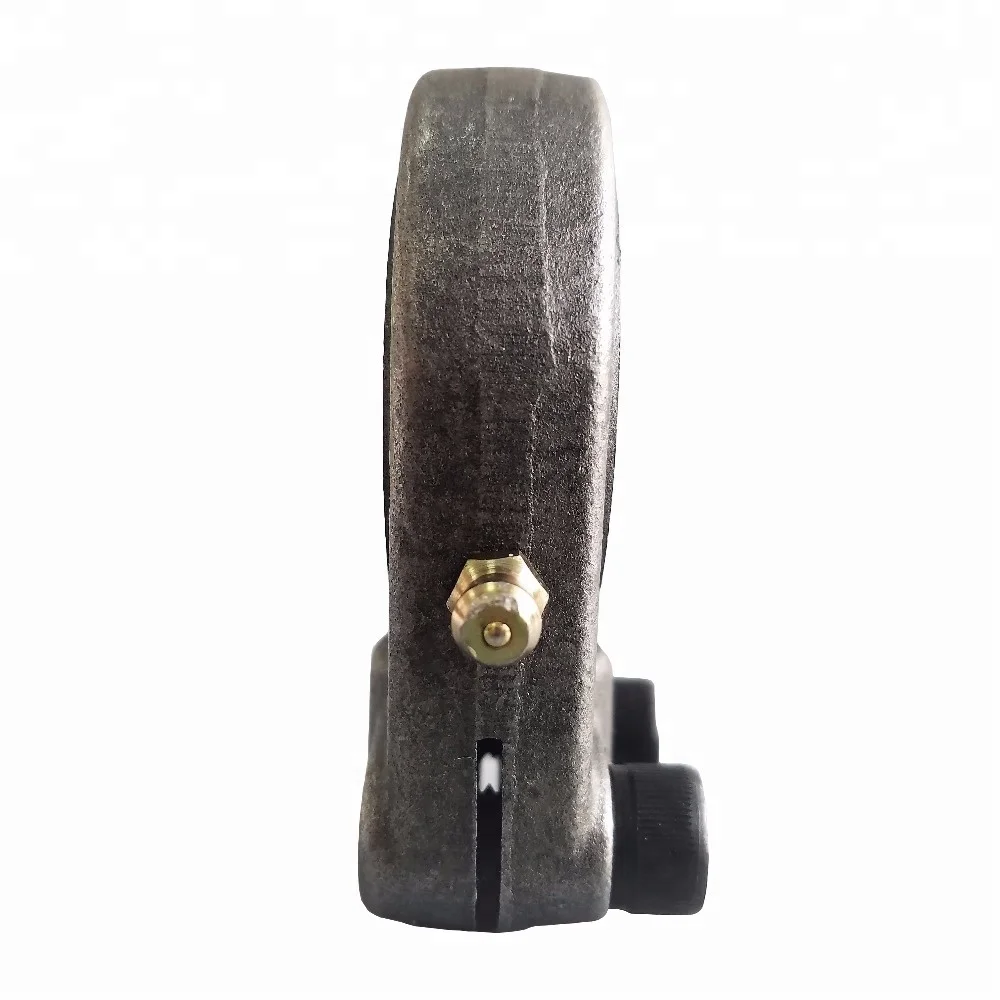

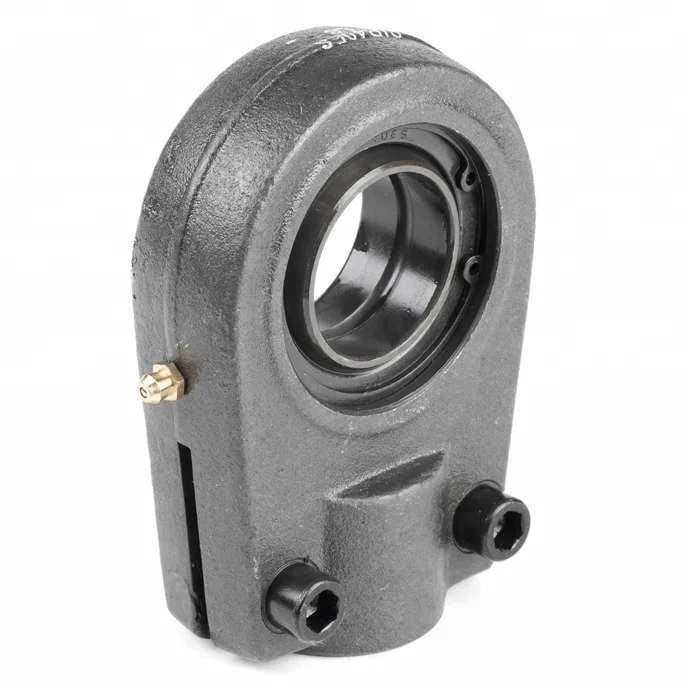

GIHR-K50DO SIR50ES GIHL-K50DO Rod Ends for double action Hydraulic Cylinders



Features

  • Requiring maitenance

  • Rings:chrome steel 52100(100Cr6),phosphating

  • Housing: alloy steel



Dimensions

  • Inside Diameter(Bore): 50mm

  • Outside Diameter(Head): 116mm

  • Net Weight: 3.8kg

  • Thread: M45x1.5

  • Load Ratings: 156KN(dynamic), 365KN(Static)

  • Maximum Angular Misalignment: 6 Degree

  • Total Length: 168mm

  • Center of Ball to Bottom of Shank: 105mm

  • Length Through Bore: 35mm

  • Length Through Housing: 40mm



Features  • sliding contact surface: steel / steel  • housing: carbon steel • requiring maintenance • inner ring    —bearing steel     —heat treated HRC 58-64    —phosphating • outer ring    —bearing steel     —heat treated HRC 54-60    —phosphating

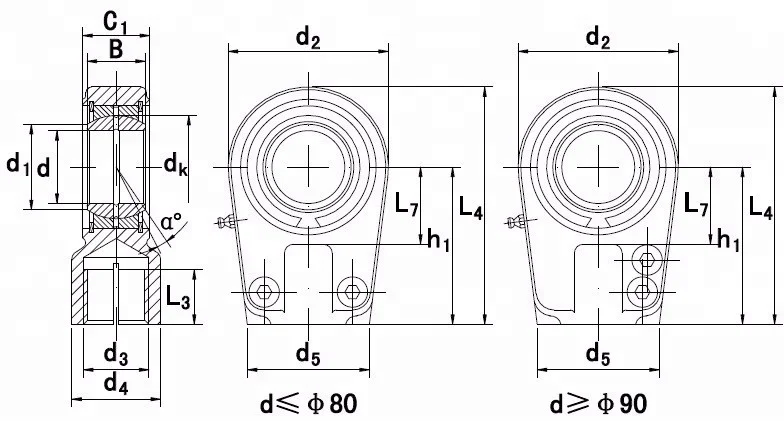

CODE		Dimension(MM)											Load rating(KN)		Weight
SKF	C&H	d	d3 6H	d4	L3 min	B	C1	d2	h1	L4	d5	α≈	Dyn. Cd	stat. Cs	KG
SIR20 ES	GIHR-K20 DO	20	M16×1.5	25	17	16	19	56	50	80	46	9	30	72	0.43
SIR25 ES	GIHR-K25 DO	25	M16×1.5	25	17	20	23	56	50	80	46	7	48	72	0.48
SIR30 ES	GIHR-K30 DO	30	M22×1.5	32	23	22	28	64	60	94	50	6	62	106	0.74
SIR35 ES	GIHR-K35 DO	35	M28×1.5	40	29	25	30	78	70	112	66	6	80	153	1.2
SIR40 ES	GIHR-K40 DO	40	M35×1.5	49	36	28	35	94	85	135	76	7	100	250	2
SIR50 ES	GIHR-K50 DO	50	M45×1.5	61	46	35	40	116	105	168	90	6	156	365	3.8
SIR60 ES	GIHR-K60 DO	60	M58×1.5	75	59	44	50	130	130	200	120	6	245	400	5.4
SIR70 ES	GIHR-K70 DO	70	M65×1.5	86	66	49	55	154	150	232	130	6	315	540	8.5
SIR80 ES	GIHR-K80 DO	80	M80×2.0	105	81	55	60	176	170	265	160	6	400	670	12
SIR90 ES	GIHR-K90 DO	90	M100×2.0	124	101	60	65	206	210	323	180	5	490	980	21.5
SIR100 ES	GIHR-K100 DO	100	M110×2.0	138	111	70	70	231	235	360	200	7	610	1120	27.5
SIR110 ES	GIHR-K110 DO	110	M120×3.0	152	125	70	80	266	265	407.5	220	6	655	1700	40.5
SIR120 ES	GIHR-K120 DO	120	M130×3.0	172	135	85	90	340	310	490	257	6	950	2900	76

- It is made up of a radial spherical  plain bearing GE... ES or GE... ES 2RS and rod end housing

- Rod end housing with a lubricating hole or grease nipple

- For left-hand thread, please use suffix " L " to instead " R ", e.g. GIHL-K100DO



C&H can offer the following variants:

Maintenance type	maintenance-free, maintenance required
Rings	chrome steel 52100(100Cr6),phosphating
Housing	carbon steel, alloy steel
Without Connecting	GIHR..DO
With Locking Nuts	GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting	GK..DO,GF..DO,GF..LO,TS..NF



C&H is a hgih quality bearings suppliers. We have skillful and training team. Somes of them have over 10 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales services. The strictly and complete process ability and quality control can guarantee to supply top-class product and services.The skillful engineer team can supply great support in technical and help customer to develop all kind of new products.
