Product Description





 Suction platform          Ricoh Gen5           Negative pressure         RIP software        bidirectional printing

                                                                   supply ink system

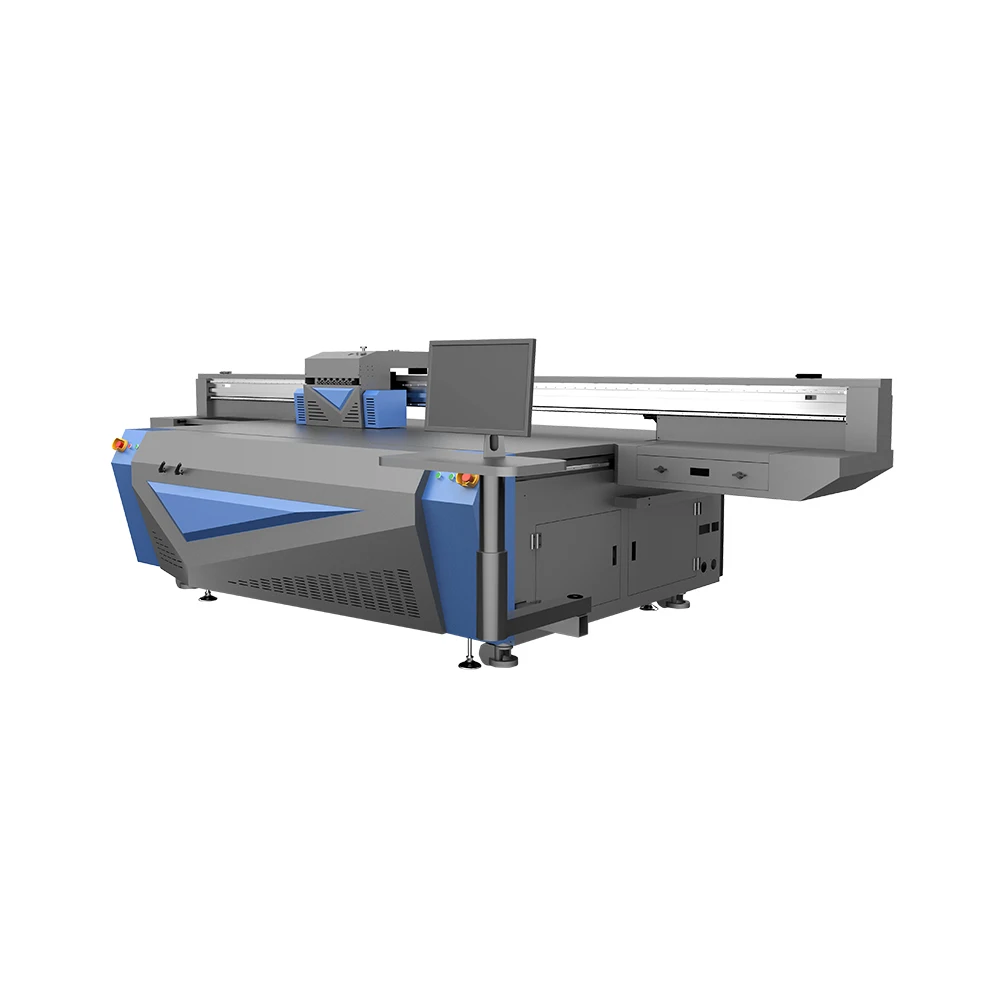

 YF-2513G is an industrial uv flatbed printer.

• We have 10 years of R&D experience in digital printing.
• If you have any questions, don't leave, you can send us a message and we will seriously solve your doubts.



 Ricoh Gen5 print head                                      FUJI servo motor control system from Japan



THK guide rail from Japam                                100% aluminium automatic ink supply system



Aluminium guide rail gantry                                IGUS tank chain & high flexible wires



Product Parameters



Model	YF-2513
Printer Head	Ricoh Gen5	Konica 1024i
Printer Head Number	2-8	4-16
Printer Mode	4C/6C+W+V
Printer Width	2400MM*1200MM
Resolution/Speed	40 Square meter/H (4 pass)	40 Square meter/H (4 pass)
	34 Square meter/H (6 pass)	34 Square meter/H (6 pass)
	20 Square meter/H (8 pass)	20 Square meter/H (8 pass)
Print Resolution	720*1800DPI
Ink type	Environmentally friendly UV ink(without VOC),UV white ink and Varnish is optional
Maximum thickness	Max.80mm
Media type	PVC board, Acrylic board, Tile, Glass, Metal painting, Signboard, Mobile phone case, Paper case, Wine bottle, etc.
Curing System	UV Curing System
Film Format	BMP/TIFF/EPS/PDF/AI/JPEG
Output port	USB 3.0
Running system	Windows 7 /8/10
RIP software	Photoprint/Onyx/Caldera/Colorget/Color
Power supply spec	220VAC(±10%)Single Phase, 50/60HZ
Power	5.5KW
Dimension size	4.75m(L) * 2.1m(W) * 1.4m(H)
Packing size	5.0m(L) * 2.1m(W) * 1.8m(H)
Operation environment	Temp: 20°C - 35°C , Humidity: 50% RH - 60% RH





Variable ink drop technique



Even if is light color gradual change effect,same can behave outstanding,transition is natural,design is exquisite rich stereo feeling





High precision printing





YF-2513G is a high-resolution & heavy duty UV flatbed printer,which is designed for industrial processing.With 2-8 units of Ricoh Gen5 grayscale industrial print heads,the highest resolution is up to 360x3600dpi.All production demands will be perfectly met.



                                                                                     Print effect comparison



Application industry



1,Advertising serise



The main application :Billboards, light boxes, logo, signs Etc.

Applicable materials :Acrylic, organic glass, ABS board, PVC expansion sheet, aluminous model board Etc.





2,Electronic products series

The main application :phone cover, cell phone holster, mobile power supply, refrigerator plate, induction cooker panel, electrical panel Etc.

Applicable materials :PC, TPU, ABS, PU leather, Acrylic, glass, Stainless steel panel Etc.





3,Decoration materials serise

The main application :TV setting wall, 3d background wall, sliding door, shutters, integration ceiling, Etc.

Applicable materials :Ceramic tiles, glass, Artificial marble, stainless steel, aluminium-plastic panel, microlite, wood board,Resin composite board Etc.





4,Arts and crafts serise

The main application :Gift boxes, bottles, charcoal carving art, Adornment picture, tag Ect.

Applicable materials :Wood board, glass, Acrylic, jade, Aluminum plate Etc.





Cooperative customer



 Sales cover many countries and regions around the world, and major exporting countries have UK, Poland, Russia, Saudi Arabia, United Arab Emirates, Kenya, Turkey, Brazil, Philippines, Indonesia, Vietnam, Kazakhstan, Thailand, Ghana, Morocco, Ecuador...







About us

Since its establishment in 2011, Guangzhou Deju Digital Technology Co., Ltd. has been focusing on the research and development of the overall solution in the field of digital printing. After years of development, the company has accumulated a wealth of practical experience in the technical team especially in textile printing Industry and UV printing field to provide professional solutions for the majority of customers have been recognized and praised, and establish the industry as a whole solution to the image of the experts. We are confident and we are more responsible to provide products and solutions that are satisfying to our customers.





Our product exhibition





If this 2513G flatbed printer does not meet your purchase requirements, I recommend that you look at our company's most popular products, click on the image below to jump to the product page, if you have any needs or questions, we Feel free to welcome your inquiry, thank you.



Our service

1.We provide 1 year warranty and online technical support for our printer .

2.When some technical problems,please send detail description,photos or vedio,then our technician will give the resolution accordingly.

3.There are complete English user manuals and inistall video to guide you easily install , operate and maintain the printer. It’s clear and easy to understand.



Application

Suitable for various materials, for instance, rigid medium such as glass, ceramic tile, Aluminum panel, wood panel, billboard, Acrylic panel, KT board, paper board, organic glass, PVC expansion sheet, cystosepiment, 3c products, corrugating medium paper, suspended ceiling, etc.
