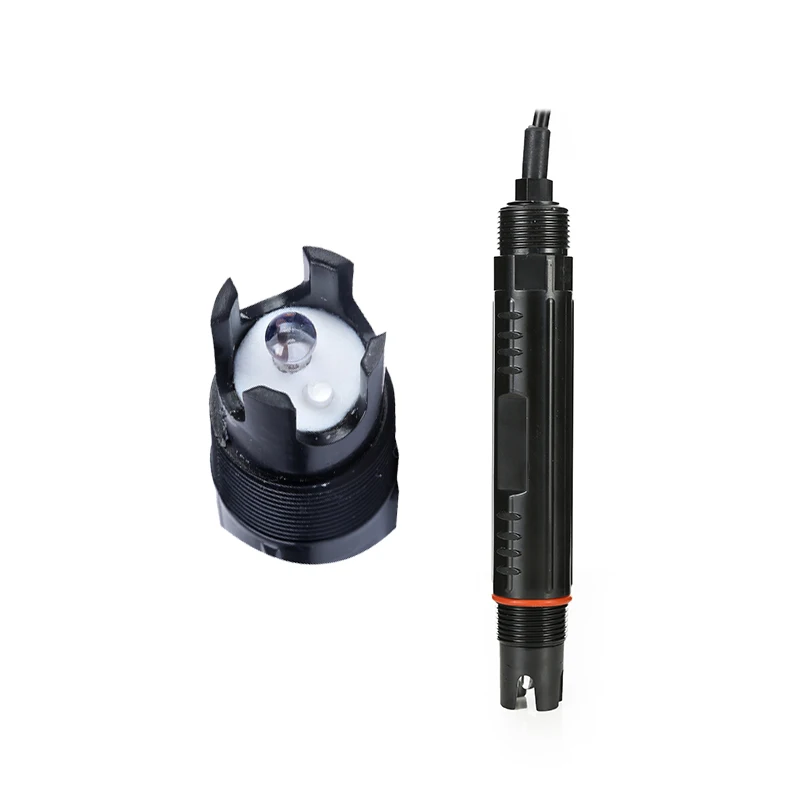

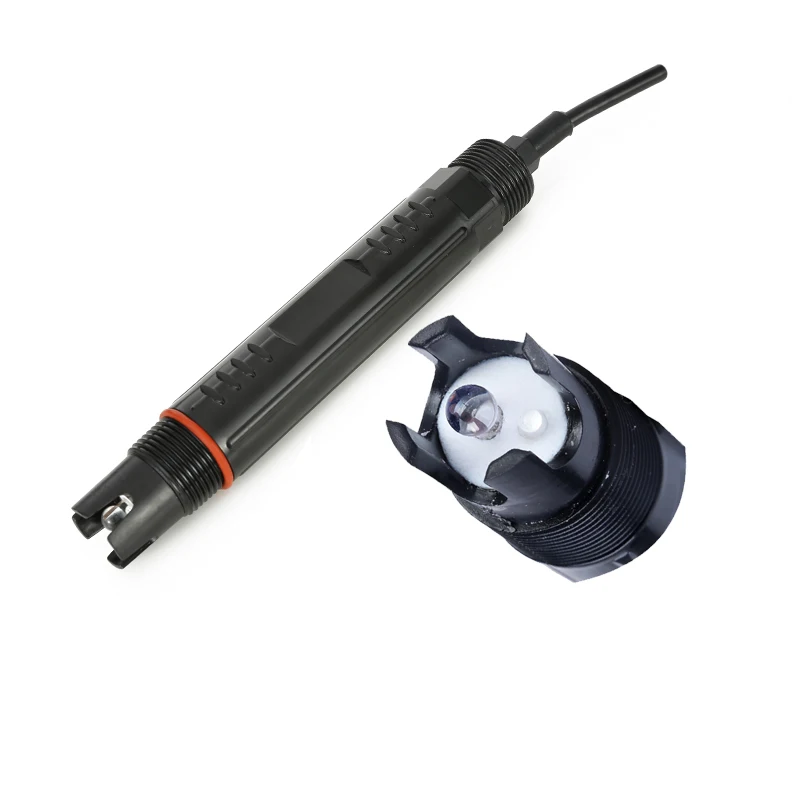

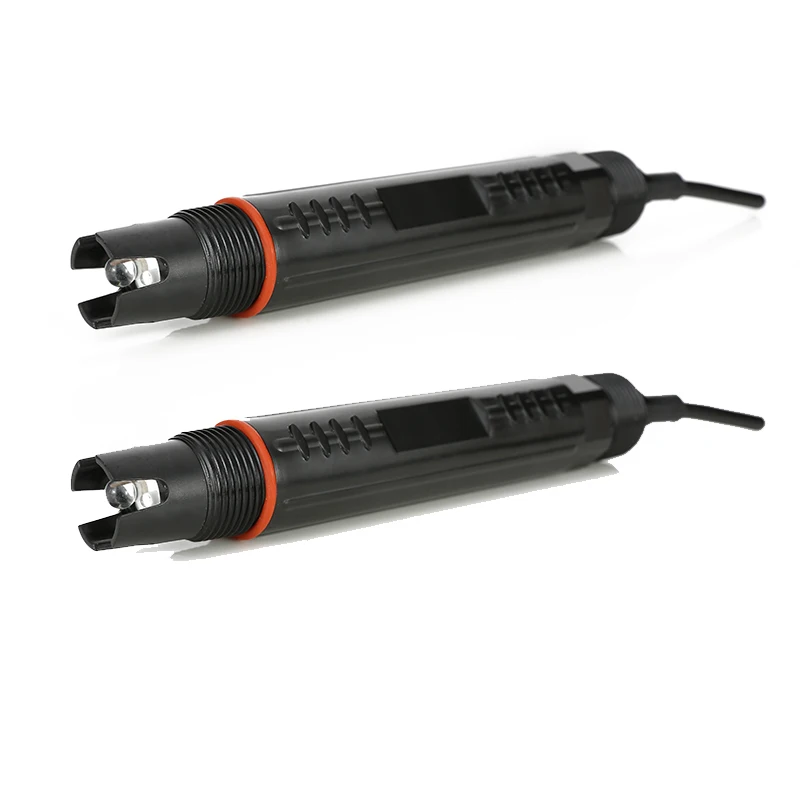

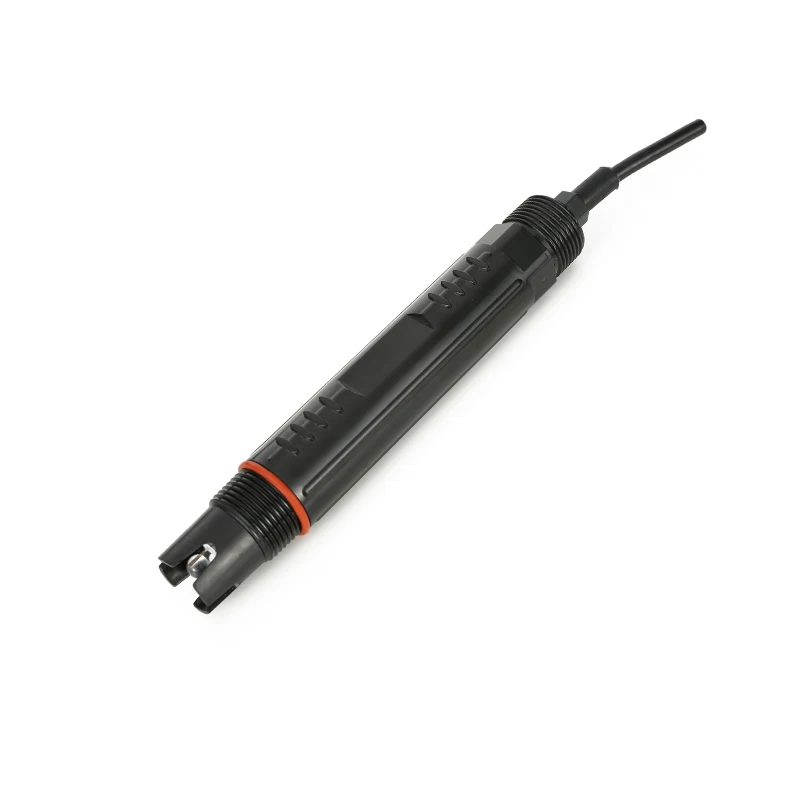

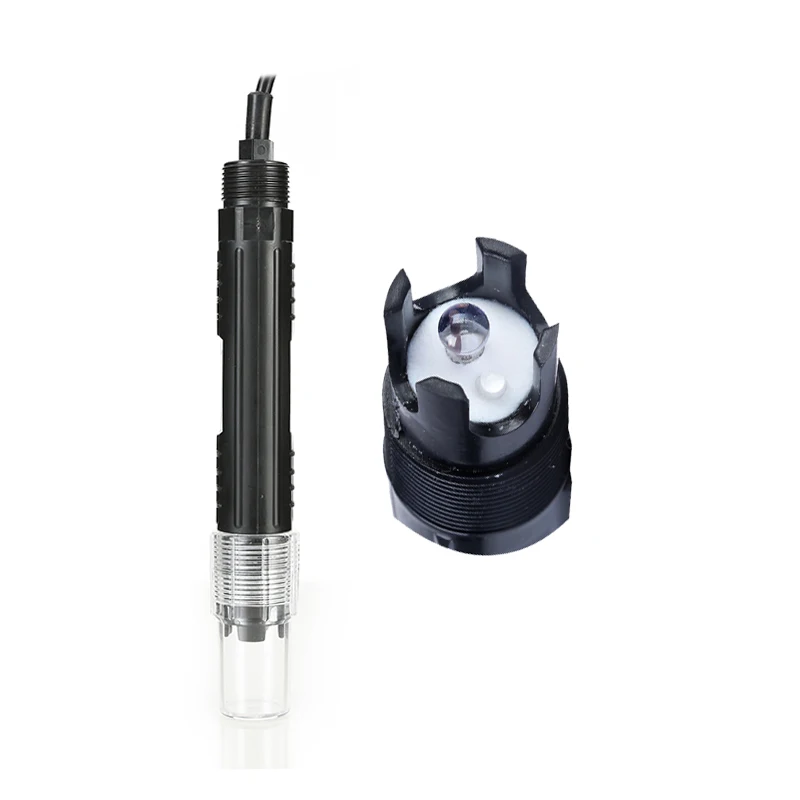

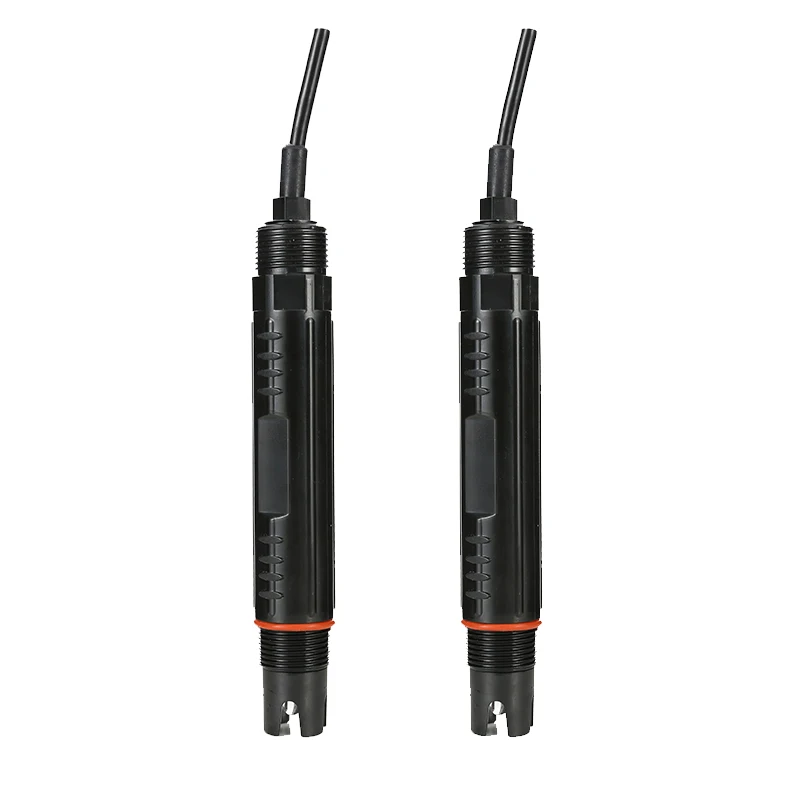

Industrial online 0~14pH Waste Drinking Water Sewage Treatment pH Probe Sensor with Temperature Compensation
BOQU pH meter use latest generation of microprocessor-based instrument, a high intelligent, multi-function, high measurement performance, environmental adaptability and other characteristics. It is a highly intelligent online continuous monitoring instrument, integrate with the sensor and the second meter. Can be equipped with three composite or two composite electrodes to meet a variety of sites. Can be widely used for continuous monitoring of PH value for thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and water and other solution.
Product Description
What's the Features of Industrial online 0~14pH Waste Drinking Water Sewage Treatment pH Probe Sensor with Temperature Compensation?
1. High accuracy :1%FS and resolution is 0.01ph,0.1C and 0.1mV
2. Multi-parameters display: pH,temperature,current,data,time and working state.
3. Easy operation: english menu and friendly Interface.
4. Tmeperation compensation can be up to 150C.
5.Out 4~20mA,0~10mA ;also can output two current for pH and temperature.
6. Aluminum housing and IP65 protection.
7. Save data funtion: it can save data in every 5 minutes and keep one month.
What's the parameters of Industrial online 0~14pH Waste Drinking Water Sewage Treatment pH Probe Sensor with Temperature Compensation?
Pricision and long working life,it's special used for high temperature resistant gel and high temperature solid dielectric dual sensor, it's suitable for demanding online measurement. it's widely used for fermentation tank, biotechnology,pharmaceutical industry,food and beverage technology,starch paste etc.
Model
pH5806/S8
pH5806/K8S
pH5806/VP
pH5806/5M
pH5805
Range
0~14pH
Temp
0~130C
Cable Connction
AS9
AK9
VP
with cable
S7/VP
Dimension
12*120/150/225/325mm
12mm*120/150/
200/250/450mm
Temp compensation
NO
NO
YES
YES
YES/NO
Application:thermal power,checmical fertilizer,chemical industry,metallurgy,environment protection,pharmacy manufacturing,biochemistry,food industry and running water.
Model
PH8011
PH8012
PH8083
(ORP)
CPH600
GPE-100
Range
0~14pH
+/-2000mV
0~14pH
Temp range
0~65C
Max pressure
0.3Mpa
Sensor face Material
Antimony
glass
platinum
glass
Housing material
PPS/PC/PTFE
glass
Connection
up and lower 3/4NPT
PG13.5 thread
Remark
lower-noise cable
waterproof connector
Application: ultra pure water, pure water ,such as thermal power plant etc.
Model
PH8000
PH8022
GPE800/801
SYM300
Range
0~14pH
Temperature range
0~80C
0~65C
Pressure
0.3Mpa
/
Slope
>/=96%
>97%(25C)
Zero
E0=7H+/-0.3
Connection
Rotary locking,3/4NPT
3/4NPT
S7,PG13.5
BNC
Housing
PPS/PC/PTFE
PPS/PC/PTFE
Glass
Glass
PHS-1701 Portable pH ORP Meter
PHS-1705 Labotary pH Meter
Range:0.00~14.00pH -1999~1999mV accuracy:-/+0.01pH, temperature compensation:-5~105C dimension:230*100*35mm power:4*AAA/LR6 with instrument box
Range:0.00~14.00pH -1999~1999mV accuracy:-/+0.01pH, temperature compensation:-5~105C dimension:230*100*35mm power:220VAC with instrument box
