Водонепроницаемый Соединительный кабель для шланга AD18.5

Описание и отзывы

Трекер стоимости

Характеристики

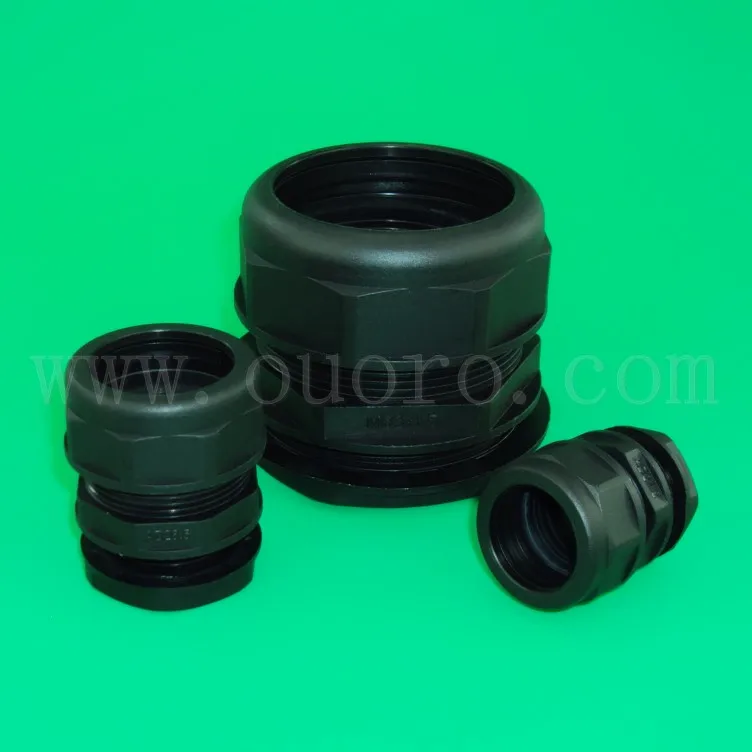

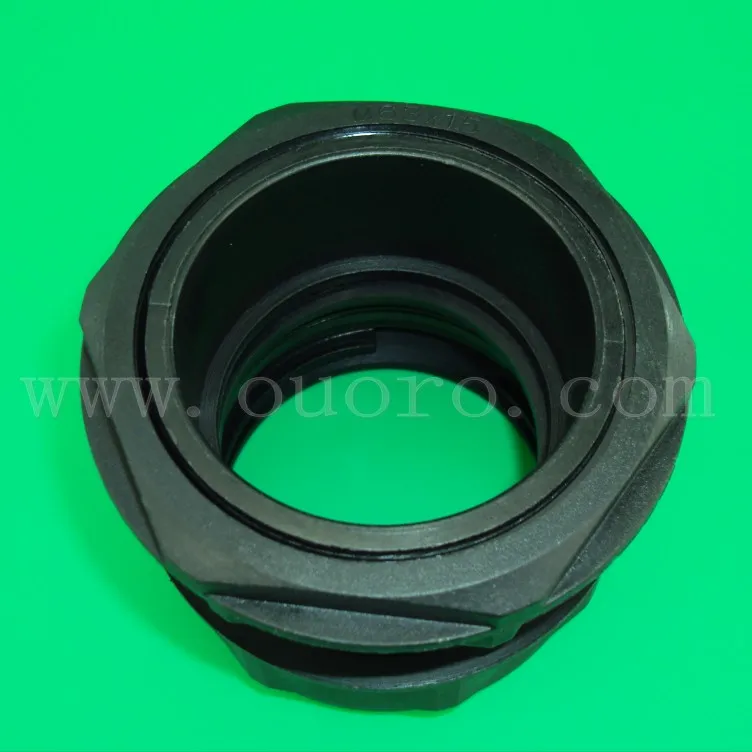

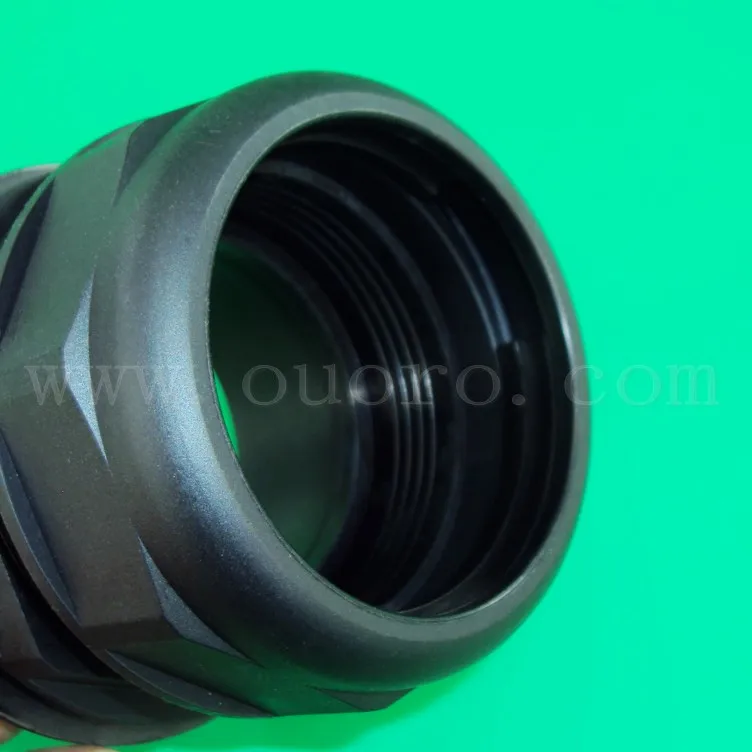

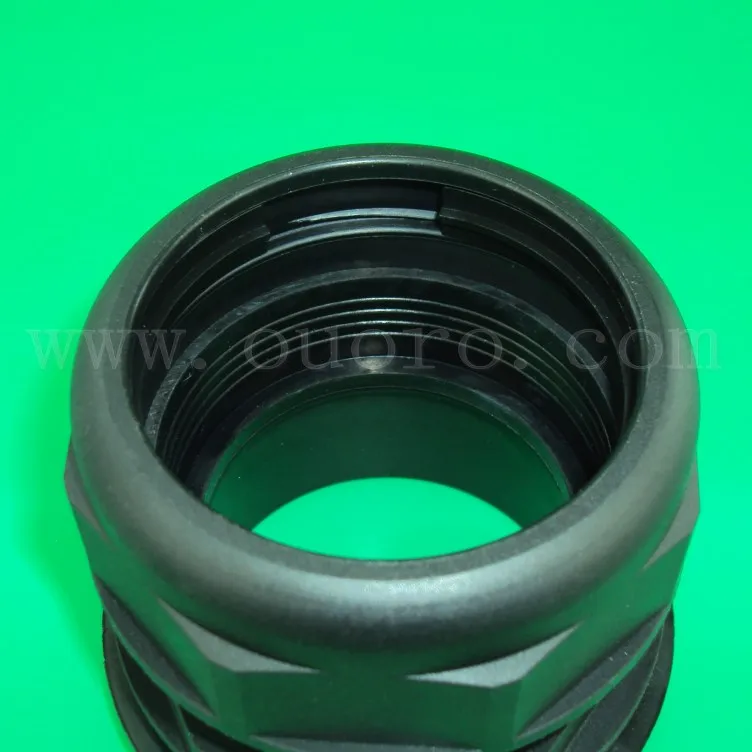

OUORO AD18.5 PG13.5 M20 waterproof nylon hose connector for flexible cable



Waterproof Connector For Flexible Conduit
Product material:	A, B, E is made of nylon, D ( POM). C nitrile rubber.
Working temperature:	-40℃ ~ +100℃, instantaneously can be +120 ℃.
Specification of thread:	Metric,PG,G
Color:	Black.Other colors are customizable.
Certification:	RoHS
Protection grade:	IP65
Property:	with design of clamping ring and the rubber seal ,tighten by sealing nut,  can assembly fast & easy with large clamp range , tensile resistance ,and  waterproof, dustproof,resistant salt, acid and alkali , alcohol, oil, grease  and general solvent
How to use:	Connector is matching product for non-metallic conduit , can entry equipment cabinet directly.





Waterproof Connector For Flexible Conduit
Unit: mm
Item No.	Suitable Flexible Conduit	Metric Dimension Of  Thread	AG Outer  Diameter  AG	AG Inner  Diameter  AG	GL	H	Packing
AD10-PG7	AD10	PG7	12.5	7	10	26	100
AD10-M12×1.5		M12×1.5	12	7	10	26	100
AD10-M16×1.5		M16×1.5	16	7	10	26	100
AD13-PG9	AD13	PG9	15.2	10	10	26	100
AD13-M12×1.5		M12×1.5	12	7	10	26	100
AD13-M16×1.5		M16×1.5	16	10	10	26	100
AD13-M18×1.5		M18×1.5	18	10	10	26	100
AD15.8-PG11	AD15.8	PG11	18.6	12	10	26	100
AD15.8-M16×1.5		M16×1.5	16	11	10	26	100
AD15.8-M18×1.5		M18×1.5	18	12	10	26	100
AD15.8-M20×1.5		M20×1.5	20	12	10	26	100
AD18.5-PG13.5	AD18.5	PG13.5	20.4	14.5	10	27	50
AD18.5-M20×1.5		M20×1.5	20	14.5	10	27	50
AD21.2-PG16	AD21.2	PG16	22.5	15	10	27	50
AD21.2-M20×1.5		M20×1.5	20	16	10	27	50
AD21.2-M22×1.5		M22×1.5	22	17	10	27	50
AD21.2-M24×1.5		M24×1.5	24	18	10	27	50
AD21.2-M25×1.5		M25×1.5	25	18	10	27	50
AD21.2-G1/2		G1/2	20.4	15	10	27	50
AD25-M25×1.5	AD25	M25×1.5	25	20	15	35	50
AD25-G1/2		G1/2	20.4	15	15	35	50
AD28.5-PG21	AD28.5	PG21	28.3	23	14	34	50
AD28.5-M25×1.5		M25×1.5	25	21	14	35	50
AD28.5-M27×2		M27×2	27	21	14	35	50
AD28.5-M30×2		M30×2	30	23	14	35	50
AD28.5-M32×1.5		M32×1.5	32	23	14	35	50
AD28.5-G3/4		G3/4	26	20	14	34	50
AD34.5-PG29	AD34.5	PG29	37	29	14	34	20
AD34.5-M32×1.5		M32×1.5	32	26	14	35	20
AD34.5-M36×2		M36×2	36	29	14	35	20
AD34.5-M40×1.5		M40×1.5	40	35	15	40	20
AD34.5-G1		G1	33	26	14	34	20
AD42.5-PG36	AD42.5	PG36	47	36	14	44	10
AD42.5-M40×1.5		M40×1.5	40	34	14	44	10
AD42.5-M48×2		M48×2	48	36	14	44	10
AD54.5-PG48	AD54.5	PG48	59.3	48	15	50	10
AD54.5-M50×1.5		M50×1.5	50	43	15	50	10
AD54.5-M60×2		M60×2	60	48	15	50	10
AD54.5-M63×1.5		M63×1.5	62.9	53	15	52	10





1.Q:Do you have your own factory?

   A:Yes,H-V-S Company is  manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.

2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?

   A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.

3.Q:How can I visit your factory?

   A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.

4.Q:Do you provide free sample?

   A:Yes, we always do, but first time you'd better pay the delivery charge.

5.Q:Could you print our company logo on nameplate and package?

   A:Yes,we can do that.

6.Q:Do you accept custom design on size?

   A:Yes, if the size is reasonable.

7.Q:What's your delivery time?

   A:H-V-S is factory, so we can efficiently control the production time.
