Характеристики


speed 200m/min 4-16mm Ribbed wire drawing mil Rolling drawing casette

Product Description

 ribbed rebar machine7

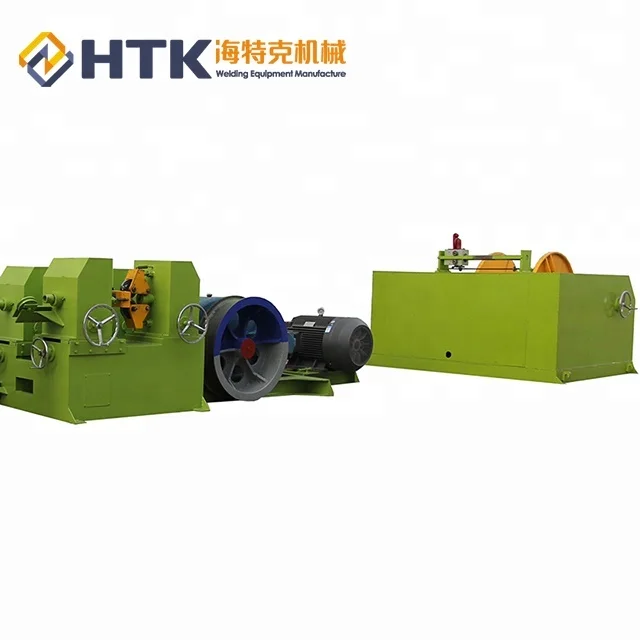

(1)Introduction of  Rebar/Bar Ribbed Steel Cold Rolling Machine

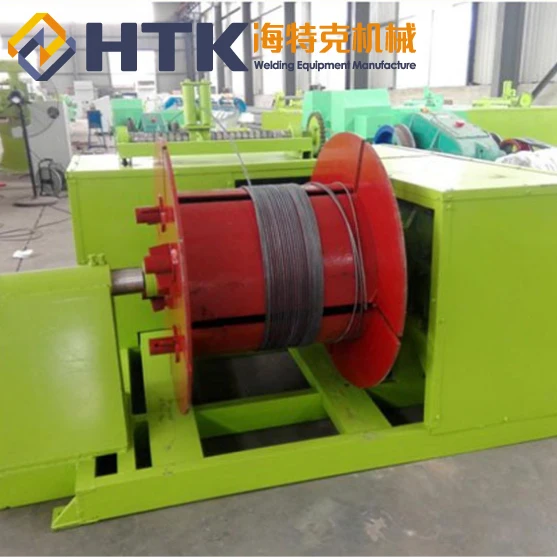

1 Derusting Machine

The machine is close type, there have three rotary wheels inside, we could adjust it up and down, it is easier for the raw materials installation, we could put the wire rod inside, then adjust the wheels.

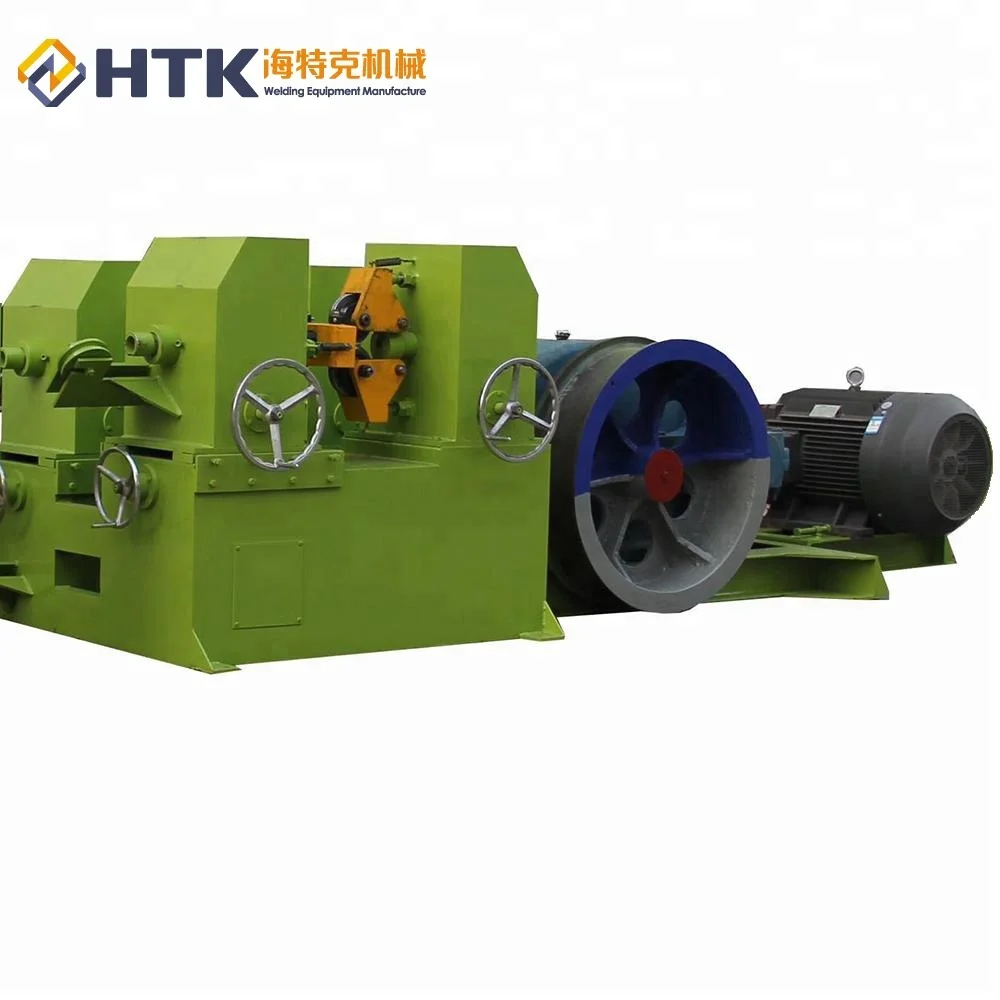

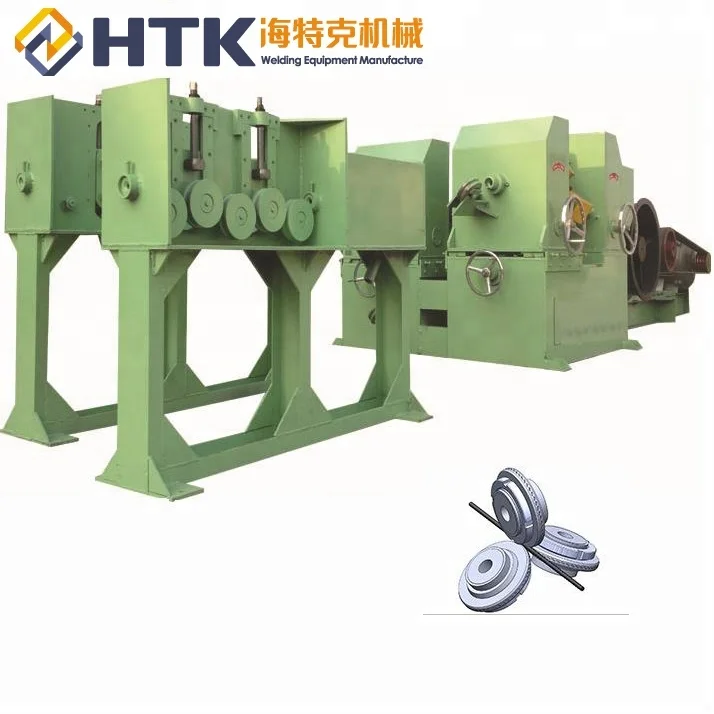

2. Rolling mill

The rollers’ angle should be 120°, at the same center, first rolling mill is mainly for reducing the diameter, second set of rolling mill is for making the rebar,

3. Plate Machine

The machine is with electromagnetic motor, it offer the power for the whole line, the motor speed could be adjusting, it will change the rolling speed.

4. Stress-Relieving Machine

This machine is mainly for reducing the machine hardness.

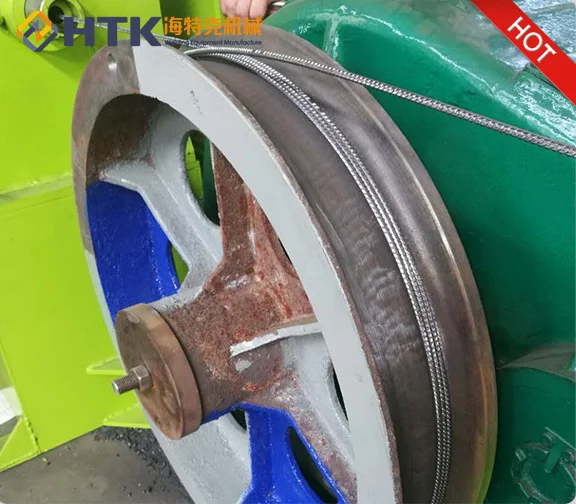

5. The Wire Drawing Machine matches the moment type motor, the mainly spare parts is the wire wheel

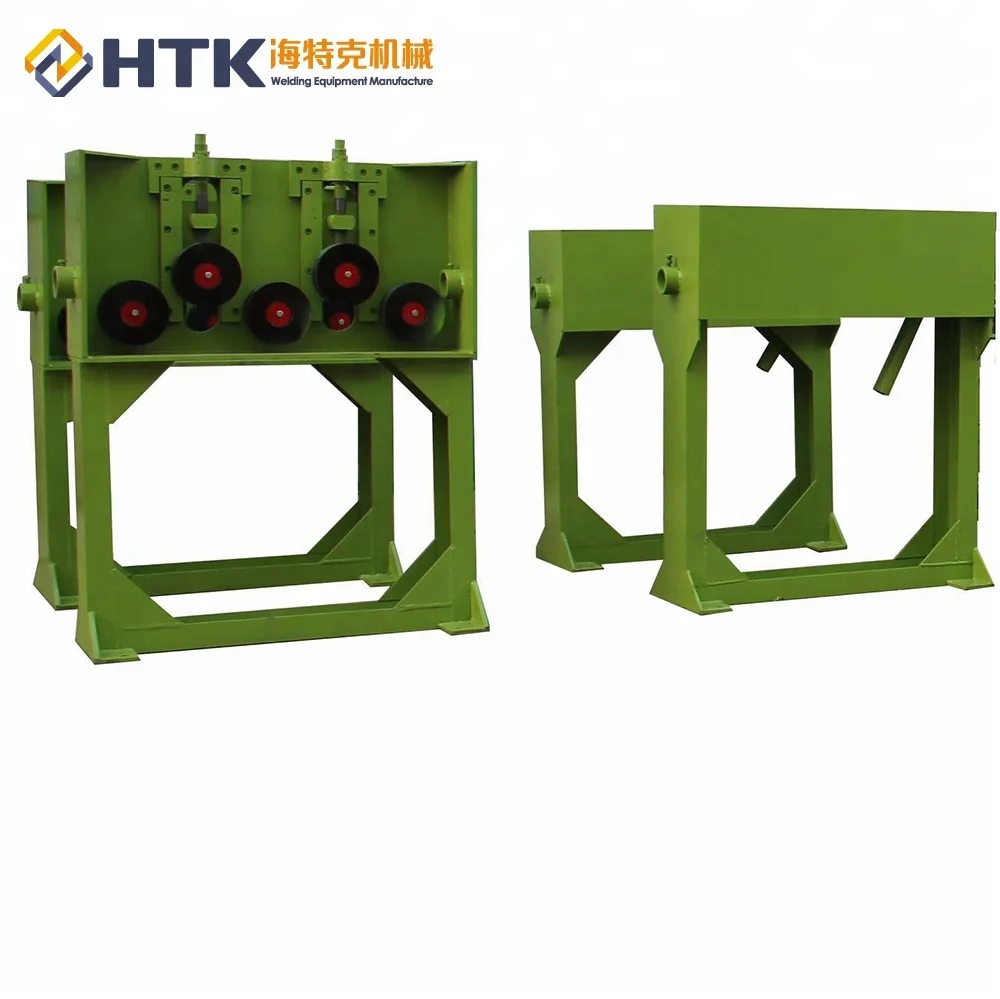

6.Straight Machine and Cutter



(2)Parameters of  Rebar/Bar Ribbed Steel Cold Rolling Machine

Item



Small type YHT210



Medium type YHT228



Large type YHT285



Unit

Raw matrial

φ6.5-10

φ6.5-12

Φ10-16

mm

Roller Diameter

Φ210

Φ228

Φ285

mm

Power

55-75

75-110

130-160

KW

Center distance between gears

650

650

700

mm

Rolling speed

1.5-2

1.5-3

2-3

m/s

Cutting length

1.5-12

1.5-12

1.5-12

m

Motor of flying shear

5.5

7.5

15

KW

Product specification

Φ5-8

Φ5-10

Φ8-14

mm

Output

20-35

25-50

60-80

T/Shift

 ribbed rebar machine3ribbed rebar machine4ribbed rebar machine2ribbed rebar machine1ribbed rebar machine6ribs bar

steel bar machine (11).jpg

Packaging & Shipping

 wire drawing machine (14)

One 20ft container/Set

Package: Stretch Film or Pallet

Main Farm Fence Wire Machinery: 1 Unit

Coil Holder: Several Units

Tool Cabinet: 1 Unit

Spare Parts: Several Units

Payment:30% TT for advance payment, 70% TT after the copy of B/L.

Our Services

1.Farm Fence Wire Machinery Warranty: One Year.

2.Enough spare parts of machines could be supplied.

3.All machines were tested and adjusted before delivery.

4.Engineers available to service machinery overseas: Worker-training, installation.etc.

5.24 hours technical support by e-mail or calling service.

Company Information



Our Factory:HEBEI HTK WELDING EQUIPMENT CO.,LTD.

We have 3 senior engineers,105senior technicians, more than 100 employees

  • Our products: Field Fence and Farm Fence Wire Machine, Welded Wire Mesh Machine
  • Our certifications: ISO 9001:2000, BV certification
  • Our Main Market:South Africa, Mongolia, Asia, Dubai

Advantage of HTK Factory:

  • We have professional engineer supervision
  • The price preferential benefit
  • Product quality assurance
  • High production efficiency
  • With credibility and protection
  • Can visit the factory in person
  • Good after sales service
  • Business model: Factory direct
Our team and customers:
HTK.jpgHTK COMPANY01.jpgHTK COMPANY02.jpg.jpgISO 9001.jpgHTKName card Lily1.jpg

Payment: 30%TT in advance and pay off the balance against the copy of B/L.

MOQ: 1 Set Farm Fence Wire Machinery.



Welcome to visit 15 years old factory!!!
