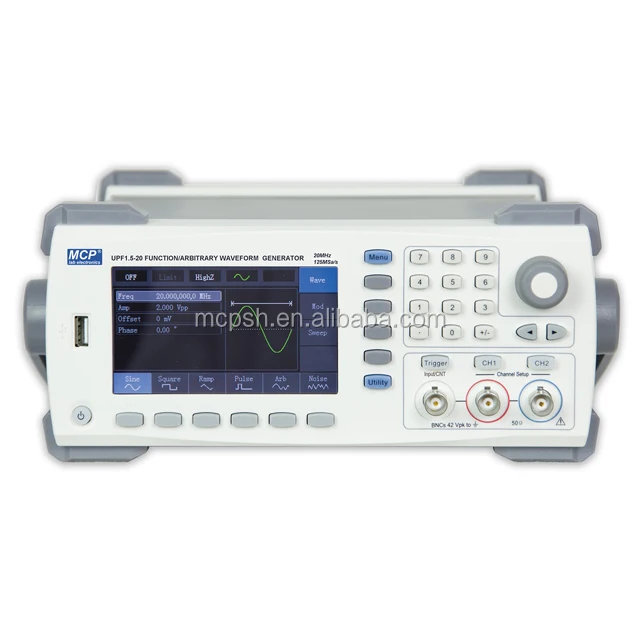

UPF1.5 DDS FUNCTION (ARBITRARY) GENERATOR
Features
.Two outputs (major and minor)
.Using Direct Digital Synthesis(DDS) technology
.1μHz~60MHz frequency range for main waveforms
.100MHz equal-accuracy frequency counter
.Arbitrary setting of start and stop for frequency sweep output
.More than 50 kinds of output waveform(arbitrary is optional)
.4.3" TFT colour display
.Standard USB(H), USB(D)
| Technical Data | UPF1.5-5 | UPF1.5-10 | UPF1.5-20 |
| Channel | CHA major and CHB minor | ||
| Channel Bandwidth | CHA: 5MHz CHB: 2.5MHz | CHA: 10MHz CHB: 5MHz | CHA: 20MHz CHB: 10MHz |
| Sampling Rate | 125MS/s | ||
| Vertical Resolution | 14 bits | ||
| Waveform | Sine wave, square wave , triangle wave, pulse wave, oblique wave, noise, arbitrary wave (16 groups) | ||
| Scan Mode | Linear, logarithmic and external scanning | ||
| Modulation Type | single, internal, external | ||
| Output | |||
| Output Impedance | 50Ω/high resistance | ||
| Amplitude Range | CHA: 1mVpp~10Vpp (50Ω) CHB: 50mVpp~1.5Vpp (50Ω) | CHA: 1mVpp~10Vpp (50Ω) CHB: 50mVpp~1.5Vpp (50Ω) | CHA: 1mVpp~10Vpp (50Ω, ≤10MHz) CHA: 1mVpp~5Vpp (50Ω, ≤20MHz) CHB: 50mVpp~1.5Vpp (50Ω) |
CHA: 2mVpp~20Vpp (high resistance) CHB: 100mVpp~3Vpp (high resistance) | CHA: 2mVpp~20Vpp (high resistance) CHB: 100mVpp~3Vpp (high resistance) | CHA: 2mVpp~20Vpp (high resistance, ≤10MHz) CHA: 2mVpp~10Vpp (high resistance, ≤20MHz) CHB: 100mVpp~3Vpp (high resistance) | |
Accuracy (1kHz Sine wave) | Amplitude setting value of 1% + 2 mV | ||
| DC Offset Range | -5Vpp~5Vpp(50Ω)(AC+DC) | ||
| Offset Precision | Offset set value of + 1% + Amplitude set value of 0.5% + 2 mV | ||
| Amplitude Resolution | 1mV | ||
| Amplitude Flatness | |||
| Sine Wave | |||
| Frequency Range | CHA: 1μHz~5MHz CHB: 1μHz~2.5MHz | CHA: 1μHz~10MHz CHB: 1μHz~5MHz | CHA: 1μHz~5MHz CHB: 1μHz~2.5MHz |
| Resolution | 1μHz | ||
Harmonic Distortion (Typical Value) | (CHA):Test condition : Output Power 0dBm (CHA):DC~20kHz -55dBc (CHA):20kHz~1MHz -50dBc (CHA):1MHz~10MHz -40dBc | ||
| THD | (CHA):DC~20kHz,1Vpp<0.2% | ||
| Square Wave / Pulse Wave | |||
| Frequency Range | CHA: 1μHz~5MHz CHB: 1μHz~2.5MHz | CHA: 1μHz~5MHz CHB: 1μHz~2.5MHz | CHA: 1μHz~5MHz CHB: 1μHz~2.5MHz |
| Rise / fall Time | (CHA): | ||
| Overshoot (Typical Value) | (CHA):<2% | ||
| Duty Cycle | (CHA):0.01%~99.99% | ||
| Minimum Pulse Width | (CHA):≥80ns | ||
| Triangular Wave / Ramp Wave | |||
| Frequency Range | 1μHz~400kHz | ||
| Non-linearity | 1%±2 mV (typical value :1kHz,1Vpp; symmetry:50%) | ||
| Symmetry | Symmetry | ||
| Arbitrary Wave (CHA) | |||
| Frequency range | 1μHz~ 1MHz | 1μHz~ 2MHz | 1μHz~ 2MHz |
| Internal storage (fixed) | 16 group AbsSine, AmpALT, AttALT, Gaussian Monopulse, GaussPulse, SineVer, StairUd, Trapezia, LogNormal, Sinc, ECG, EEG, exponential rise, exponential decline, Lorentz, D-Lorentz | ||
| AM Modulation(CHA) | |||
| Carrier Wave | Sine wave, Square wave , Ramp wave, Arbitrary wave | ||
| Source | Internal / external (front panel BNC) | ||
| Modulated Wave | Sine, Square wave , rising Ramp wave, falling oblique wave, noise, Arbitrary wave | ||
| Modulation Frequency | 2mHz~50kHz | ||
| Modulated Wave | 0~120% | ||
| FM Modulation(CHA) | |||
| Carrier Wave | Sine wave, Square wave , Ramp wave, Arbitrary wave | ||
| Source | Internal / external (front panel BNC) | ||
| Modulated Wave | Sine, Square wave , rising oblique wave, falling oblique wave, noise, Arbitrary wave | ||
| Modulation Frequency | 2mHz~50kHz | ||
| Frequency offset | 2.5MHz | 5MHz | 10MHz |
| PM Modulation(CHA) | |||
| Carrier Wave | Sine wave, Square wave , Ramp wave, Arbitrary wave | ||
| Source | Internal / external (front panel BNC) | ||
| Modulated Wave | Sine, Square wave , rising oblique wave, falling oblique wave, noise, Arbitrary wave | ||
| Modulation Frequency | 2mHz~50kHz | ||
| Phase offset | 0~360° | ||
| ASK/FSK/PSK Modulation(CHA) | |||
| Carrier Wave | Sine wave, Square wave , Oblique wave, Arbitrary wave | ||
| Source | Internal / external (front panel BNC) | ||
| Modulated Wave | 50% duty cycle of Square wave | ||
| Modulation Frequency | 2mHz~100kHz | ||
| PWM Modulation(CHA) | |||
| Carrier Wave | Pulse wave | ||
| Source | Internal / external (front panel BNC) | ||
| Modulated Wave | Sine, Square wave , rising oblique wave, falling oblique wave, noise, Arbitrary wave | ||
| Modulation Frequency | 2mHz~20kHz | ||
| Width Offset | 0~49.99% of Pulse width | ||
| Sweep frequency(CHA) | |||
| Carrier Wave | Sine wave, Square wave , Oblique wave | ||
| Type | Linear and logarithmic | ||
| Scan time | 1ms~500s±0.1% | ||
| Trigger Source | Manual, internal and external | ||
| Frequency meter | |||
| Input Level | Compatible with TTL | ||
| Input frequency | 100mHz~100MHz | ||
| Frequency Resolution | 6Bit / second | ||
| Coupling Mode | DC | ||
| General | |||
| Power supply | 100V~240VACrms,50Hz/60Hz | ||
| Dimentions (W×H×D) | 265mm×110mm×320mm | ||
| Weight | 4.1kg | ||
