Характеристики


Product Description

Brief Introduction

Type: Tertiary crusher
Input Size: ≤ 50mm
Processed Materials: Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone,granite,basalt,river stone,quartz.
Applications: Mechanism sand, bituminous concrete, metal mine, aggregates shaping.

Features

1. Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increases productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure makes it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-through device is better designed, which improve the utilization ratio.

Technical Parameter

\t
Model
\t
VSI7611
\t
VSI8518
\t
VSI9526
\t
VSI1140
\t

Capacity (t/h)
\t
Center and Ring feeding
\t
120-180
\t
200-260
\t
300-380
\t
450-520
\t
Center feeding
\t
60-90
\t
100-130
\t
150-190
\t
225-260
\t

Max Feed Size
\t
Soft material (mm)
\t
<35
\t
<40
\t
<45
\t
<50
\t
Hard material (mm)
\t
<30
\t
<35
\t
<40
\t
<45
\t
Rotation speed (r/min)
\t
1700-1890
\t
1520-1690
\t
1360-1510
\t
1180-1310
\t
Motor Model
\t
Y250M-4
\t
Y280M-4
\t
Y315M-4
\t
Y315L2-4
\t
Power for double motor (kW)
\t
2x55
\t
2x90
\t
2x132
\t
2x200
\t
Overall Dimension L×W×H (mm)
\t
4100×2250×2285
\t
4140×2280×2425
\t
4560×2450×2780
\t
5100×2690×3200
\t
Weight (t)
\t
7.8
\t
10.3
\t
16
\t
25.6
\t
Vibrating Sensor
\t
Inspect scope: 0.1-20mm/s adjusted continuously
\t




Lubrication hydraulic pressure station
\t
Power for double oil pump
\t
2×0.31kW
\t
Safety
\t
To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.
\t
Overall dimension L×W×H (mm)
\t

820×520×1270
\t
Power for oil box heater
\t
2 KW

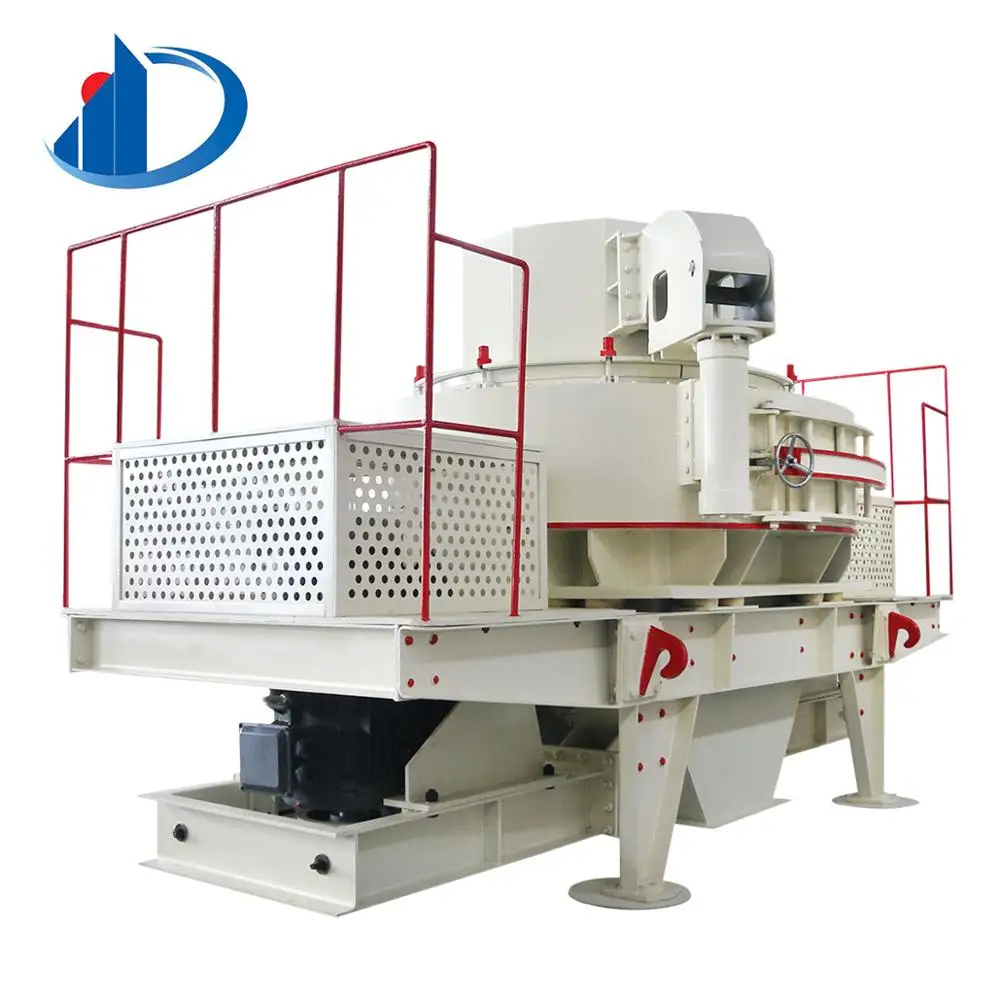

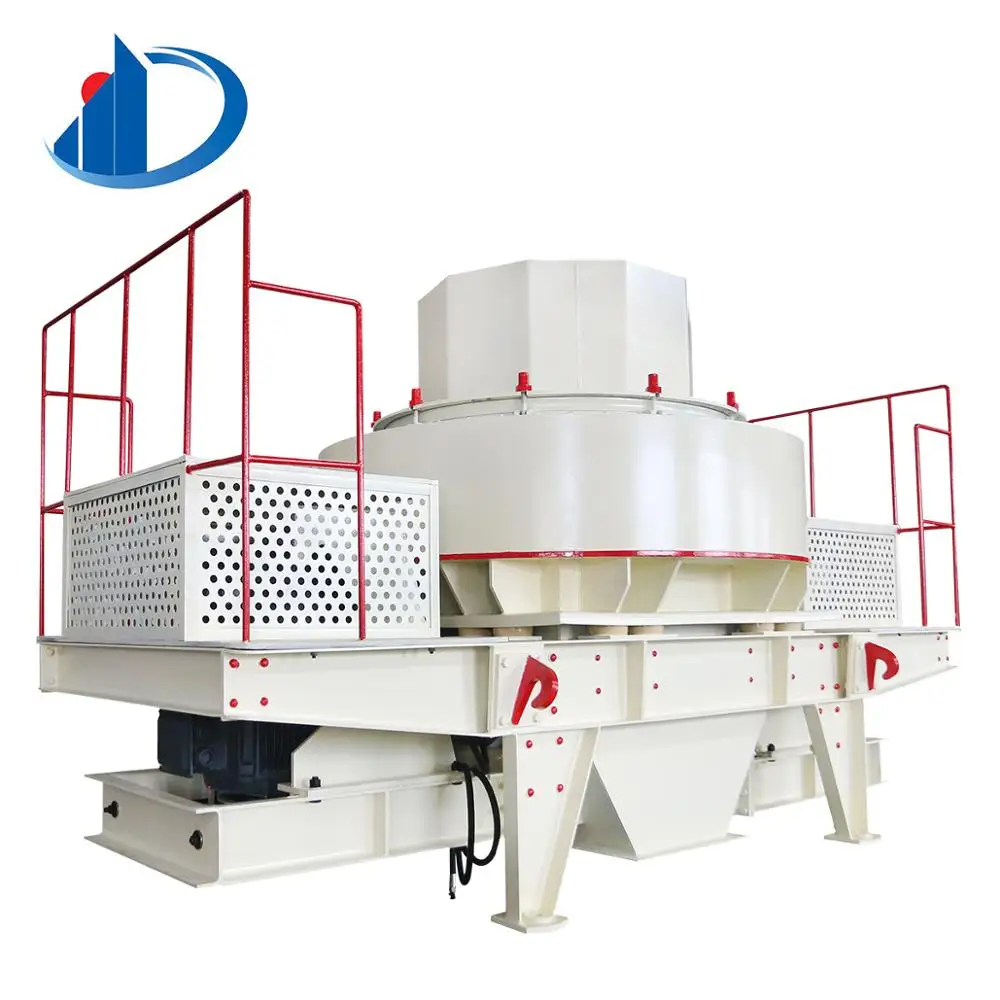

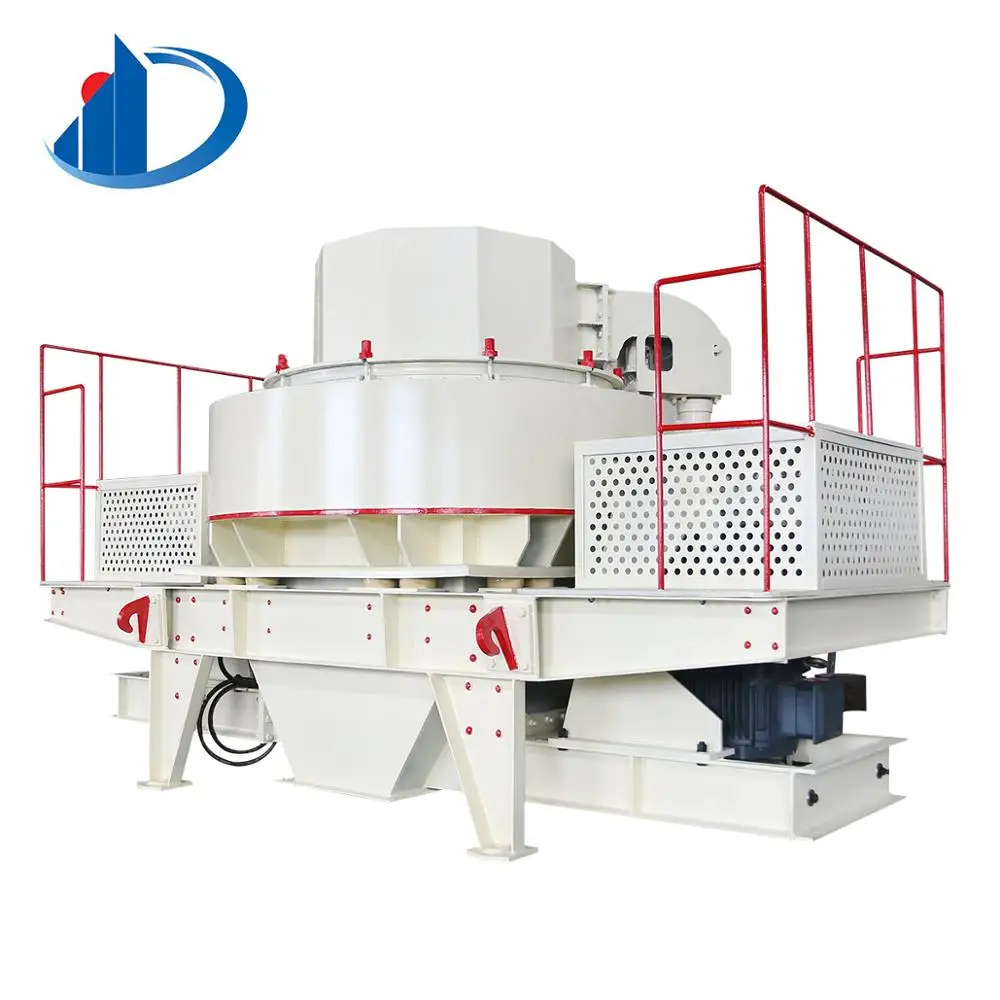

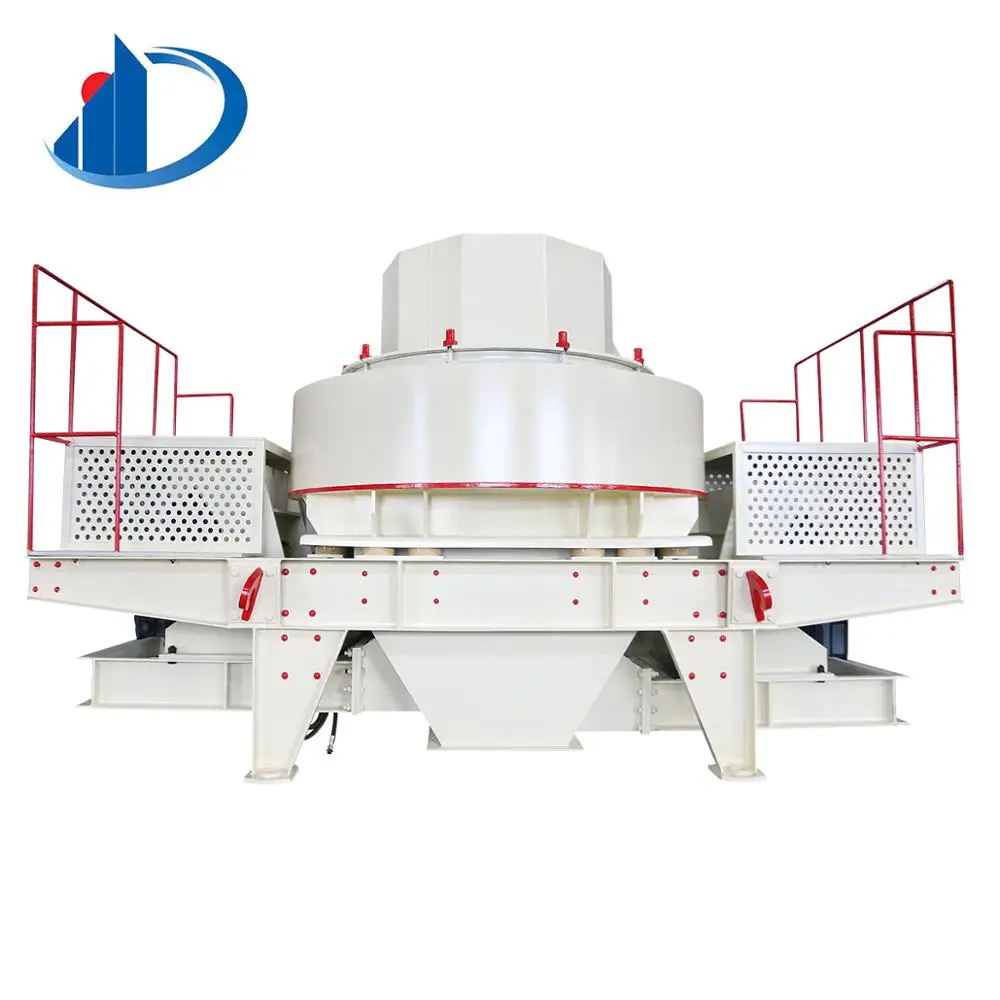

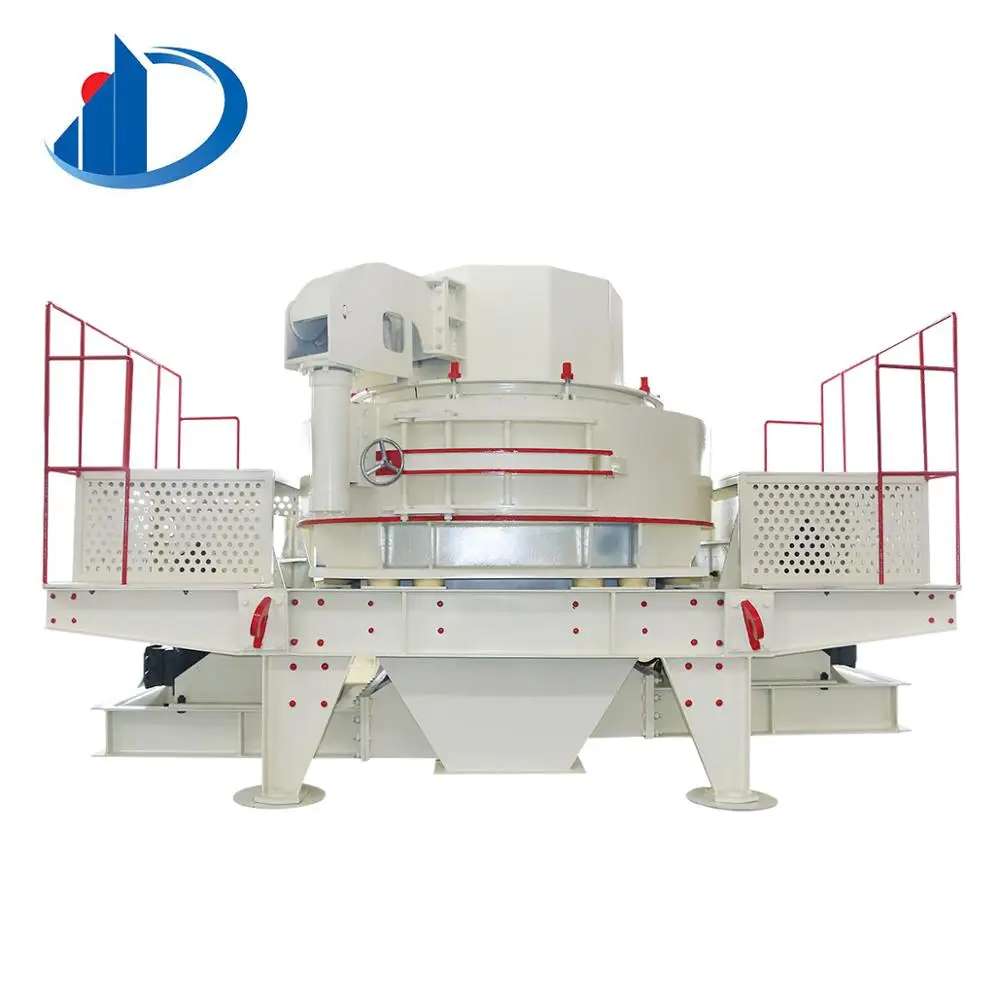

Detailed Images

Working Principle

1. Center Feeding:
1)Raw material falls down into feed hopper,

2)Then enters impeller through central entrance hole. It is accelerated in highly speed impeller,

3)Then is thrown out at speed of 60-75m/s.

4)When hitting impact plate, it is crushed.

5)Final products come downwards though outlet.
2. Ring Feeding:
1)Raw material falls down into feed hopper,

2)Then through ring, it is divided into two parts by material-dividing plate.

3)One enters into impeller through the center of material-dividing plate.

4)The other falls down from outside of material-dividing plate.

5)Material, which is thrown out by impeller at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.

Success Cases
Packing & Shipping

1)All the wear out spare parts are packed by plastic films and wooden boxes.
2)Wire cables are used for fastening the machines.
3)FCL: Shipping by standard exporting container.
4)LCL: Poly wood case.
