Product Description

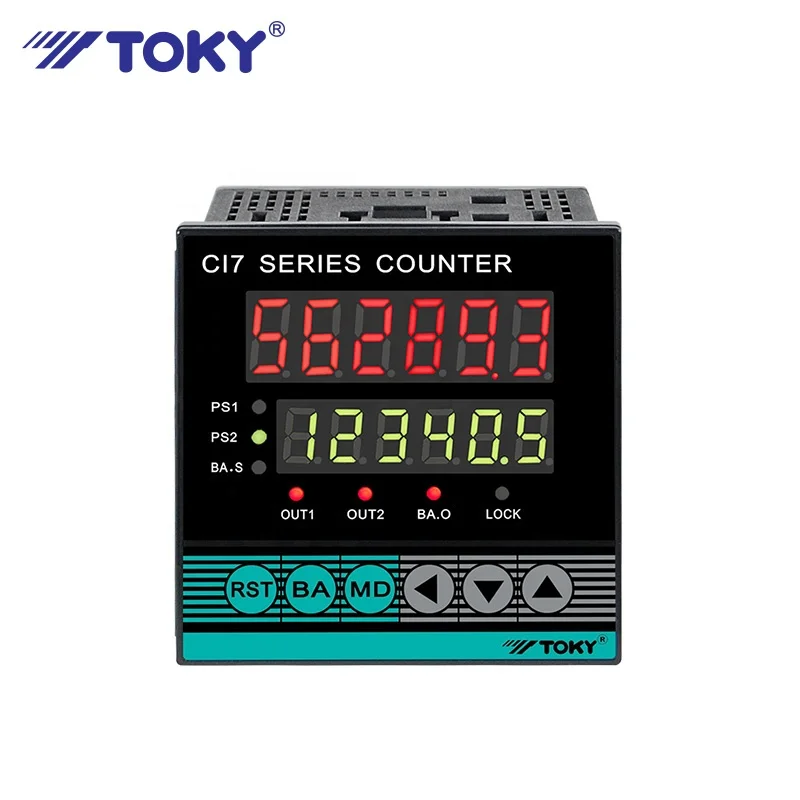

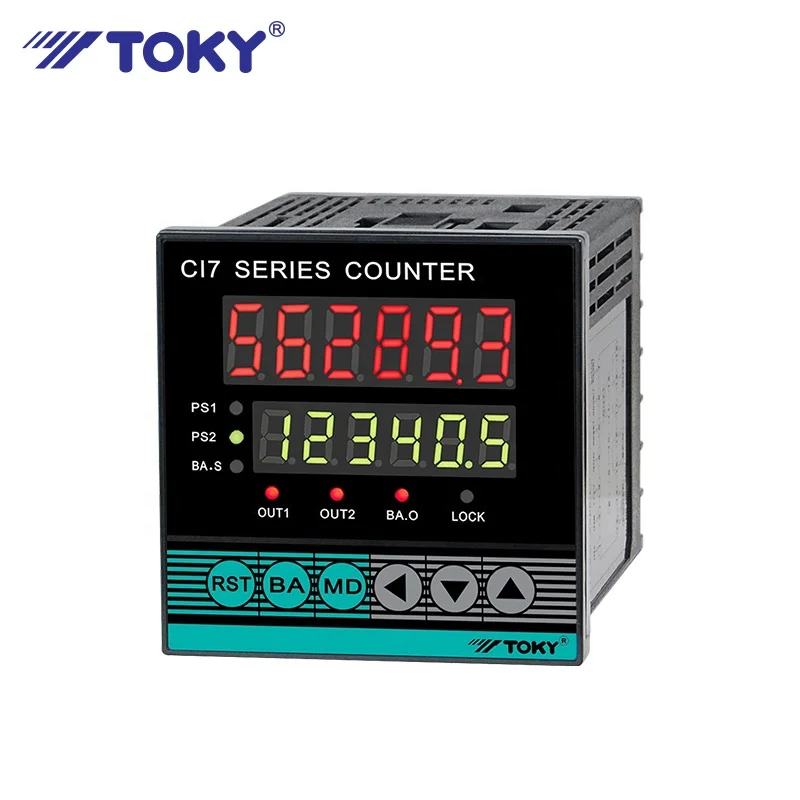

display intelligent high speed 6 digit digital counter meter
6 digit digital counter meter


Features:

\t
1
\t
Multi-function: counting/length counting/batch counting
\t
2
\t
High speed counting,up to 10Kcps
\t
3
\t
One batch counting/two groups counting outputs.
\t
4
\t
Voltage input(PNP)and non-voltage input(NPN) to switch by software.
\t
5
\t
Adjustable pulse width of control signal
\t
6
\t
Key Lock Function
\t
7
\t
RS485 communication function selectable
\t
8
\t
High anti-interference capability

Ordering Information:

\t
Model
\t
Panel Size(mm)
\t
Output Mode
\t
Display
\t
Output
\t
Batch
\t
Communicaiton
\t
CI80-RC60
\t
80H×160W
\t






Relay Output
\t






6 digits
\t






2
\t




1 loop relay
\t
NO
\t
CI80-RC68
\t
80H×160W
\t
RS485
\t
CI8-RC60
\t
48H×96W
\t
NO
\t
CI8-RC68
\t
48H×96W
\t
RS485
\t
CI7-RC60
\t
72H×72W
\t
NO
\t
CI7-RC68
\t
72H×72W
\t
RS485
\t
CI4-RC60
\t
48H×48W
\t
No
\t
NO
\t
CI4-RC68
\t
48H×48W
\t
RS485
Specifications:
\t


Display
\t
Display Digits
\t
Dual-line,6 digits,high light LED
\t




Communicat-ion
\t
Communication
Protocol
\t
ModBUS RTU
\t
Display Range
\t
-19999~999999
\t
Baud Rate
\t
4.8KBPS 9.6KBPS
\t








Input

Signal
\t
Signal Type
\t
Square wave, sine wave, passive contact
\t
Address Range
\t
0-247
\t


Input
Impedance
\t
Voltage input impedance is 5.4KΩ,
Non-voltage input: short circuit
impedance is max.1KΩ
\t


Communication Delay
\t


NO.
\t
Signal Level
\t
High Level:5-30VDC Low Level:0-2VDC
\t


Function
\t
Power-Fail Memory
\t
YES/NO
\t
Max Frequency
\t
1Hz,30Hz,1KHz,5KHz,10KHz selectable
\t
Reset Pause Lock
\t

Optional
\t
Edge Trigger
\t
NPN falling edge,PNP rising edge
\t
Power & Consumpti-on
\t
\t
Below 100~240V AC/DC 5W
\t
Counting
Accuracy
\t
±1pulse(more or less)
\t


IP Grade
\t
Panel
\t
IP 54
\t
Ratio
Coefficient
\t
0.00001~9.99999
\t
Body
\t
-
\t








Relay

 Input
\t

Load Capacity
\t
Over 100,000 times (NO:250VAC 3A resistive load NC:250VAC 2Aresistive load)
\t


Mechanical
Requirement
\t


Screw Torque

\t

0.74n.m~0.9n.m
\t
NO/NC guide
\t
Refer to the connections
\t
Installation Dimension
\t
Refer to the Dimensions
\t
Mechanical Life
\t
Over 10,000,000 times
\t
Installation Mode
\t
Panel Installation
\t


Add-Subtract Counting
\t

(U)Add Counting/(D)Subtract Counting
\t

Transportat-ion
Requirement
\t


Vibration,
Stacking
\t
Amplitude:0.75mm Frequency:10~55Hz 1h for each X,Y,Z directions
\t
Control Add-Subtract
Counting
\t

UD-A add-subtract-A, UD-B add-subtract-B
\t


Min Pulse
Width
\t

Reset
\t

1,20ms
optional
\t
Phase Difference Counting
\t

Rotary Encoder Input
\t

Pause
\t

1,20ms optional
\t


Output
\t


Output Mode
\t

12 kinds including F,N,C,R
\t


Output
\t
Passive Contactor
Output
\t
NPN open collector
output(to be ordered)
\t
Delaying Time
\t
10,50,100,200,500,1000,2000,5000 ms
\t
Withstand
Voltage
\t
Dielectric Strength
\t
2000V AC 50/60Hz 1min
\t

Auxiliary
power supply
\t
Supply Voltage
\t
12VDC±10%
\t
Insulation
\t
Insulation Resistance
\t
Min.100MΩ (at500VDC)
\t
Capacity
\t
100mA Below
\t


EMC
Antiinterfere-nce
Capability
\t
Static
\t
3 grade
\t



Temper-ature
\t
Woking Temperature
\t
-10℃~50℃ (Unfrozen Status)
\t
Group of Pulses
\t
4 grade each mode±4000VP-P
\t
Storage Temperature
\t
-25℃~65℃ (unfrozen Status)
\t
lightning surge
\t
3 grade wire to wire±2000V
\t
Environment Humidity
\t
35-85%RH
\t
Frequency Drop
\t
3 grade
