Фабричная продукция 2021 лидер продаж домашний Солнечный водонагреватель из нержавеющей

Описание и отзывы

Трекер стоимости

Характеристики



2018 calentador solar de agua de acero inoxidable

1, cheap and reliable hot water solution

2, direct heating

3, 2% spare parts

4,CE, SOLAR KEYMARK EN12976

5,Factory price

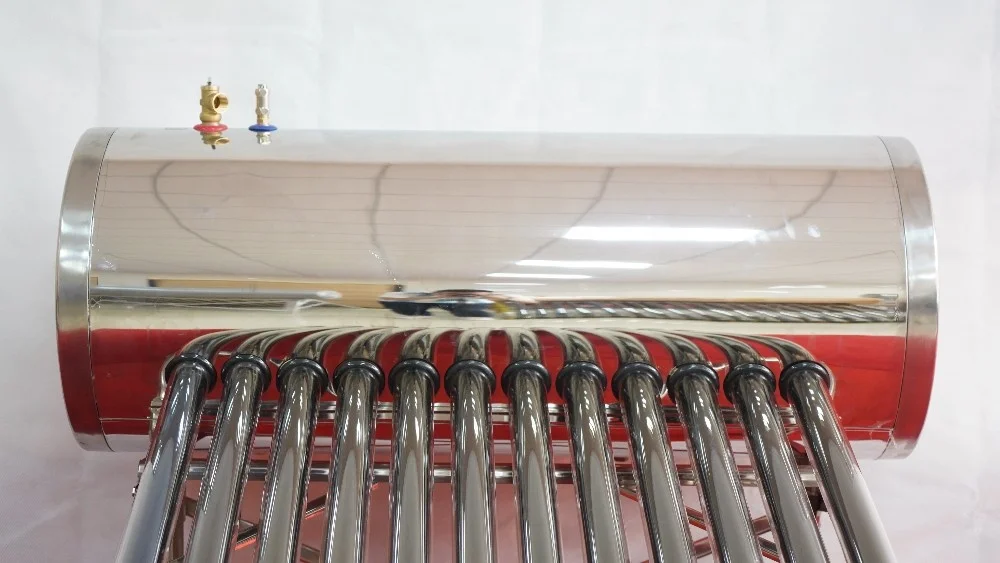

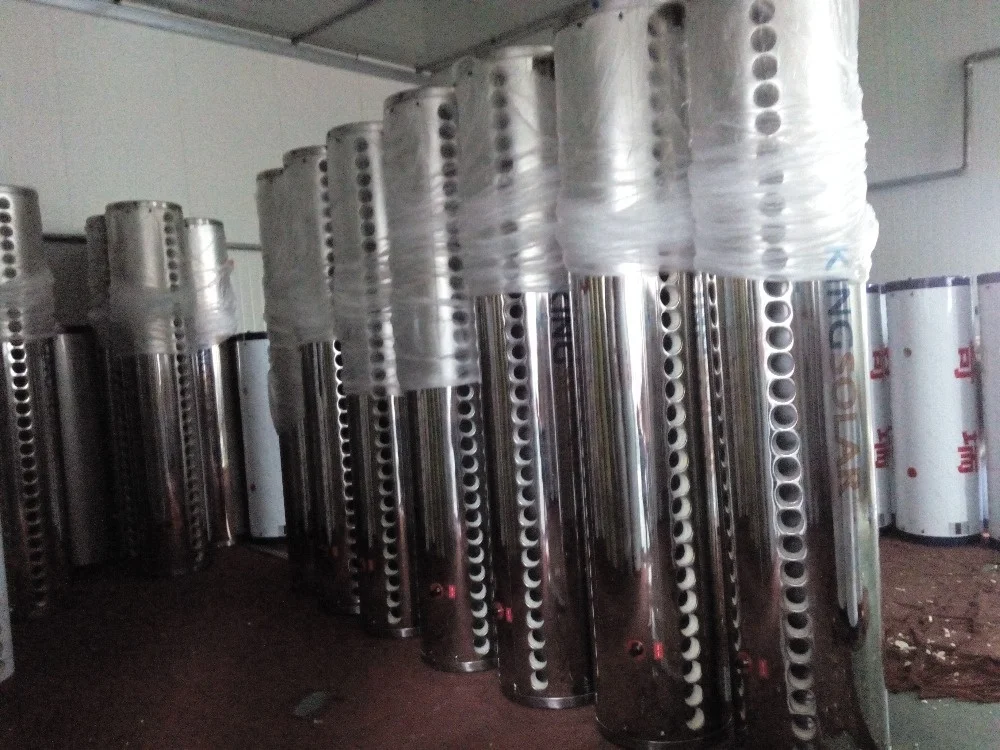

 inner tank

outer tank:

Bracket:

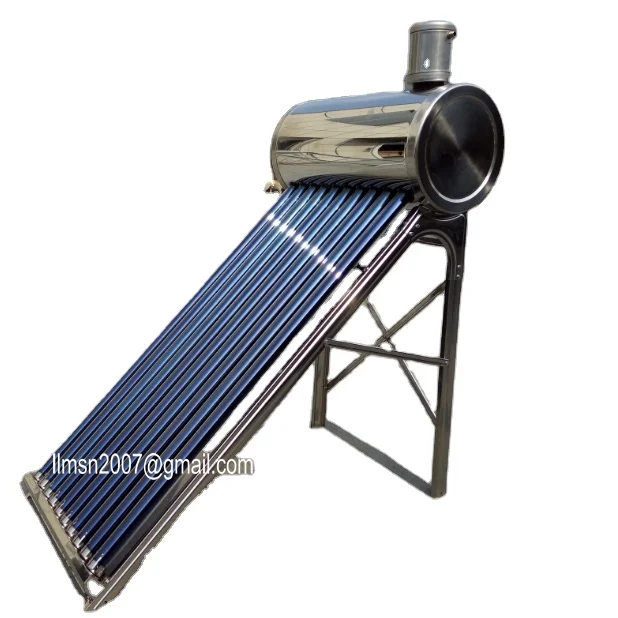

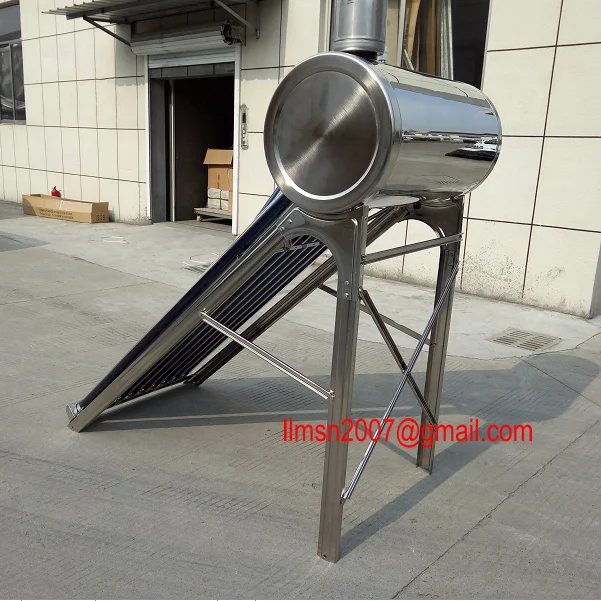

stainless steel solar water heater Features

1. Can he operated completely automatic if connect with intelligent controller.
2. Simple structure, easy plug-in installation, can be installed both on flat and inclined roof.
3. Can be used with an auxiliary electric booster as to provide hot water without sunshine.
4. Superior heat preservation ensured by one-off molding polyurethane foam with thickness 55mm.
5. Suitable for camping area, holiday residences.
6. Stable and reliable performance, well wind resistance.
7. Meet the mankind healthy bath standard: The material of inner tank is SUS304-2B stainless steel plate.
8. The silicon ring sealing has a long life against the erosion and it not harmful to health.

9, Cheap and reliable hot water solution, widely used in China, India, Mexico, South Africa market.

10, Eco-friendly and energy saving product.













Technical parameter of  stainless steel solar water heater
Description	compact  Solar  Water  Heater
Material  of  out  tank	0.4mm galvanized  steel/0.4mm  SUS304 stainless  steel /0.4mm SUS304-BA(Bright)
Material  of  inner  tank	0.4mm/0.5mm/0.6mm SUS304-2B stainless  steel or SUS316 stainless steeel
Tank  insulating  layer	50-60mm  high-density  polyurethane  foamed
Diameter  outer/inner tank	420/310mm   460/360mm  470/360mm   480/360mm
Electrical  Heater	1500W/2500W/3000W;   220V/110V
Inlet  and  outlet  hole	Male 1/2",   3/4"
Max  pressure	0.05  Mpa
Solar  collector  tube	3.3  Borosilicate  glass  with AL/AL-ALN/ALN(single target) or  CU/SS-ALN/ALN(three target)
Thickness  of  glass  tube	1.6mm
Vacuum  tube  tightness	P≤ 0.005  Pa
Absorption	as=0.93-0.96(AM1.5)
Emission  ratio	ε h=0.04-0.06(80C± 5C)
Idle  sunning  property  parameters	Y=220~260m². C/KW
Average  heat  loss  coefficient	ULT=0.6~0.7W/(m2. C)

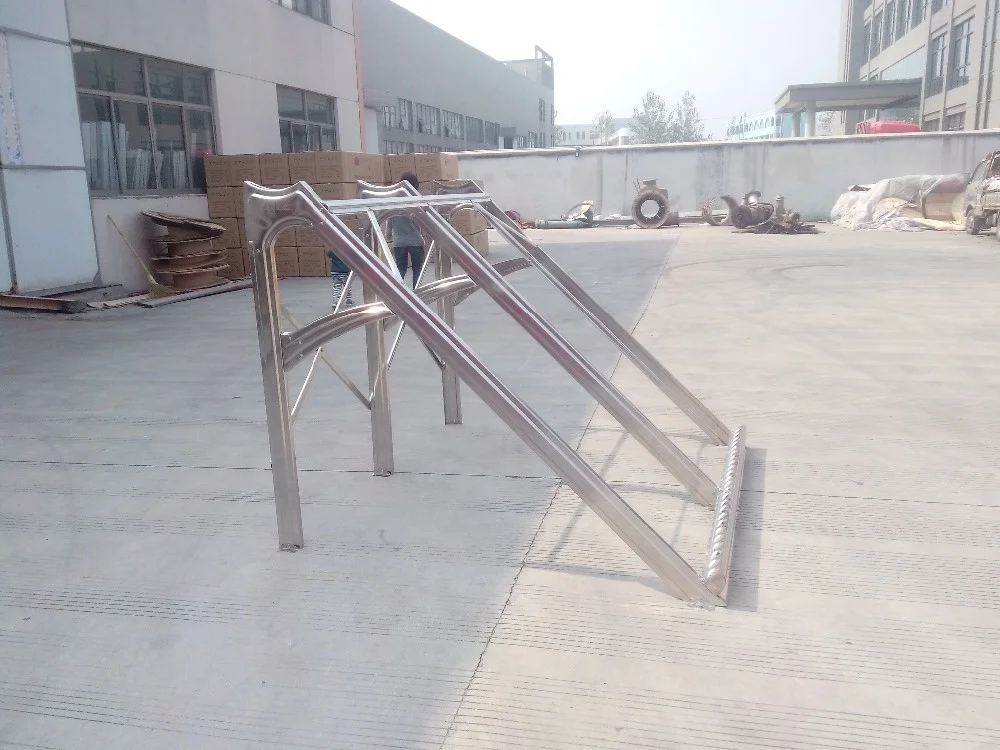

Bracket:	stainless steel/aluminum alloy/galvanized  steel
Structure  of  tank:	Usually   holes  for  air  vent, overflow, water  inlet  and  outlet, electric  heater; custom-built will be warmly welcomed.
welding:	automatic argon  arc  welding
fastening  pieces:	stainless  steel  screw
Seal material	stabilized high temperature silicon
Option-1(without electrical heater):	Assitant Tank 3L, 5L, 8L,12L,30L,50L as a automatic watering part.
Option-2(with electrical heater):	electrical heater as extra built-in heating part, controller control the system watering and heating automatically



 COMPACT SOLAR WATER HEATER Package: poly bag wrapped, Styrofoam underlay, export carton packed.



Model	Tube   Specification	Capacity	Loading quantity
			20'GP	40'GP	40'HQ
		(Liter)	(Sets)	(Sets)	(Sets)
CNP-58-10	Φ58mm*1800mm	100	69	143	168
CNP-58-12	Φ58mm*1800mm	120	60	124	145
CNP-58-15	Φ58mm*1800mm	150	45	93	110
CNP-58-18	Φ58mm*1800mm	180	43	89	104
CNP-58-20	Φ58mm*1800mm	200	39	81	96
CNP-58-30	Φ58mm*1800mm	300	27	57	67
CNP-58-32	Φ58mm*1800mm	320	26	54	63
CNP-58-36	Φ58mm*1800mm	360	23	48	56













 MEXICO CITY EXHIBITION
