Полный комплект 14MP промышленный микроскоп камера HDMI-совместимые USB выходы с 180X объективом C-mount

Features:

Model: Camera with HDMI-Compatible USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

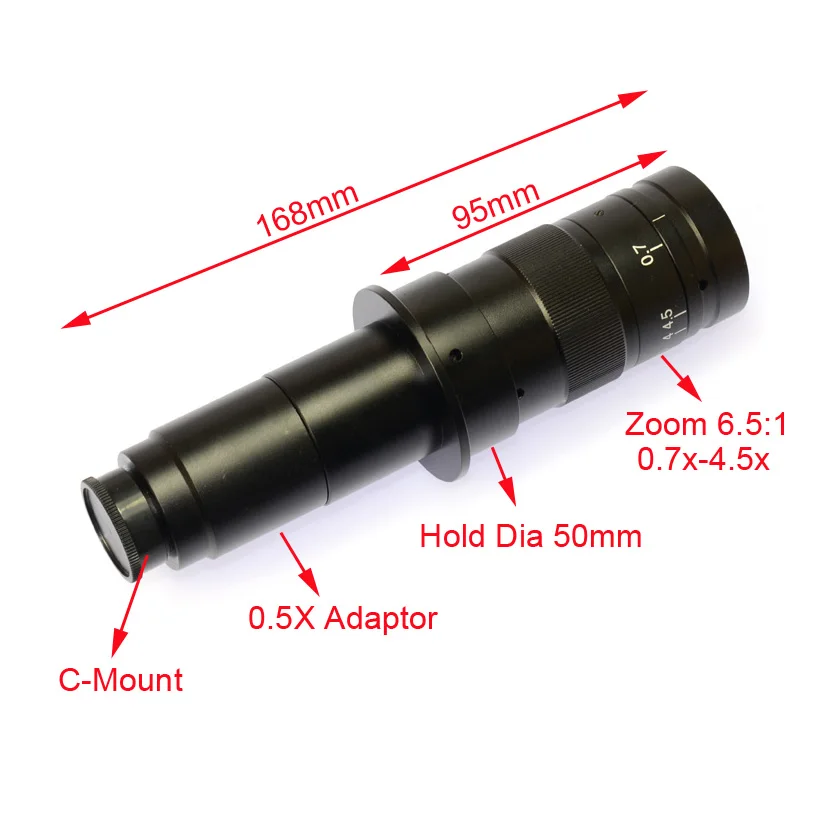

C-MOUNT Lens:

Zoom c-mount Lens
Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)
Work distance:100mm-150mm
Visual field :2.3mm-22mm
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

 60 LED Light:


Light source: 60pcs LED
Input Voltage: AC90-240V
Output Voltage: DC12V
Output frequency: 4.5W
Working Distance: 40-160mm
Illumination: 30000LUX-35000LUX
color temperature: 6500K-7000K
brightness range control: 0% - 100%
light Color: cool white
Product Light:  >30000HRS
Valid optical length: 75mm
Valid optical path: 30mm
Power box size: 110 x 60 x 30mm
Material of power box: Plastic
Color: Black
Inside dia. Of Ring Light: 61.5mm
Outside dia. Of Ring Light: 94mm
Inside dia. Of ring holder: 26mm
Outside dia. Of ring holder: 45mm

8 Inch Monitor:

Panel Size: 8 inches
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Display Color: 16.7M
Point Distance (mm): 0.264
Brightness (nits): 250cd / M*M
Contrast Ratio: 300: 1
View (Up / Down / Left / Right): 160 ° / 160 °
Response Time: 6ms
Power Supply DC: 12V 1A
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AVC × 1, BNC × 1, VGA × 1, HDMI-Compatible × 1
Color Format: PAL / NTSC / SECAM
Menu Operation OSD: keypad / remote control
Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spainish, German, Italian
Installation: Base Support / Wall

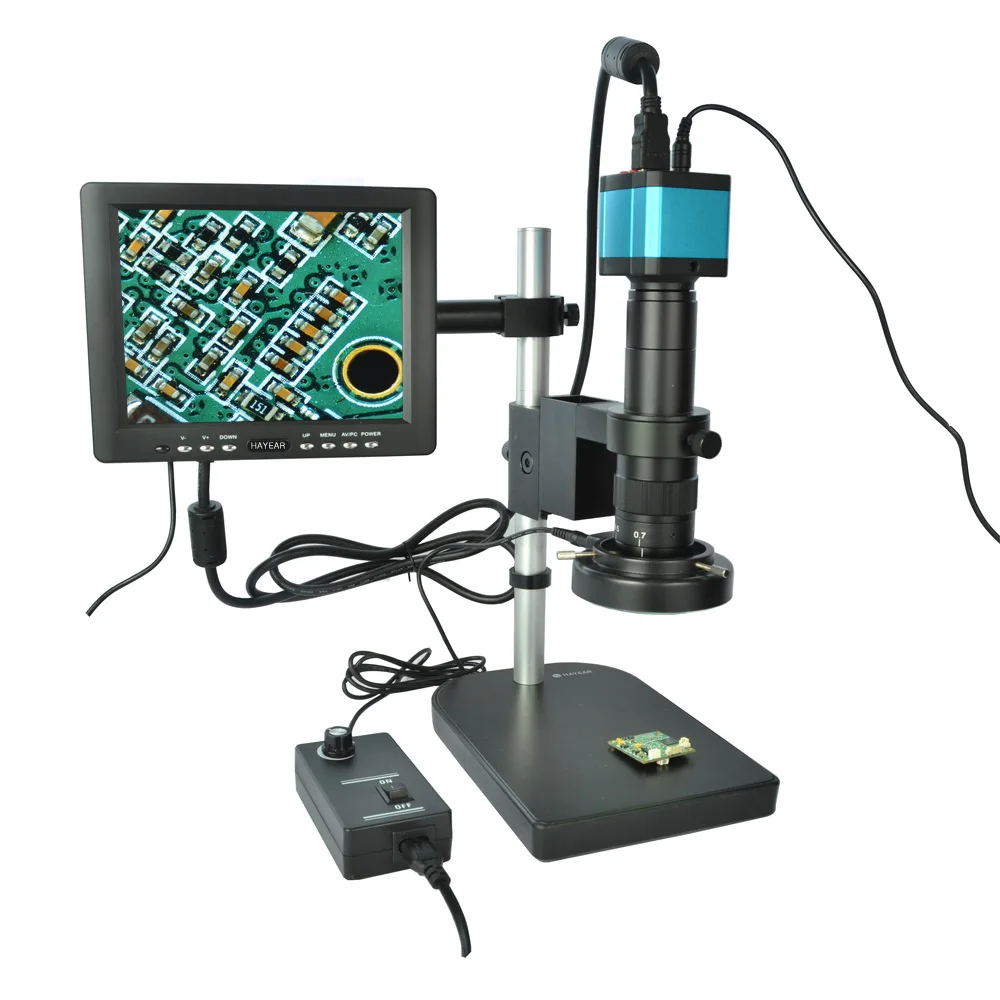

Packaging:

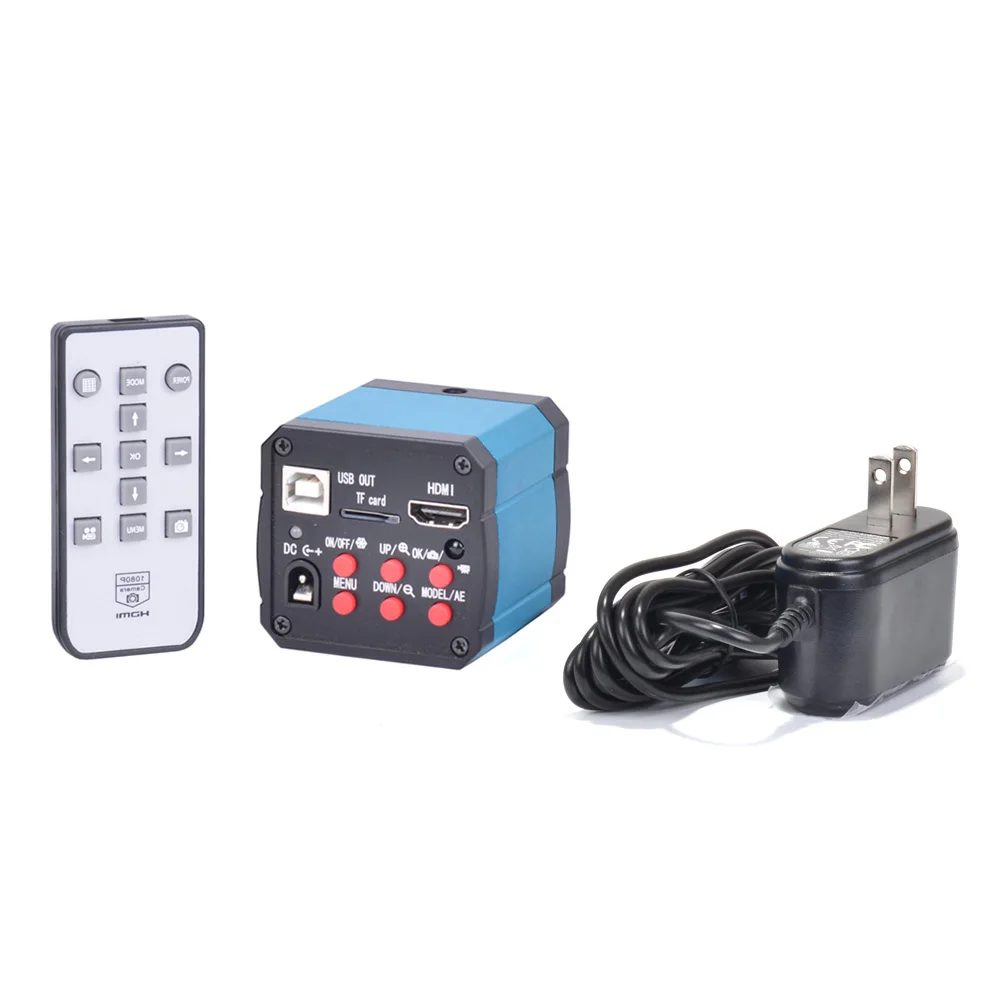

1 x Microscope Camera
1 x 12V/1A Power supply
1 x USB line
1 x Software DISC

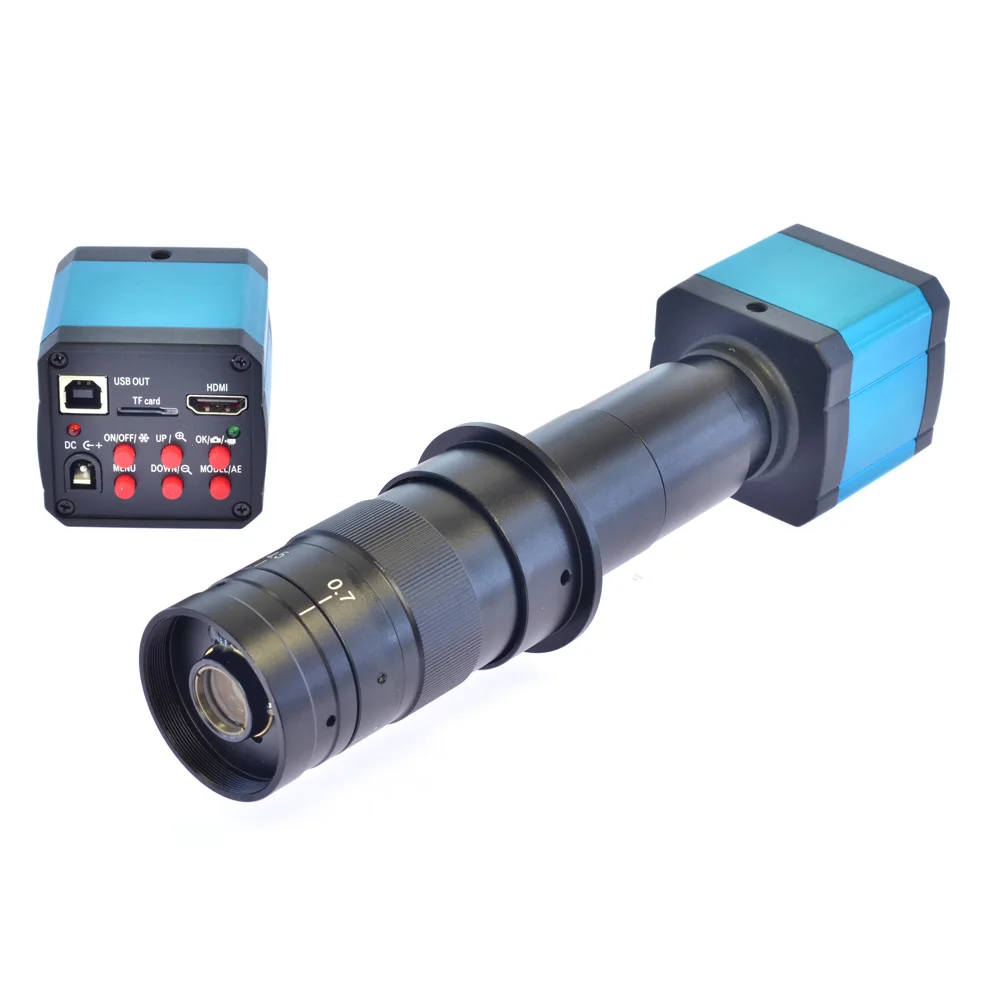

1 x 180X Zoom C-mount Lens
1 x Camera Stand
1 x 60-LED Ring Light with Power Adapter
1 x 8 inch Monitor

1. Why choose HAYEAR?

Yes, we are a professional factory of microscope, we provide batch product fittings custom color, such as the handwheel, base decorative plate.We support the function to reduce or increase at the same time, the concrete can ask us, we will give you professional answer.
