Плата драйвера ЖК-дисплея плата lvds умная контроллера
- Категория: Multilayer PCB >>>
- Поставщик: Clientop,Technology,Co.,Ltd.,(Shenzhen)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 190.97 $* | 200.63 $* |
| Aug-17-2025 | 189.68 $* | 198.49 $* |
| Jul-17-2025 | 158.37 $* | 166.79 $* |
| Jun-17-2025 | 186.44 $* | 195.84 $* |
| May-17-2025 | 162.24 $* | 170.50 $* |
| Apr-17-2025 | 182.95 $* | 191.29 $* |
| Mar-17-2025 | 181.97 $* | 190.37 $* |
| Feb-17-2025 | 179.9 $* | 188.13 $* |
| Jan-17-2025 | 178.58 $* | 187.4 $* |
Характеристики
Product Description

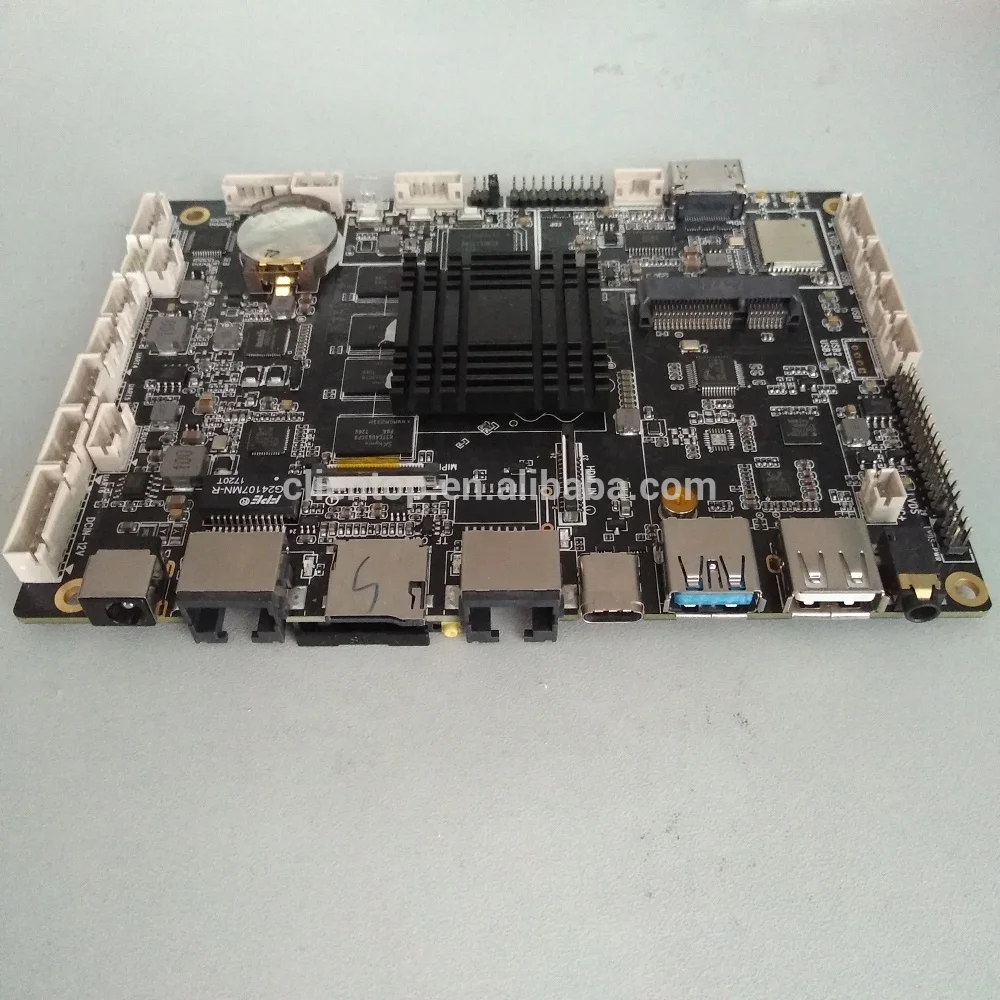

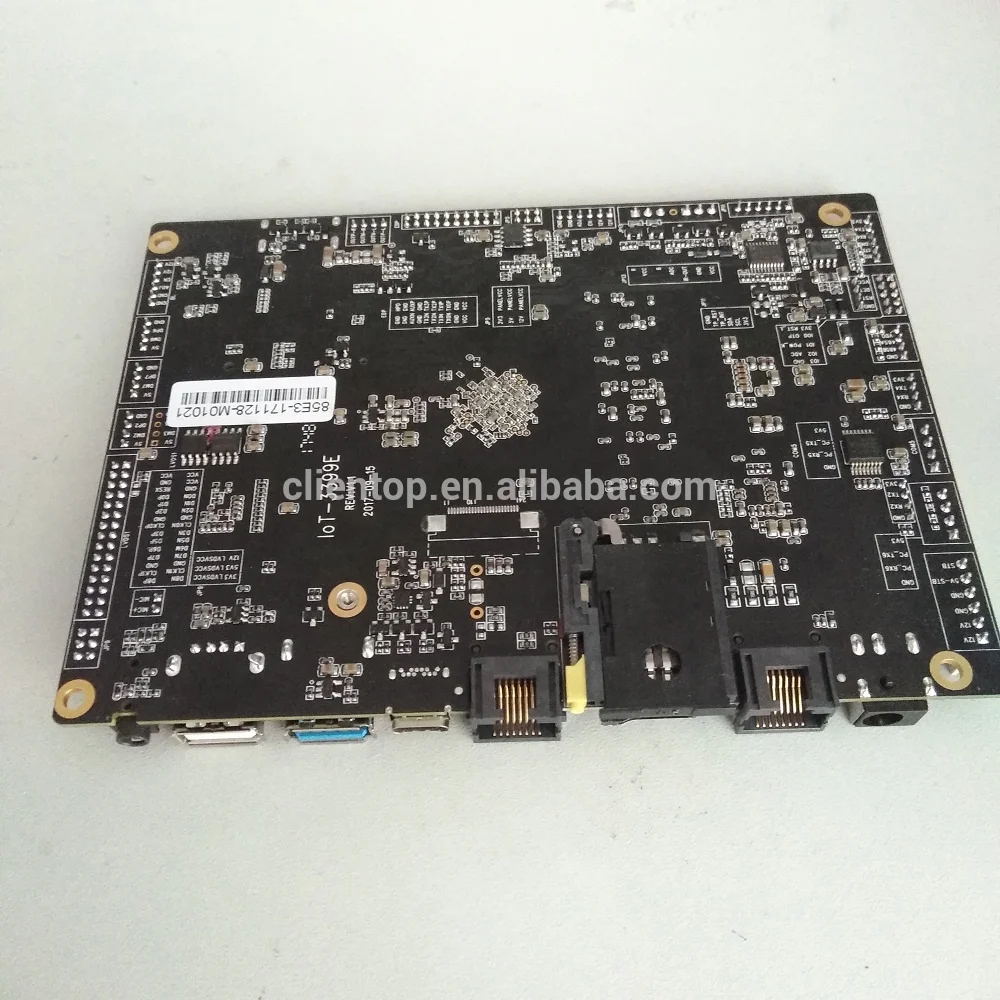

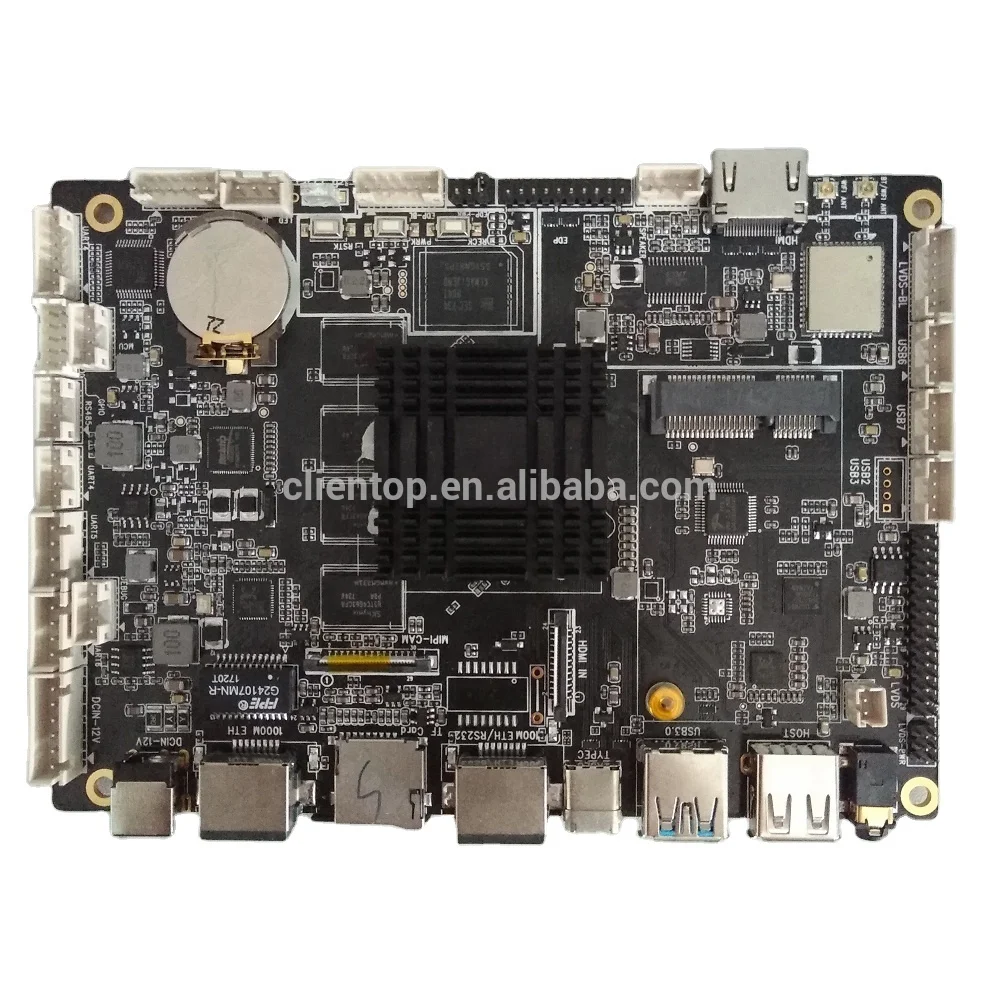

The IoT-3399E is Android board adopts RK3399 (dual cor*tex-a72 core + 4 cortex-a53 small core) with a 64-bit super CPU, which is equipped with Android7.1 system, with a frequency of up to 2GHz. Adopt the mali-t860mp4 GPU to support the hard decoding of 4K and h.265. Video output and input, the performance is stronger, the speed is faster, the interface is richer, which is your best choice in human-computer interaction, intelligent terminal, industrial control project.
Features as below :
1. RK3399 powerful CPU with Android 7.1 OS ， faster speed ， more powerful function
2. Supports 5G and 2.4GWIFI,independent dual antenna
3. LAN port design，support 1000M
4. Built in PCI-E 3G/4G module interface. Supports HUA*WEI,Z*ET,Ronchin ,etc, branded PCI-E 3G/4G module, support net browsing and calling.
4. Built in PCI-E 3G/4G module interface. Supports HUA*WEI,Z*ET,Ronchin ,etc, branded PCI-E 3G/4G module, support net browsing and calling.

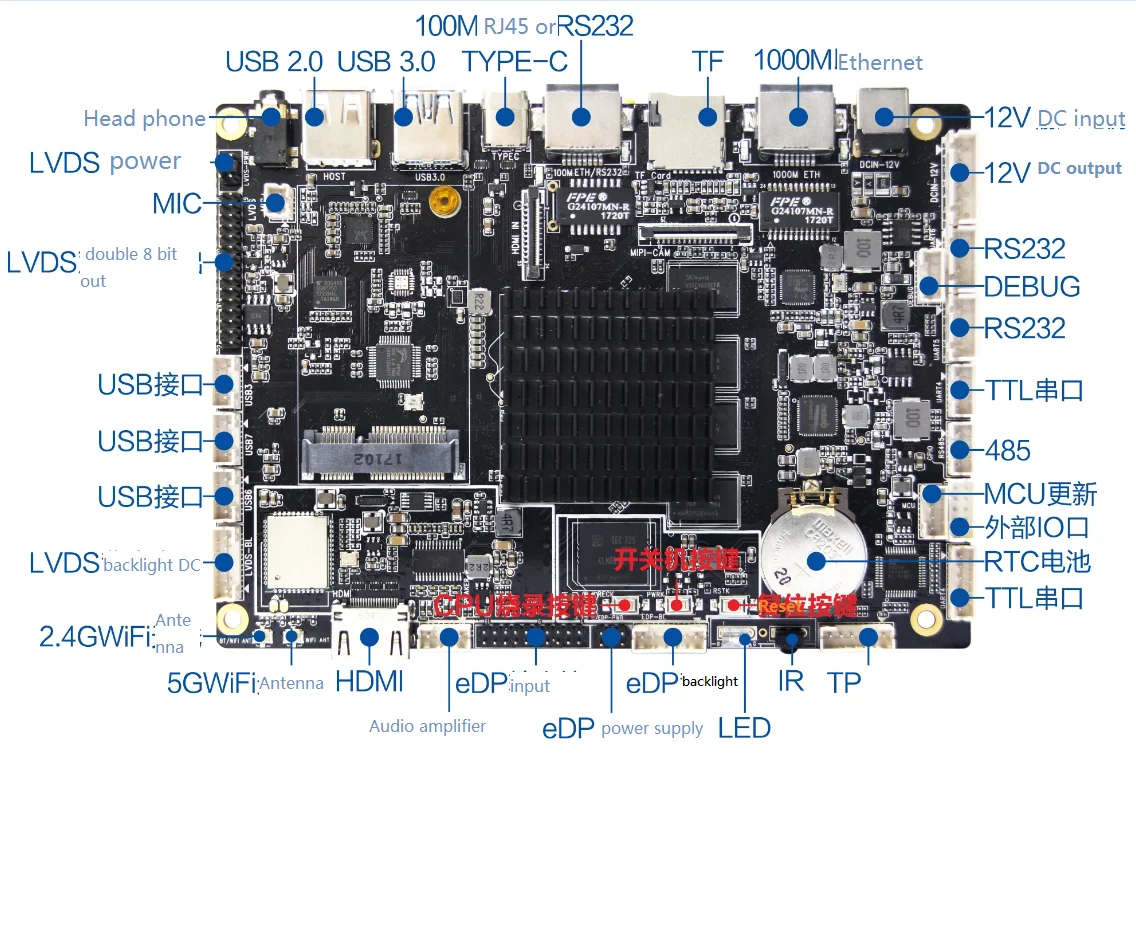

5. Rich expanding interfaces.8*USB interface (1*USB3.0 OTG，1*USB3.0 Host +1*USB2.0+5*HUB),1*485 interface ， 4*extensible serial port （ 1*TTL ， 3*RS232 ） ,GPIO and ADC interface ， can meet the requirements of a variety of peripherals on the market.
6. High definition.Support max. 3840*2160 4k decoding,support LVDS/eDP/HD*MI OUT/HD*MI IN interfaces LCD display panels,cut screens.Support dual panel ASYNC display.
7. Support Android customized OS，Providing system API code,perfectly support customer’s APP developing.
8. Support IR,optics, Capacitive , resistive,touch film,etc. Mainstream touch panels,support HID setting of drive free touch panels. No need adjusting
Specifications
CPU | rk3399 ,2.0Ghz,quad core | ||||||
GPU | Quad core A R M maliT860MP4 High performance GPU | ||||||
Ram | 2G in default, extensible | ||||||
Memory | 16G in default, extensible | ||||||
Output | LVDS,EDP, HDM*,Audio,etc. | ||||||
Input | USB, HDM*,TF card ,etc. | ||||||
Applications
Full functions for all kinds of displays
the performance of this board is stronger, the speed is faster, the interface is richer, which is your best choice in human-computer interaction, intelligent terminal, industrial control project.
Packing & Delivery
Packing
Standard export package: Bubble bag+hard paper carton
Delivery
3 days after the payment.The transport mode base on customer's requirment
Related Products
Android board R301 support 4G
Android board V88 support driving 2panels
Our Company
Certificate
FAQ
1 . About the quality
All of our products are 100%testing before shipping . So you can be assured the quality of our products .
2. About the payment
Sample order :A Trade assurance order B Paypal C Union Western
Large order: HSBC bank (Company account)
If you choose A,Then we will send the link of your order for your payment .
If you choose B or C ,Please send your shipping information (Name, address,postal code,telephone number) to me , Then I will send the PI for your payment (PI include our Paypal or Union Western account).
3. About warranty and Return
We offer one year warranty for most of our products and professional technical support .
Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
-- 1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
-- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
