Сбалансированный литий-ионный bms 24 в 7 с 40 А для общего порта solor
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,E-Fire,Technology,Development,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.7 $* | 0.9 $* |
| Aug-18-2025 | 0.65 $* | 0.13 $* |
| Jul-18-2025 | 0.51 $* | 0.96 $* |
| Jun-18-2025 | 0.44 $* | 0.81 $* |
| May-18-2025 | 0.19 $* | 0.38 $* |
| Apr-18-2025 | 0.82 $* | 0.4 $* |
| Mar-18-2025 | 0.53 $* | 0.15 $* |
| Feb-18-2025 | 0.25 $* | 0.87 $* |
| Jan-18-2025 | 0.24 $* | 0.65 $* |
Характеристики
Product Description

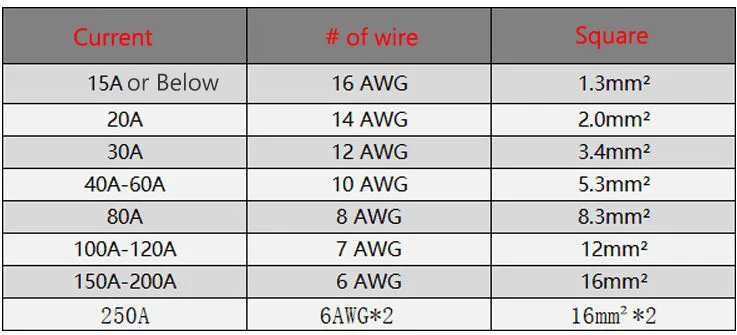

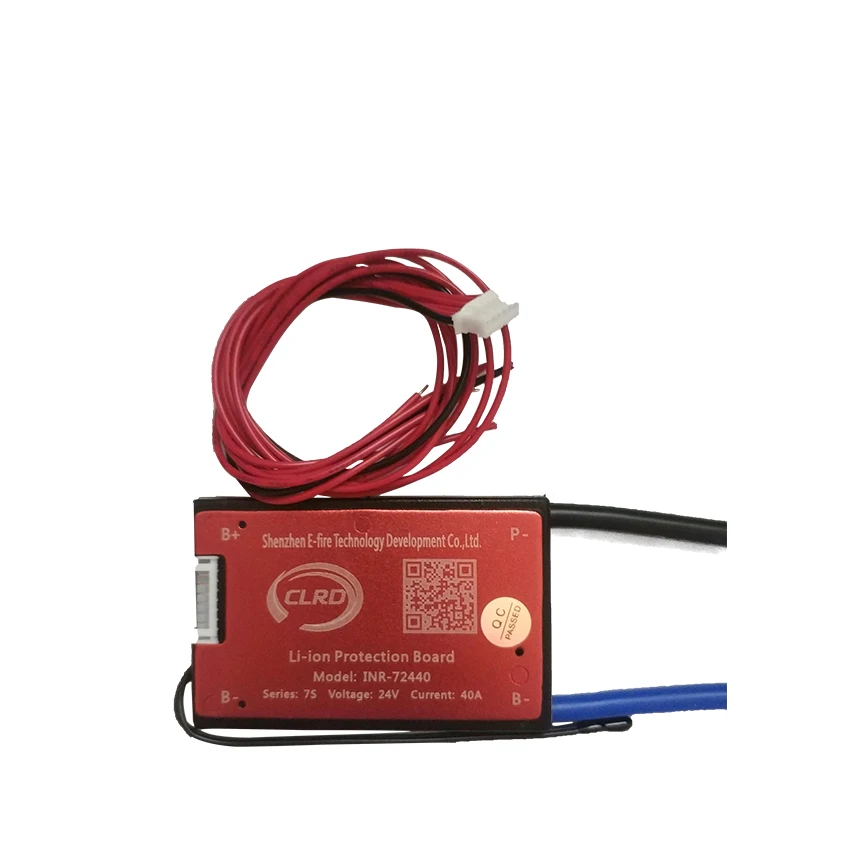

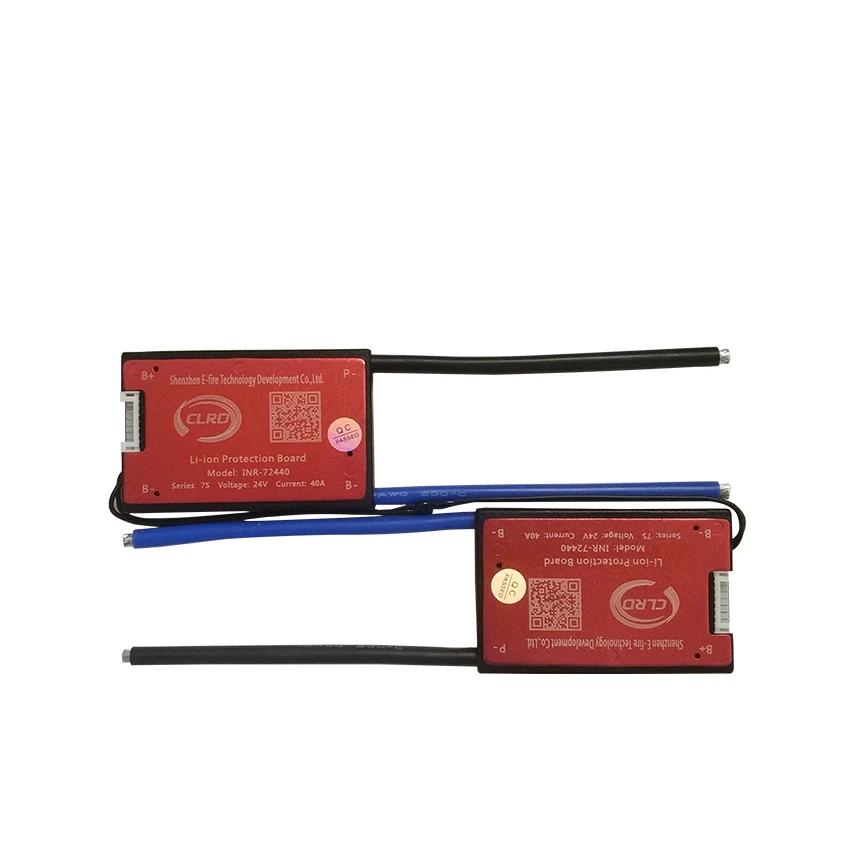

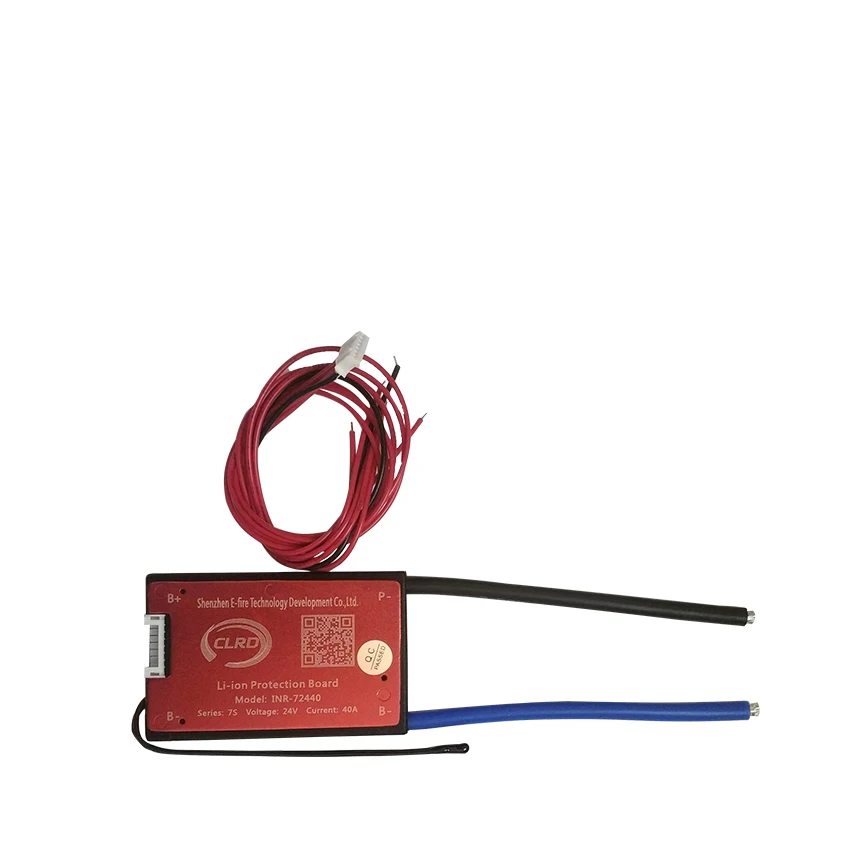

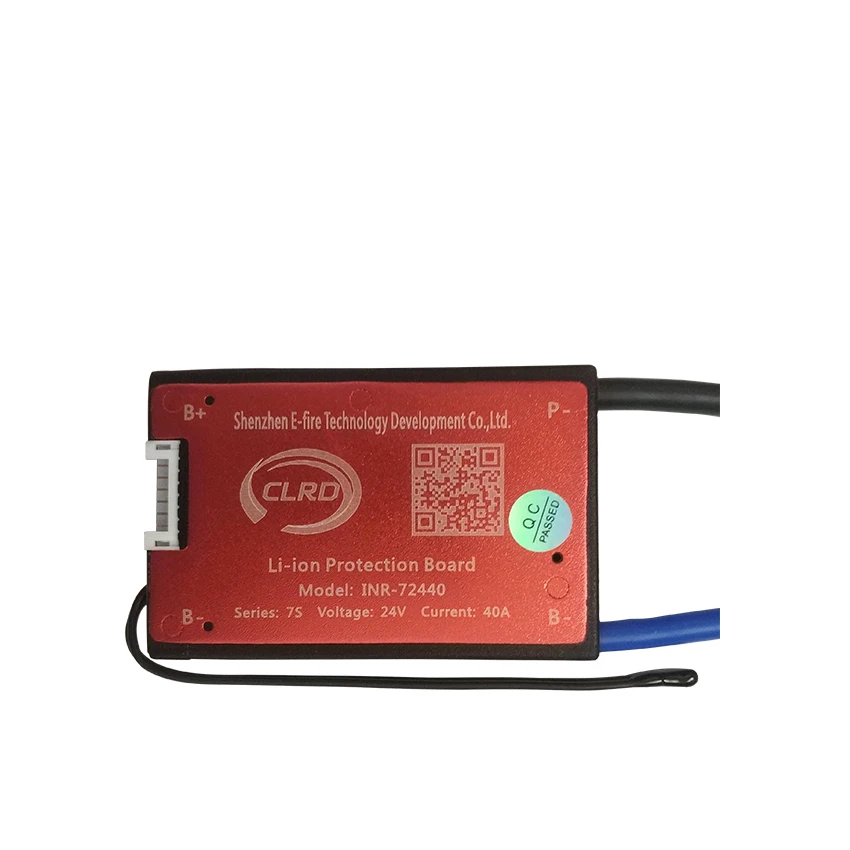

Balanced 24V 7S 40A li ion bms for solor light common port
1.7S 24V 40A bms is used for 7 series 24V battery pack
2.We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
3.The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection,
temperature protection etc.
4.According to the customer request we can develop PCM in different sizes and structures.
5.BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.
Advantage
1.Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
2.Strong load ability, constant discharge current 40A , use high voltage resistance, low inner
resistance power Mosfet. The heat sink will greatly help cooling.
3.IC itself has power balancing function. The circuit is simple and reliable.
4.Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and
short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the
battery.Temperature protection during
charging and discharging.
5.Extreme low power consumption. The consumption of the whole device is less than 50uA.
6.PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating
2.We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.
3.The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection,
temperature protection etc.
4.According to the customer request we can develop PCM in different sizes and structures.
5.BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.
Advantage
1.Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
2.Strong load ability, constant discharge current 40A , use high voltage resistance, low inner
resistance power Mosfet. The heat sink will greatly help cooling.
3.IC itself has power balancing function. The circuit is simple and reliable.
4.Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and
short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the
battery.Temperature protection during
charging and discharging.
5.Extreme low power consumption. The consumption of the whole device is less than 50uA.
6.PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating
7S 24V | Detail | Parameter | Unit | ||||||||||||
Discharge | Maximal Continuous Discharging Current | 15 | 20 | 30 | 40 | 50 | 60 | A | |||||||
Peak Discharging Current | 65±10 | 65±10 | 165±30 | 165±30 | 180±30 | 200±30 | A | ||||||||
Internal Resistance | MOSFET | ≤20 | ≤20 | ≤10 | ≤10 | ≤10 | ≤10 | mΩ | |||||||
Charge | Charging Voltage | 29.75 | V | ||||||||||||
Charging Current | 10 | 10 | 20 | 30 | 40 | 50 | A | ||||||||
Over charge protection | Over Charge Detection Voltage | 4.25±0.05 | V | ||||||||||||
Over Charge Detection Delay Time | 1 | S | |||||||||||||
Over Charger Release Voltage | 4.15±0.05 | V | |||||||||||||
Cell balancing | Cell balancing Detection Voltage | 4.18 | V | ||||||||||||
Cell balancing Release Voltage | 4.18 | V | |||||||||||||
Cell balancing Current | 30±5 | mA | |||||||||||||
Over discharge protection | Over Discharge Detection Voltage | 2.7±0.1 | V | ||||||||||||
Over Discharge Detection Delay Time | 1 | S | |||||||||||||
Over Discharger Release Voltage | 3.0±0.1 | V | |||||||||||||
Over current protection | Over Current Detection Delay Time | 1 | mS | ||||||||||||
Over Current Protection Release Condition | Disconnect the load | ||||||||||||||
Short Protection | Detection Condition | Exterior Short Curcuit | |||||||||||||
Detection Delay Time | 250 | uS | |||||||||||||
Release Condition | Disconnect the load | ||||||||||||||
Temperature Protection | Temperature Protection | Charge<-5 or >50 Discharge>70 | ℃ | ||||||||||||
Self-consumption | Working current | 100 | uA | ||||||||||||
Sleeping current(over discharge) | 20 | uA | |||||||||||||
Working Temperature | Temperature Range | -20~70 | ℃ | ||||||||||||
Storage Temperature | Temperature Range | -40~80 | ℃ | ||||||||||||
Size | 15A-20A(59*34*9mm) 30A-40A(75*48*9mm) 50A-60A(81*60*16mm) | ||||||||||||||
RFQ
1.What is the common port and separate port? what is the difference?
We take 13 S48V15A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 15A. while the separate port is separately connected by charge
cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 15A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, LifePo4
upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to
work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and
others which are not reached to alarm voltage(Li-ion 4.18V, LifePo4 3.6V)are only in charging status, no discharging, when the
fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life Po4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in
balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high
pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S 36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 15A for below 350W, 20A for below 500W, 30A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in
Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
We take 13 S48V15A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same
point end(our P-), charge cathode and discharge cathode are used in the common connection
port, so the charge current and discharge current are the same 15A. while the separate port is separately connected by charge
cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 15A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, LifePo4
upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to
work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and
others which are not reached to alarm voltage(Li-ion 4.18V, LifePo4 3.6V)are only in charging status, no discharging, when the
fast cell voltage is reached to alarm voltage (Li-ion 4.25V, Life Po4 3.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in
balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high
pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S 36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 15A for below 350W, 20A for below 500W, 30A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in
Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
