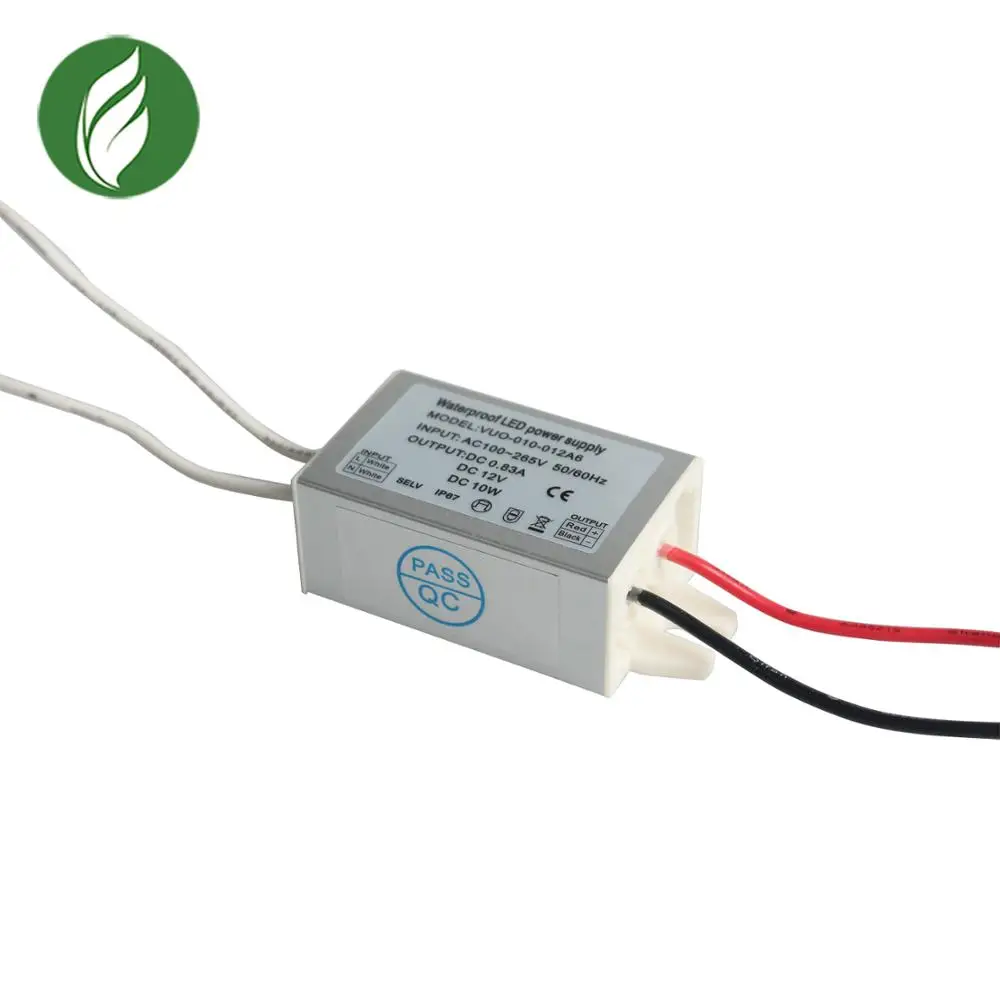

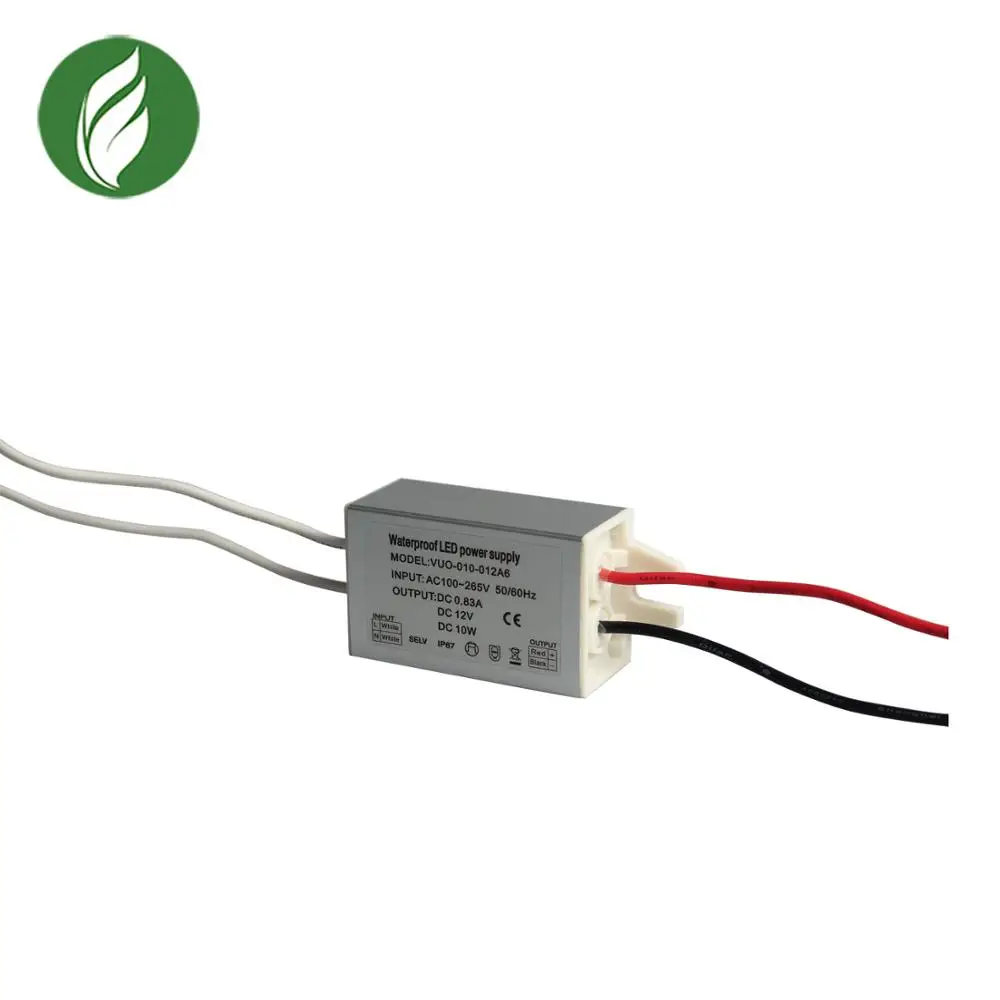

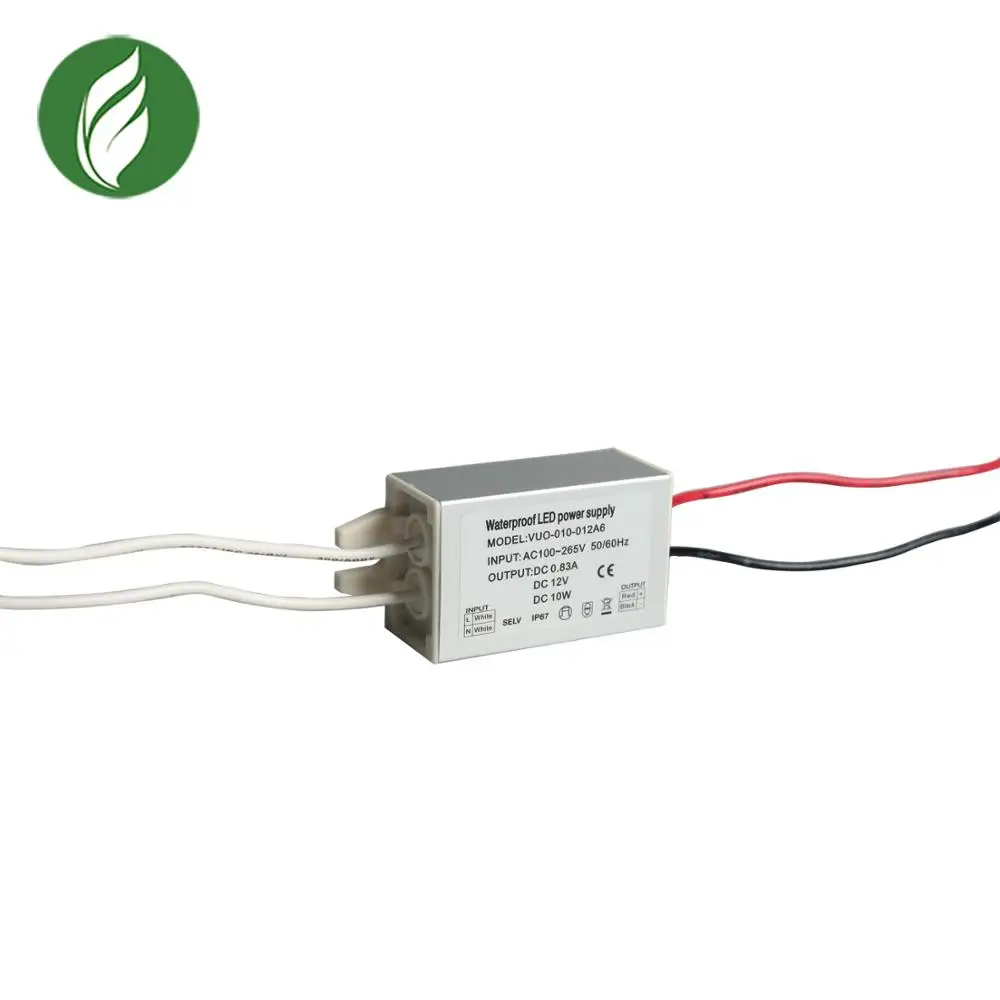

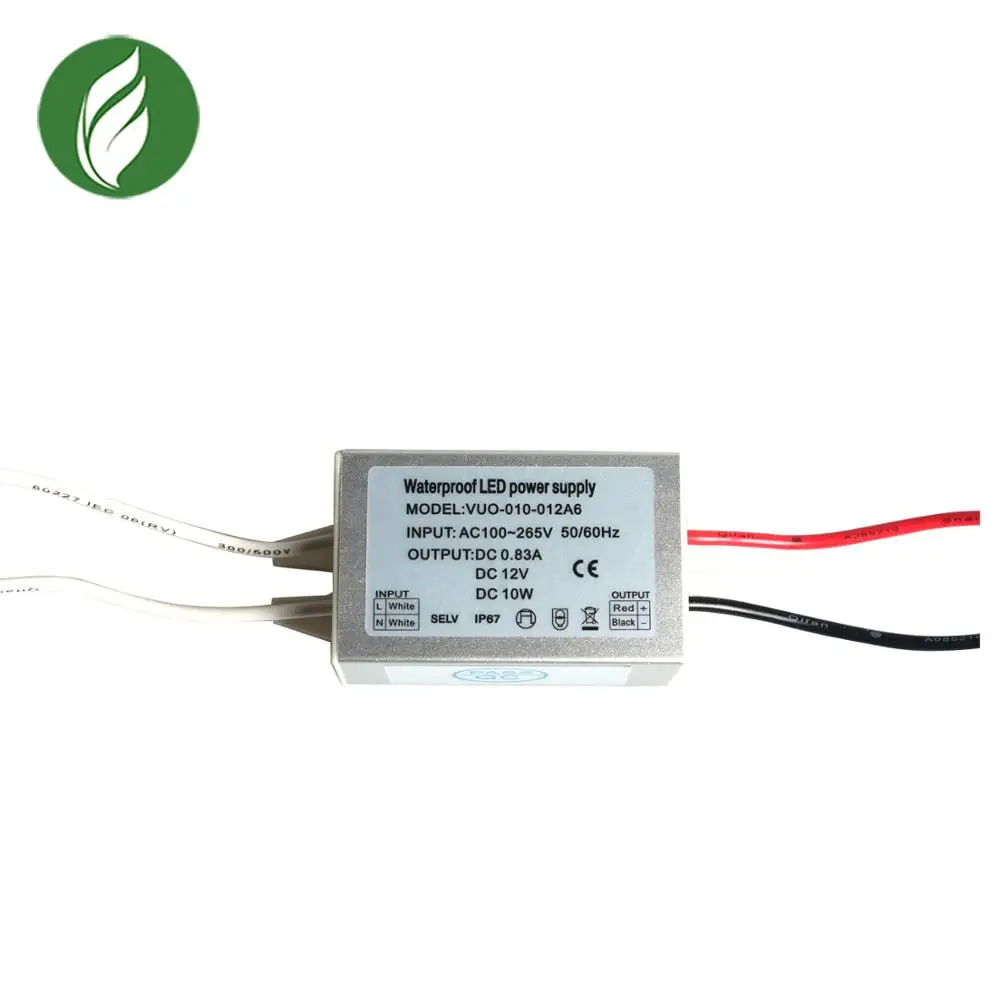

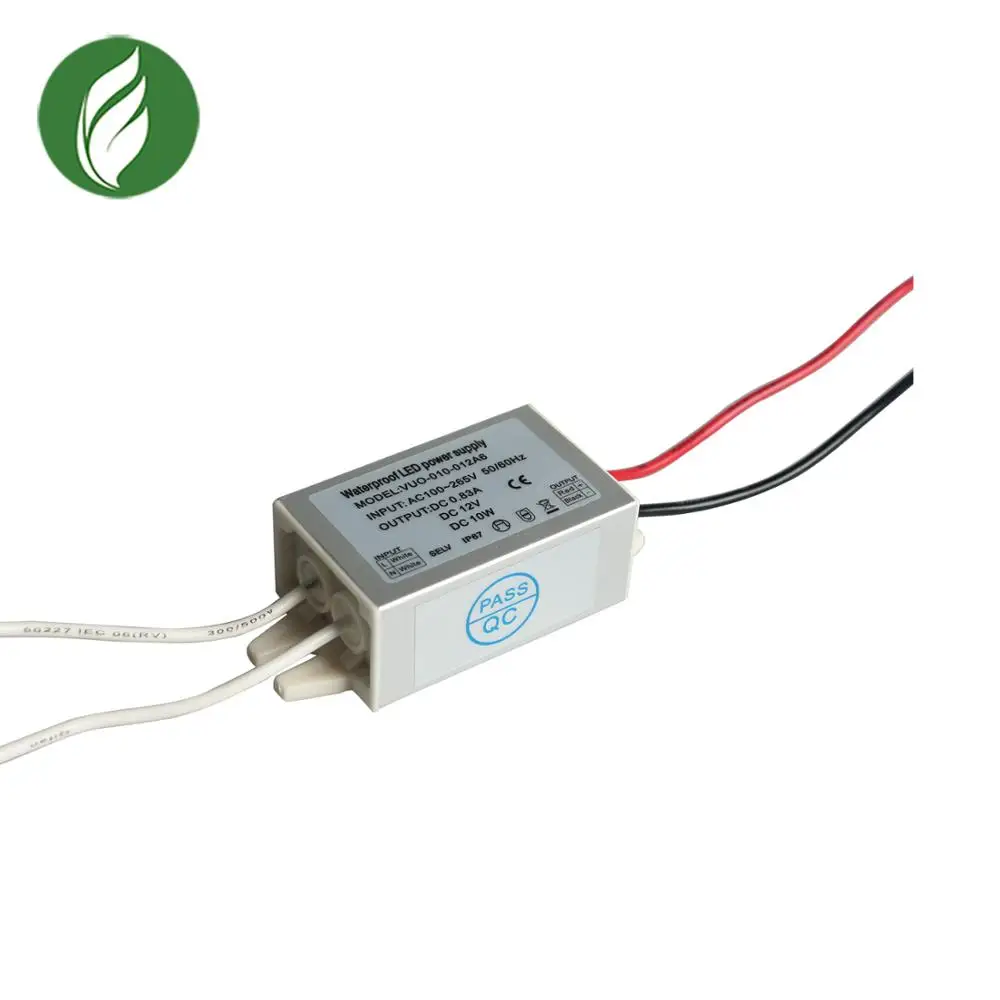

Индивидуальная упаковка маленький миниатюрный источник питания 10 Вт 12 В постоянного тока светодиодный трансформатор
- Категория: Switching Power Supply >>>
- Поставщик: Zhuhai,Hengqin,District,Huawei,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.7 $* | 0.72 $* |
| Aug-18-2025 | 0.3 $* | 0.74 $* |
| Jul-18-2025 | 0.72 $* | 0.70 $* |
| Jun-18-2025 | 0.67 $* | 0.45 $* |
| May-18-2025 | 0.13 $* | 0.3 $* |
| Apr-18-2025 | 0.1 $* | 0.6 $* |
| Mar-18-2025 | 0.17 $* | 0.33 $* |
| Feb-18-2025 | 0.21 $* | 0.99 $* |
| Jan-18-2025 | 0.87 $* | 0.20 $* |
Характеристики
Customizable packaging small mini power supply 10w 12vdc constant voltage led transformer driver
| Model | VUO-010-012A6 | ||||
| Output | DC voltage | 12V | |||
| Rated current | 0-0.83A | ||||
| rated power | 10W | ||||
| Ripple & Noise (peak to peak) | <400mV | ||||
| No-load voltage | ±0.5V | ||||
| Input | voltage range | 100~265VAC | |||
| Current | 47~63Hz | ||||
| Power factor | 0.5-0.7 | ||||
| effectiveness(Typ.) | 0.81 | ||||
| Alternating current(Typ.) | 0.09A/220VAC | ||||
| Protection | Short circuit | Protection mode: hiccup mode, abnormal conditions can be automatically restored after removal | |||
| overload | 0.5A-0.76A | ||||
| environment | Operating temperature | -30~+50℃ (Please refer to the load reduction curve) | |||
| Protection class | IP67 Suitable for indoor and outdoor use | ||||
| Storage temperature | -40~+80℃ | ||||
| Safety&EMC | Safety standards | Suitable for EN61347-1;EN61347-2-13;SELV;IP67 | |||
| Pressure | Input - Output: 2KVAC Input - Enclosure, Ground: 2KVAC Output - Enclosure, Ground: 0.5KVAC | ||||
| Tips | 1.If without specia explanation, all specifications are measured at an input of 220VAC, rated load, ambient temperature of 25 ° C . 2.Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth. | ||||
Prduct details
Company Information
Certifications
exhibition
shipping
contact us
More Products
FAQ
FAQ
Q1.What’s your payment term?
A. We cccept T/T,L/C,Paypal.
Q2.How ‘s the delivery time?
A. It rests with the quantity you meed,2-15 days usually.
Q3.What’s your standard of package?
A. Normally are cartons,but also we can pack it according to your requirement.
Q4.Would you accept to use our own logo?
A. Yes,we can do OEM,if the quantity can reach MOQ.
Q5.Where is your shipping port?
A. Zhuhai port & Shenzhen port,as it is near to our factory,other port is also no problem.
Q6.How about the quality?
A. We have the best professional engineer and strict QA and QC system.
Q7.Can we be your distributor?
A.We are looking for distributor and agent all over the world for switching power supply.
