Customized PO Film Covering Material Single Span Greenhouse For Agriculture
Product Description

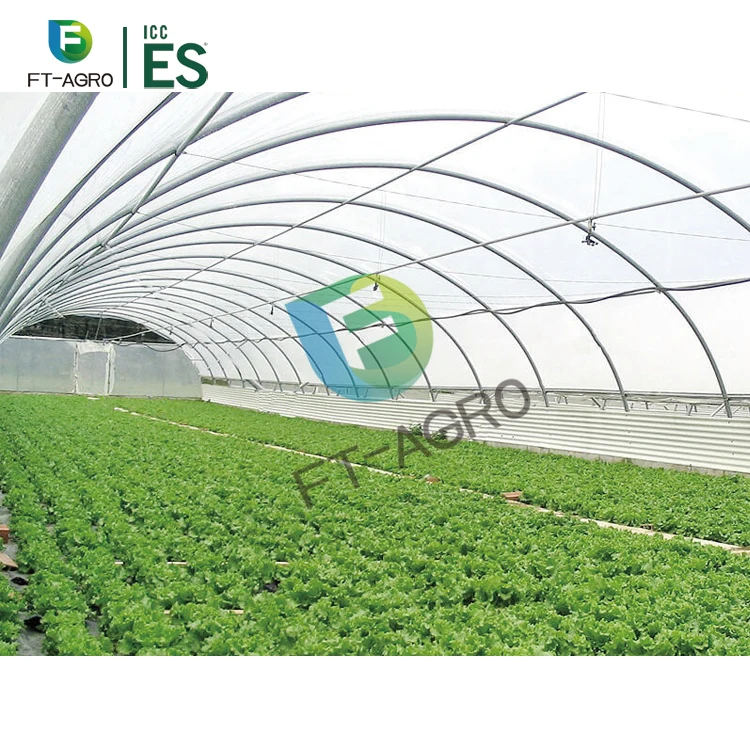

Single Span Greenhouse:
The single-span greenhouse is a type of simple, safe and convenient universal greenhouse; it uses hot-dip galvanized steel pipes as the main framework, parts made under the hot-dip galvanized pressuring technique. The single-span greenhouse is mainly for vegetable and fruit cultivation and other aquaculture, besides its excellent insulation properties and necessary ventilation performance. We can also add sides manual rolling ventilation system to make it more practical.
Single Span Greenhouse Frame:
The greenhouse frame is made of the materials of galvanized steel, connected by screws, bolts or suitable connecters, door, etc.can be equipped and the roof can be tunnel roof or arched roof (supported by circular tubes).
Single Span Greenhouse Covering material:
PO film, heat-preserving and durable, can be available on the roof and side of the greenhouse, thickness of which can be 8mm,10mm, 12mm, 15mm, 20mm, etc. And more layers of the film can be used on the greenhouse.
Parameters
Single Span Greenhouse | ||
Main Frame | Hot Galvanized Steel Pipe | |
Covering Material | PO Film | |
Covering Material Lifetime | 3-5 years | |
Column Shape | Rectangular | |
Span | 8m/9m/10m/12m | |
Width Between Columns | 4-8m | |
Layer | 1 layer/2layer | |
Top Height | 3m-7m | |
Gutter Height | 2.5m-6.5m | |
Wind Load | 0.5KN/m² | |
Snow Load | 0.3KN/m² | |

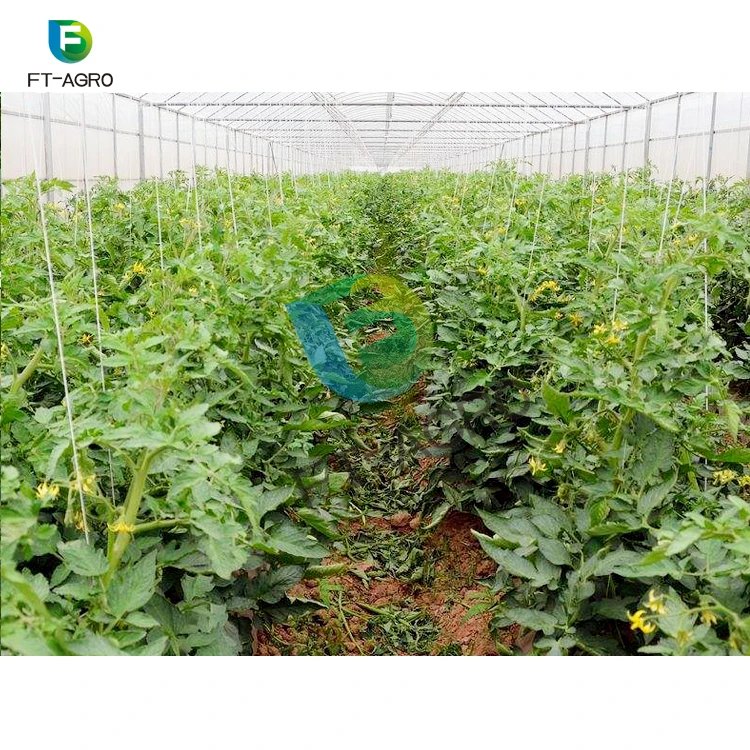

Pictures Show
Optional Systems
Optional System | ||||
NO. | Name | Remarks | ||
1 | Cooling system | Cooling pad and fan | ||
2 | Shading system | Inside and outside shading | ||
3 | Ventilation system | Roof and side windows | ||
4 | Heating system | Water, oil, coal heating | ||
5 | Supplementary lighting system | Philips sodium lamp | ||
6 | Irrigation system | Drip irrigation, mist system | ||
7 | seedbed | Movable, fixed | ||
8 | Circulation system | Circulating fan | ||
9 | Control system | Control all system running situation | ||
1 Cooling system (cooling pad and fan):
Cooling pad and exhauster cooling system is the most cost-effective cooling system for large-scale production facilities. The system has the advantages of simple equipment, low cost, low energy consumption, significant cooling capacity and reliable operation. The cooling pad and exhauster cooling system consists of specialized paper cooling pad, low pressure and high flow axial fan, water circulation system, and control device. Exhausters were installed on both sides of the gable in the greenhouse or closed houses. When it is working, the negative pressure room caused by exhausters can force the hot air flow outside, water evaporation will absorb a significant amount of latent heat, to achieve reducing indoor temperature and increase the humidity.
2 Shading system:
a. External shading system
The primary function of the system is to cool the heat in summer, the sun would diffuse into the greenhouse to ensure that crops from strong light burns. Due to blocking a significant amount of light into the room, it can effectively reduce the accumulation of heat in the greenhouse, drop 4°C to 6°C of room temperature.
Features:
Anti-ultraviolet, anti-hail, reduce the damage to the top of the greenhouse.
According to the different crops, use different shade curtains to meet the needs of various plants under the sunlight. In summer, through the shade curtain can efficiently reflect part of the sunlight, drop room temperature 4 to 6 degrees Celsius.
b. Internal Shading/Insulation System
Anti-fog and anti-drip: After close the inner shading system, it will form two separate lower and upper spaces in the greenhouse,this can effectively prevent the formation of the fog in the greenhouse and the dewdrops. To increase the indoor insulation effect, we can use double shade system. The curtain has two types, breathable curtain, and insulated curtain, like waterproof
space cotton insulation blanket. According to the need, we choose different light transmission capacity of the shade curtain or insulation curtain.
Energy saving and insulation: In winter and night, it can effectively prevent the heat inside the greenhouse through the radiation or heat exchange spill, thus reducing energy consumption and greenhouse operating costs.
The primary function of the system is to cool the heat in summer, the sun would diffuse into the greenhouse to ensure that crops from strong light burns. Due to blocking a significant amount of light into the room, it can effectively reduce the accumulation of heat in the greenhouse, drop 4°C to 6°C of room temperature.
Features:
Anti-ultraviolet, anti-hail, reduce the damage to the top of the greenhouse.
According to the different crops, use different shade curtains to meet the needs of various plants under the sunlight. In summer, through the shade curtain can efficiently reflect part of the sunlight, drop room temperature 4 to 6 degrees Celsius.
b. Internal Shading/Insulation System
Anti-fog and anti-drip: After close the inner shading system, it will form two separate lower and upper spaces in the greenhouse,this can effectively prevent the formation of the fog in the greenhouse and the dewdrops. To increase the indoor insulation effect, we can use double shade system. The curtain has two types, breathable curtain, and insulated curtain, like waterproof
space cotton insulation blanket. According to the need, we choose different light transmission capacity of the shade curtain or insulation curtain.
Energy saving and insulation: In winter and night, it can effectively prevent the heat inside the greenhouse through the radiation or heat exchange spill, thus reducing energy consumption and greenhouse operating costs.
Related Products
Packaging & Shipping
Company Profile
SHANDONG BS-VILLA construction engineering CO.,LTD.(refer as BS-VILLA) is a professional greenhouse manufacturer which focus on development, manufacture, sale of agriculture greenhouse, garden greenhouse, dome house, hydroponics system products etc. BS-VILLA is started in 1992, which is one of the earliest research and development greenhouse companies in China. Our research and development team to continuously develop new kinds of science and technology products, to meet the needs of modern greenhouse development. We take customer-friendly, quality-oriented, integrative, innovative as objectives. Truth and honesty are our management concept.The customer satisfaction is our primary goal. We uphold a consistent level of professionalism, quality, credibility and service, therefore we are always ready for cooperation and gladly welcome new clients and business partners.
FAQ
1. How long is the delivery time?
According to your greenhouse size and system, the delivery time is usually 10-60 days.
2.How long is the warranty period?
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5 years, glass 1 year, sunshade net 2-3 years, etc.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but you should pay the express.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
6. How to install greenhouse?
First we prepare the material and export.
After your customs clearing, we send 2-4 engineers or all workers to guide to install.
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
7. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication.
8. What is the payment terms?
Usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own payment terms, then we can negotiate it.
According to your greenhouse size and system, the delivery time is usually 10-60 days.
2.How long is the warranty period?
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5 years, glass 1 year, sunshade net 2-3 years, etc.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but you should pay the express.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
6. How to install greenhouse?
First we prepare the material and export.
After your customs clearing, we send 2-4 engineers or all workers to guide to install.
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
7. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication.
8. What is the payment terms?
Usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own payment terms, then we can negotiate it.
