Токарный станок с ЧПУ 4 оси CNC фрезерный ЧУП вертикальный обрабатывающий центр
- Категория: CNC Milling Machines >>>
- Поставщик: Tengzhou,Baixing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 2870374.18 $* | 2927781.71 $* |
| Jul-16-2025 | 2327941.47 $* | 2374500.17 $* |
| Jun-16-2025 | 2825171.62 $* | 2881674.44 $* |
| May-16-2025 | 2802570.21 $* | 2858621.70 $* |
| Apr-16-2025 | 2237536.92 $* | 2282287.91 $* |
| Mar-16-2025 | 2757367.49 $* | 2812514.68 $* |
| Feb-16-2025 | 2734766.28 $* | 2789461.72 $* |
| Jan-16-2025 | 2712164.96 $* | 2766407.27 $* |
Характеристики

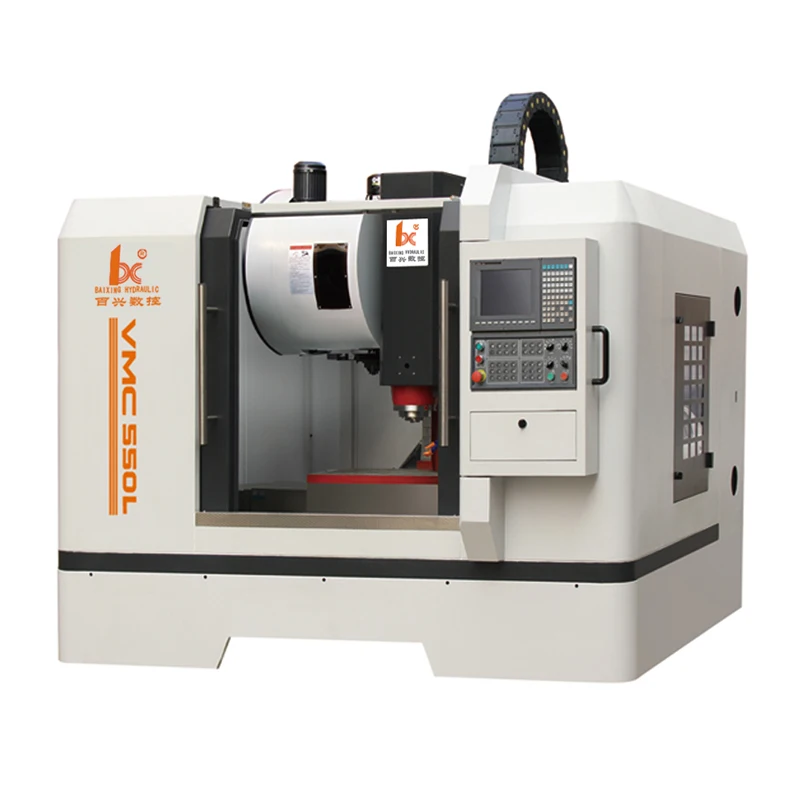

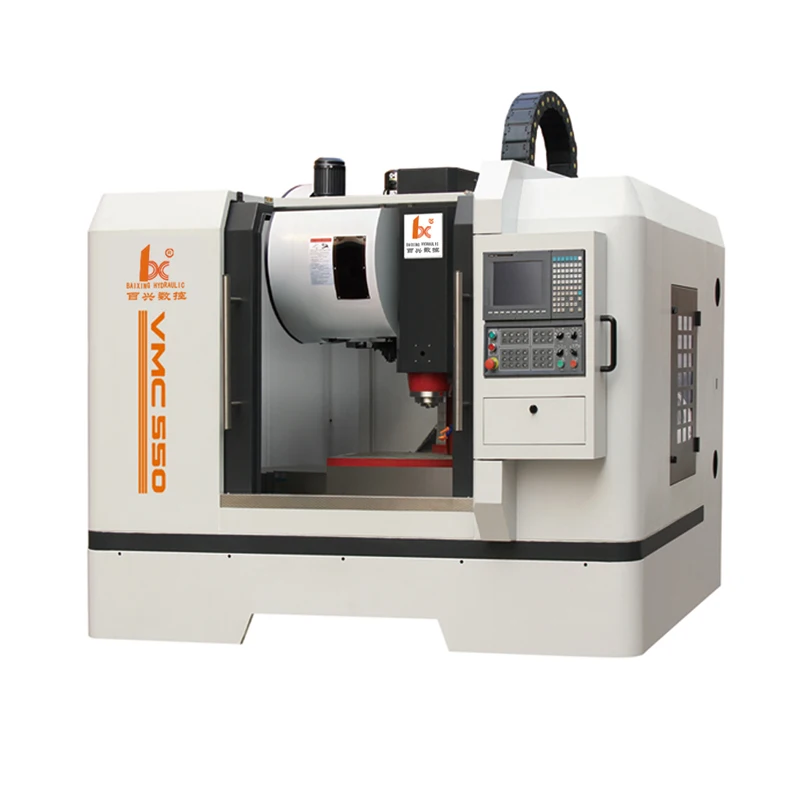

VMC850 Vertical CNC milling Machine Center for metal
Specifications
Vertical cnc milling machine 3 axis

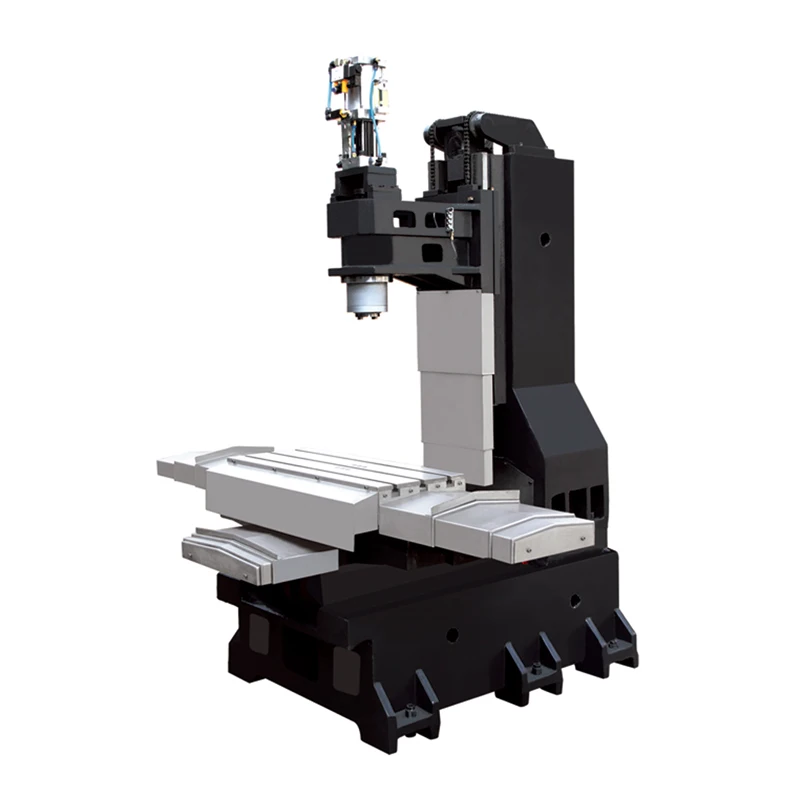

Rigid and stable structure
High movement accuracy
Control system:SIEMENS/FANUC/MITSUBIS
vertical cnc milling machine 3 axis -Features:

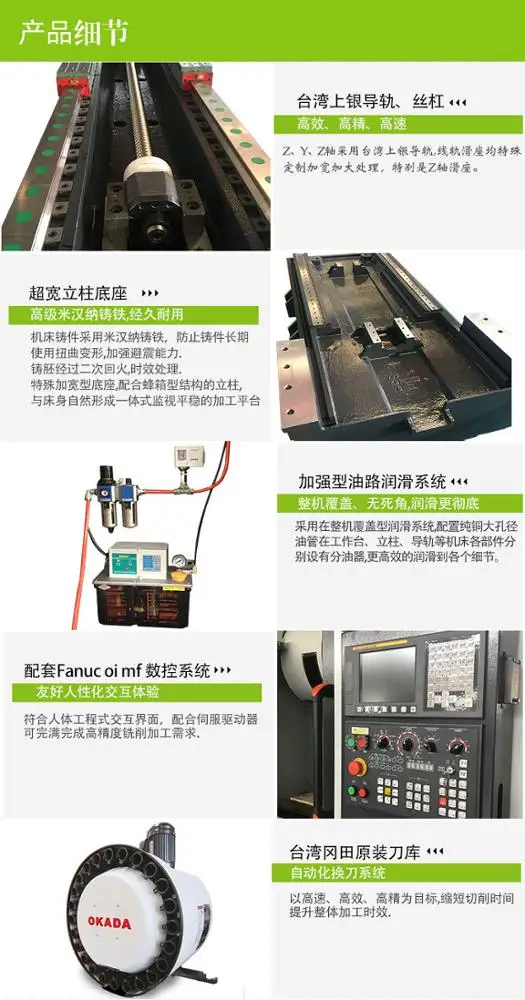

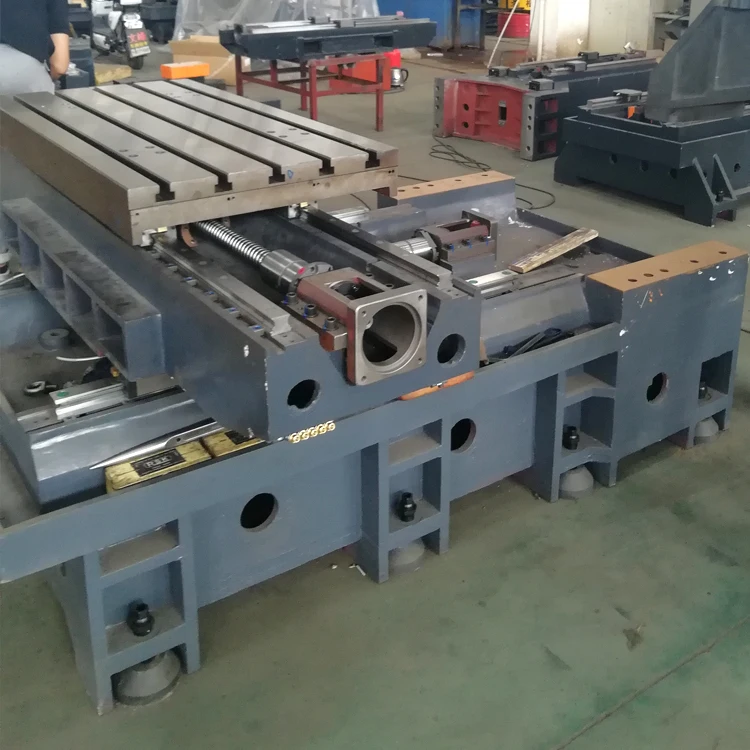

1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 8 m/min.
3.High-precision preloaded ball screws on all 3 axes.4 and 5 axis are optional.

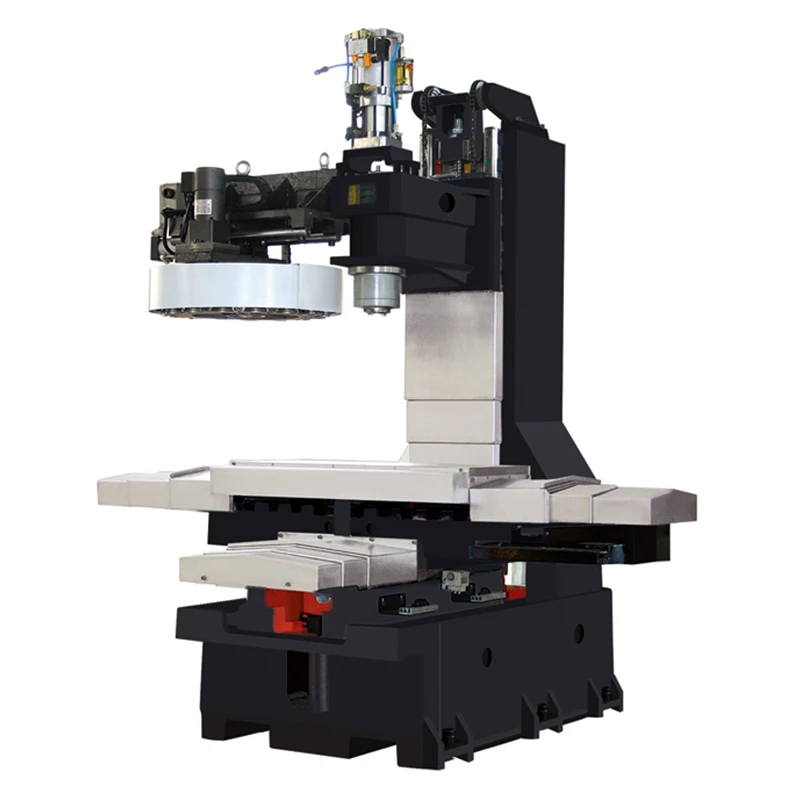

4.Dual-arm 16 to24-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.
8.Different Operating system as optional: Siemens, Fanuc, Mitsubishi.
vertical cnc milling machine 3 axis -Specification:
Modle | 850 | ||
Stroke ( X Axle) (mm) | 800 | ||
Stroke ( Y Axle)(mm) | 500 | ||
Stroke ( Z Axle)(mm) | 500 | ||
Diatance between working table and Main spindle(mm) | 180-680 | ||
Distance beween spindle and Verical Guideway(mm) | 550 | 640 | 640 |
Working table size(mm) | 1050×520 | 1300×600 | 1500×600 |
Max. load on table(kg) | 600 | 1000 | 1000 |
Slot on working table(No.-size*diatance)(mm) | 3-18*150 | 5-18*120 | 5-18*120 |
Spindle Taper hole on main axle(model/size) | BT40/150 | BT40/150 | BT40/150 |
BT50/155 | |||
Spindle speed(r/min) | 60-8000 | 60-8000 | 60-8000/6000 |
Spindle motor power (kw) | 5.5-7.5 | 7.5-11 | 7.5-11 |
Axis motor power on x/y/z(kw) | 2 | 3 | 3.5 |
Max. travel speed on axle X(mm/min) | 8000 | 8000 | 8000 |
Max. travel speed on axle Y(mm/min) | 8000 | 8000 | 8000 |
Max. travel speed on axle Z(mm/min) | 8000 | 8000 | 8000 |
Max.cutting feed rate(mm/min) | 6000 | 6000 | 6000 |
Tool handle | BT40 | BT40/BT50 | BT40/BT50 |
CNC system | MITSUBISHI/FANUC/SIEMENS | ||
Positioning Accuracy (mm) | 0.01/500 | 0.01/500 | 0.16/500 |
Repeatability Accuracy(mm) | 0.005 | 0.005 | 0.006 |
Weight(kg) | 4500 | 7500 | 8000 |
Air pressure(kg/cm2) | 6 | 6 | 6 |
Power(kw) | 20 | 25 | 30 |
Dimension(mm) | 2600×2400×2500 | 3300×2700×2800 | 3700×2700×2800 |
