Product  Description

Industry Level SIMCOM 4G LTE Cat M1& NB-IOT  Module.

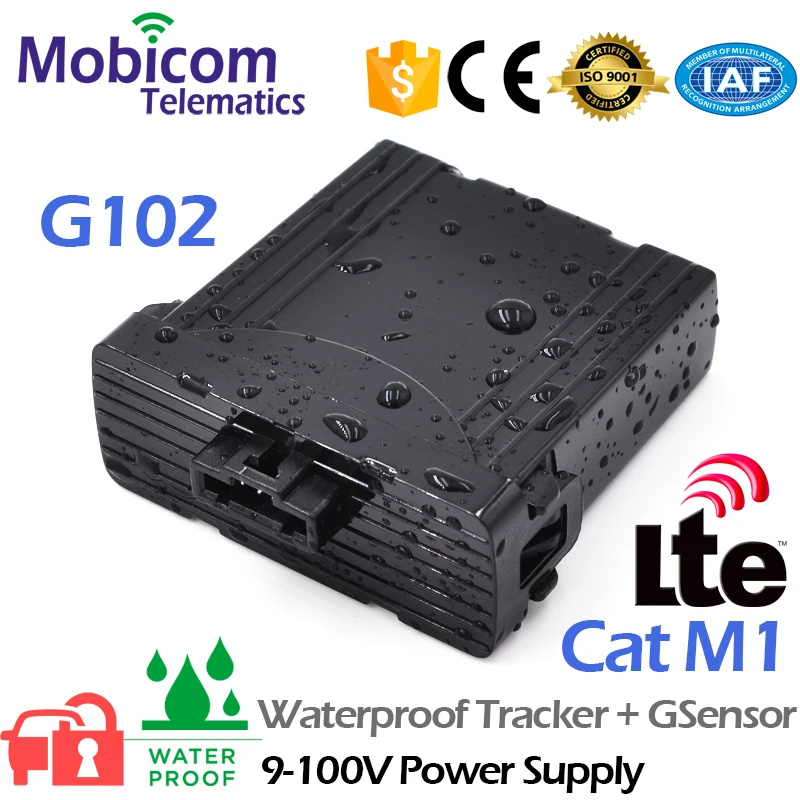

 The G102 is a Mini GPS tracker designed for a wide range of vehicle tracking application. It has basic I/O interfaces that can be used for GPS vehicle tracking. Its internal GPS antenna has superior sensitivity and fast time to be located. It can be monitored in real time or periodically tracked by a backend server and mobile devices.

Industry Level Simcom 4G LTE Cat M1 &NB-IOT Module.





Product Functions

Item	Functions
Communication	Location Data   transmitting-GPRS(TCP/UDP)
	Commands- SMS/GPRS/Serial port
Position   Tracking	Real-time location monitoring/querying
	Track by moving( time interval)
	Track by parking(time interval)
	Track by distance
	Cornering report
GPS Mileage	GPS Mileage report/GPS mileage coefficient   adjustable
Geo-fence	25 rectangle Geo-fences
Alarm(Event)	SOS alarm (SMS/GRPS)
	Main Power supply cut off(SMS/GRPS)
	Ignition On report(GPRS)
	Over Speed alarm(GPRS)
	Geo-fence alarm(GPRS)
	Towing alarm(GPRS)
	Harsh Braking alarm(GPRS)
	Harsh Acceleration alarm(GPRS)
I/O	3 digital input (Ignition   detecting, SOS button, Input3-reserved) 1 digital output- fuel pump   /engine circuit cut
Buffer	Data in Buffer when in GPRS   blind area
Initialization	Initialize tracker’s Parameters   via SMS/GPRS/Serial port
Upgrading	firmware via OTA or   Serial port
Waterproof	IP66





Specifications

Item	Specifications
Gift Box Dimension120	*120*50mm
Tracker    Dimension	66*60*25   mm
Tracker   Color	Black
Weight	Tracker   weight	0.1kg	Total   package	0.21kg
Power   Supply	DC   9V -- 100V
Working   current	20 - 40   mA(DC 12V)
Back-up   battery	Built-in   160mAh, support 1 hour working when fully charged. (160 to 450mAh customized)
Operating   temperature	-25℃ -- 75℃
Operating   humidity	5%   -- 95%
LED   indicator	Green led and Red led light   indicates GPS and GSM status respectively
Power   Switch	1   Backup battery switch on Mainboard
I/O   Port	3   digital inputs	Ignition   detecting –positive trigger
		SOS   detecting-negative trigger
		Input3   (Reserved)- positive trigger
	1   digital output	Fuel   pump/engine circuit cut- Output GND (connect to a normal close relay)
GSM   Module	Chipset	SIMCOM 7000A/7000C  (With Verizon /AT&T certification) Industry Level IoT module.
	Frequency	4G LTE-FDD CAT M1(eMTC): B1/B3/B5/B8  2100Mhz/1800Mhz/900Mhz/850Mhz 4G (NB-IoT) EDGE (2.5G) 2G(GSM/GPRS )
GPS   Module	Chipset	SKYLAB  or GOTOP Industry level Module
	Positioning   accuracy	< 5m (95%)
	Cold   start time	<   23s(in average)
	Warm   start time	<   3 s (in average)
	Acquisition   Sensitivity	-148dbm
	Acquisition   channel	66-channel
	GPS   Frequency	1575.42   MHz

 Detailed Images



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral blank brown-paper boxes.

Q2. What is your terms of payment?
A: 1. For order quantity less than 200pcs,100% TT accepted;
    2. For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
    3. For sample and order less than 100pcs, Trade Assurance accepted.
Q3. What is your terms of delivery?
A: EXW, CNF Shenzhen or FOB Shenzhen.

Q4. How about your delivery time?
A: Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.

Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the moulds and working samples.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% Aging testing and data online testing before delivery.

Q8: How do you make our business long-term and a good relationship?
A:1. We will keep good quality and competitive price to ensure our customers benefit ;
   2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
