Dual Channel Magnetic Inductive Loop Detector for Parking System
Product Description
Dual Channel Magnetic Inductive Loop Detector PD230 Selling Points:

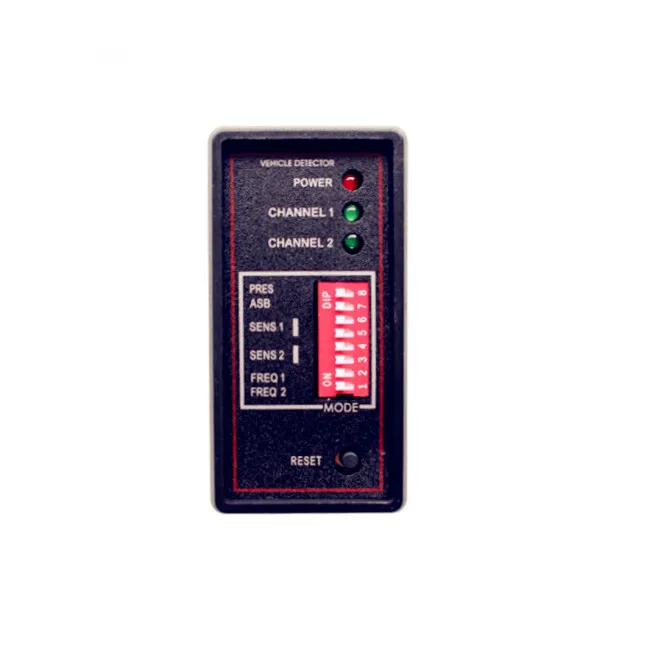

LED indication.
Strong stability.
Automatic environmental tuning.
Automatic sensitivity boost (ASB).
Two Channel Vehicle Detection with Directional Logic.
High accuracy of velocity measurement and traffic volume counting.
Dual Channel Magnetic Inductive Loop Detector PD230 Functions:
Speed Measuring.
Vehicle Counting.
Traffic Analysis.
Vehicle scale recognizing.

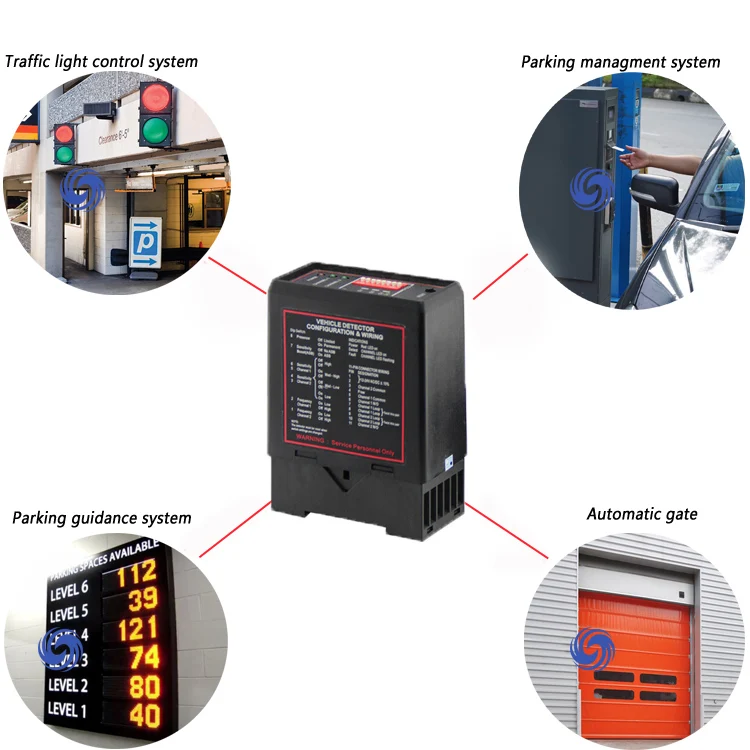

Dual Channel Magnetic Inductive Loop Detector PD230 Applications:
Vehicle Access Control.
Entrance access system.
Motorised Gates and Doors.
Traffic signal-optimization.
Industrial Control Systems.
Technical Parameter:
Model
PD230

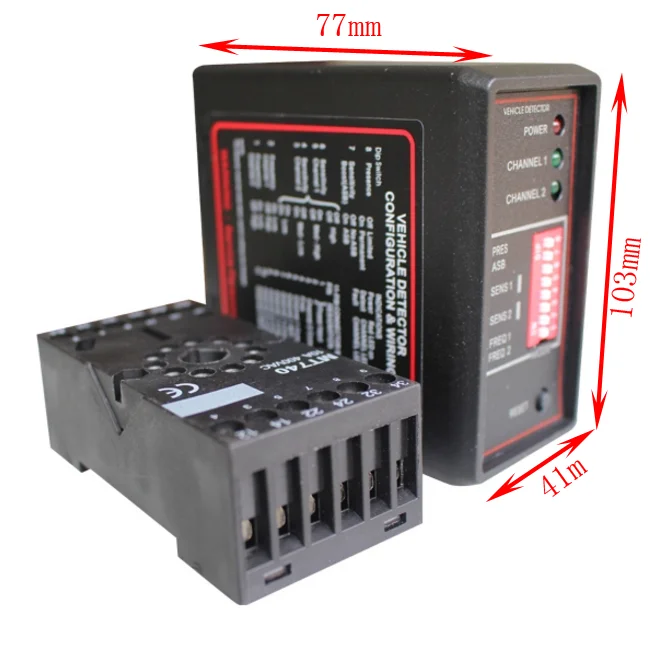

Dimension
103*77*41mm

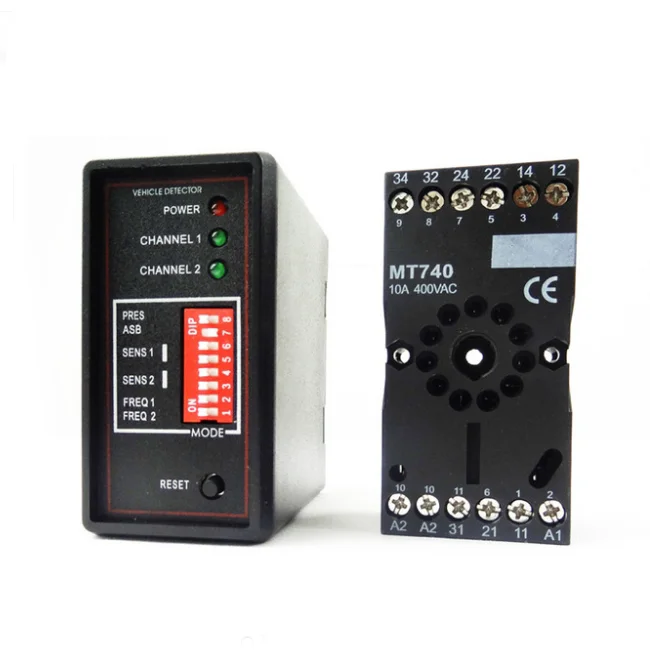

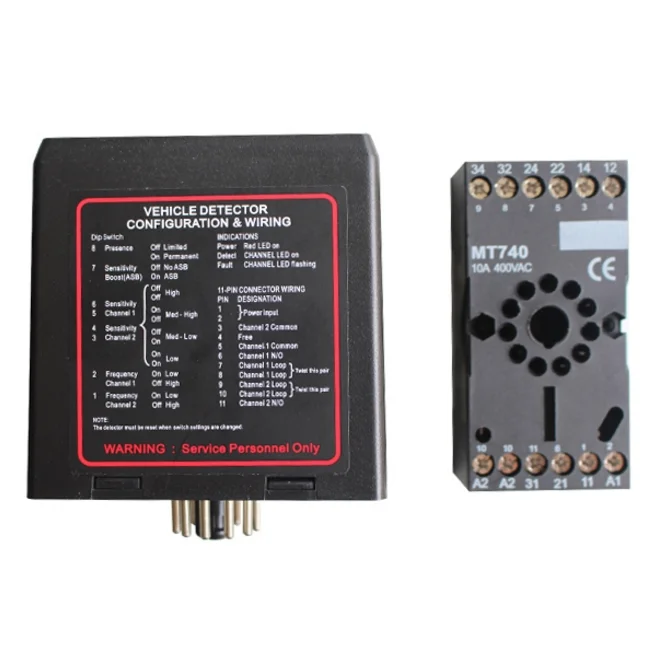

Socket
Have
NT
269g
Operating Voltage
12-24V AC/DC/120V AC/230V AC
Loop Inductance
50uH-1000uH/100uH-300uH
Working Frequency
20KHZ-170KHZ
Reaction Time
20ms
Sensitivity
4 Levels
Output Type
Two relays 240V/7A AC
Output Mode
Presence/Pulse/Visual Indication
Certifications
