AM5718 SoM System on Module Cortex-A15 DSP Cortex-M4 PRU Supports Linux 4.9.41
FET5718-C is a system on module (SoM) designed based on TI AM5718 processor, it has below features
★ Cortex-A15, frequency up to 1.5GHz;
★ DSP C66x with frequency of 750MHz
★ 2x dul-core ARM Cortex-M4 with frequency of 213MHz;
★ 2x dual-core PRU with frequency of 200MHz;
★ High-speed transmission interfaces like USB 3.0, PCIe 3.0, HDMI 1.4, UART*10, QSPI*1, CAN*2, Gagibit Ethernet*2 are available and also
powerful multi-media performance, wide range of applications;
★ OS options: Linux 4.9.41 + QT5.6, TI-RTOS;
★ 12-layer EINT PCB designing;
★ the development board consists of carrier board and SoM, and the carrier board designed with 4-layer PCB and SoM with 12-layer PCB;
★ carrier board dimensions of 130*190mm, and connector hight between SoM and carrier board is just 2mm
★ SoM with 320 pins that all functions of CPU are available;
★ Industrial grade temp width: -40℃ to +85℃
A Heterogeneous Multi-core Development Platform
Demos including command line and QT demos such as OpenCV, OpenCL, OpenGL demos, and also DSP and PRU environment build up and development demos
Powerful Multi-media Performance
The development board is integrated with SGX544 3D and GC320 2D GPU which are applicable for senior graphic UI, meanwhile, Cortex-M4 GPU IPU2 is specially used in IVA image and video hardware codec perfectly supports H.264, MPEG4 multiple encoding forms and video hardware decode playing, supports multiple video together with decoding playing, multiple decoding channels up to 1080P@60FPS, supports MJPEG iamge hardware codec, and also the VPE can well support hardware image, video zooming and color spacing converting.
Multiple Expanding Functions
Set LCD resolution and boot logo in UBOOT, flash OS image just by an SD card, WIFI, MIPI camera, CPU frequency auto adjusting and appoint a fixed frequency
Pin Diagrams Overview
Applications
The AM57X could be widely used in insutrial communication, HMI,factory automation, building automation, machine vision, medical image, measuring, auto multimedia, etc.
Available Demos
Forlinx Demo
BackLight
Keypad
RTC
Network
Ping
DemoBrowser
Calculato
WatchDog
Musicplayer
Audiorecorder
WIFI
Terminal
Can
4G
Function
DDR Bandwidth
Memory Latency
NBench
Linpack
Posix_SMP
Communication Bandwidth
Communication Latency
Whetstone
3D
Chameleon
KMS Cube
Coverflow
Navigation
ExampleUI
Multimedia
IVAHD H.264 Decode
VIP VPE IVAHD MPEG4 Encode and Decode
Audio Capture
H.265 (HEVC) Decode
DSP C66 Image Processing
AAC Decode
IVAHD MJPEG Encode
IVAHD H.264 Encode
Settings
Network Settings
System Shutdown
Task Info
Refresh Matrix
Memory
atrix Shutdown
system Info
Video Analytics Demo
OpenCV+OpenCL+OpenGL Demo
USB
USB Bonnie
CPU Frequency Settings
Command Line Testings
System Information Exploring
Key testing
UART testing
Watchdog testing
WIFI testing
Screenshot testing
RTC testing
Temp sensor testing
CAN testing
USB mouse testing
USB 2.0
USB 3.0
HDMI testing
LCD Backlight Adjusting
Camera testing
SD card
Ethernet configuration
Websever
Audio recording/ playing
Sobel algorithms
Face detection
PCIE
QSPI
4G
SATA
SPI
BT
Hardware Codec Testing
Video Playing
VPE for color space converting
Gstreamer for color space converting and zooming
Video shirinking
Video enlarging
Color space converting
Image Codec
MJPEG decode
MJPEG encode
Video Codec
H.264 encode and decode
MPEG4 encode and decode
PRU Testing
CSS Tutorial
CCS installation
Install PRU compiler in CCS
PRU boot and stop
Build new CCS project
TI AM57X Demos Compiling and Testing
Leading-in project Compiling project
Demo testing PRU booting
Forlinx AM57x Demos Compiling and Testing
Leading-in project Compiling project
LED demo testing UART testing
Work with DSP and IPU
Heterogeneous multi-core processor communication testing
Operate peripheral by DSP
Recompile demo by CCS
Cortex-A15 application compiling
Hardware Features

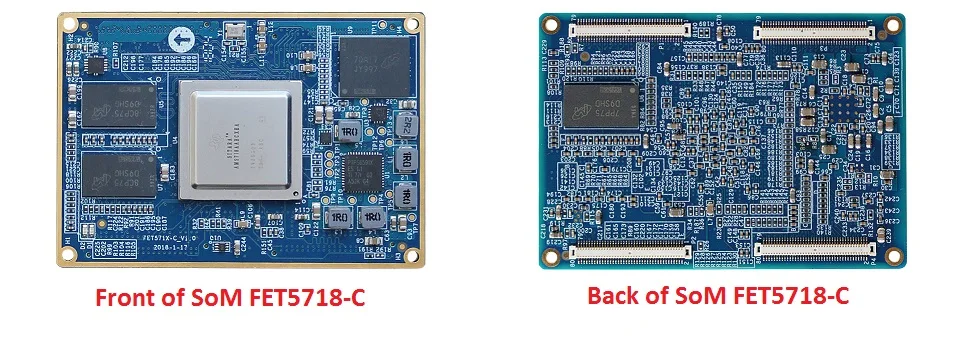

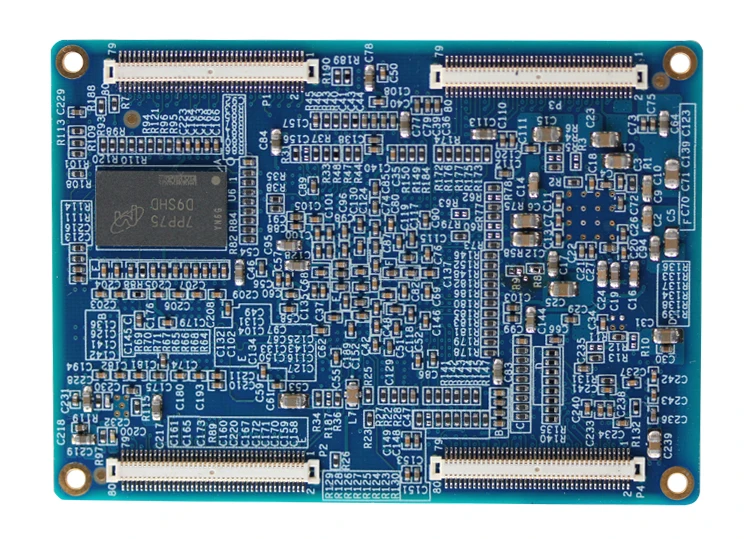

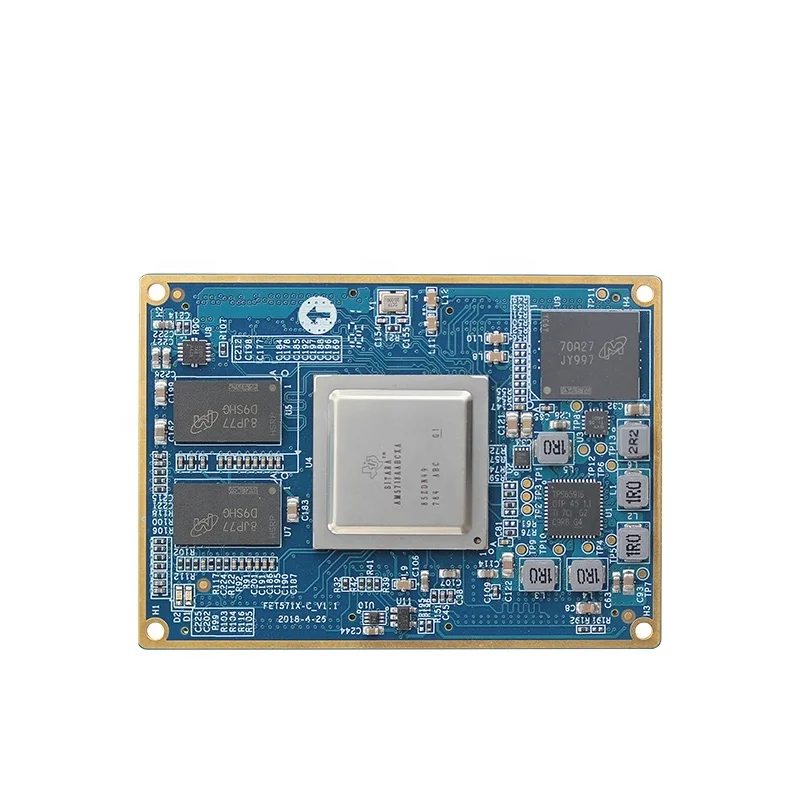

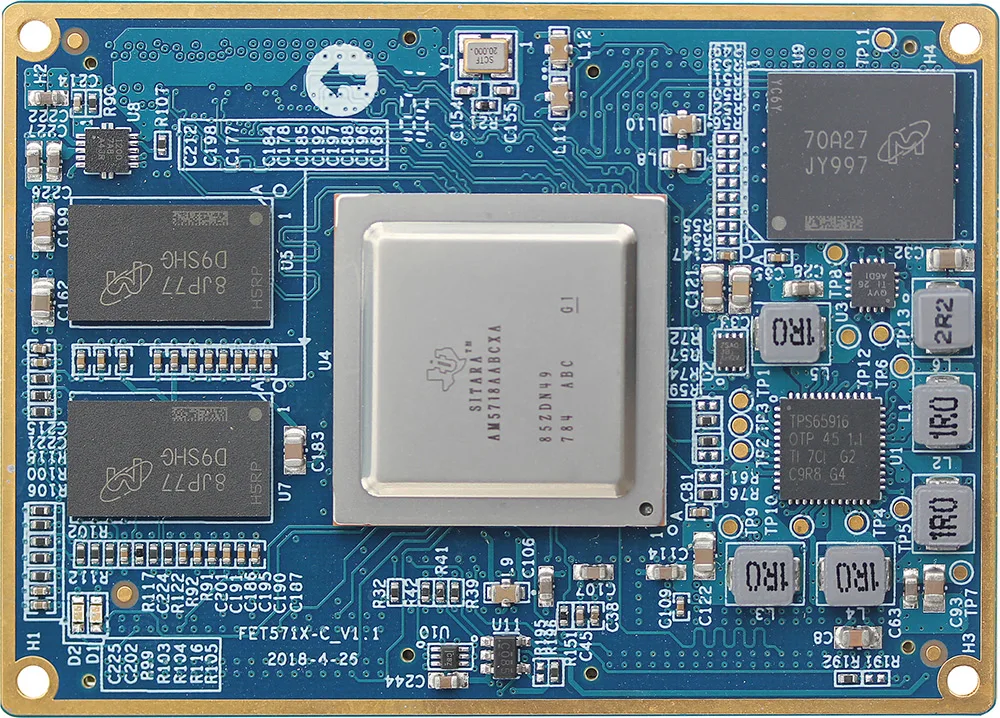

Overview of SoM FET5718-C
CPU
TI Sitara AM5718
Architecture
Cortex-A15-1.5GHz
DSP-C66X-750MHz
2x dual-core Cortex-M4-213MHz
2x dual-core PRU-200MHz
PowerVR SGX544 3D GPU
Vivante GC320 2D GPU
RAM
1GB DDR3L
Flash Memory
8GB eMMC
Dimensions
50*70mm
Connection Type
board to board connectors
PMU
TPS659162RGZR
Voltage Input
5V
Working Temp
-40℃ to +85℃
Relative Hummidity
10% to 90% RH none condensing
OS
Linux4.9.41+ QT5.6+ Wayland
