Оптовая продажа японский шаровой клапан KITZ класса 150 из

Оптовая продажа японский шаровой клапан KITZ класса 150 из

Категория: Valves >>>
Поставщик: Beijing,Ymer,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.85 $*	0.58 $*
Aug-17-2025	0.1 $*	0.55 $*
Jul-17-2025	0.82 $*	0.42 $*
Jun-17-2025	0.15 $*	0.13 $*
May-17-2025	0.96 $*	0.0 $*
Apr-17-2025	0.38 $*	0.14 $*
Mar-17-2025	0.25 $*	0.27 $*
Feb-17-2025	0.52 $*	0.90 $*
Jan-17-2025	0.56 $*	0.76 $*

Характеристики

Product Description

The freight shown on the page is only the reference price.

Please contact us before placing the order.

Product parameters

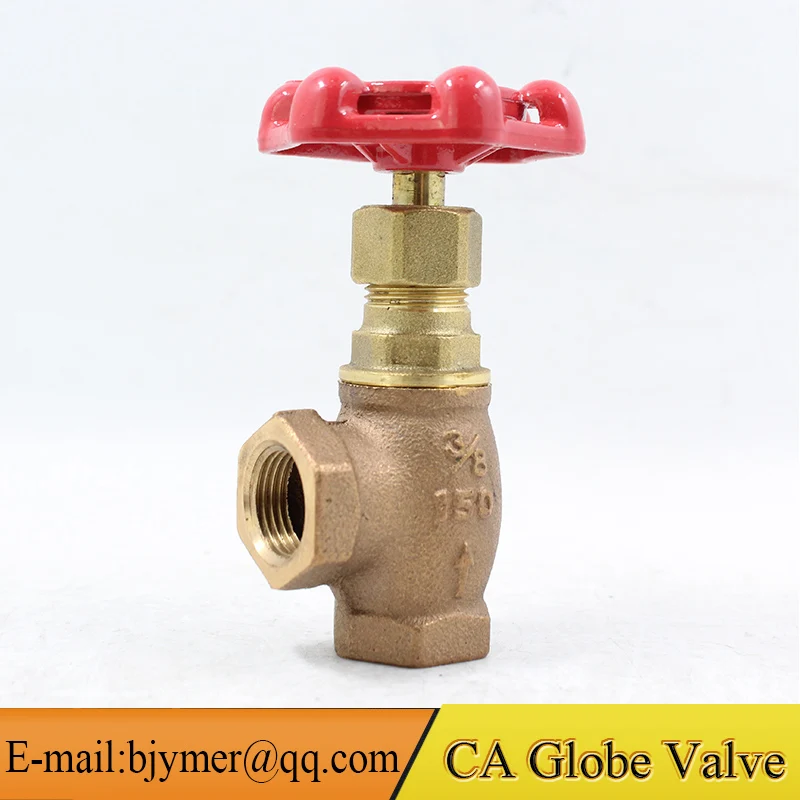

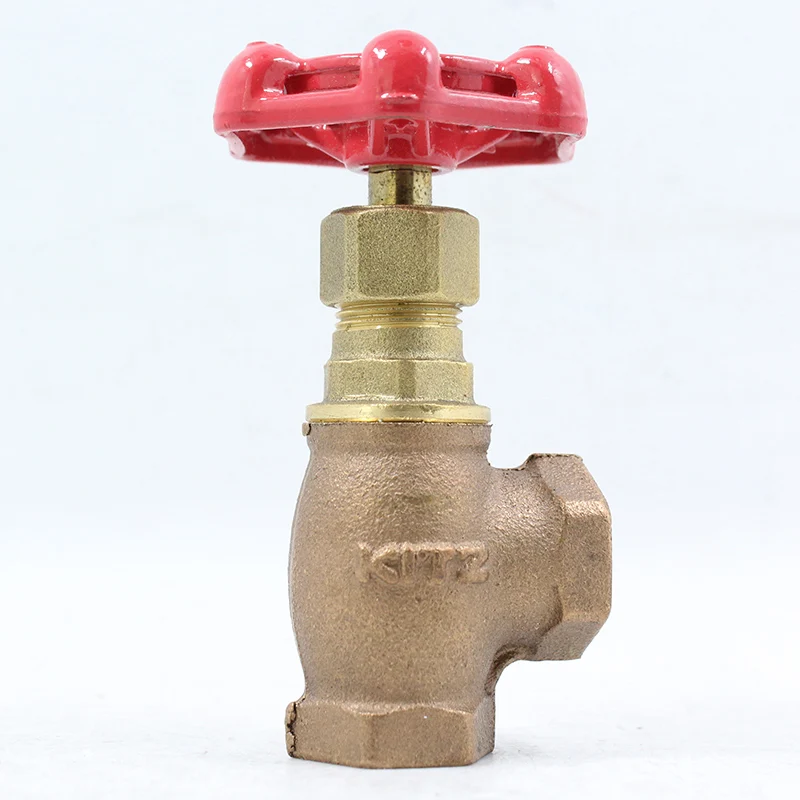

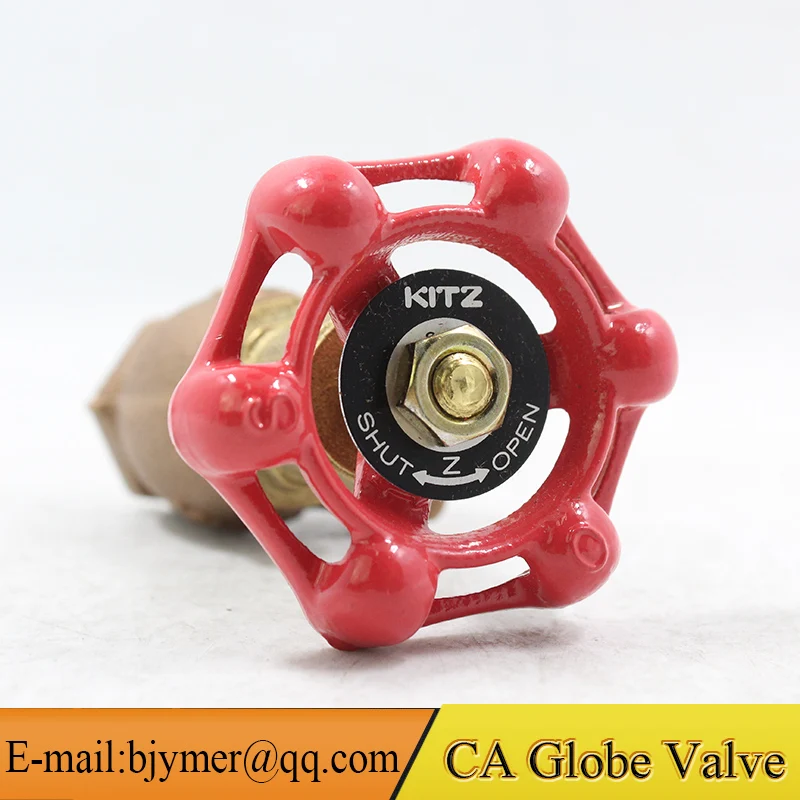

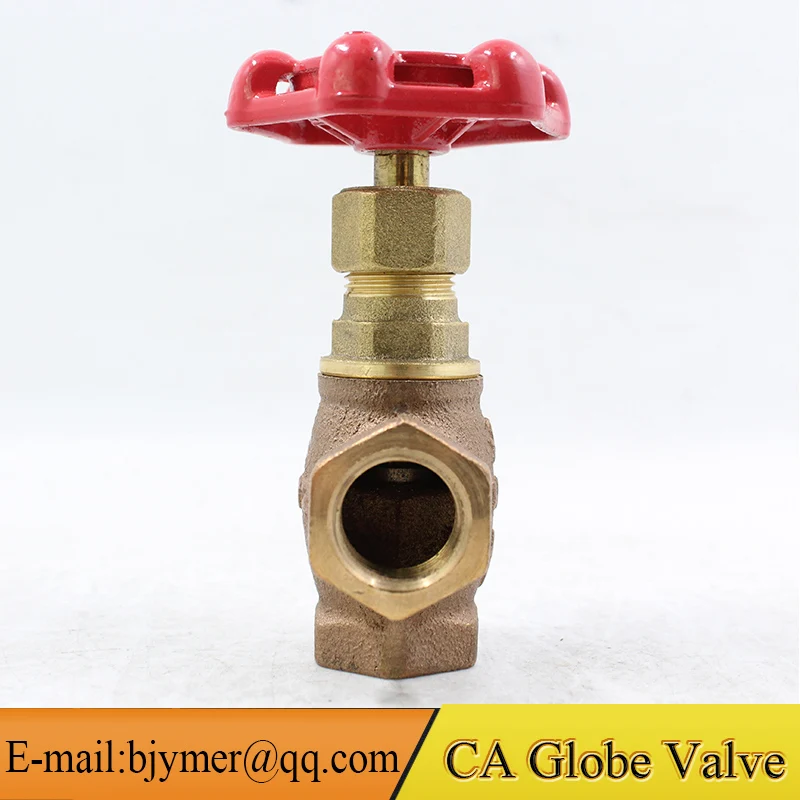

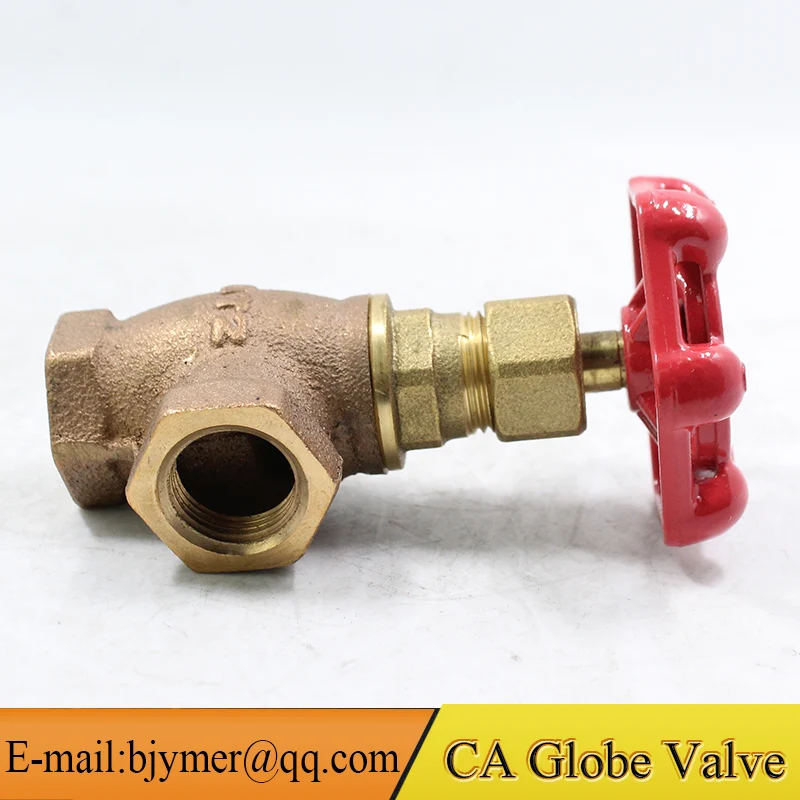

CLASS 150 CAST BRONZE,ANGLE VALVES,SCREWED BONNET,INSIDE SCREW,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:BS21,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
Screwed Bonnet, Angle type body,
Rising Stem
Threaded ends to BS21 (JIS B0203)
W.O.G. non-shock 2.07 MPa (300 psi), Saturated steam pressure 1.03 MPa
(150 psi)
*Size 3 only
This valve is not designed to handle toxic gases. Use specially designed or certified valves for flammable gas service.

Test Pressure(MPa) Inspection Standard:KITZ St'd-1

	Water	Air
Shell	2.40*(1/4-2inch,8-50mm), 2.10(21/2-3inch,65-80mm)	0.6(1/4-3inch,8-80mm)
Seat	-	0.6(1/4-3inch,8-80mm)
Back Seat	-	-

Size Range

inch	1/4	3/8	1/2	3/4	1	11/4	11/2	2	21/2	3
mm	8	10	15	20	25	32	40	50	65	80
L	44	44	53	65	77	85	100	119	139	158
H	66	68	79	93	104	127	145	174	199	215
D	50	50	60	70	80	90	100	115	135	155

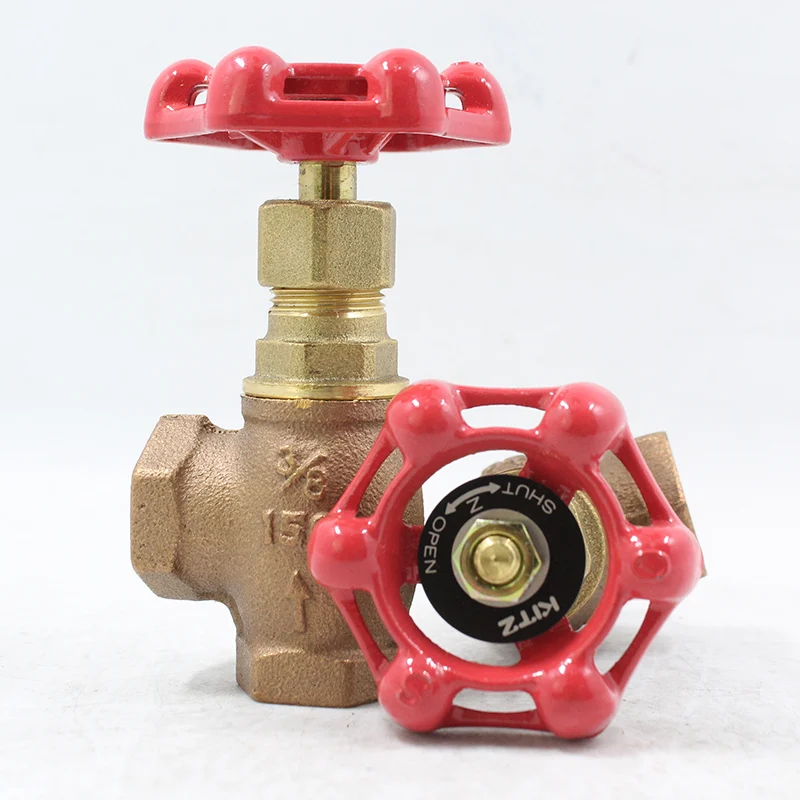

Prouduct show
