Высококачественная автомобильная лента для проводов тканевая клейкая с Полиэфирной
- Категория: Electrical Tapes >>>
- Поставщик: Beijing,Huaxia,Yongle,Adhesive,Tape,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.18 $* | 0.19 $* |
| Aug-17-2025 | 0.91 $* | 0.97 $* |
| Jul-17-2025 | 0.76 $* | 0.6 $* |
| Jun-17-2025 | 0.27 $* | 0.21 $* |
| May-17-2025 | 0.56 $* | 0.56 $* |
| Apr-17-2025 | 0.58 $* | 0.51 $* |
| Mar-17-2025 | 0.57 $* | 0.18 $* |
| Feb-17-2025 | 0.82 $* | 0.69 $* |
| Jan-17-2025 | 0.15 $* | 0.48 $* |
Характеристики
Product Description

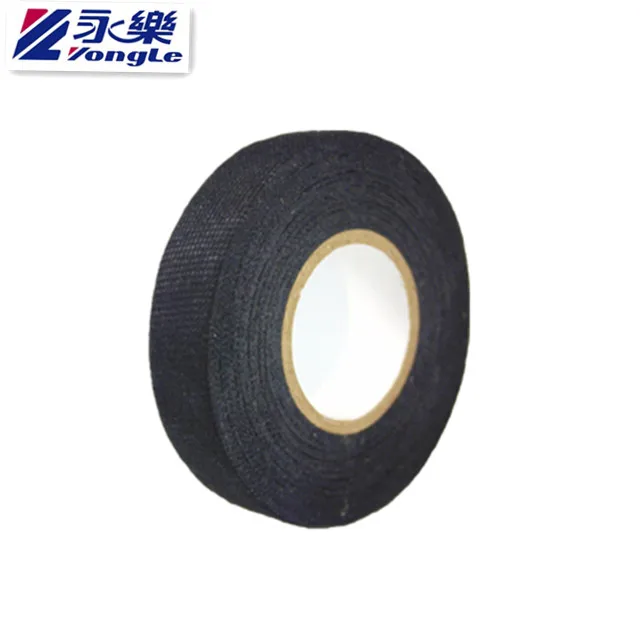

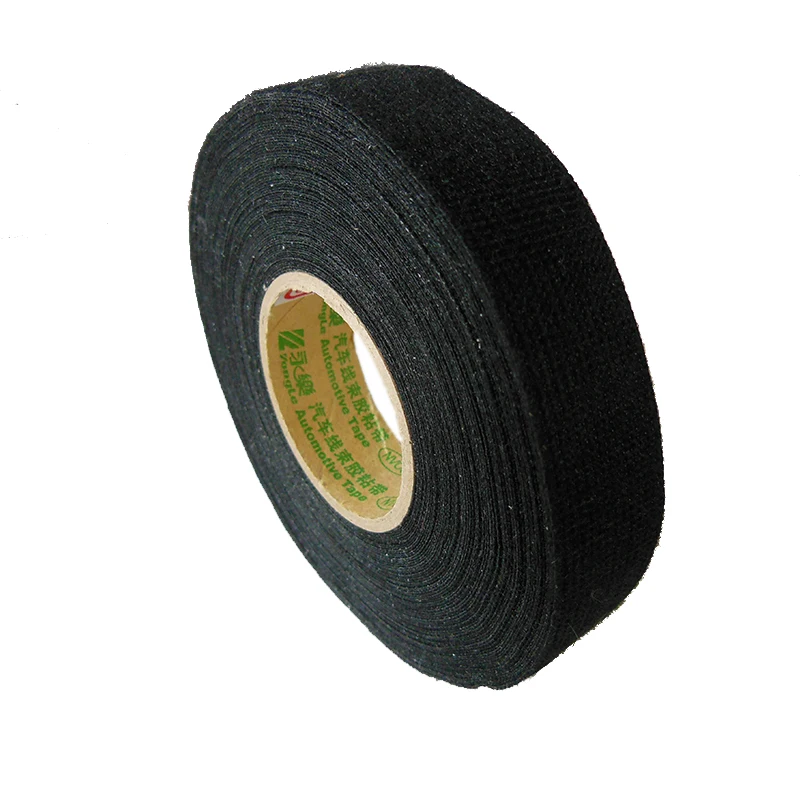

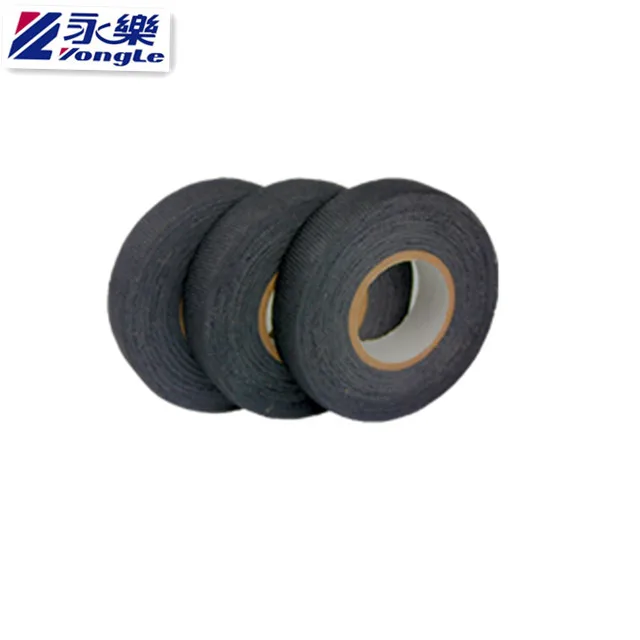

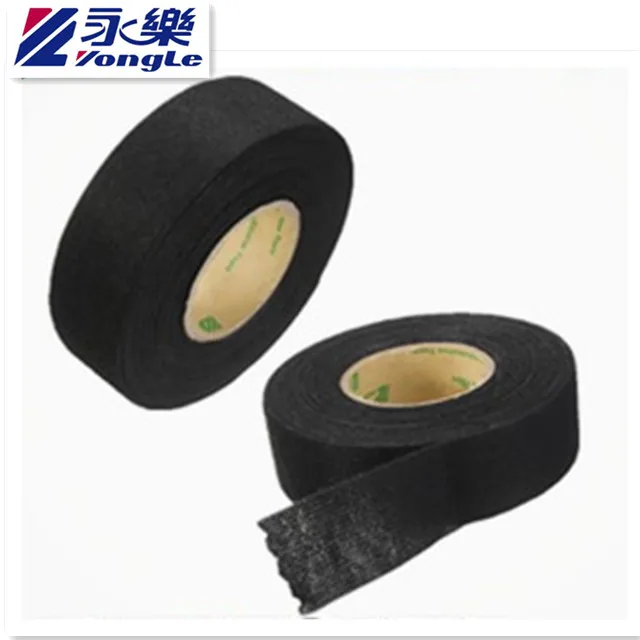

Yongle Brand High Quality automotive Wire Harness cloth Tape/cloth duct tape
Carrier: PET Cloth (Polyester fabric)
Total caliper 270um
Adhesive: Acrylic
Temperature resistance: -40~150℃
Feature:
-High adhesion, adhesion class: D.
-Comply with ROHS and Reach
-Free of critical substance
-Stable against rotting
-High tear resistance and stability
-Very high noise reduction effect
-High temperature stability
-Extremely soft surface
-High abrasion resistance
-Low temperature stability
Detailed Images
Application：

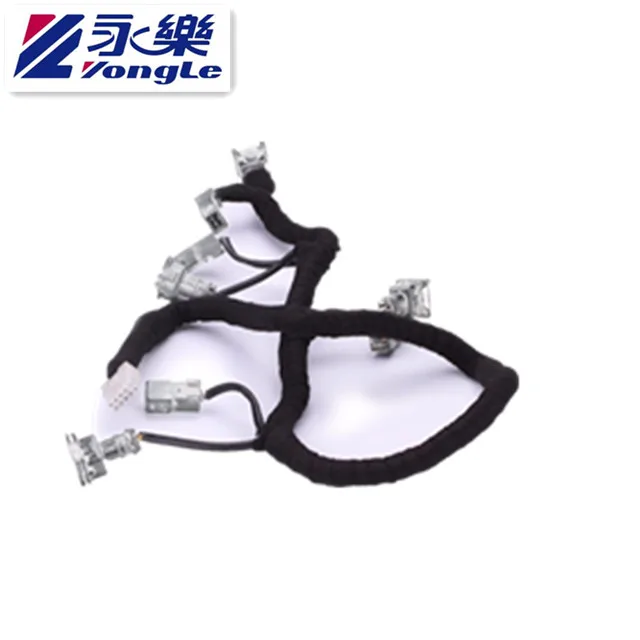

HX9523D is especially designed for wire harness wrapping in the dautomotive industry.
Because of the high temperature stability, the extremely robust backing and the excellent abrasion resistance, it is ideal for use in the engine area.
Standard sizes:
Width Length Core
19mm 2om 38mm
19mm 25m 38mm
32mm 20m 38mm
32mm 25m 38mm
Please contact with me for OEM sizes.
Product code | Total Caliper(μm) | Carrier | Maximum Continuous operating Temperature(℃) | Tensile strength(N/cm) | Elongation (%) | 180° peel of strength To steel(N/cm) | 180° peel of strength To backing(N/cm) | Abrasion Class | Flame Class | |||||||||
HX9523 | 270 | PET Cloth | -40~150 | 48 | 240 | 2.5 | 3 | C | B | |||||||||
HX9523D | 270 | PET Cloth | -40~150 | 48 | 245 | 2.5 | 3 | D | B | |||||||||
HX9523A | 170 | PET Cloth | -40~125 | 25 | 85 | 3 | 3 | B | B | |||||||||
HX9523C | 150 | PET Cloth | -40~105 | 26 | 80 | 3 | 2.5 | A | B | |||||||||
HX9523E | 170 | PET Cloth | -40~105 | 24 | 90 | 3 | 2.5 | A | B | |||||||||
Comply with ROHS and Reach. HX9523 and HX9523D are Acylic adhesive, HX9523A is Natural Rubber adhesive, HX9523C and HX9523E are Synthetic Rubber adhesive. | ||||||||||||||||||
Packing & Delivery
Package as above picture.
Based on your request, we can design the box and label and tape core print. Please consult me.
Certifications
Our Company
With sound thchnical capability, powerful R&D capacity, high quality R&D team and complete lab equipment, we invest havily in R&D and production.
Special attention is paid on the development and production of PVC adhesive tape and other high balue-added special adhesive tape, so as to extend the product range to meet the needs of the customers.
Special attention is paid to the development of new products, to reinforce our competitiveness in the tape industry.
Top experts at home and abroad are engaged long-term as technical consultants.
Strict quality measures are in place at every stage, from raw material purchase, production process to the testing of final products, to ensure that the products meet our quality standards. Each process must pass strict tests, all data must be scientifically demonstrated, product quality is strictly controlled in every detail.
Company history
1985 Company founded (One of the earliest BOPP tape manufactures in China)
1991 Started manufacturing PVC tape (One of the earliest BOPP tape manufactures in China)
1995 Huaxia Research and Development Center established
1997 UL listed
1998 ISO9002
1999 CE listed
2000 CSA listed
2002 QS9000 and VDA 6.1 certified
2002 BSI certified
2004 ISO/TS 16949 Quality system certified
2005 ISO 14001 certified
2006 Rated one of the most growth-oriented enterprise by Forbes Asia
2006 HUAXIA GROUP participate in the drafting PVC tape industry standards of China
2007 "Yongle"awarded as China Resounding Brand
2007 "Yongle Tape"awarded as China Top Brand
2009 Approved by American UPC
2011 PVC tape and cloth tape approved by FAW Volkswagen, Volvo and other automotive manufacturers
2012 PVC tape and cloth tape approved by Yazaki North America, Sumitomo wire harness plant and Ford
2013 Awarded by China Customs as AA Enterprise
2014 Yongle Tape Zhuozhou Plant was relocated to the Yongle Industrial Park
