Пневматический амортизатор с высоким гидравлическим амортизатором виброизолятор воздушные
- Категория: HVAC Systems & Parts >>>
- Поставщик: Bellking,Vibration,Reduction,Equipment,Manufacturing,(kunshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.34 $* |
| Aug-16-2025 | 0.51 $* | 0.60 $* |
| Jul-16-2025 | 0.50 $* | 0.98 $* |
| Jun-16-2025 | 0.61 $* | 0.53 $* |
| May-16-2025 | 0.47 $* | 0.81 $* |
| Apr-16-2025 | 0.54 $* | 0.26 $* |
| Mar-16-2025 | 0.51 $* | 0.39 $* |
| Feb-16-2025 | 0.56 $* | 0.44 $* |
| Jan-16-2025 | 0.88 $* | 0.1 $* |
Характеристики
Product Description

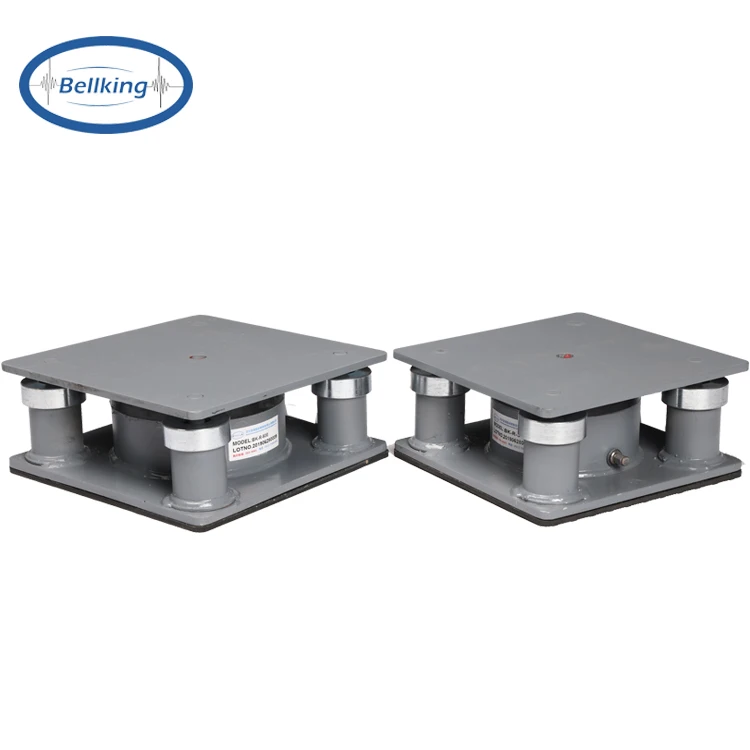

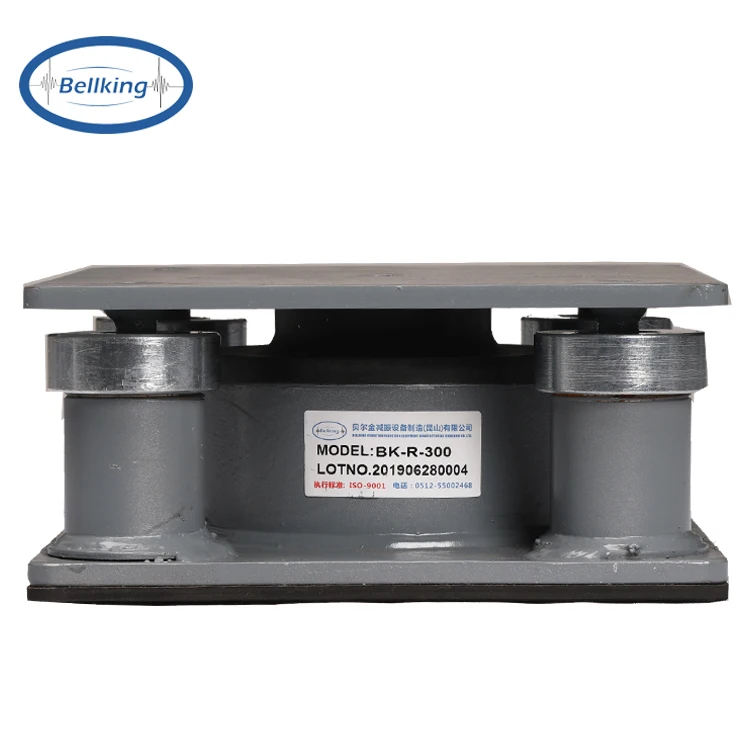

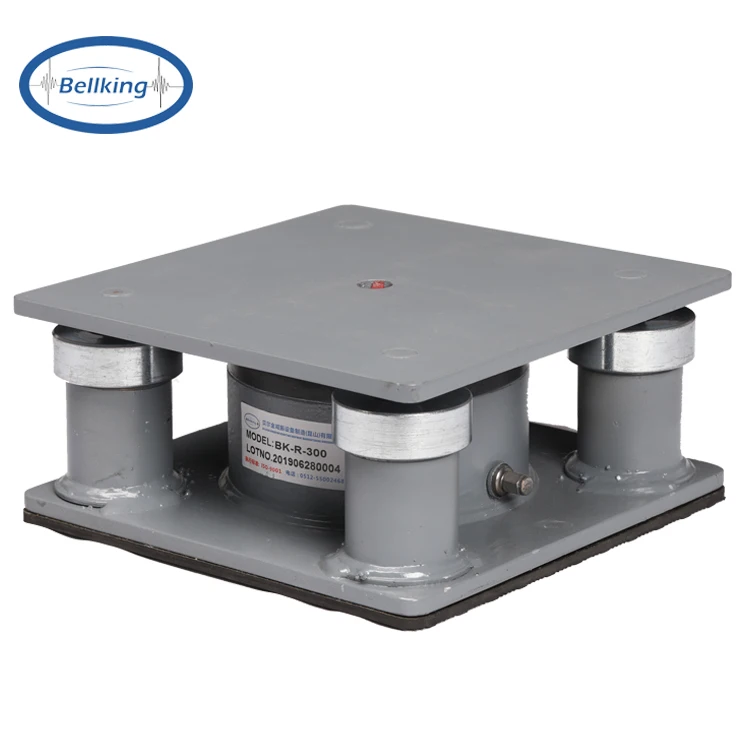

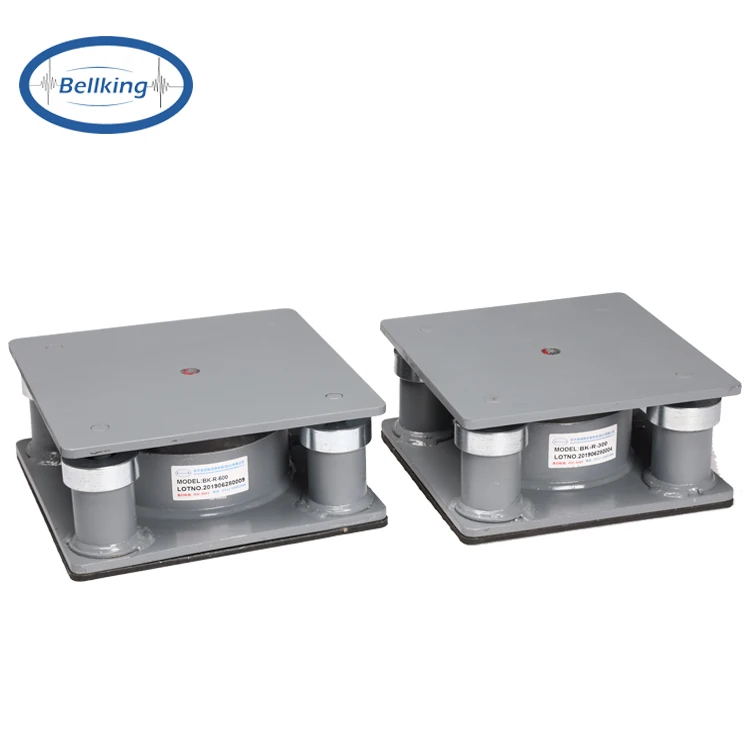

| Product Name | Air mount vibration isolator type BK-R |
| Characteristics | . Pneumatic shock absorber with high hydraulic damping. . Suitable for shock and vibration attenuation, especially for high speed punch. . Low natural frequency, has good vibration attenuation. . Rubber material is Neoprene, withstand wide temperature range and long service life. . Designed with anti-oil cap. . High damping design can avoid vibration resonance. . Natural frequency is 3Hz~5Hz, maximum air pressure is 4.5kg/cm². . Damping factor is 0.12~0.13. . Meet standard of JISD-4101. |
| Application | . Punch, Presses, Air compressor, Chillers, Pump. |
Type | Rated Capacity Kg | Dimensions(mm) | Bolt | ||
| A | B | H | |||
BK-R-300 | 200-400 | 235 | 235 | 115 | M12 |
BK-R-600 | 400-700 | 260 | 260 | 115 | M12 |
| BK-R-800 | 700-900 | 270 | 270 | 115 | M16 |
| BK-R-1100 | 900-1200 | 300 | 300 | 115 | M16 |
| BK-R-1500 | 1200-1600 | 350 | 350 | 115 | M16 |
| BK-R-1900 | 1600-2000 | 400 | 400 | 115 | M16 |
| BK-R-2700 | 2000-2800 | 450 | 450 | 115 | M20 |
| BK-R-3400 | 2800-3500 | 500 | 500 | 115 | M20 |
BK-R-5900 | 3500-6000 | 575 | 575 | 115 | M24 |
BK-R-8900 | 6000-9000 | 650 | 650 | 115 | M24 |
Packaging & Shipping
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
Company Information
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China
