NDT твердости металла Портативный Измеритель Твердости либа

Описание и отзывы

Трекер стоимости

Характеристики

NDT Metal hardness tester portable leeb hardness tester HM-6560

portable leeb hardness tester

portable leeb hardness tester

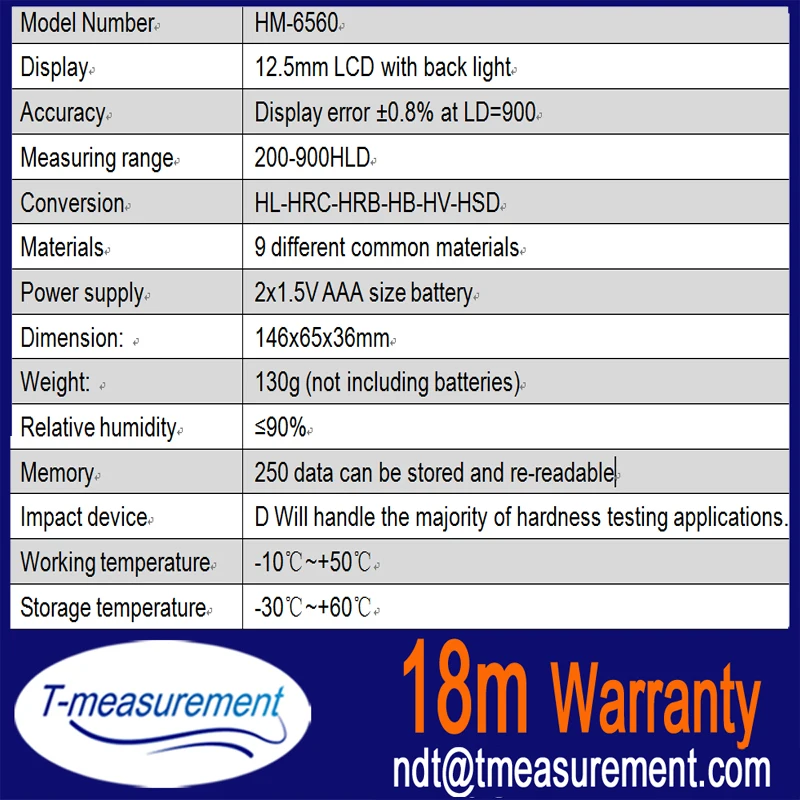

Hardness tester's Technical Specifications:

Model Number	HM-6560
Display	12.5mm LCD with back light
Accuracy	Display error ±0.8% at LD=900
Measuring range	200-900HLD
Conversion	HL-HRC-HRB-HB-HV-HSD
Materials	9 different common materials
Power supply	2x1.5V AAA size battery
Dimension:	146x65x36mm
Weight	130g (not including batteries)
Relative humidity	≤90%
Memory	250 data can be stored and re-readable
Impact device	D Will handle the majority of hardness testing applications.
Working temperature	-10℃~+50℃
Storage temperature	-30℃~+60℃

 portable leeb hardness tester



Hardness Tester's Applications Materials



1 Steel and cast steel

2 Cold work tool steel

3 Stainless steel and high temperature-resistant steel

4 Cast iron with lamellar graphite (grey cast iron GG)

5 Cast iron with spheroidal and nodular graphite (GGG)

6 Cast aluminum alloys

7 Copper - zinc alloys (brass)

8 Copper-alu /copper-tin alloys (bronze)

9 Copper

portable leeb hardness tester

portable leeb hardness tester

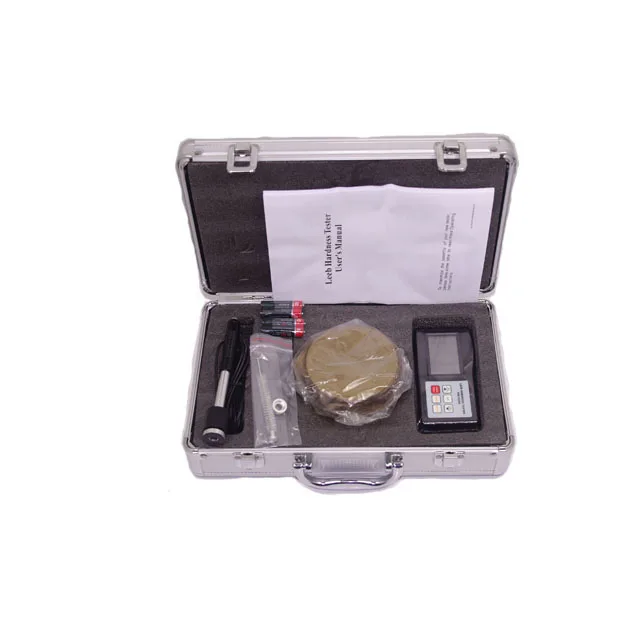

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main unit	1
	2	Standard test block	1
	3	Measurement sensor	1	Included in the main unit
	4	Small support ring	1
	5	Manual	1
	6	Carrying case	1
	7	Cleaning brush	1
Optional Configuration	1	Other type of impact devices and support rings
	2	RS232C or USB cable +Software		Refer to Table A in the appendix.
	3	Impact body

portable leeb hardness tester

For more information please contact us by mail ndt at tmeasurement.com

                               Or by Skype:tmeasurement04

                               Or by Whatsapp:+86 13164541149

                               Or by Phone: 86-411-39685079

                               Or by Mob:86-13164541149

portable leeb hardness tester
