GKF-2012 двойной основной выход фокус универсальный ku band
- Категория: Radio & TV Accessories >>>
- Поставщик: Zhuhai,Gecen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.36 $* | 1.27 $* |
| Jul-16-2025 | 1.3 $* | 1.3 $* |
| Jun-16-2025 | 1.45 $* | 1.76 $* |
| May-16-2025 | 1.66 $* | 1.19 $* |
| Apr-16-2025 | 1.72 $* | 1.9 $* |
| Mar-16-2025 | 1.48 $* | 1.55 $* |
| Feb-16-2025 | 1.67 $* | 1.89 $* |
| Jan-16-2025 | 1.77 $* | 1.55 $* |
Характеристики
Product Description

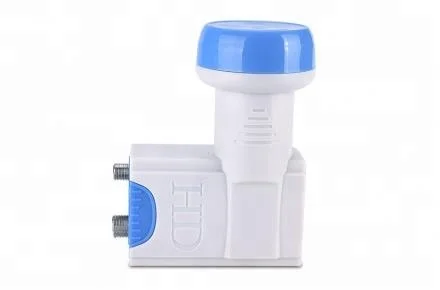

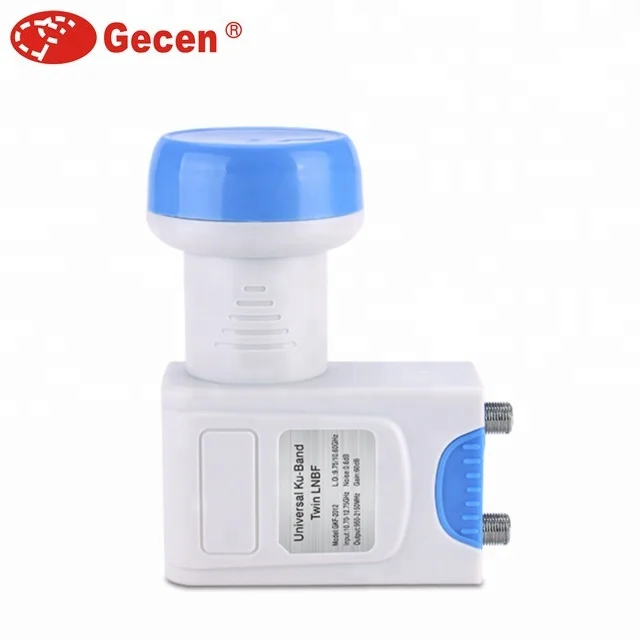

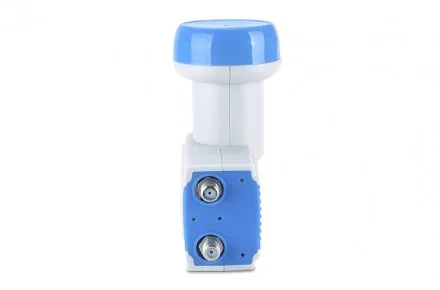

GKF-2012
Product Name： Universal Ku-Band Twin LNBF
Model：GKF-2012
Features： Full coverage of Ku-Band for Analog and Digital reception
Low noise figure
Easy installation
Low power consumption
High quality weather protection
Model：GKF-2012
Features： Full coverage of Ku-Band for Analog and Digital reception
Low noise figure
Easy installation
Low power consumption
High quality weather protection
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
Noise Figure | 0.1dB(Typ.) | Connector Type | 75Ω Female Connector |
