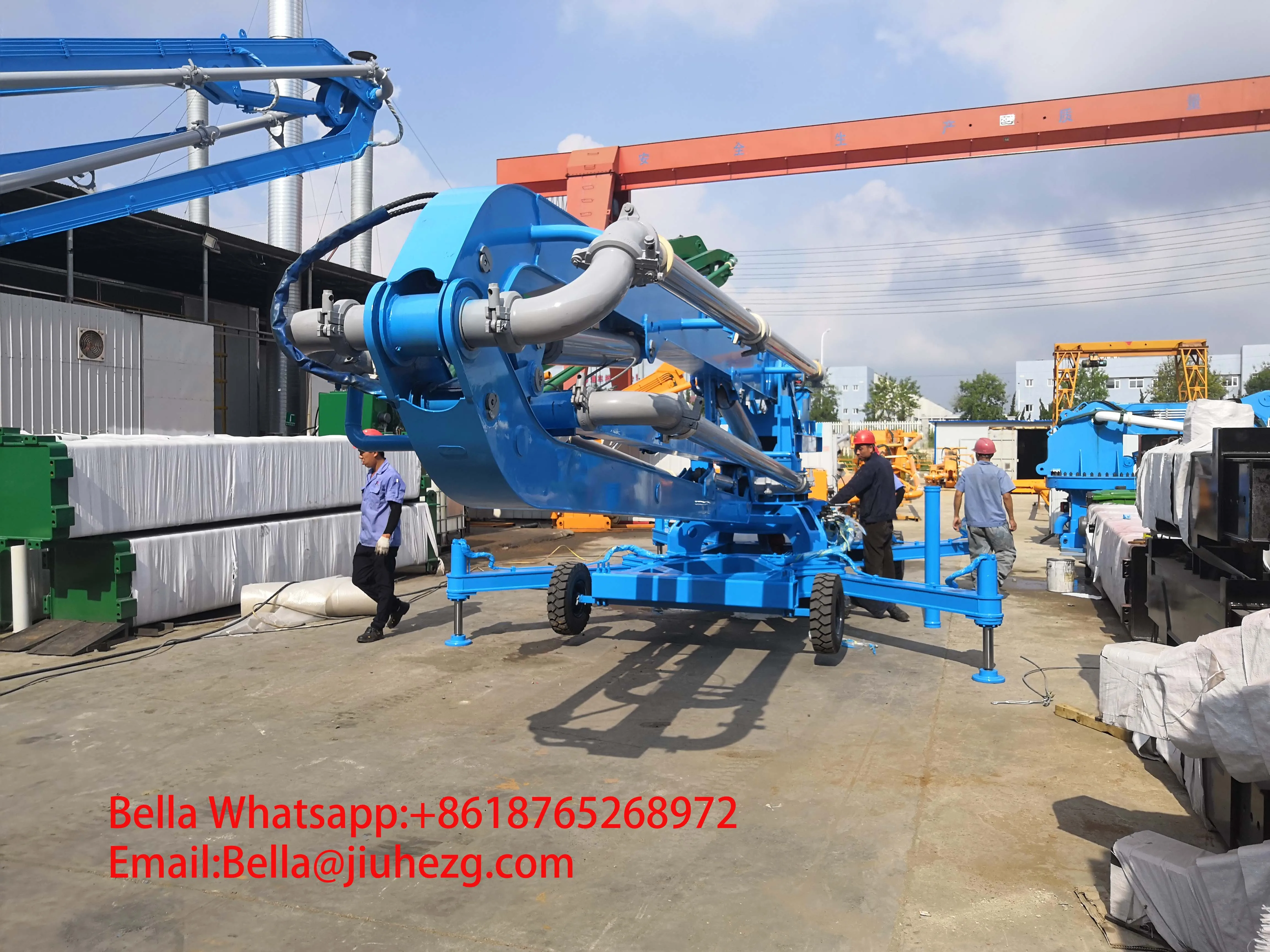

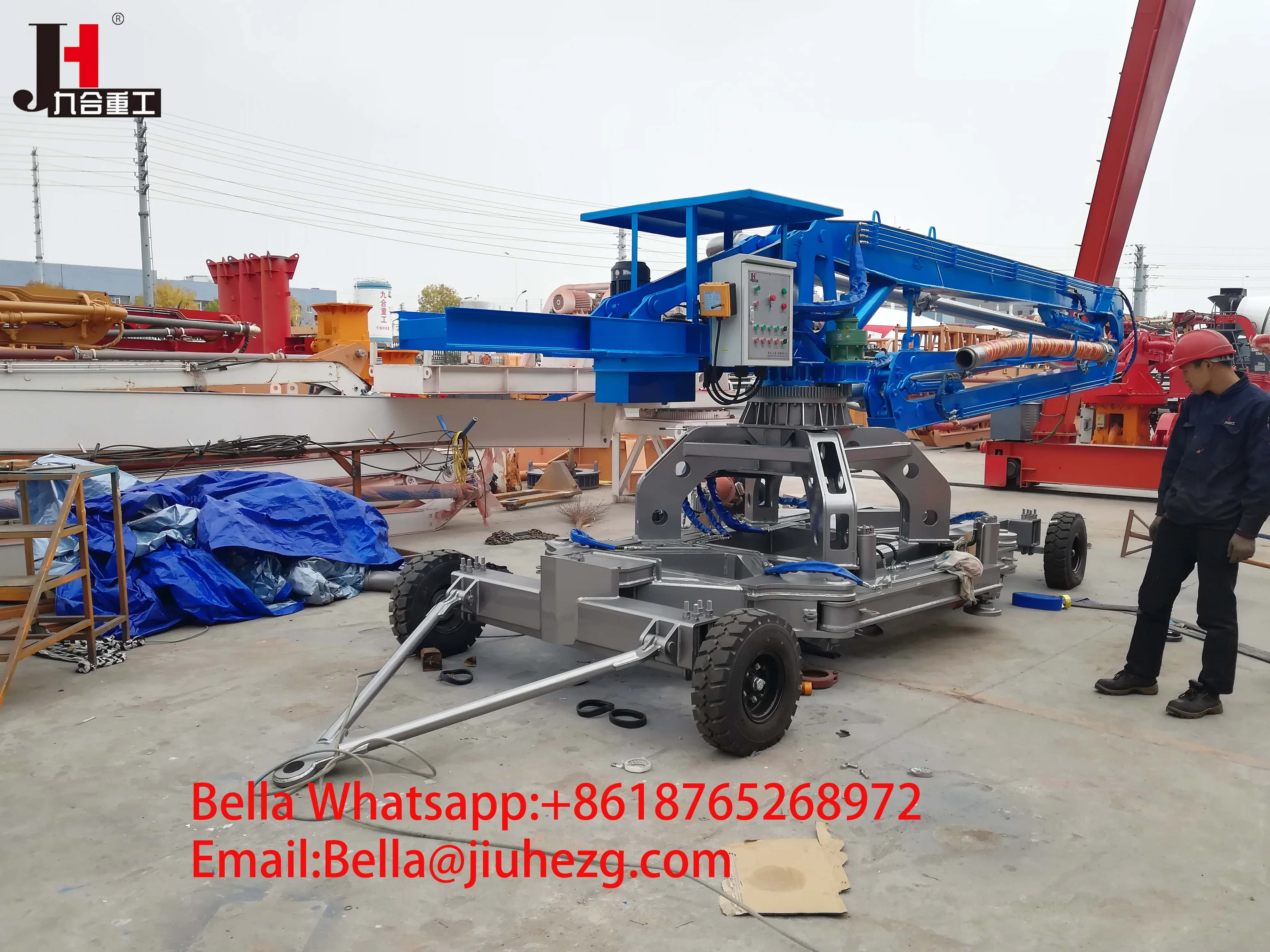

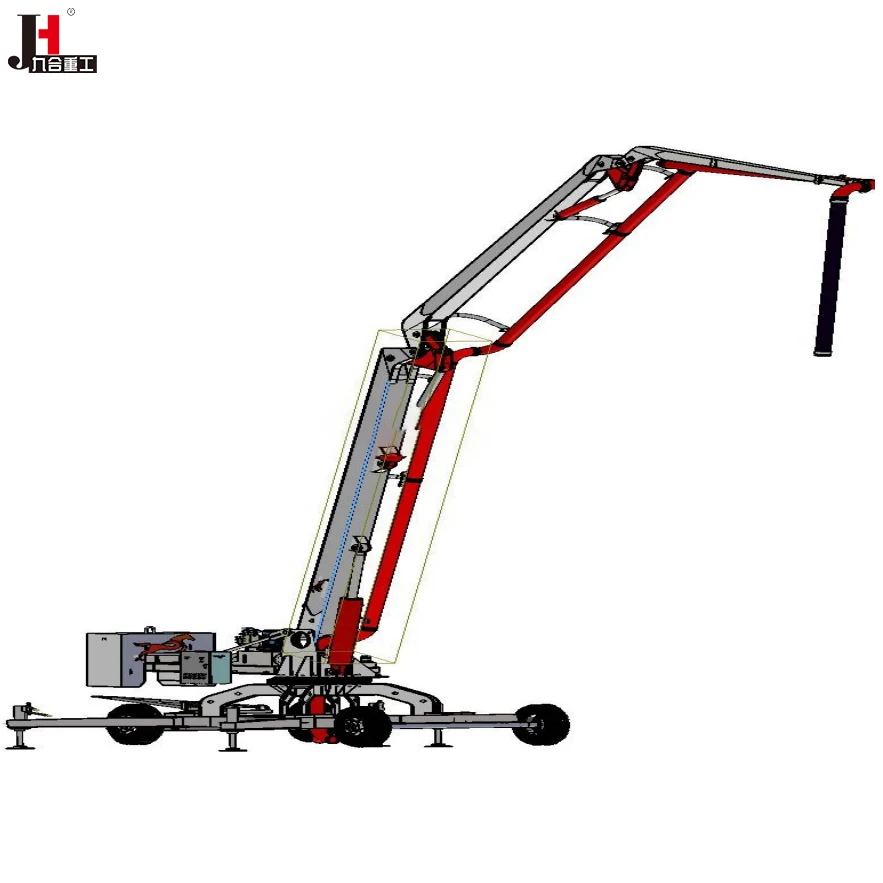

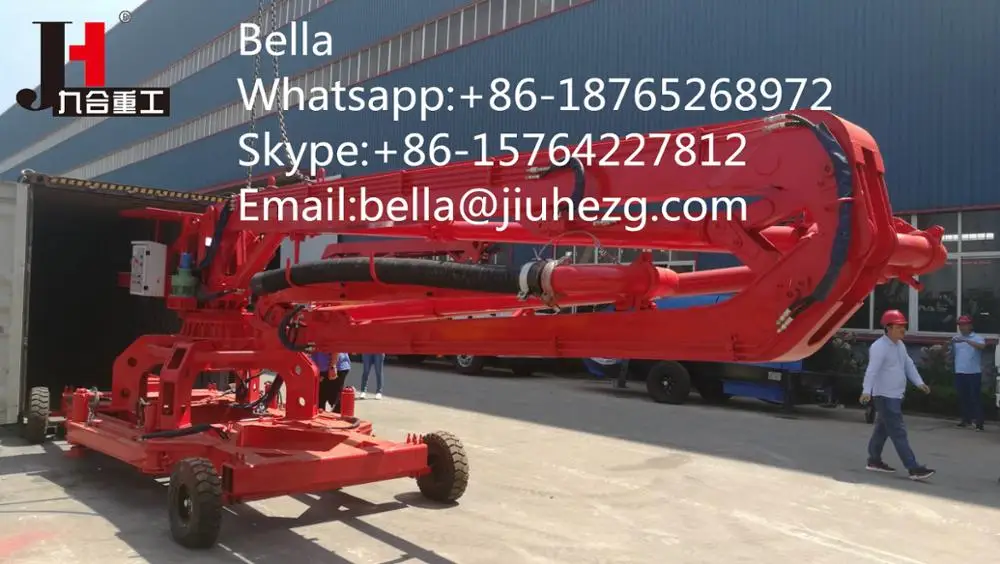

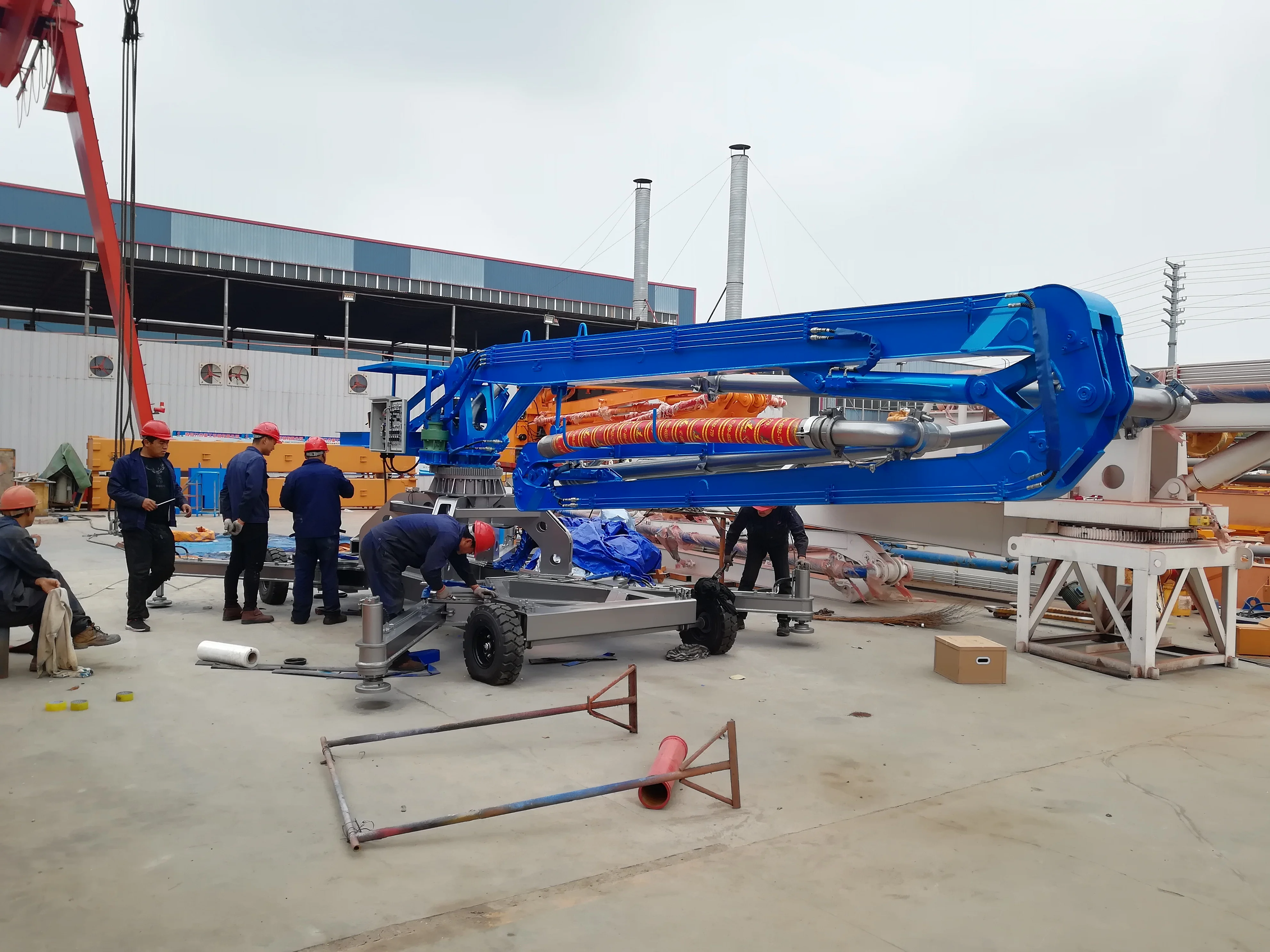

13m 15m 17m 18m 21m Concrete Placing Boom Mobile Type With Wheel


Product Introduction

1. It can be placed in suitable places required without being fixed.
2. It features compact,light weight and can be lifted as a whole by a crane.
3. With excellent maneuverability, it can meet the re-quirements fo concrete placement on different jobsites, and is ideal for concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.

Technical parameters:



Item	HGY-15	HGY-17	HGY-18
Max. placing radius	15m	17m	18m
Big arm length	6m	6.66m	7.66
Medium arm length	5m	5.73m	5.73
Small arm length	4m	4.61m	4.61
Big arm elevation	0-70°	0-70°	0-65
Medium arm elevation	0-180°	0-180°	0-180
Small arm elevation	0-180°	0-180°	0-180
Tail Rotary radius	2.81m	3.5m	3.93
Max. theory delivery pressure	24Mpa	25Mpa	24Mpa
Rotation range	360°	360°	360°
Overall height	2.6m	3.2m	3.9m
Inner dia. of delivery pipe	125mm	125mm	125mm
Rated voltage	380V	380V	380V
Total power	4KW	5.5KW	5.5KW
Rated revolution	0.3-0.8r/min	0.3-0.8r/min	0.3-0.8r/min
Type of hydraulic oil circuit	Open circuit	Open circuit	Open circuit
Type of hydraulic oil	HM-N46	HM-N46	HM-N46
Allowed max. aggregate diameter	40MM	40MM	40MM
Length of rubber hose	3M	3M	3M
Weight( self-weight)	3300KG	5000KG	6700KG
Weight(total weight)	5500KG	7200KG	8900KG



Company Information
Jiuhe Heavey Industry is a professional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been a global famous brand in construction machinery industry.

















Development strategy

Strives for the survival by the quality, seek development by science and technology

Corporate philosophy

People-oriented, science and technology enterprise, recruiting high level scientific and

technological personnel, actively introduce advanced technology at home and abroad


JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.

JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.





FAQ

Q:Are you trading company or manufacturer?

A:We are factory, and we are gald if you would like visiting our company.



Q:How long is your delivery time?

A:Generally it is 5-10days if the goods are in stock or it is 15-30days if the goods are not in stock. It is according to your quantity.



IF YOU HAVE ANOTHER QUESTION, PLEASE FEEL FREE TO CONTACT ME AS BELOW INFORMATION:
